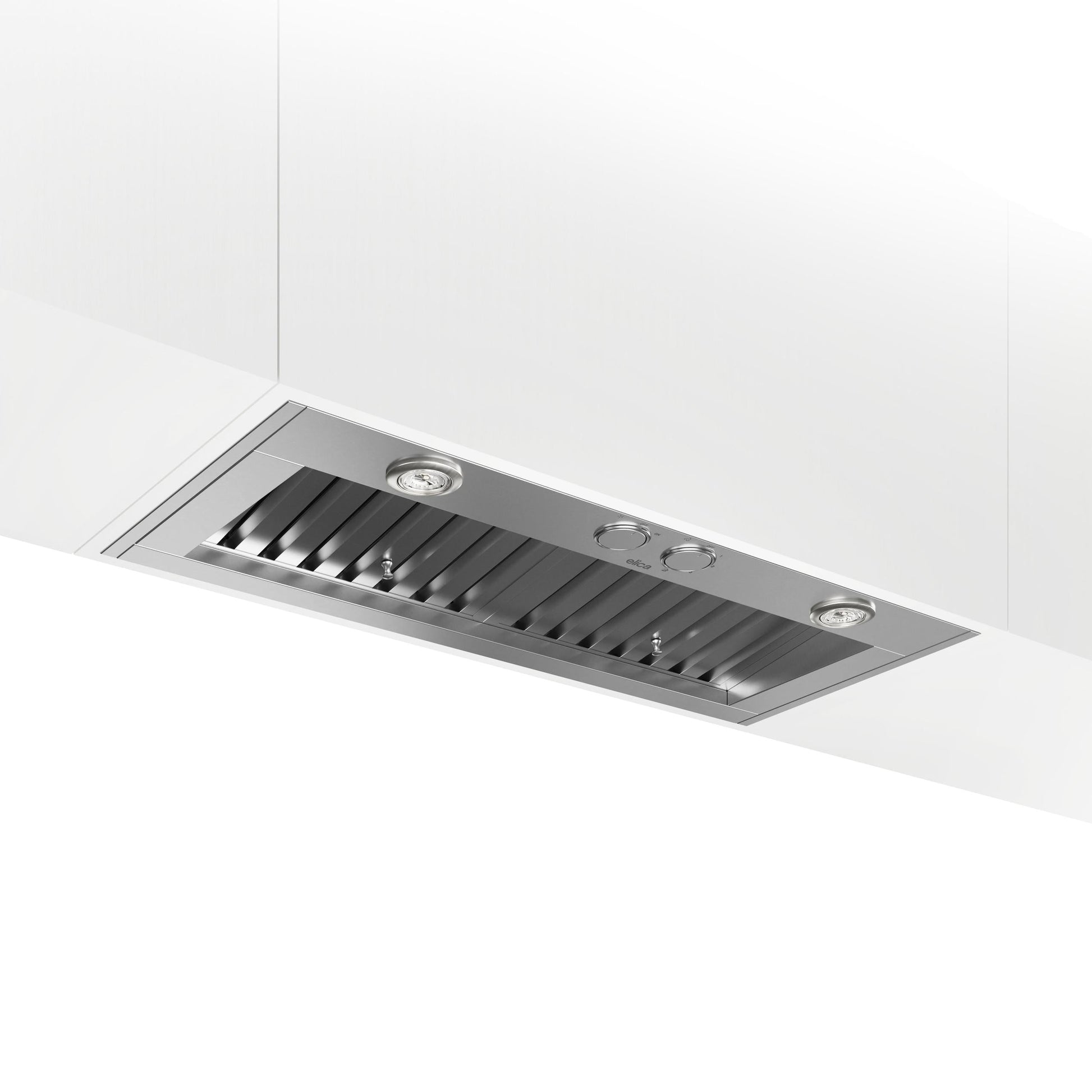

ELICA ESC134SS SCANNO Insert Range Hood 34 1/2 wide - 1200CFM in Stainless Steel - ESC134SS
Scanno available in 28 , 34 & 46 width and only 15 5/ depth to support shallower cabinetry, and offer 4 speed, 600 and 1200 CFM blowers for extraordinary ventilating power. The All-In-One design avoids the need to purchase a stainless-steel liner. Scanno comes equipped with ergonomic rotating knob controls which discreetly recess out of sight when not in use and long-life LED lighting illuminates the cooking surface. *Damp-location approved
What our Experts Think
-
Pro-level power in a compact insert:
1,200 CFM, 4-speed blower delivers exceptional ventilation for high-BTU ranges and heavy-duty cooking.
-
Deep, slim design for tight cabinetry:
Only 15 5/8″ deep, fitting neatly into shallow or custom cabinets without compromising airflow.
-
Effective noise control:
Hush system reduces operational noise by up to 35%, keeping the hood relatively quiet despite high power.
-
Safety built in:
Heat Guard sensor automatically increases fan speed when temperatures exceed ~158 °F to protect the hood and surrounding cabinetry.
-
Robust grease capture:
Dual stainless-steel S-shaped baffle filters trap grease efficiently, draining into removable trays for easy cleaning.
-
Refined control interface:
Fully retractable rotating knobs with backlighting hide when not in use but remain easy to operate.
-
Long-lasting lighting:
Two 7.5 W LEDs (3000 K) provide warm, energy-efficient illumination over the cooktop.
-
Heavy-duty construction:
Seamless, heavy-gauge stainless steel ensures a premium, durable finish.
-
Ducting support:
Designed for 10″ round ducting with a backdraft damper for optimal airflow and minimal backflow.
-
Reliable warranty:
3-year parts and in-home labor warranty provides peace of mind for long-term use.
-
Expert recommendation:
Ideal for serious cooks who need professional-level airflow and a compact insert design that fits tight cabinetry without sacrificing performance.
Q&A
Q: What is the Elica ESC134SS Scanno?
A: A 34½″ insert-style range hood designed for built-in cabinetry, offering very high airflow in a compact depth.
Q: How powerful is its airflow?
A: Delivers up to 1,200 CFM using a 4-speed internal blower.
Q: What controls does it use?
A: Fully retractable rotating knobs with soft backlighting when not in use.
Q: What kind of lighting is included?
A: Two LED lights (7.5 W, 3000 K) for bright, energy-efficient cooktop illumination.
Q: What type of grease filters does it use?
A: Stainless-steel baffle filters in an “S” shape, dishwasher-safe for easy cleaning.
Q: Does it have sound-reduction or safety features?
A: Yes — Hush System reduces noise by up to 35%, and Heat Guard automatically increases blower speed if temperatures exceed ~158°F to protect the hood and cabinetry.
Q: What ducting does it require?
A: Uses a 10″ round duct with a backdraft damper (top vent only).
Q: Can it be used as a recirculating (ductless) hood?
A: No — the 1,200 CFM version is designed for ducted installation only.
Q: What are its dimensions?
A: Approximately 34½″ W × 15¾″ D × 11.94″ H.
Q: Why choose the Scanno ESC134SS?
A: Offers very high extraction power, professional-grade stainless-steel build, low-profile insert design, and quiet, efficient operation, ideal for performance-focused kitchens with shallow cabinetry.
Maintenance Tips
-
Clean baffle or aluminum filters every 2–4 weeks with warm, degreasing soap to maintain peak 1200 CFM airflow.
-
Wipe stainless steel surfaces regularly using a soft microfiber cloth and stainless-safe cleaner to prevent streaks and preserve finish.
-
Inspect ducting and blower frequently to remove grease buildup for quiet, efficient high-power operation.
-
Check LED or halogen lights and replace as needed for optimal cooking illumination.
-
Avoid harsh chemicals or abrasive pads to protect the stainless steel finish.
-
Test fan controls regularly to ensure smooth, responsive operation at all speed settings.
