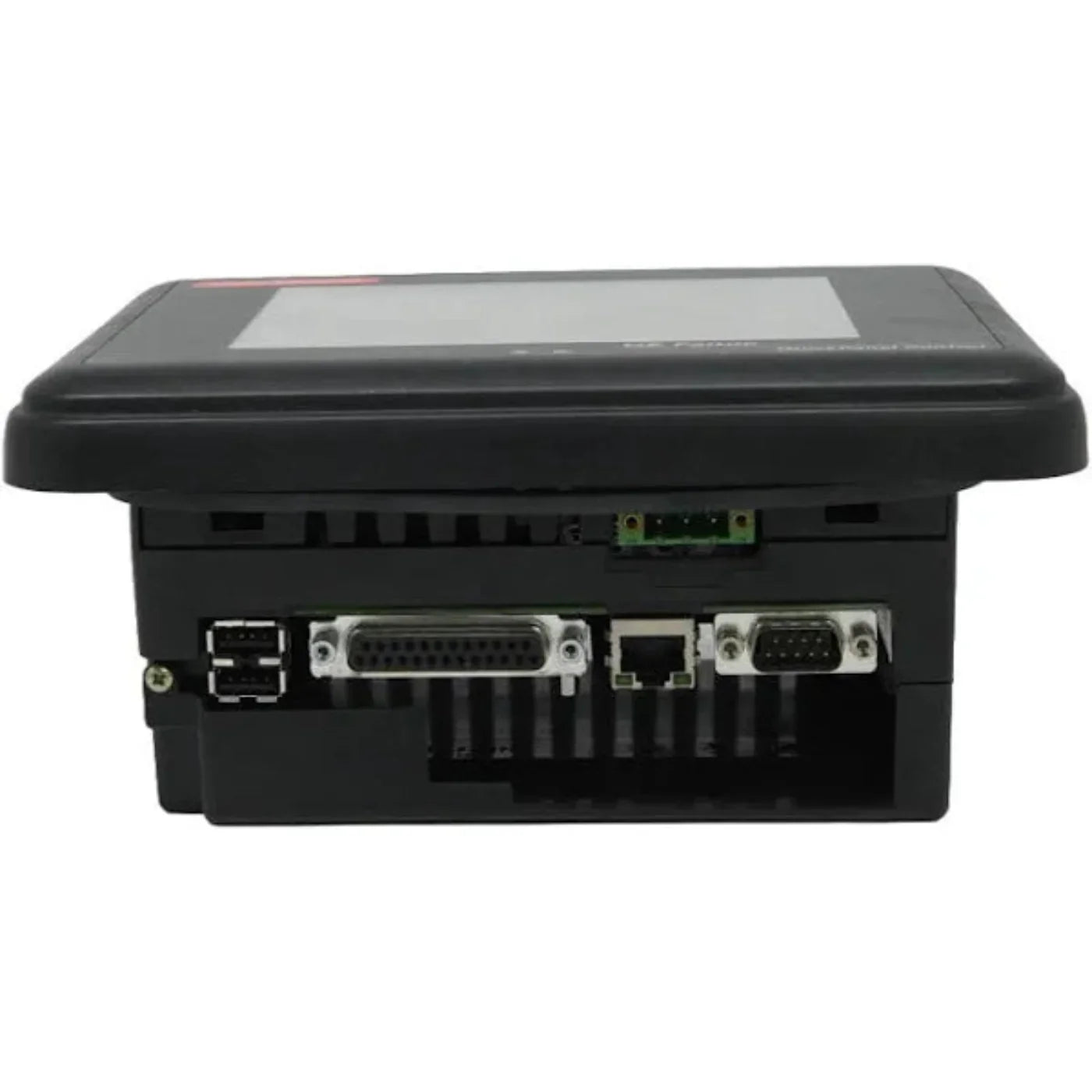

Fanuc Corporation Ge Fanuc 6" QuickPanel View - ES0622
The ES0622 color display is a GE Fanuc QuickPanel that comes with a 6-inch display screen. The ES0622 display features the touchscreen data entry process and a color display screen.
Information About ES0622
The ES0622 color display is a GE Fanuc QuickPanel that comes with a 6-inch display screen. The ES0622 display features the touchscreen data entry process and a color display screen. The input power rating is 24 Volts DC, and it supports the HMI-CAB-CS11 communication cable. The unit features the RS-232 and the RS4-85 communication type. The touchscreen display is coupled to the resistive touch panel with 12-bit resolution and when it is calibrated appropriately, this translates into a grid of touch cells on the display’s face. The ES0622 display controls should be operated by using only a blunt stylus to avoid screen damage or to ensure the proper functionality of the touchscreen.
The ES0622 display supports both the hardware and the software keyboard types. For the configuration of the ES0622 display, use either of the 2 keyboards. The software keyboard, also referred to as the software emulation keyboard, is used mostly for data input when using the ES0622 display in development mode, including in the soft input panel or in the operational environment. The external keyboard is an optional device and it is supported through the ES0622 display’s universal serial board port. The ES0622 display comes with USB drivers installed, to ensure the plug and play process for the keyboard. The soft input panel (software keyboard) is preinstalled with the Windows CE operating software, and it is displayed as an icon on the taskbar system tray. The soft input panel can be dragged around the screen to ensure the visibility of the onscreen icons. The ES0622 display also supports a USB mouse that is also used for data input and control.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
SpecificationsÂ
| Brand |
GE Fanuc |
| Series |
Genius I/O |
| Part Number |
IC660BBS102 |
| Product Type |
I/O Block |
| Number of Circuits |
8 |
| Voltage Rating |
115 Volts AC / 125 Volts DC |
| Number of Inputs |
8 |
| Points per Common |
4 groups of 2 |
| Failed Switch Diagnostic |
Yes |
| Isolation |
250 Volts AC |
| Operating Voltage |
93–132 VAC / 105–132 VDC |
| Nominal Voltage |
115 VAC / 125 VDC |
| Dimensions |
8.8 x 3.3 x 3.9 inches |
| Communication Protocol |
Genius Protocol |
| Peak Heat Dissipation |
45.6 Watts |
| Input Response Time |
AC: 2 ms + filter; DC: 0.8 ms + filter |
| Selectable Input Filter Times |
AC: 2 A RMS; DC: 2 A resistive (1 A inductive) |
| Output Switching |
Zero crossing (OFF to ON / ON to OFF) |
| Max Switching Frequency |
Once per second |
| Turn-On Delay (Max) |
AC: 0.5 Hz + 1 ms; DC: 1 ms |
| Block-to-Block Isolation |
1500 V for one minute |
| LED Indicators |
Unit OK, I/O Enabled |
What our Experts Think
-
Purpose-Built Performance: Designed for reliable high-speed communication between the GE Series 90-70 PLC and remote I/O devices.
-
Industry-Grade Reliability: Known for long-term durability in demanding industrial environments.
-
Plug-and-Play Integration: Seamlessly integrates with other GE Fanuc automation systems, minimizing setup time.
-
Efficient Data Handling: Supports up to 8 I/O drops with high-speed serial communication via Genius Bus.
-
Smart Diagnostics: Built-in LEDs and status indicators for quick troubleshooting and minimal downtime.
-
Compact Design: Space-saving module fits easily into existing GE 90-70 racks.
Q&A
Q: What is the GE Fanuc IC697BEM733?
The IC697BEM733 is a Genius Remote I/O Scanner module designed for the GE Fanuc Series 90-70 PLC system. It facilitates communication between the central processor and remote I/O modules over the IC66* bus.
Q: What is the maximum distance it supports?
It supports a maximum distance of 7,500 feet (2,275 meters) from the host controller, depending on the baud rate and cable type
Q: How many devices can it connect?
The module can connect up to 32 devices on the bus at 153.6 Kbaud or 76.8 Kbaud, and up to 16 devices at 38.4 Kbaud.
Q: What is the I/O capacity?
It supports up to 1,024 discrete I/O points or 64 analog I/O points per remote drop.
Q: What types of modules are compatible?
Compatible modules include discrete and analog I/O modules, Bus Transmitters, Bus Receivers, PCM, ADS, and analog expander modules.
Q: What are the communication ports?
The IC697BEM733 features one 15-pin RS-422/485 serial port and one 9-pin IC66* Hand-held Monitor port.
Q: What is the current draw?
It requires 0.8 Amps at 5.0 Volts DC.
Q: What is the maximum number of remote drops?
It supports up to 20 fully-loaded remote drops or up to 30 drops if not fully-loaded, depending on the baud rate.
Maintenance Tips
-
Regularly Inspect for Physical Damage: Check for signs of wear, corrosion, or physical damage, especially around connectors and mounting points.
-
Ensure Proper Ventilation: Maintain adequate airflow around the module to prevent overheating.
-
Verify Secure Module Connections: Ensure that all modules are securely seated in their respective slots to prevent communication issues.
-
Monitor Power Supply: Check that the power supply is stable and within the specified voltage range to prevent damage to the module and connected devices.
-
Keep the Environment Clean: Regularly clean the module to remove dust and debris, which can affect performance and cause overheating.
-
Check Expansion Connections: If using expansion modules, ensure that the connections are secure and that the total system does not exceed the maximum supported configuration.
-
Update Firmware as Necessary: Keep the firmware updated to ensure compatibility with other modules and to benefit from performance improvements
