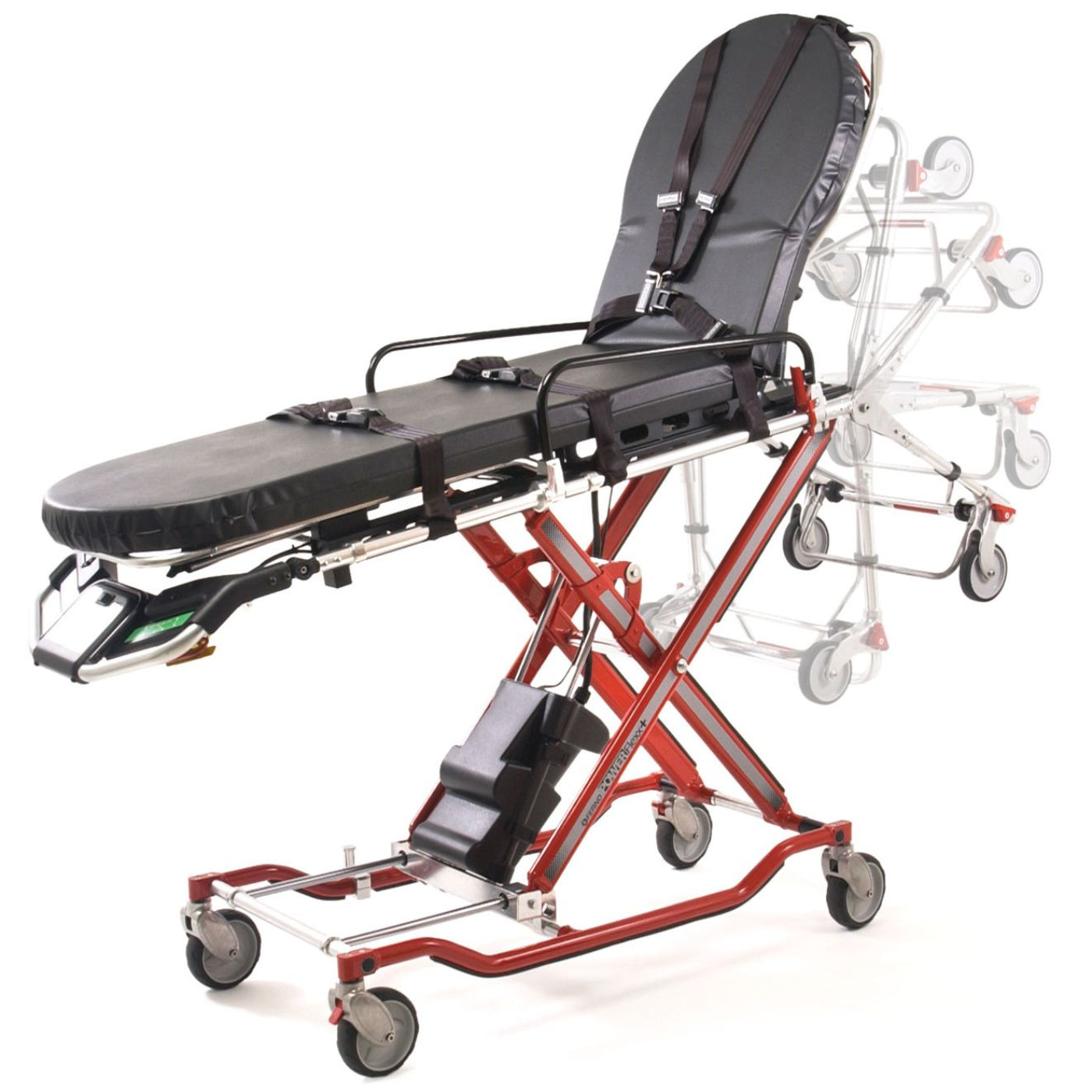

Ferno 56 POWERFlexx+ Powered Ambulance Cot - MFI-FNO-0015651
The Ferno 56 POWERFlexx+ Powered Ambulance Cot includes a mattress, battery pack, charger, two lap belts, and a four-point shoulder restraint.
The 56 POWERFlexx+ delivers 700 lb of unassisted lift capacity. The cot lifts the weight, not the operator, reducing situations where operators may injure their back. The 56 POWERFlexx+ also features advanced power management features and in-the-fastener charging to keep you powered on every call, without having to carry around extra batteries or take them out to charge.
The batteries included can power the cot for an average of 50 cycles before they require recharging. Please note that patient wight and extreme temperatures may affect the number of cycles.
Features
Features
- 700 lb lifting capacity raises the patient weight without lift assistance.

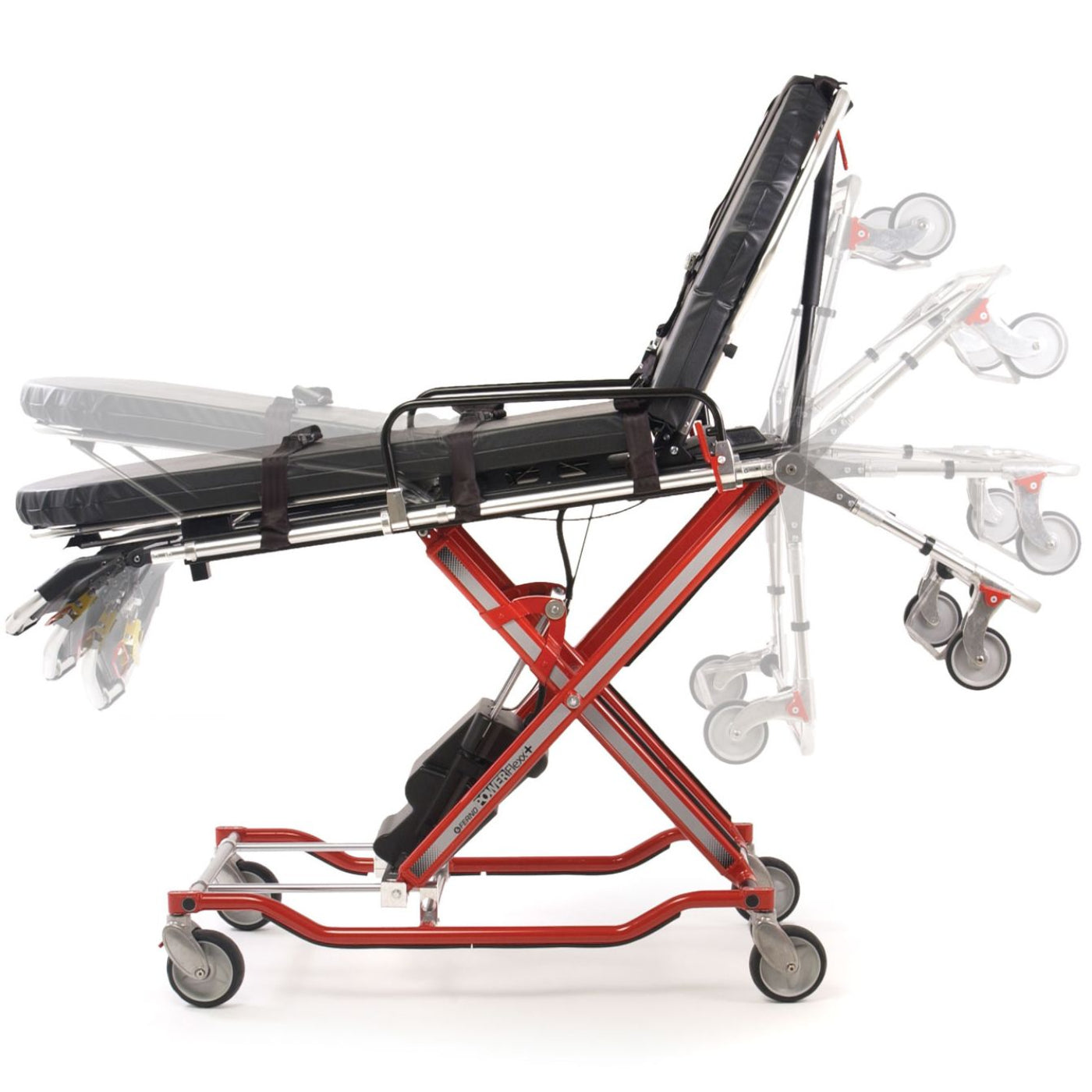

- 5-position drop frame and multi-position foot-end lift bar reduces the cot length by 15" for movement in confined spaces, and provides true 360° turning radius in the lowest position.
- Elongated rectangular X-frame.
- All-metal frame construction provides strength, durability, and exceptional performance with heavy patients.
- Non-telescoping tubing.

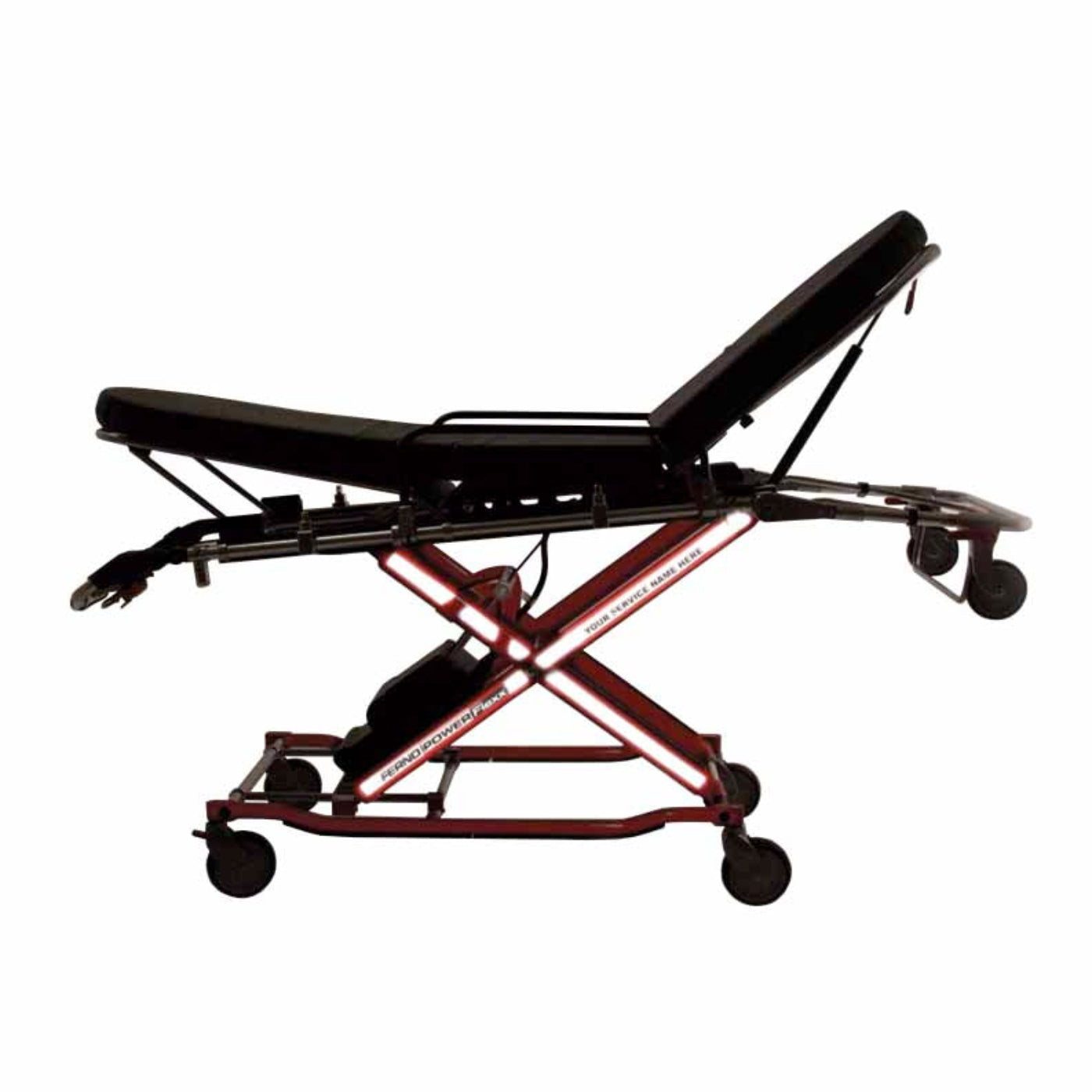

- Reflective labeling provides nighttime visibility for added safety (includes optional personalized graphics).
- 360° turn radius.

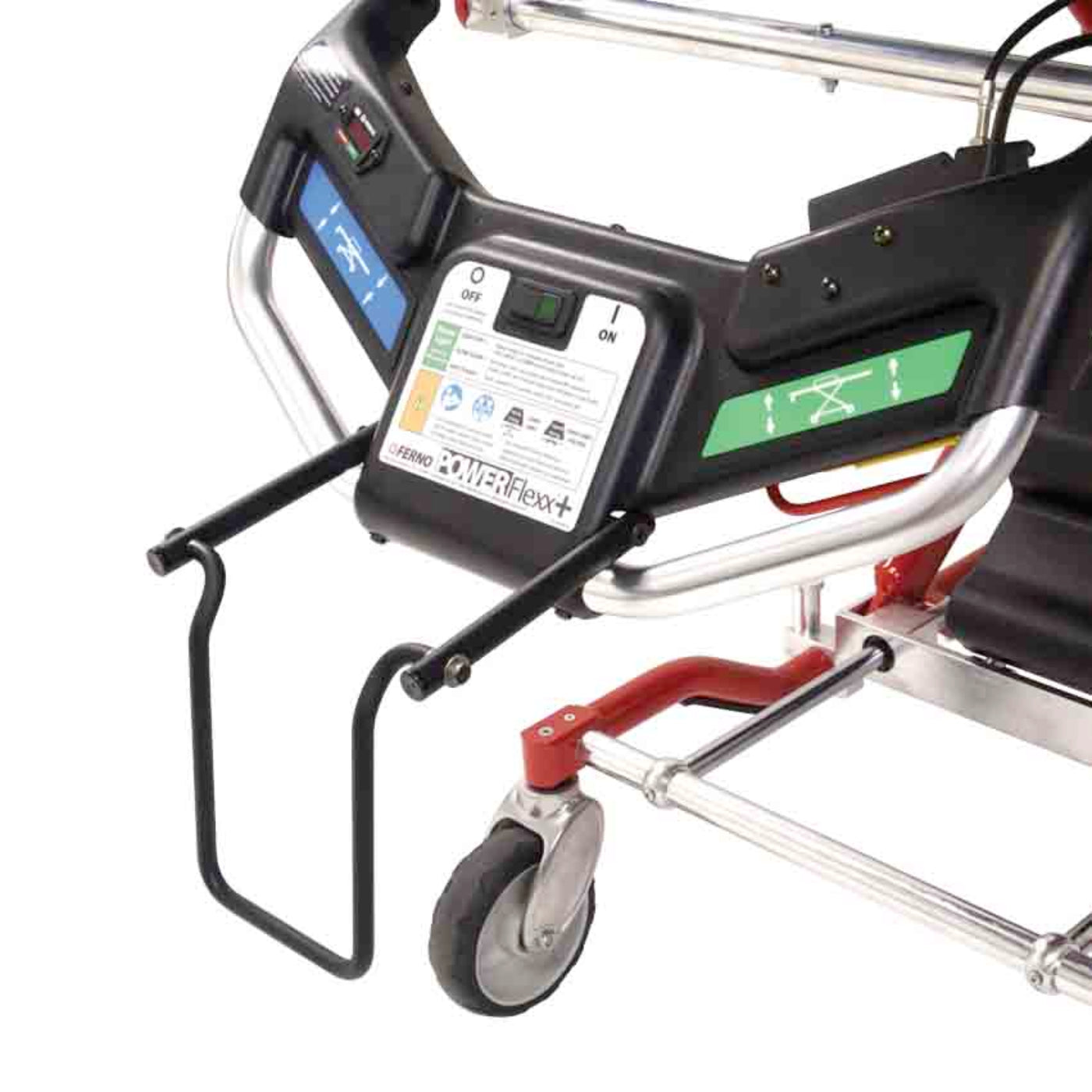

- Ergonomic control panel at operator end.
- User intuitive color controls.
- Wide thumb controls provide effective gripping and control from a variety of positions with or without gloves.
- On/Off switch on operator panel.

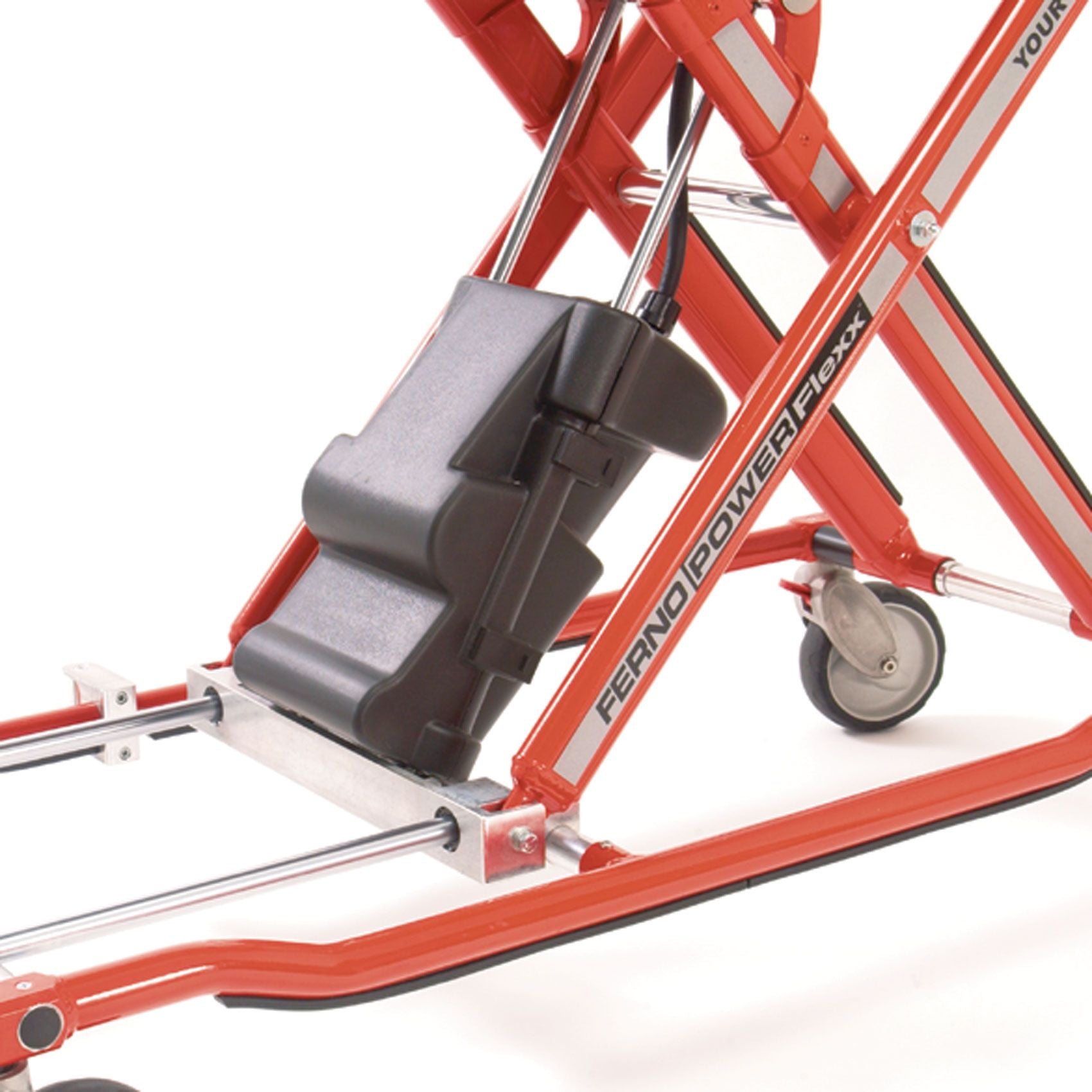

- Power pack located under backrest.
- 24 V DC power pack with hydraulic actuator and dual lifting cylinders provides smooth and reliable lifting.
- Auto shutoff during charging.
- Battery charger indicator.
- Clear anodized upper mainframe.
- No pinch points along mainframe.
- Manual override mode handle with secondary lock.
- One hand sidearm release.
- Swing out sidearms lock at 90°.
- X-frame runs on four shafts using linear bearings.
- Dual piston actuator.
- Extra-wide backrest panel.
- Mattress retained by locking clips.
- 79" patient surface / mattress.
- Completely enclosed hydraulic system.
- Single hand activated.
- Dual side operation of backrest.
- Safety bail release handle on the side.
- One-hand release infinite positioning gas assist backrest.
- LBS and LBS Jr. compatible.
- Fixed leg with dual rail for stability.
- ICS (Integrated Charging System) available to eliminate battery management.
- Fastener: 175 or Stat Trac compatible.
-
Stat Trac Cot Fastening System (optional): Eliminates the need to steer the cot when loading and unloading, reducing operator strain.
Specifications
Specifications
| Maximum Length |
83 in (211 cm) |
| Minimum Length |
61 in (155 cm) |
| Width |
24 in (61 cm) |
| Maximum Loading Height |
34 in (86 cm) |
| Weight |
133 lb (60 kg) |
| Lift Capacity |
700 lb (318 kg) |
| Load Limit |
700 lb (318 kg) |
| Shipping Weight |
230 lb (105 kg) |
| Shipping Dimensions |
87" × 29" × 27" |
Configurations
-
#MFI-FNO-0015651: Rescue Red.
-
#MFI-FNO-0015654: Electric Blue.
-
#MFI-FNO-0015651-ST: Rescue Red with StatTrac.
-
#MFI-FNO-0015654-ST: Electric Blue with Stat Trac.
Accessories
Accessories
The following accessories are compatible and commonly purchased with the 56 POWERFlexx+ Powered Ambulance Cot:
- 175 Fastening System.
- 185 Series Stat Trac Cot Fastening System.
-
#0000600: ICS Kit - Comp SW Connector Cup.
-
#0000603: ICS Kit - Plate with 175 and Charger.
-
#0000605: ICS Kit - Comp Deep Connector Cup.
-
#0000608: ICS Kit - Deep Plate with 175 and Charger.
-
#0085500: Oxy-Clip Oxygen Cylinder Holder.
-
#0313997: Replacement Mattress.
-
#0822012: Batteries (Pair).
-
#0822057: LBS (Large Body Surface) Bariatric Board.
-
#0822116: Dialysis Kickstand.
-

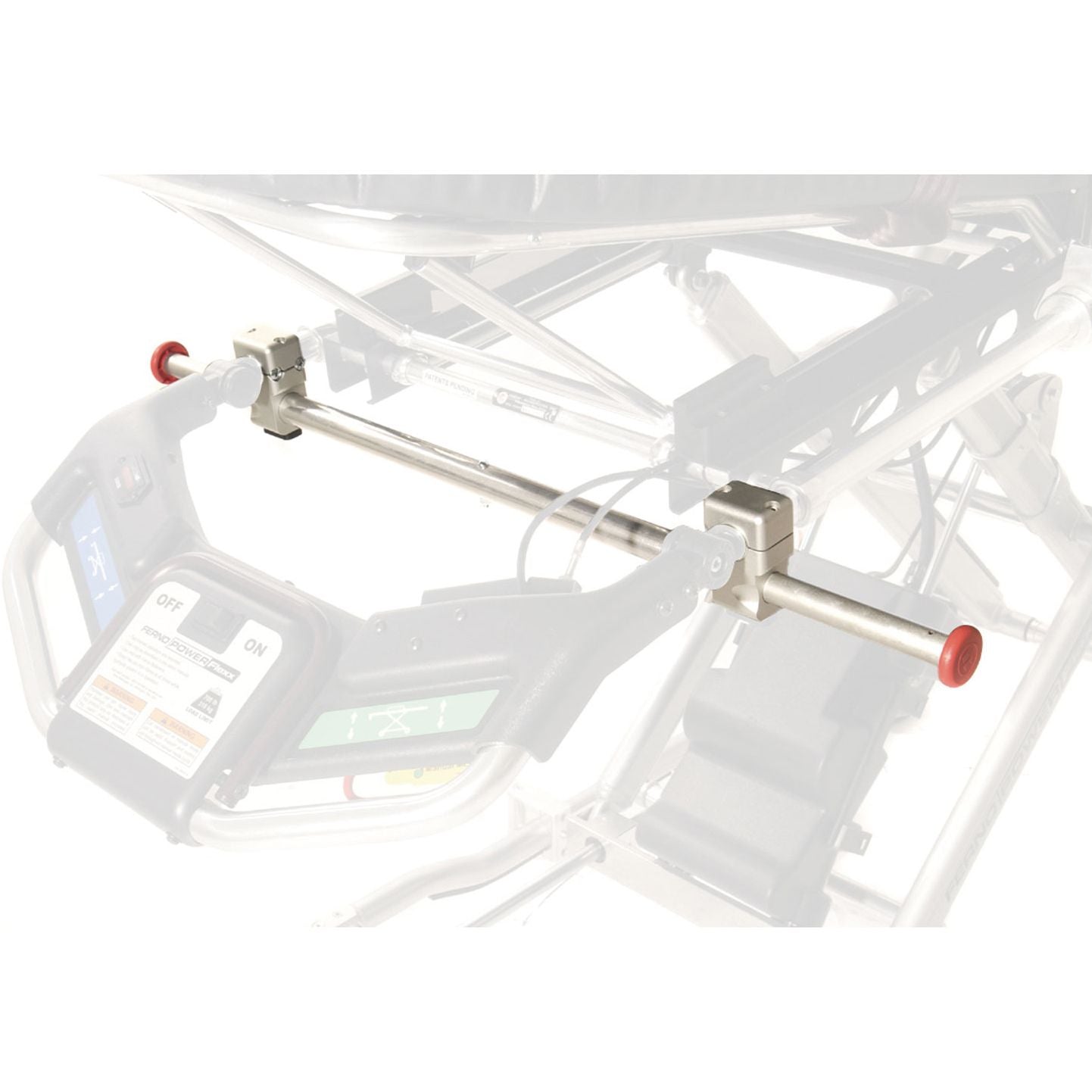

#0822140: Telescoping Lifting Handles.
-
#0822184: LBS (Large Body Surface) Jr Bariatric Board.
-
#0822426: Charger.
Literature
Literature
Ferno POWERFlexx+ Sales Sheet
Ferno POWERFlexx+ Powered Ambulance Cot Spec Sheet
What our Experts Think
-
Powered for efficiency: The Ferno 56 POWERFlexx+ Cot features electric lift and lowering, reducing physical strain on EMS crews.
-
High-load capacity: Designed to handle patients of varying sizes safely, with stable support throughout transport.
-
Advanced maneuverability: Smooth wheels, swivel casters, and ergonomic handles enable precise control in tight ambulance spaces.
-
Durable, field-ready construction: Reinforced frame and medical-grade materials withstand heavy-duty daily use.
-
Patient comfort & safety: Adjustable backrest, secure straps, and shock-absorbing surface ensure a stable, comfortable ride.
-
Seamless integration: Compatible with ambulance locking systems and hospital equipment for efficient patient transfer
Q&A
Q: What is the Ferno 56 POWERFlexx+ Powered Ambulance Cot?
A: A state-of-the-art powered ambulance cot designed for safe, effortless patient lifting, lowering, and transport.
Q: Who is it intended for?
A: EMS teams and ambulance services seeking ergonomic, efficient patient handling with minimal physical strain.
Q: What makes it unique?
A: Motorized lift system, adjustable height, and advanced safety features for smooth, controlled patient transfers.
Q: How much weight can it support?
A: Engineered to safely handle standard and bariatric patients, providing reliable stability during transport.
Q: Is it easy to operate?
A: Yes. Intuitive controls and powered functionality allow rapid positioning with minimal effort.
Q: Is it durable and low-maintenance?
A: Absolutely. Built with robust materials and designed for long-term EMS use with easy cleaning.
Q: Why choose the POWERFlexx+ cot?
A: Combines patient safety, caregiver ergonomics, and advanced powered technology for efficient ambulance operations.
Maintenance Tips
-
Inspect daily: Check frame, welds, casters, and power connections for damage or wear.
-
Test functionality: Verify lift, tilt, and power operations work smoothly; ensure battery is charged and operational.
-
Clean after use: Wipe surfaces with mild soap and water; disinfect with approved medical-grade solutions.
-
Lubricate moving parts: Lightly oil hinges, joints, and caster assemblies per manufacturer guidelines.
-
Check straps and mattress: Inspect for tears, worn stitching, or compromised buckles; replace as needed.
-
Store safely: Keep cot in a dry, temperature-controlled environment, away from direct sunlight and corrosive agents.
