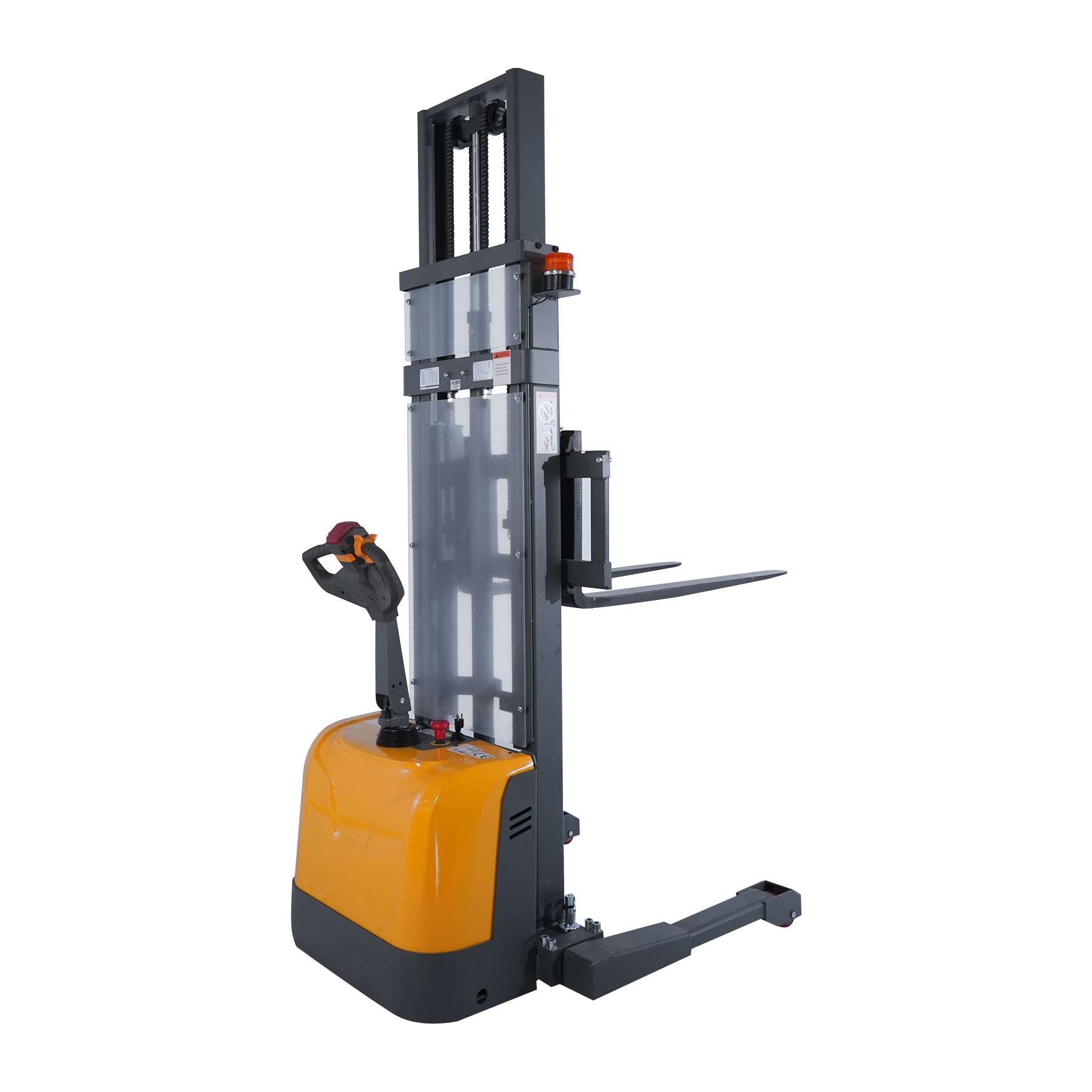

Apollolift Full Electric Straddle Stacker - A-3047

Dimensions

• Overall Length: 70.3"
• Recommended Aisle Width: 88.3"
• Turning Radius: 52.9"
• Max. Lifting Height: 118''
• Mast Height Lowered: 84.4''
• Mast Height Raised: 143.5''
• Load Center: 23.6"
• Ground Clearance: 2.56"

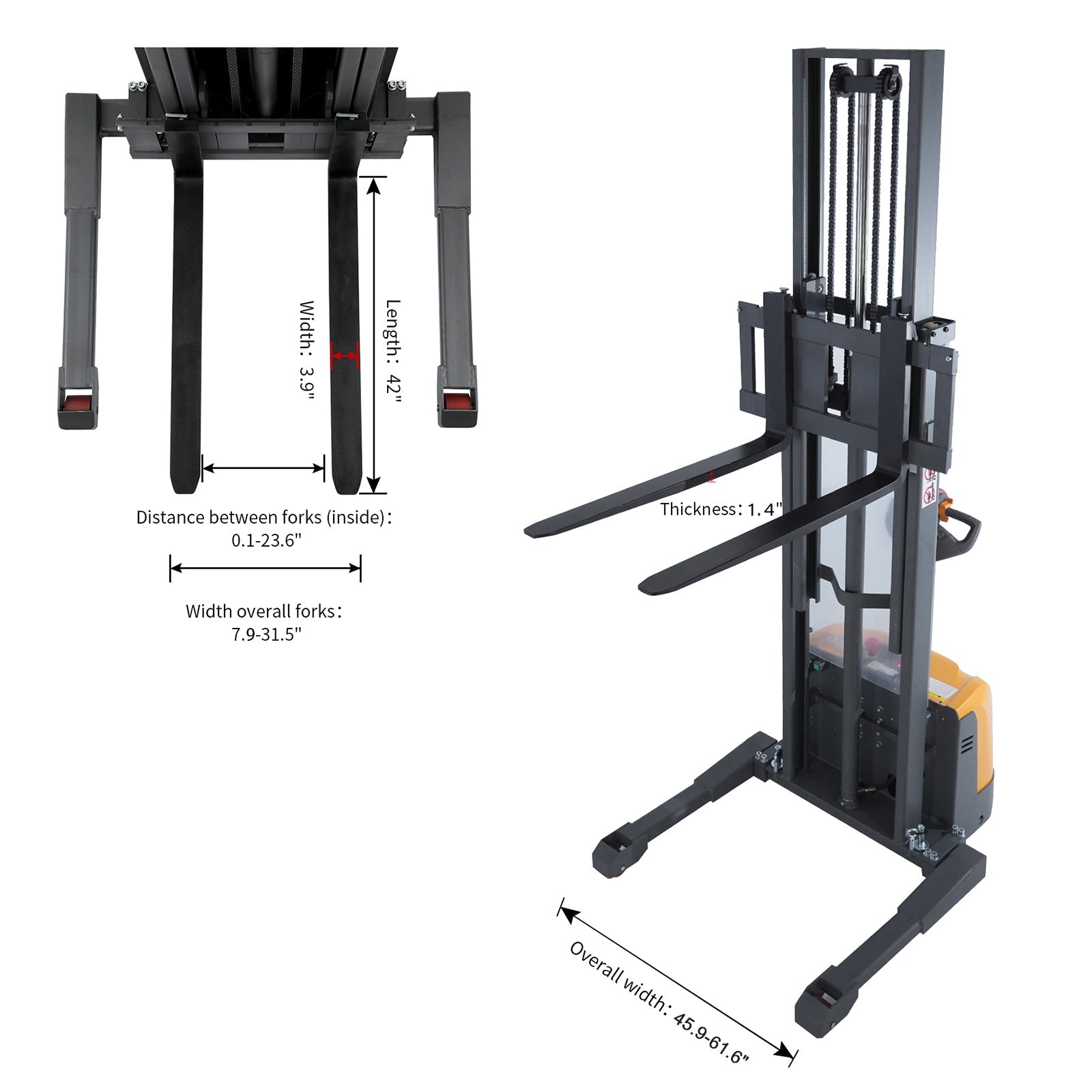

FORKS

• Fork height, Lowered: 2.8''
• Adjustable Forks: 7.8"-31.5"
• Thickness: 1.3"
• Width: 3.9"
• Length: 42"

STRADDLE LEGS

• Height: 4.7"
• Adjustable range: 44" - 60"

What our Experts Think

• Strong industrial capacity: Rated up to 3,300 lbs, suitable for standard warehouse pallet loads and continuous operations.
• High lift performance: Reaches up to 118 inches (≈10 ft), enabling efficient multi-level racking and vertical storage optimization.
• Full electric drive & lift: Both travel and lifting are powered, reducing operator fatigue and improving throughput in repetitive warehouse tasks.
• Straddle-leg stability design: Supports standard pallets with stable leg structure, improving safety in mixed warehouse layouts.
• Compact warehouse maneuverability: Tight turning radius (~53") and aisle width around 87.8" support operation in narrow aisles and high-density storage areas.
• Industrial battery system: Uses a 24V / 100Ah battery platform, supporting full-shift use with consistent power delivery.
• Efficiency-focused performance: Travel speeds around 3 mph class help maintain smooth material flow in busy warehouse operations.
• Best use case: Ideal for medium-to-large warehouses, distribution centers, and logistics hubs needing high stacking height without full forklift cost or complexity.

Q&A

Q: What is the Apollolift Full Electric Straddle Stacker A-3047 used for?
A: It is designed for fully electric lifting, transporting, and stacking palletized loads in warehouses, logistics centers, and industrial storage facilities where efficient vertical racking is required.

Q: What is its load capacity?
A: It has a rated capacity of 3,300 lbs (1,500 kg), suitable for medium-duty warehouse operations.

Q: What is the maximum lifting height?
A: It reaches up to 118 inches (about 9.8 ft) for stacking into mid-to-high warehouse racks.

Q: Is it fully electric or semi-electric?
A: It is a full electric walkie straddle stacker, meaning both driving and lifting are powered, reducing operator effort and improving productivity.

Q: What type of battery does it use?
A: It typically uses a 24V / 100Ah industrial battery system (GEL or similar configuration) designed for extended warehouse duty cycles.

Q: What is the straddle design used for?
A: The straddle legs allow it to handle different pallet types, including closed-bottom pallets, while maintaining stability during lifting and stacking operations.

Maintenance Tips

• qualization/monthly charging during storage.
• Daily inspection: Check mast, forks, straddle legs, wheels, and chassis for cracks, looseness, or uneven wear before operation.
• Hydraulic system: Ensure smooth lifting/lowering; inspect for oil leaks, drift, or delayed response.
• Mast & chain lubrication: Keep rails, rollers, and chains clean, lubricated, and properly tensioned for stable lifting.
• Electrical system: Inspect controller, wiring, connectors, and emergency stop for damage, corrosion, or overheating.
• Drive system: Monitor motor noise, steering accuracy, and braking performance; address abnormalities early.
• Wheel maintenance: Remove debris and check wear to maintain traction and reduce motor strain.
• Load safety: Do not exceed 3300 lb rated capacity and always center loads for stability.
• Cleaning routine: Wipe down after use; avoid water exposure to electrical and hydraulic components.
• Storage: Store indoors in a dry environment and power off when not in use.
• Preventive servicing: Regularly inspect brakes, mast alignment, chains, and control responsiveness.
