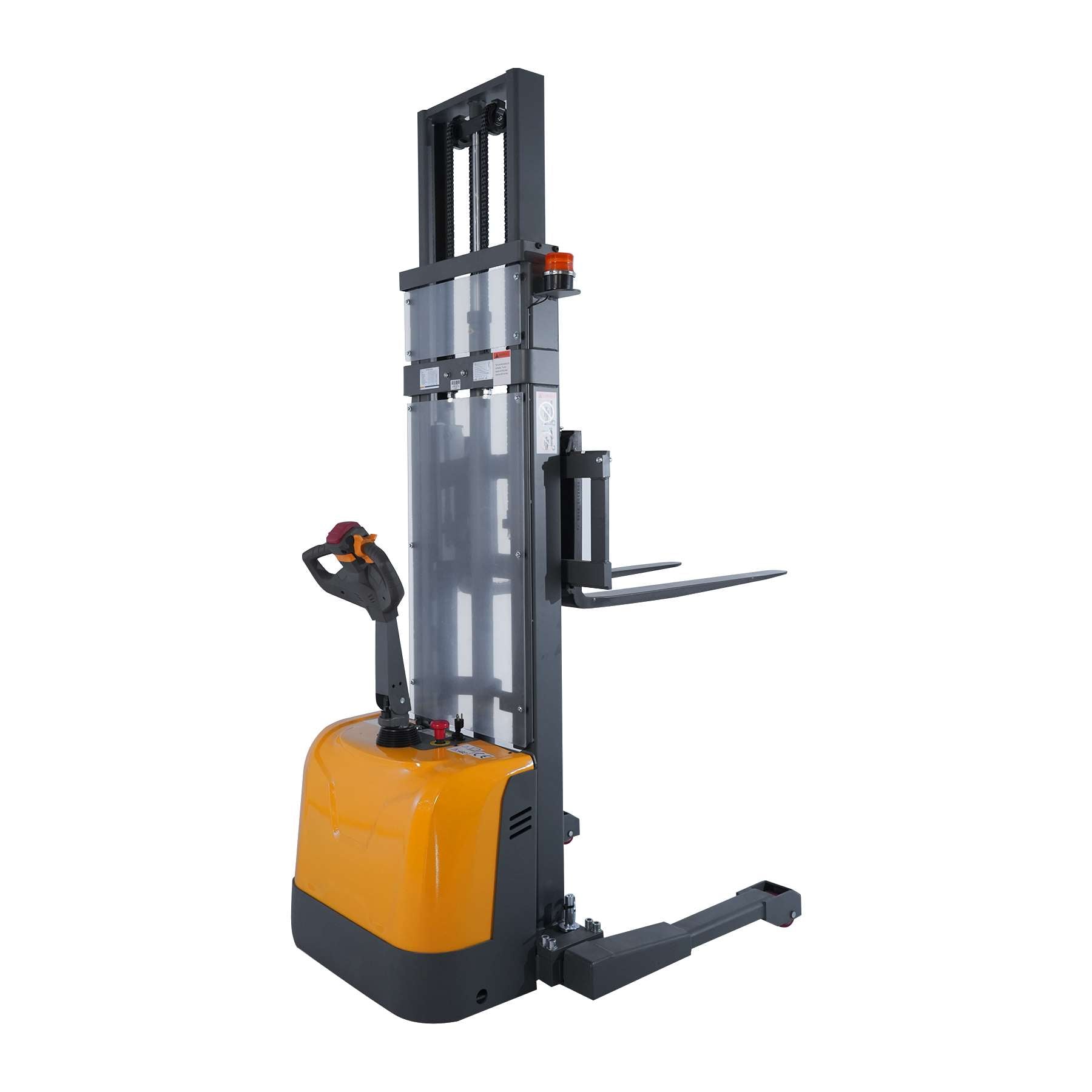

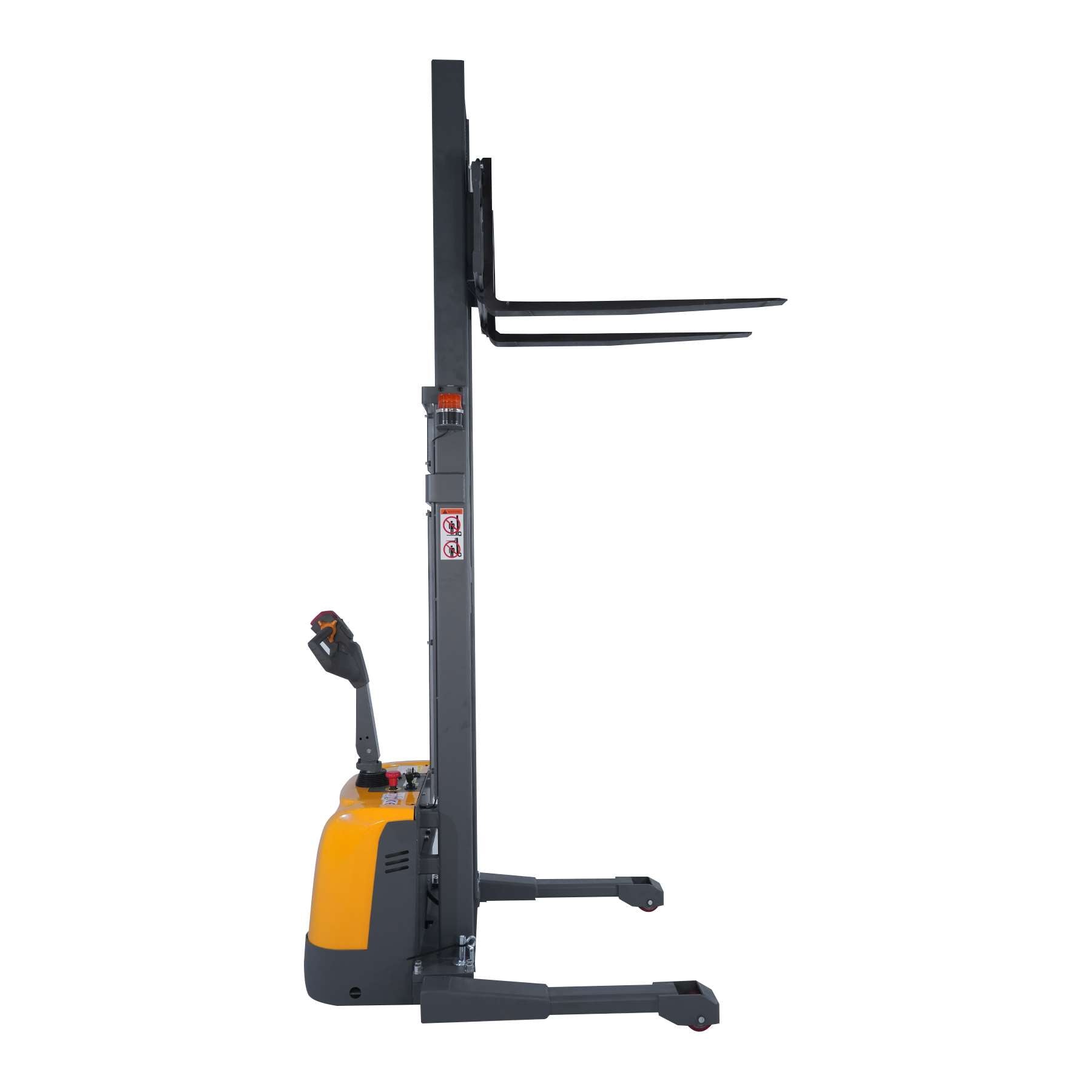

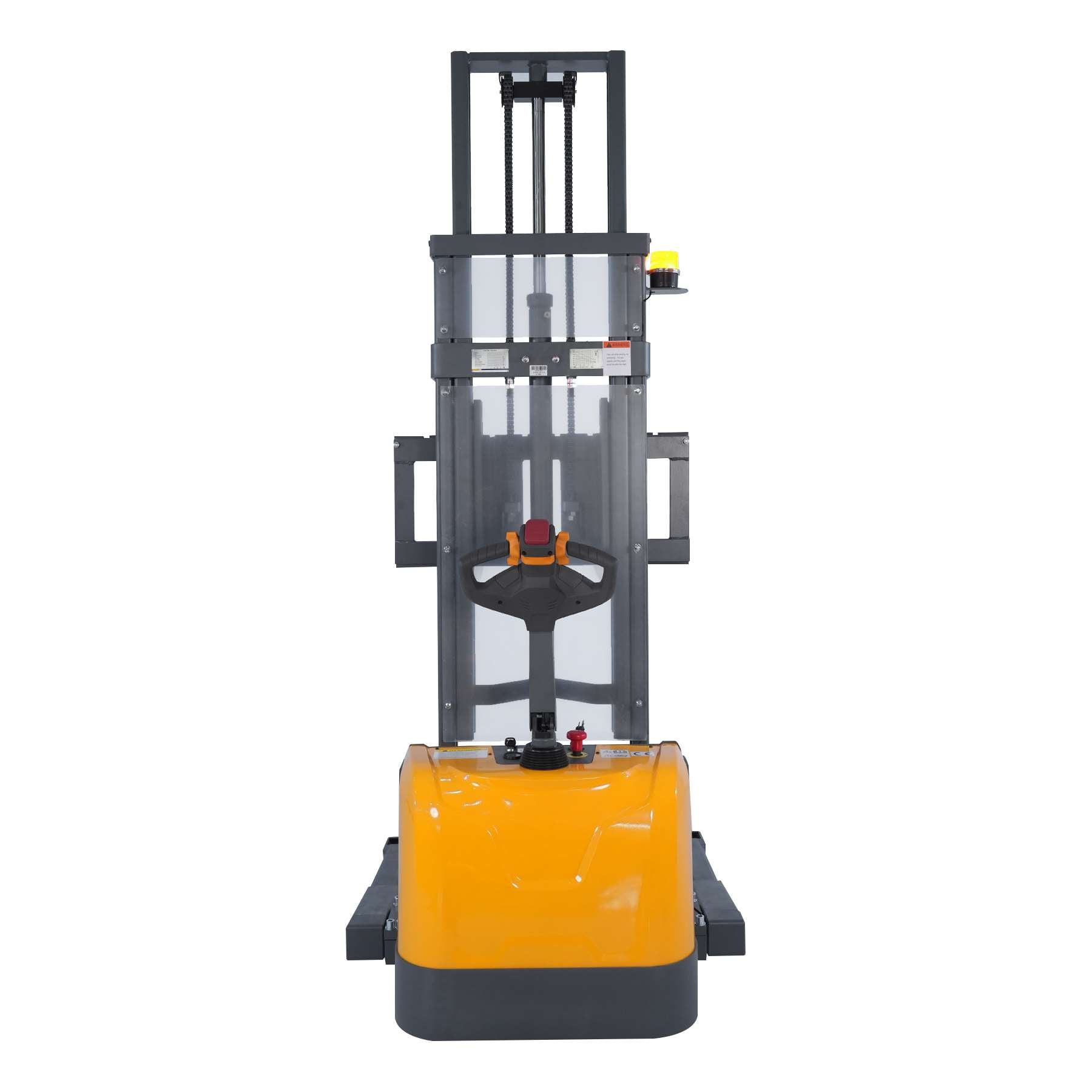

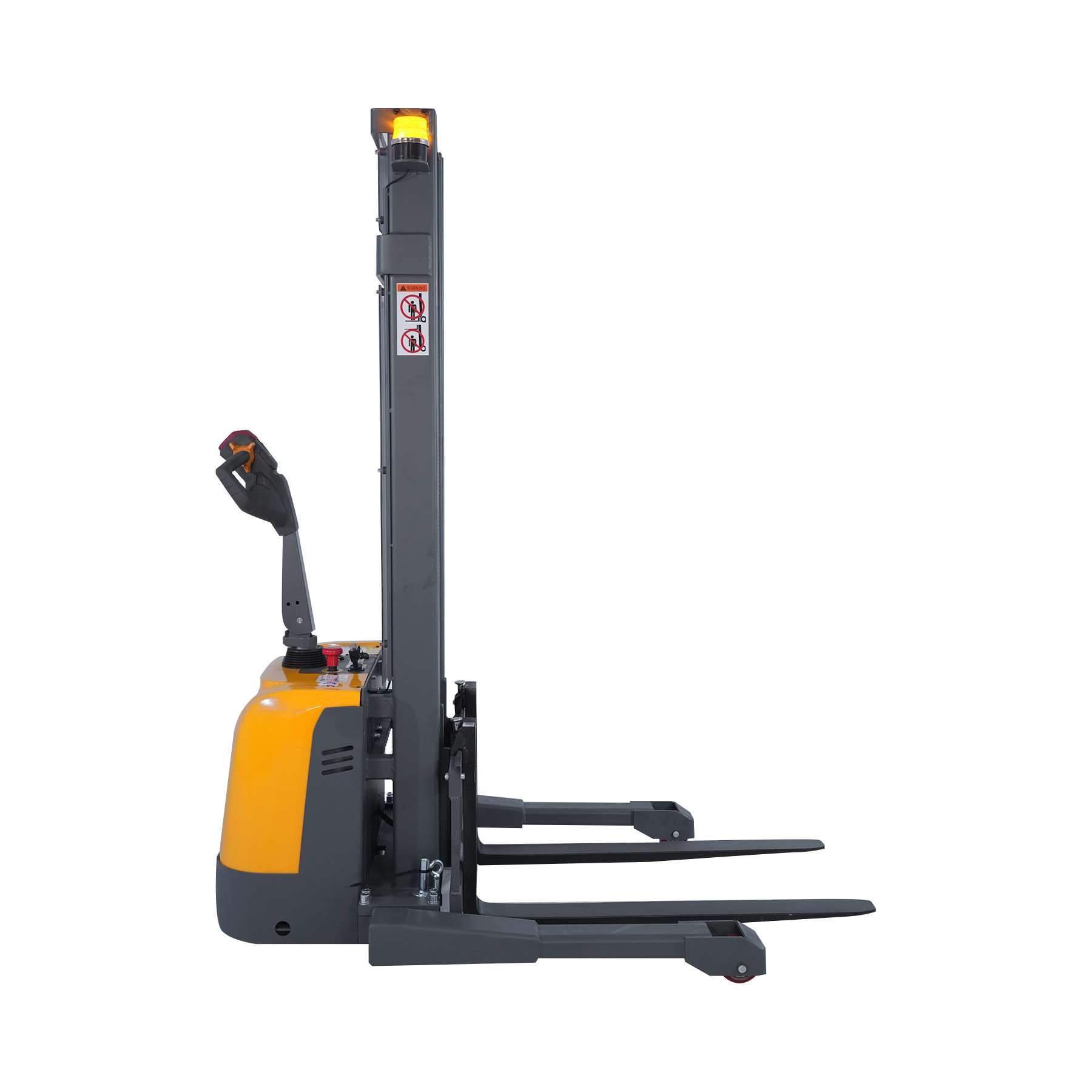

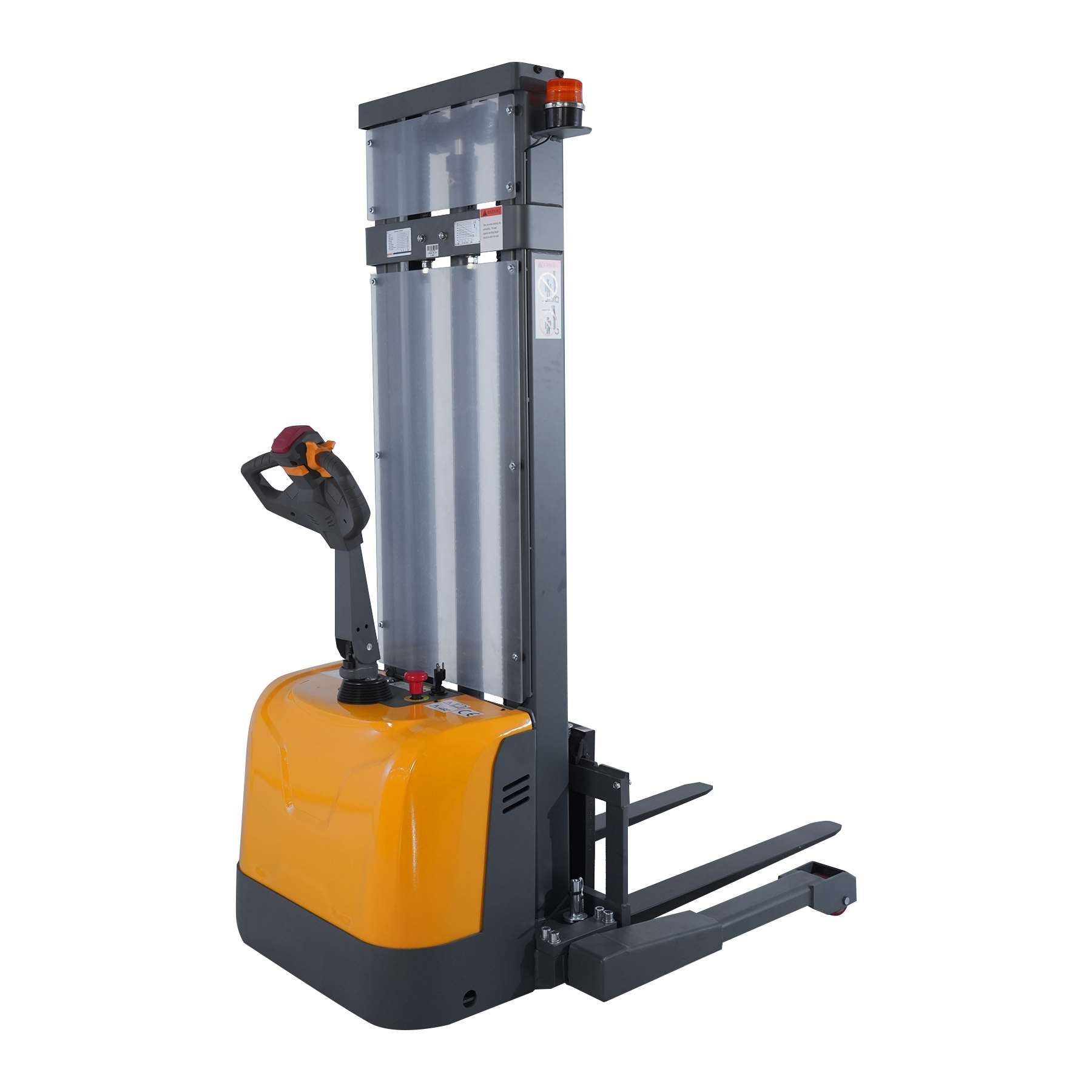

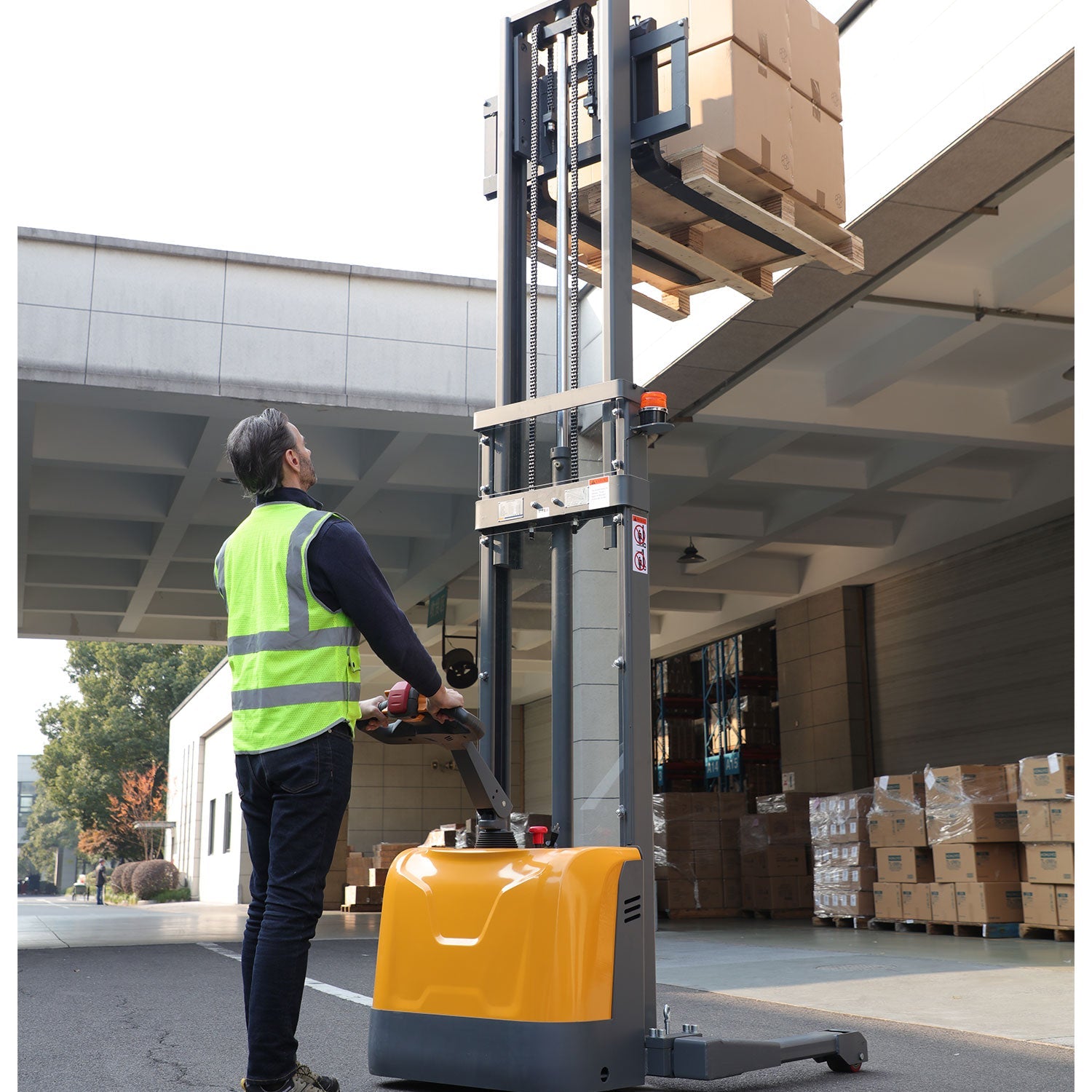

Apollolift Full Electric Straddle Stacker - A-3049

Dimensions

• Overall Length: 70.3"
• Recommended Aisle Width: 88.3"
• Turning Radius: 52.9"
• Max. Lifting Height: 130''
• Mast Height Lowered: 90.4''
• Mast Height Raised: 157''
• Load Center: 23.6"
• Ground Clearance: 2.56"

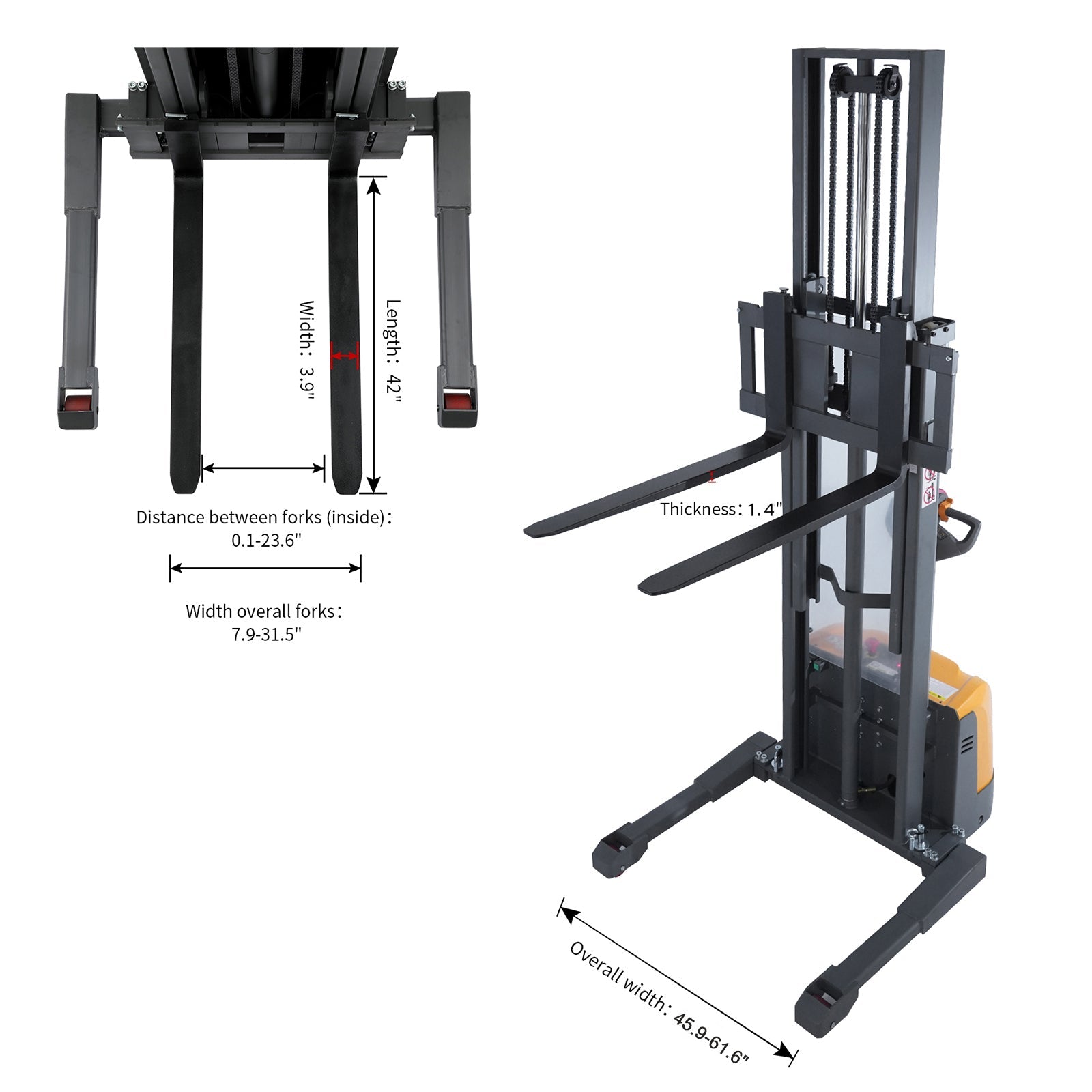

FORKS

• Fork height, Lowered: 2.8''
• Adjustable Forks: 7.8"-31.5"
• Thickness: 1.3"
• Width: 3.9"
• Length: 42"

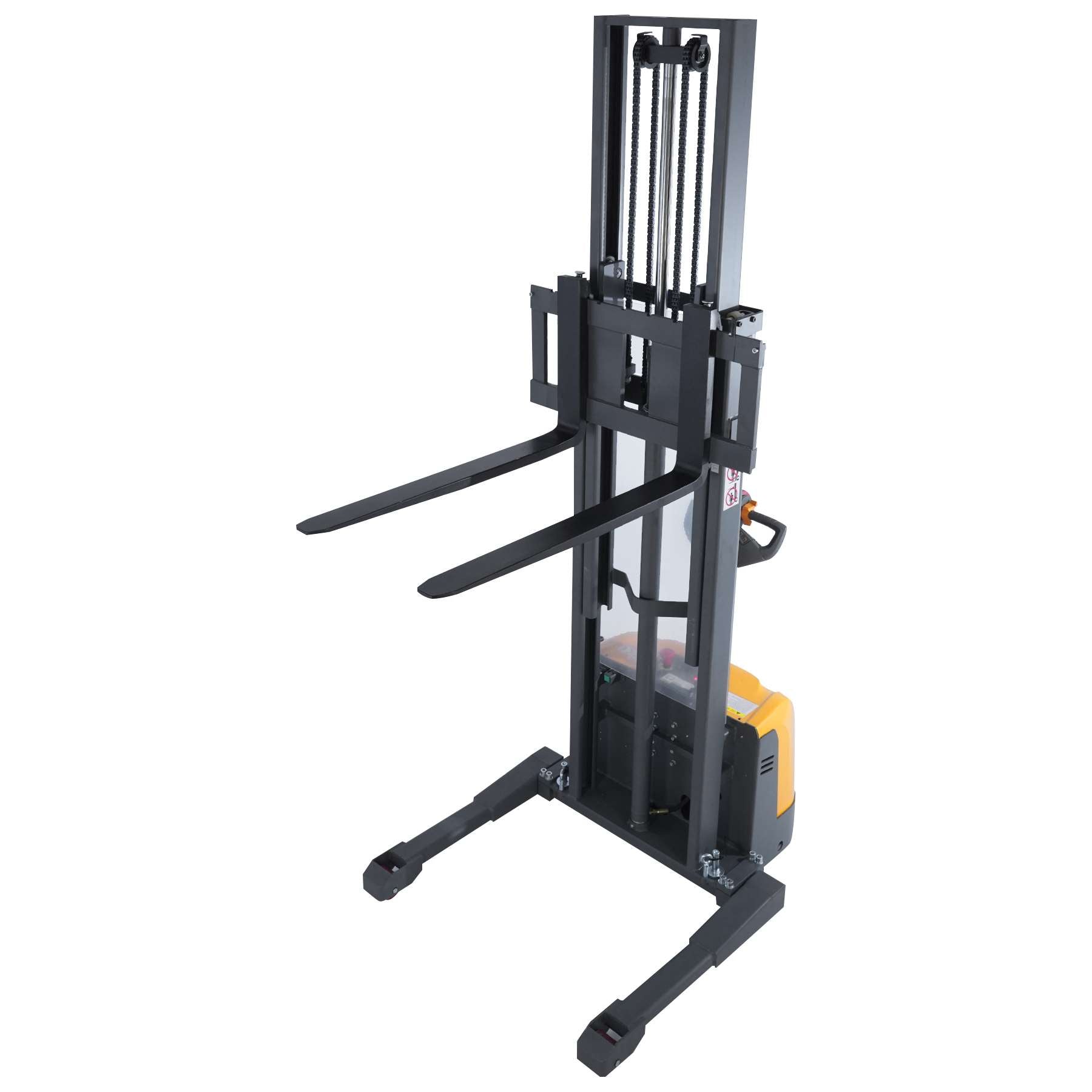

STRADDLE LEGS

• Height: 4.7"
• Adjustable range: 44" - 60"

SPEED

• Travel Speed (laden/unladen): 2.8/3.1mph
• Lifting speed(laden/unladen) : 3.5/5.9inch/s
• Lowering speed(laden/unladen) : 5.9/4.3inch/s

What our Experts Think

• High-capacity full electric performance: The Apollolift A-3049 is a heavy-duty straddle stacker engineered for powered drive and lift, built for high-throughput warehouse operations and multi-shift use.
• Strong industrial load handling: Rated up to 3,300 lbs, making it suitable for demanding palletized cargo in logistics, distribution, and manufacturing environments.
• Extended vertical reach advantage: Offers a maximum lift height of 130 inches, enabling efficient high-rack stacking and optimized vertical storage utilization.
• Industrial battery system for uptime: Powered by a 24V / 100Ah battery, designed for stable runtime and consistent lift performance during full warehouse shifts.
• Straddle-leg versatility: Supports a wide range of pallet types, including closed-bottom pallets, improving flexibility across mixed warehouse workflows.
• Precision electric control system: Smooth acceleration, lifting, and lowering improve operator control, reduce fatigue, and enhance load positioning accuracy.
• Aisle-optimized design: Built to operate efficiently in standard warehouse aisles while maintaining strong lifting stability at height.
• Productivity-focused engineering: Replaces manual stacking with fully powered operation to reduce handling time and increase throughput in busy facilities.
• Low-maintenance industrial build: Electric drivetrain reduces mechanical wear points and eliminates fuel dependency, lowering long-term operating costs.

Q&A

Q1: What is the Apollolift A-3049 used for?

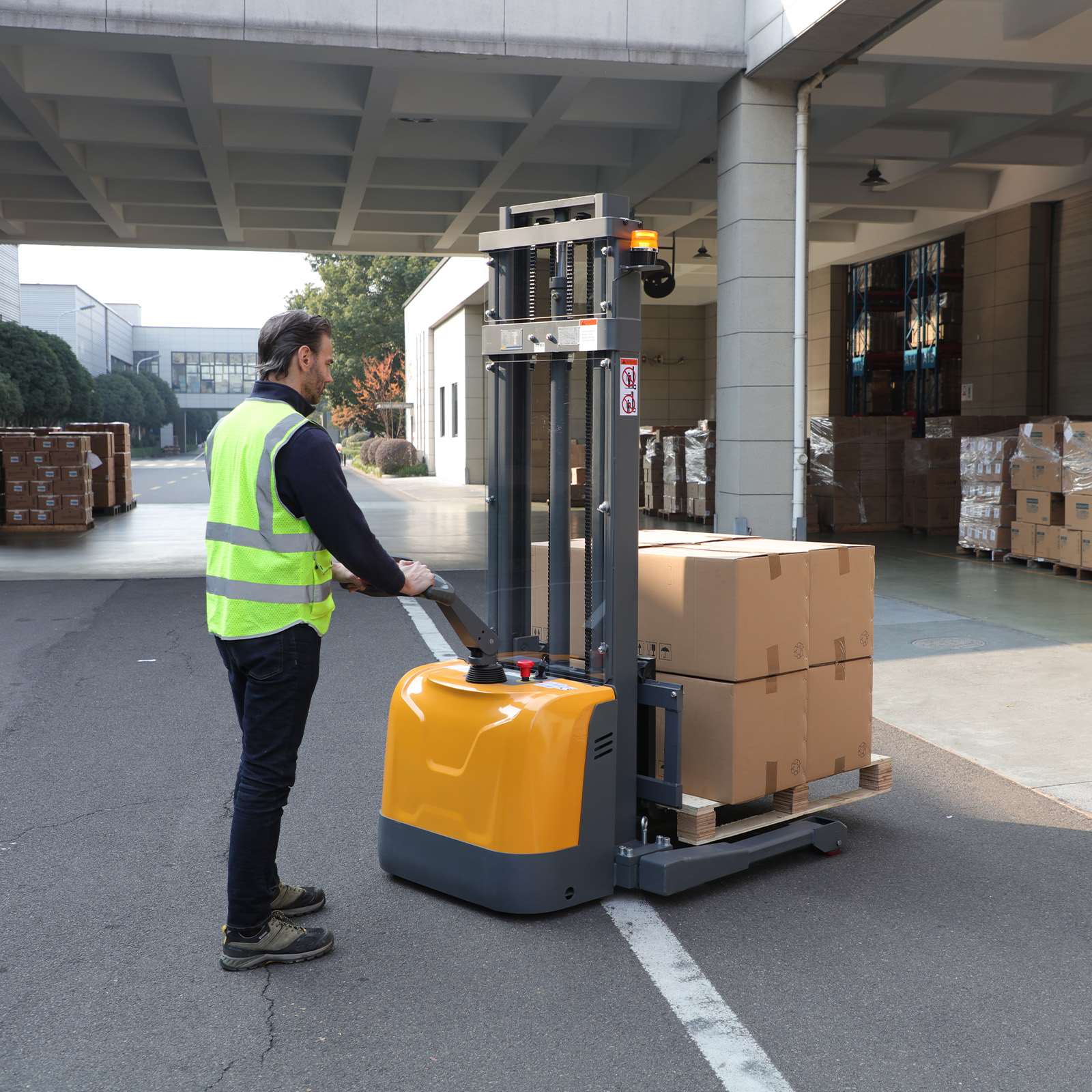

A: It is a fully electric straddle stacker designed for lifting, stacking, and transporting pallets in warehouses, logistics centers, and industrial storage environments.

Q2: What is its load capacity?
A: It supports up to 3,300 lbs, making it suitable for heavy-duty pallet handling in commercial and industrial operations.

Q3: What is the maximum lifting height?
A: It reaches up to 130 inches (approx. 10.8 ft) for high-rack storage and stacking applications.

Q4: What type of battery does it use?
A: It uses a 24V / 100–105Ah industrial GEL battery system, designed for long duty cycles and stable warehouse performance.

Q5: Is it fully electric?
A: Yes, it features powered drive and powered lift functions, reducing manual effort and improving operational efficiency.

Q6: What does “straddle stacker” mean?
A: It means the support legs straddle the pallet, allowing compatibility with a wide range of pallet types, including closed-bottom pallets.

Q7: How long does it run per charge?
A: Typical runtime is about 6–8 hours, depending on load and usage intensity.

Q8: What are the key benefits?
A: High lift height, strong load capacity, compact maneuverability (≈87.8" aisle width), and efficient electric operation for warehouse productivity.

Maintenance Tips

• Battery care (most critical): Charge after every shift and avoid deep discharge below ~20%. If stored, recharge at least monthly to prevent battery degradation.
• Correct charging system: Always use the approved 24V charger to protect the battery and electronic control system.
• Mast lubrication: Grease mast rails, chains, and rollers regularly for smooth lifting and reduced wear at full height.
• Hydraulic inspection: Check for oil leaks, slow lift, or uneven lowering—these are early signs of seal or valve wear.
• Straddle legs check: Ensure both legs are aligned and free of bending before lifting full loads.
• Wheel and drive system: Keep wheels clean and free of debris to maintain steering accuracy and traction in aisles.
• Electrical safety: Inspect tiller controls, emergency stop, and connectors daily for damage or looseness.
• Load discipline: Never exceed rated capacity (3300 lb) to avoid motor overheating and hydraulic stress.
• Flat surface use only: High mast extension increases tipping risk on uneven floors or ramps.
• Storage: Keep in a dry, cool environment to protect electronics and battery life.
