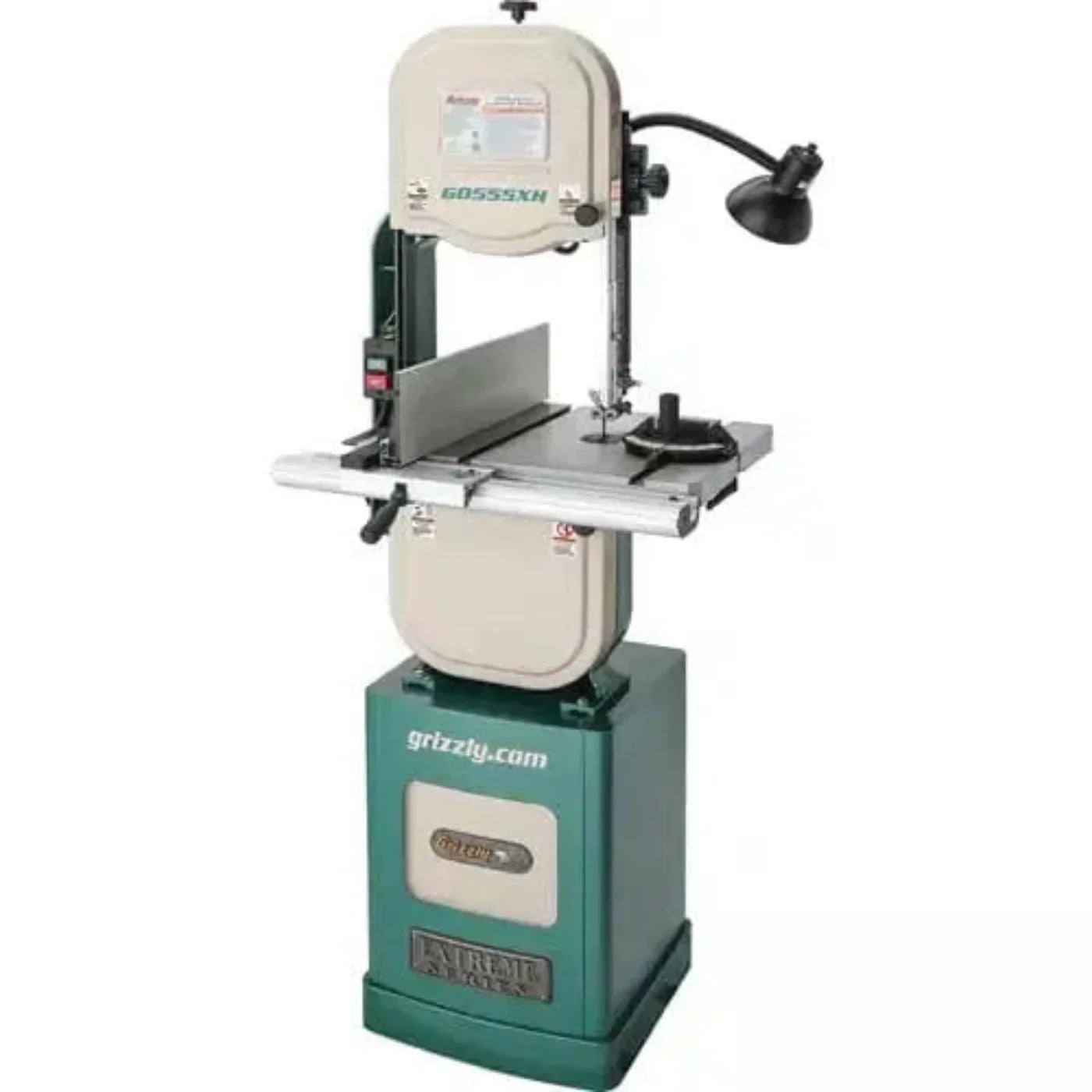

U.S Industrial Grizzly Industrial 14" 1-3/4 HP Extreme Series Resaw Bandsaw - G0555XH
With a 1-3/4 HP motor and a full 12" resaw capacity, the G0555XH is not your average 14" bandsaw.
The G0555XH adds 6" of resaw capacity to Grizzly's popular line of G0555 series 14" bandsaws, which set the industry standard for price and performance. The added capacity allows you to cut thicker wood and veneers than possible with most other 14" bandsaws.
The 6" by 21-3/4" precision-ground cast-iron table tilts up to 45° for angled edge cuts. It is set on a heavy-duty stand with computer-balanced cast-iron wheels to eliminate vibration. The closed cabinet design provides storage for tools and accessories including the resaw fence and miter gauge.
With ball-bearing upper and lower blade guides, following cut lines and patterns almost feels like the saw is on auto-pilot.
Made from high-strength aluminum, three styles of premium blade guide kits upgrade your existing guides, plus add flexibility and accuracy to your 14" bandsaw. These kits are available in three styles: ball bearing, ceramic, and scrolling.
The G0555HX comes wired for 110V, but can easily be rewired to take advantage of 220V wiring if your shop has it. The 4" dust port hooks up to both portable/wall mount and large dedicated dust collection systems.
Like all Grizzly bandsaws, the G0555LX comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. The Grizzly Customer Service and Technical Support Teams are U.S. based.
This bandsaw comes with a 3/8" 6 TPI hook blade. Additional blades and replacement parts are available online for delivery from the Grizzly Parts Department in Missouri.
Made in an ISO 9001 factory
Features
- Precision-ground cast-iron table
- Cast-iron frame with heavy-duty stand
- Fence scale with magnifying window
- Fence adjustable for blade lead

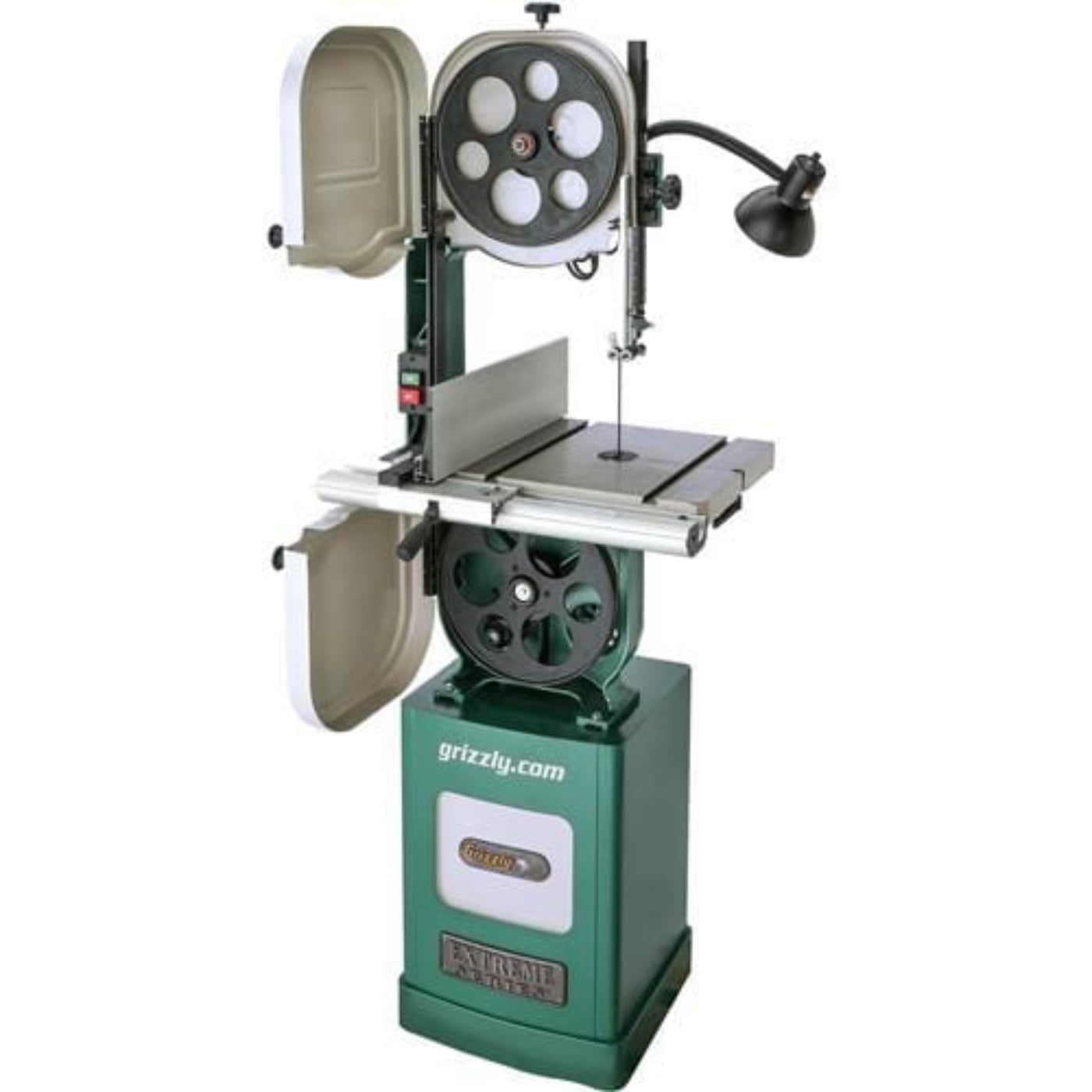

- Computer-balanced cast-iron wheels
- Quick-release blade tension
- Work light
- Includes 3/8" 6-TPI hook blade, extruded-aluminum fence and miter gauge
Specifications
| Motor |
1-3/4 HP, 110V/220V (prewired 110V), single-phase, 15A/7.5A |
| Max. Cutting Width (Left of Blade) |
13-1/2" |
| Max. Cutting Height (Resaw Capacity) |
12" |
| Table Size |
16-1/8" x 21-3/4" |
| Table Tilt |
5° left, 45° right |
| Floor-to-Table Height |
44-5/8" |
| Blade Size |
104"–105" (1/8"–3/4" wide) |
| Blade Speed |
1690, 2950 FPM |
| Dust Port Size |
4" |
| Overall Dimensions |
26" W x 31" D x 78" H |
| Footprint |
16" x 18" |
| Approximate Shipping Weight |
334 lbs. |
What our Experts Think
-
High-Power Performance: Equipped with a 1-3/4 HP motor, providing ample power for resawing hardwoods and thick stock with ease.
-
14" Resaw Capacity: Offers a large cutting capacity, making it perfect for slicing thicker lumber or creating veneers and bookmatched panels.
-
Heavy-Duty Construction: Built with a robust, cast-iron frame, ensuring stability and reduced vibration for precise cuts.
-
Precision Guide System: Features ceramic blade guides that enhance cutting accuracy and improve blade life, reducing maintenance.
-
Variable Speed: Allows for versatility in cutting different materials, offering greater control over speed and performance for various tasks.
Q&A
Q: What is the Grizzly G0555XH Resaw Bandsaw?
A: The Grizzly G0555XH is a 14" extreme series resaw bandsaw designed for precise, high-performance cutting in woodworking. It features a 1-3/4 HP motor and a robust build for handling large stock and resawing operations.
Q: What makes the G0555XH ideal for resawing?
A: With its powerful 1-3/4 HP motor, large resaw capacity, and heavy-duty cast iron frame, the G0555XH is built to handle tough resawing tasks like cutting thick lumber, veneer, and slabs with ease.
Q: What are the key features of the G0555XH?
A: Key features include a 1-3/4 HP motor, a 14" throat capacity, a tall resaw capacity, precision ball-bearing blade guides, and an included heavy-duty stand for improved stability during operation.
Q: Can the G0555XH handle larger woodworking projects?
A: Yes, with its extended resaw capacity and robust design, it’s perfect for cutting large workpieces, making it ideal for serious woodworkers, cabinetmakers, and small shop owners.
Q: Is the Grizzly G0555XH bandsaw suitable for professional use?
A: Absolutely. The G0555XH is built to withstand the demands of professional woodworking, offering high precision and durability, making it a great choice for both hobbyists and professionals.
Maintenance Tips
-
Blade Maintenance: Regularly inspect the resaw blade for dullness, cracks, or damage. Replace the blade when it shows signs of wear to ensure clean, accurate cuts.
-
Tensioning the Blade: Check blade tension regularly and adjust as necessary to maintain optimal performance and prevent blade slipping.
-
Lubrication: Lubricate the blade guides, bearings, and wheels to minimize friction and extend the life of moving parts.
-
Wheel Cleaning: Keep the wheels clean and free of sawdust, resin, or debris to prevent uneven wear and ensure smooth operation.
-
Dust Collection: Ensure that the dust collection system is functioning properly to avoid buildup inside the machine, which could lead to overheating.
-
Check Alignment: Periodically check blade tracking and alignment. Adjust the wheels to ensure proper tracking for straight cuts.
-
Motor & Electrical Inspection: Regularly inspect motor connections, wiring, and switches for wear and ensure all electrical components are functioning safely.
