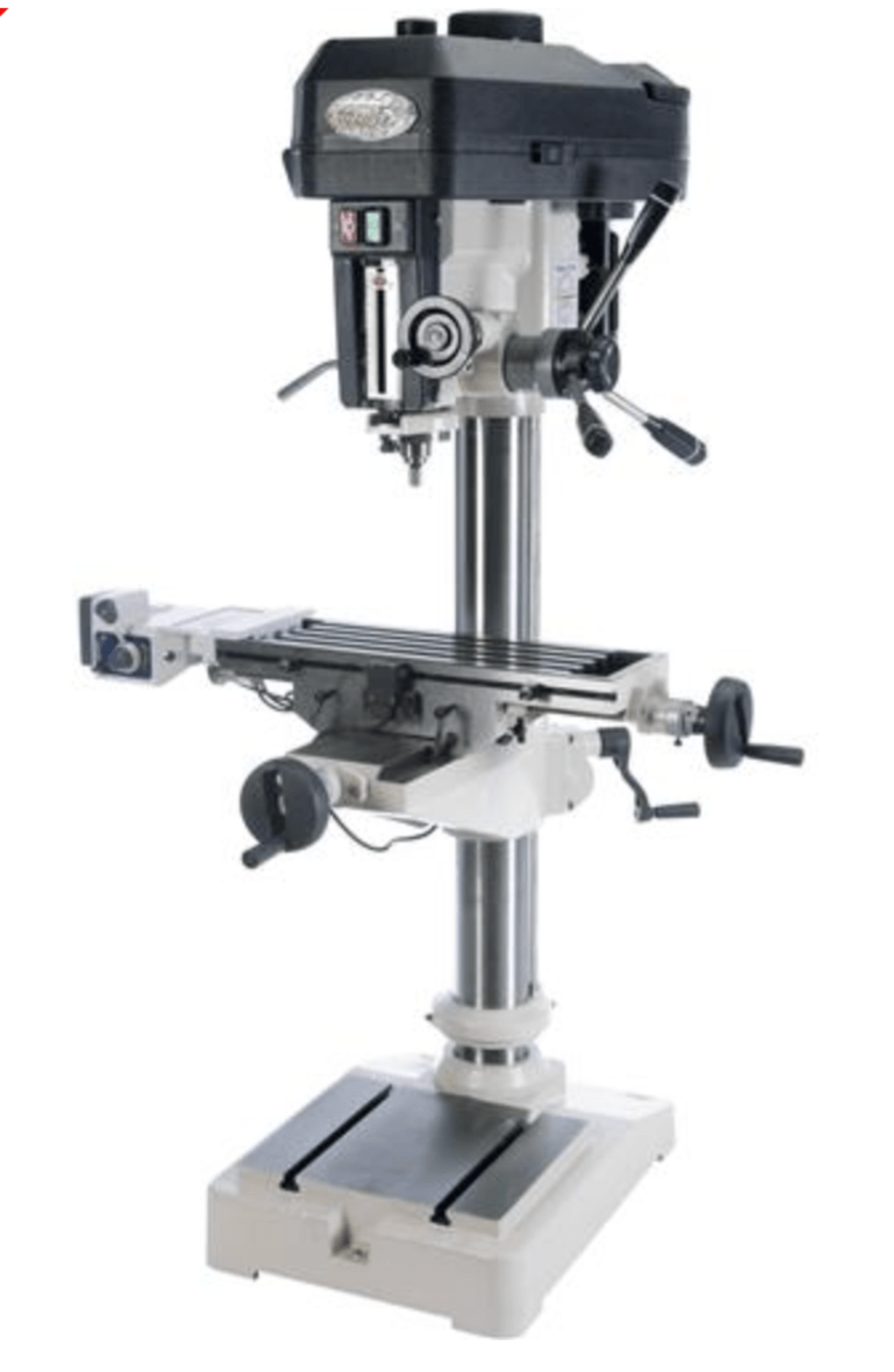

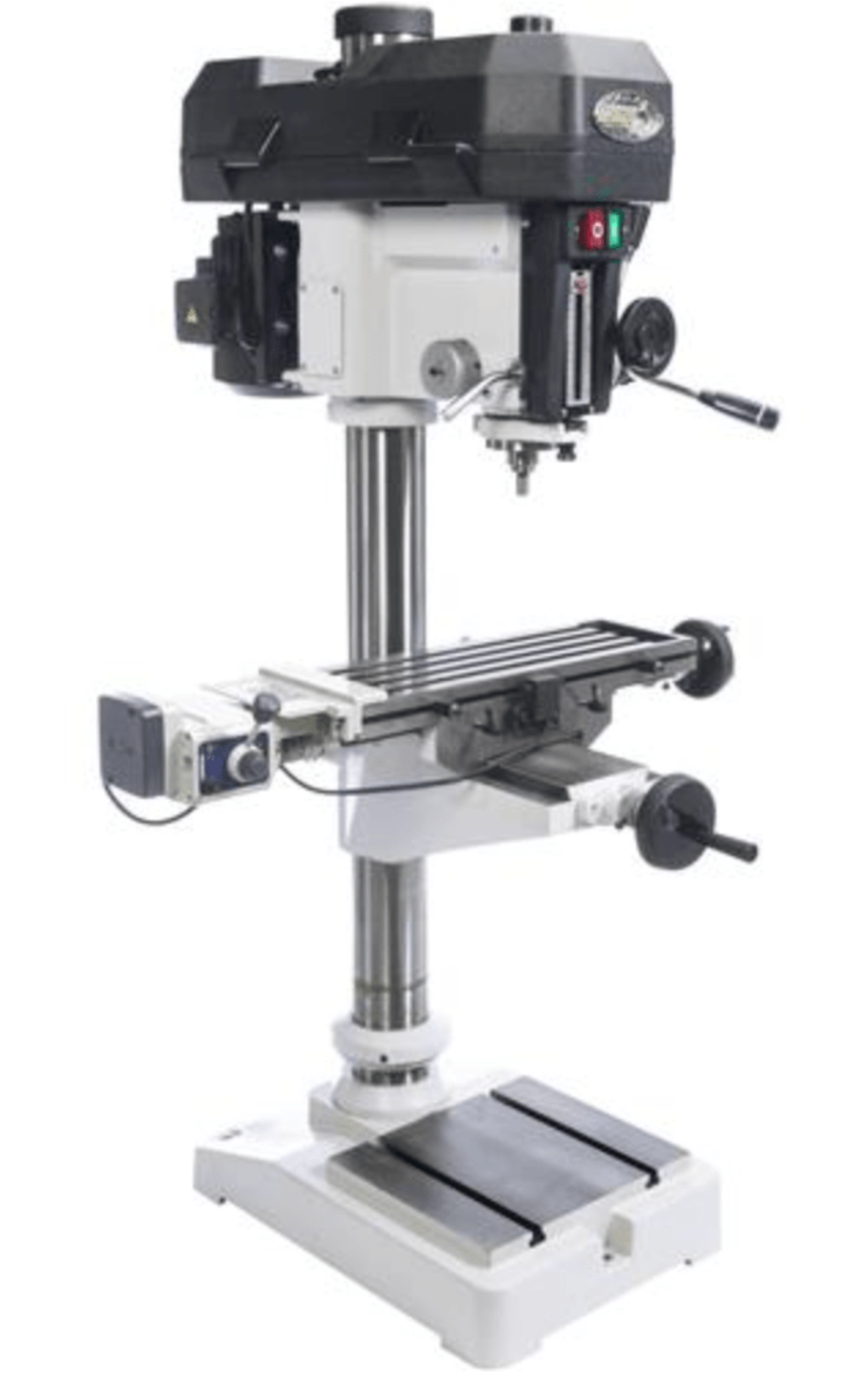

G0810 16" Drill Press with Cross-Slide Table and Power Feed
An industrial drill press with precision controls for producing heavy-duty work.
The G0810 16" Drill Press features a power feed for X-axis movement and a cross slide table to help you produce high-precision work.
With 14-7/8" of X-axis travel and 7" of Y-axis travel, the G0810 provides easy adjustability with both the X and Y-axis.
The twelve spindle speeds range from 150–3000 RPM based on v-belt positioning. The low RPM speed is vital to drilling metal.
Set the depth stop and use the coarse downfeed for fast production drilling, or switch over to the fine-downfeed handwheel for precision control up or down along the generous 5-1/8" spindle travel.
A good drill press starts from the ground up, and this one offers the foundation you need with a thick, heavy-cast 26" x 19" base and beefed up 4-1/2" column for rigidity and stability that you can count on.
Like all Grizzly drill presses, the G0810 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0810 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the drill press may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- MT#3 spindle taper
- 5-1/8" of spindle travel
- 12 spindle speeds between 150–3000 RPM
- Longitudinal power feed on X/Y-axis table with independent power supply
- 360° table rotation around column
- Fine-downfeed handwheel adjustment
- Four 1/2" T-slots in the table, plus two more in the base
Specifications
| Motor: |
1-1/2 HP, 220V, single-phase, 11.5A |
| Swing: |
16" |
| Spindle taper: |
MT#3 |
| Spindle travel: |
5-1/8" |
| Number of spindle speeds: |
12 |
| Spindle speed range: |
150–3000 RPM |
| Max distance spindle-to-table: |
19-7/8" |
| Table size: |
23-1/16" L x 7-1/2" W x 1-3/4" H |
| Vertical table travel: |
20" |
| Table swivel (left/right): |
360° |
| Quill diameter: |
2.95" |
| Drawbar thread size: |
M12"-1.75 |
| Drilling capacity mild steel: |
1-1/4" |
| End milling capacity: |
3/4" |
| Face milling capacity: |
3" |
| T-slot width: |
1/2" (4 on table, 2 on base) |
| Footprint: |
26" L x 19" W |
| Overall dimensions: |
42" W x 39-1/2"D x 65" H |
Approximate shipping weight: |
685 lb. |
What our Experts Think
-
Heavy-Duty Performance: Built for precision drilling with industrial-grade construction, ideal for demanding workshop applications.
-
Cross-Slide Table: Enhances accuracy by allowing fine-tuned positioning of the workpiece for precision drilling and milling tasks.
-
Power Feed System: Ensures consistent drilling depth and reduces operator fatigue, making repetitive drilling tasks more efficient.
-
16" Swing Capacity: Handles larger workpieces with ease, providing versatility for a wide range of projects.
-
Variable Speed Control: Adjustable spindle speeds optimize performance for different materials and drilling requirements.
Q&A
Q: What is the Grizzly Industrial G0810 Drill Press?
A: The Grizzly G0810 is a 16" heavy-duty drill press featuring a cross-slide table and power feed, designed for precision drilling in metalworking and woodworking applications.
Q: What are the key features of the G0810 Drill Press?
A: This drill press includes a power feed for consistent drilling, a cross-slide table for precise positioning, a powerful motor for heavy-duty operations, and an adjustable speed range to handle different materials.
Q: What materials can the G0810 drill through?
A: The G0810 is capable of drilling through metals, wood, and plastics, making it suitable for machine shops, fabrication work, and industrial applications.
Q: Is the Grizzly G0810 suitable for precision machining?
A: Yes, the cross-slide table and power feed allow for highly precise drilling, making it ideal for applications requiring accuracy and repeatability.
Q: What makes the G0810 drill press stand out?
A: The combination of power feed, a sturdy build, and an integrated cross-slide table makes the G0810 a versatile and reliable machine for both professionals and hobbyists.
Maintenance Tips
-
Lubrication: Regularly oil the spindle, quill, and feed mechanism to prevent wear and ensure smooth operation.
-
Belt & Pulley Check: Inspect drive belts for cracks or fraying. Adjust tension as needed for optimal power transfer.
-
Cross-Slide Table Care: Keep the table clean and lubricated. Remove metal shavings and debris to maintain accuracy.
-
Power Feed System: Check for proper engagement and lubrication. Avoid overloading to prevent motor strain.
-
Chuck & Spindle Maintenance: Ensure the chuck and spindle are clean, free of rust, and properly secured to avoid runout.
-
Electrical & Safety Check: Regularly inspect wiring, switches, and grounding for safety. Test emergency stop functions.
