U.S Industrial Grizzly Industrial 20-3/4" Gearhead Drill Press With Cross-Slide Table - G0808

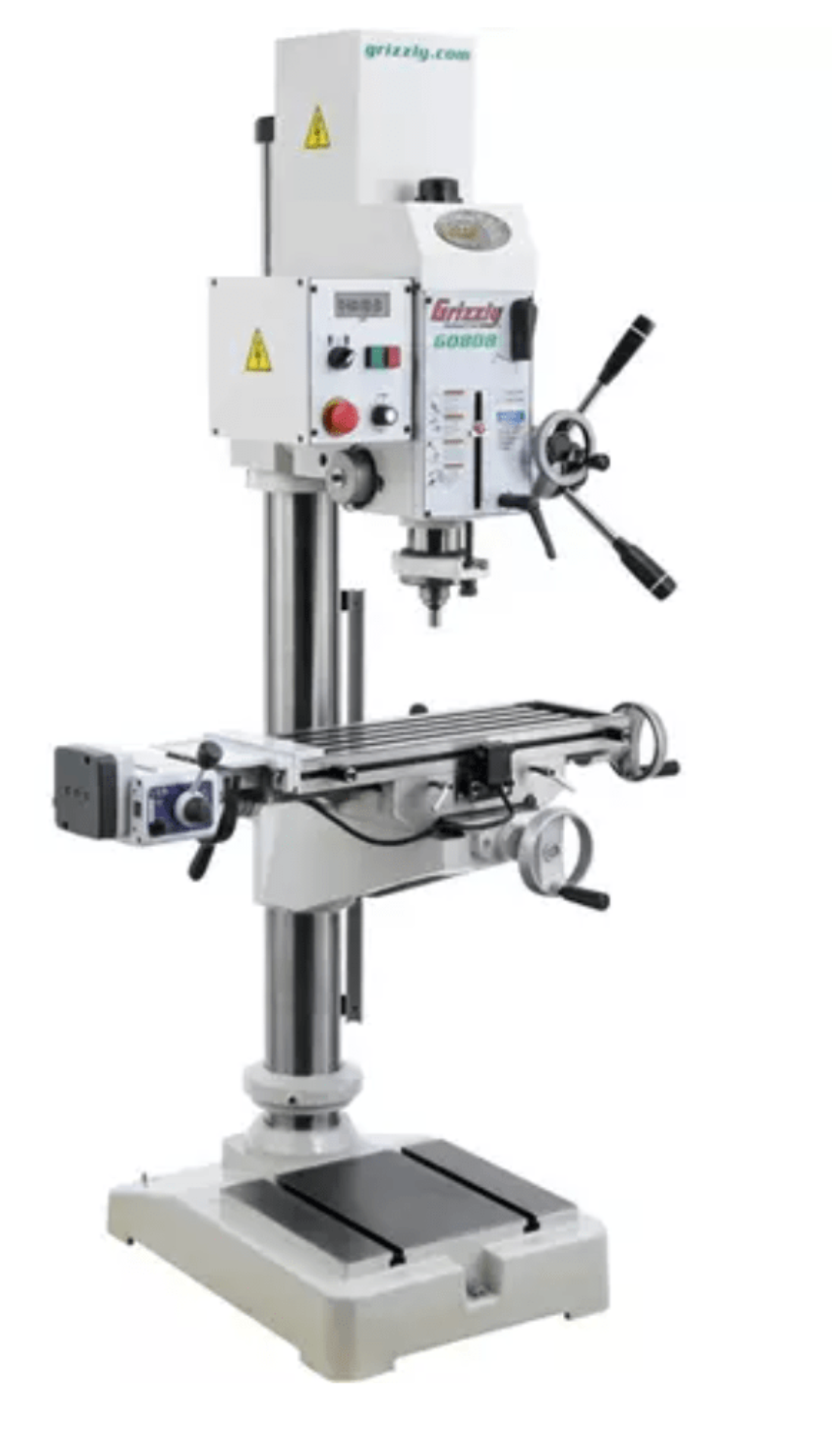

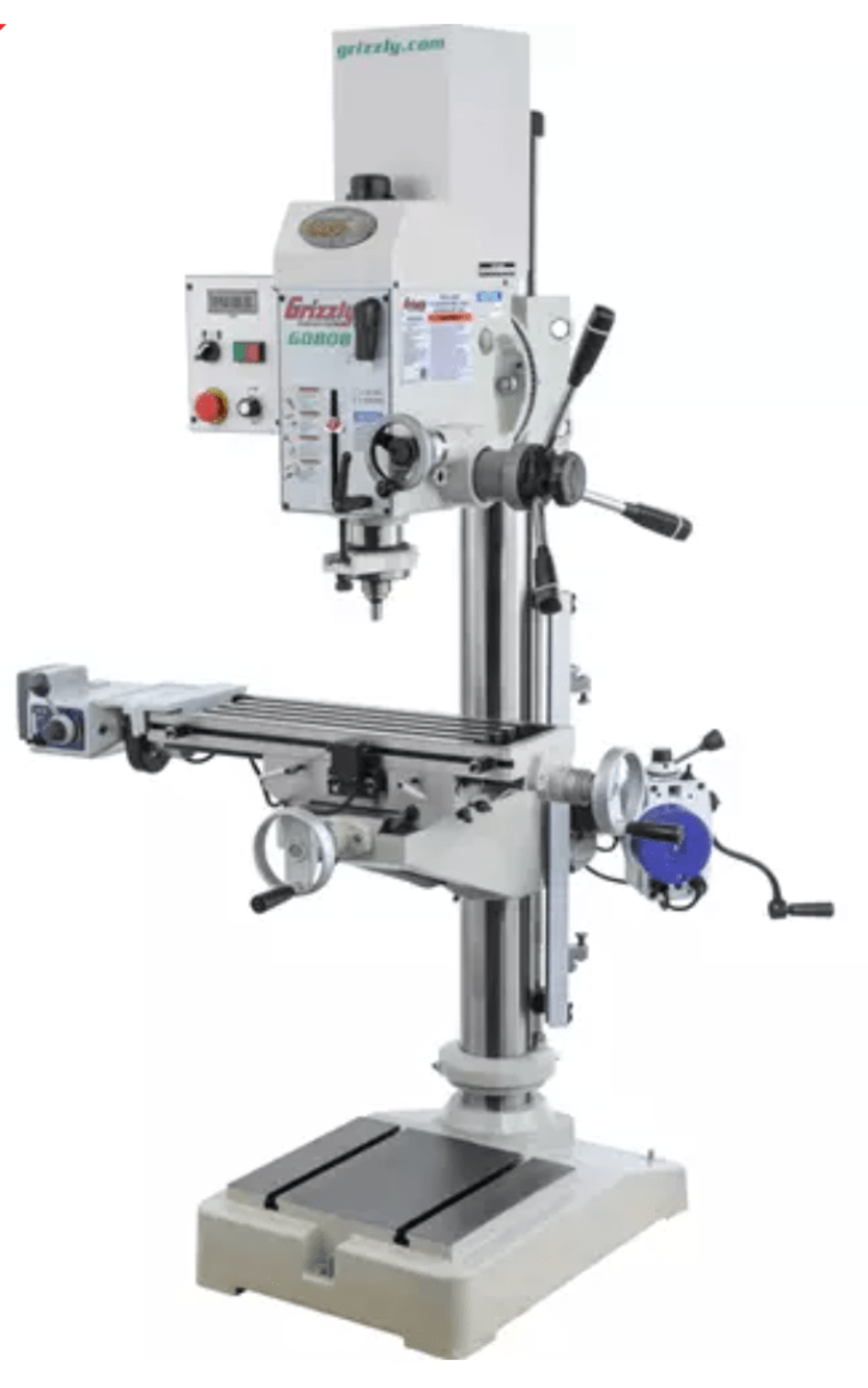

G0808 20-3/4" Gearhead Drill Press with Cross-Slide Table
When you want a money's-no-object drill press for your shop.
The innovative G0808 20-3/4" Gearhead Drill Press with Cross-Slide Table came about as a personal project of the CEO of Grizzly Industrial.
Shiraz wanted the convenience of a gearhead drill press with variable-speed, combined with a cross-slide table with longitudinal and vertical power feed.
Geared drill presses are designed for drilling larger holes than belt driven machines thanks to the spindle bearings and tighter tolerances.
The variable speed range between 0–2500 RPM is controlled by spindle speed dial and a high/low spindle speed lever. Low RPM speed is vital to drilling metal.
He also sought features like a digital spindle speed readout, long spindle throw, coarse and fine downfeed controls, and forward/reversing ability.
This had not been done before, so several meetings were held with engineers, special parts were made, and voila! A variable-speed gearhead drill press with X- and Z-axis table powerfeed, was created!
Like all Grizzly drill presses, the G0808 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0808 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts fmay be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Variable-frequency drive for 3-phase speed control with single-phase power
- Longitudinal power feed on precision-ground cast-iron table
- Power feed or hand crank-enabled rack-and-pinion table elevation
- Coarse and fine downfeed controls
- Cast-iron base with two 1/2" T-slots, 8-7/8" on center
- 360° table and head positioning around column
- Digital spindle speed display
- Front-mounted e-stop button
- Forward/reverse spindle switch
Specifications
| Main motor: |
1-1/2 HP, 220V, 3-phase, 5.5A |
| Required power supply: |
220V, single-phase,15A |
| Swing: |
20-3/4" |
| Spindle taper: |
R-8 |
| Spindle travel: |
4-7/8" |
| Spindle speed: |
Variable, 0–2500 RPM |
| Drilling capacity: |
1-9/16" Mild steel |
| Head tilt: |
30° left, 90° right |
| Max distance spindle to column: |
10-7/16" |
| Max distance spindle to table: |
17-1/2" |
| Table dimensions: |
7-1/2" x 23" |
| Quill diameter: |
2-15/16" |
| Drawbar thread size: |
7-16" |
| Drawbar length: |
16-5/16" |
| Longitudinal table travel (X-axis): |
15" |
| Cross table travel (Y-axis): |
7" |
| Vertical table travel (Z-axis): |
17-3/4" |
| T-slots size: |
1/2", 4 table, 2 base |
| Overall dimensions: |
42" W x 46-1/2" D x 77-1/2" H |
| Approximate shipping weight: |
739 lbs. |
What our Experts Think
-
Powerful Drilling Capability – 20-3/4" swing and gearhead motor for smooth, consistent power through various materials.
-
Cross-Slide Table – Provides precise positioning for accurate drilling and milling operations.
-
Heavy-Duty Construction – Built with rigid steel and cast-iron for durability and stability during heavy-duty tasks.
-
Multiple Speed Options – Offers variable speed control for versatile applications and material types.
-
Perfect For – Woodworkers, metalworkers, and hobbyists needing precision drilling with versatile features.
Q&A
Q: What is the U.S. Industrial Grizzly 20-3/4" Gearhead Drill Press with Cross-Slide Table (G0808)?
A: A 20-3/4-inch gearhead drill press with a cross-slide table, designed for precision drilling and milling in a wide range of materials.
Q: What is the motor power and voltage?
A: Equipped with a 1 HP motor, typically operating on 110V or 220V, providing reliable and consistent drilling performance.
Q: What are the key features of the gearhead?
A: - Gearhead drive for variable speeds, ensuring precise control over drilling and milling operations.
Q: What is the table size and travel?
A: - Table size: 8" x 22-1/4"
Q: What is the maximum drilling capacity?
A: - Drilling capacity: 1-1/4" in mild steel.
Q: Does it have a depth stop?
A: Yes, includes a depth stop for consistent and accurate drilling depths.
Q: What materials can it handle?
A: Suitable for metals, plastics, and wood, making it versatile for various industrial and DIY projects.
Q: Why choose this drill press?
A: Its gearhead motor, cross-slide table for precise positioning, and heavy-duty build make it an excellent choice for professionals and hobbyists requiring accuracy in drilling and light milling.
Maintenance Tips
-
Lubrication: Regularly oil the gearhead, lead screws, and other moving parts to ensure smooth operation.
-
Spindle & Chuck Maintenance: Keep clean and check for wear; tighten or replace parts as necessary.
-
Belt & Pulley Check: Ensure proper tension and replace worn belts to maintain smooth speed changes.
-
Table & Cross-Slide Cleaning: Keep the cross-slide table free of debris and apply light lubrication for easy adjustments.
-
Depth Stop & Feed Mechanism: Check and adjust the depth stop for consistent, precise drilling.
-
Chip Removal: Regularly clear chips from the work area to prevent buildup and ensure a clean drilling environment.
-
Electrical & Safety Inspection: Test wiring, switches, and safety functions like the emergency stop.
