U.S Industrial Grizzly Industrial 25" 15 HP 3-Phase Extreme-Series Planer w/ Helical Cutterhead - G0603X
Precision planing with digital control.

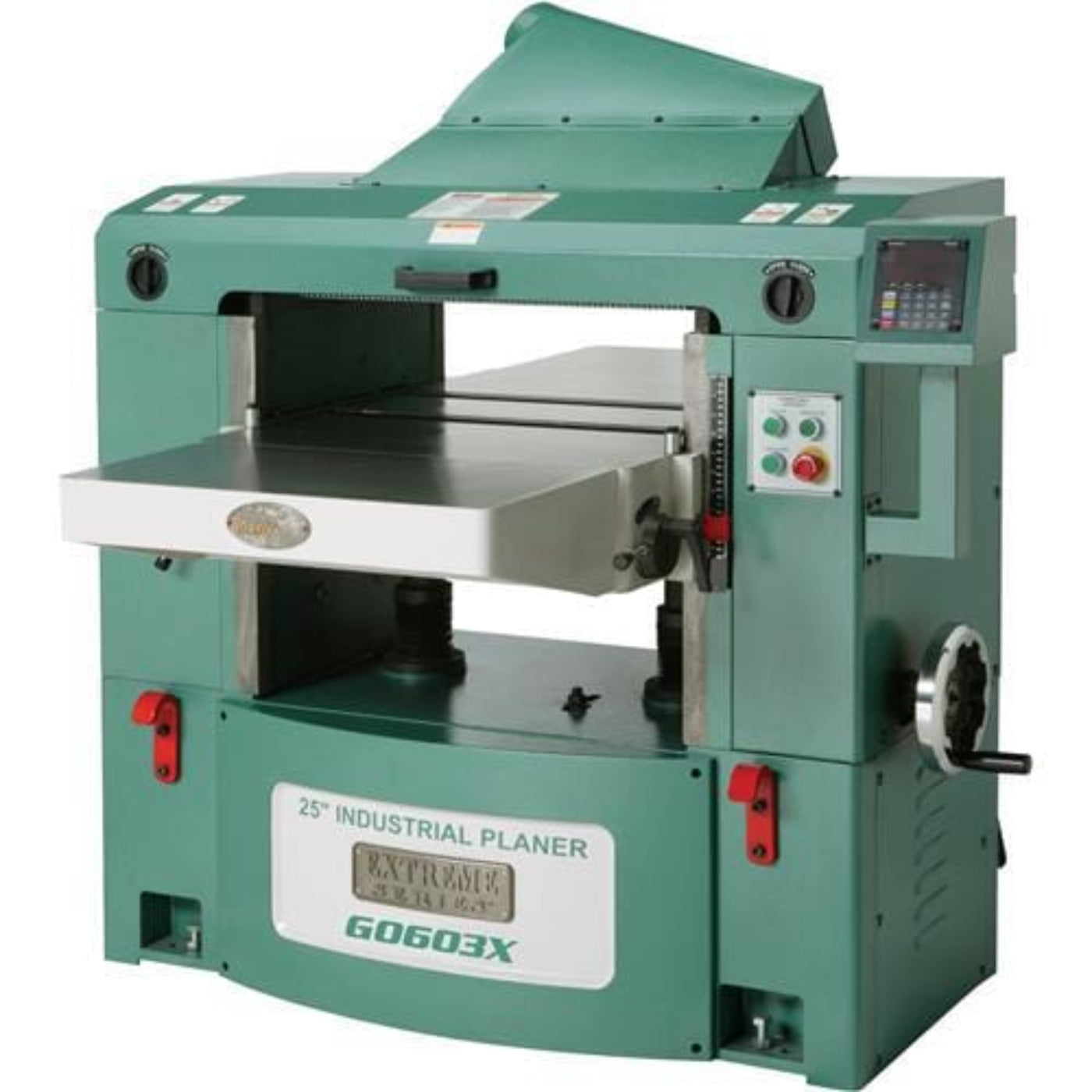

The G0603X 25" 3-Phase Extreme Duty Planer has an incredible 15 HP motor to make quick work of those big planing jobs.
The G0603X features a unique helical cutterhead with 174 inserts rotated at 15° for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels.
The motorized table is great for making large thickness changes. Simply push the up or down control for fast elevation changes.

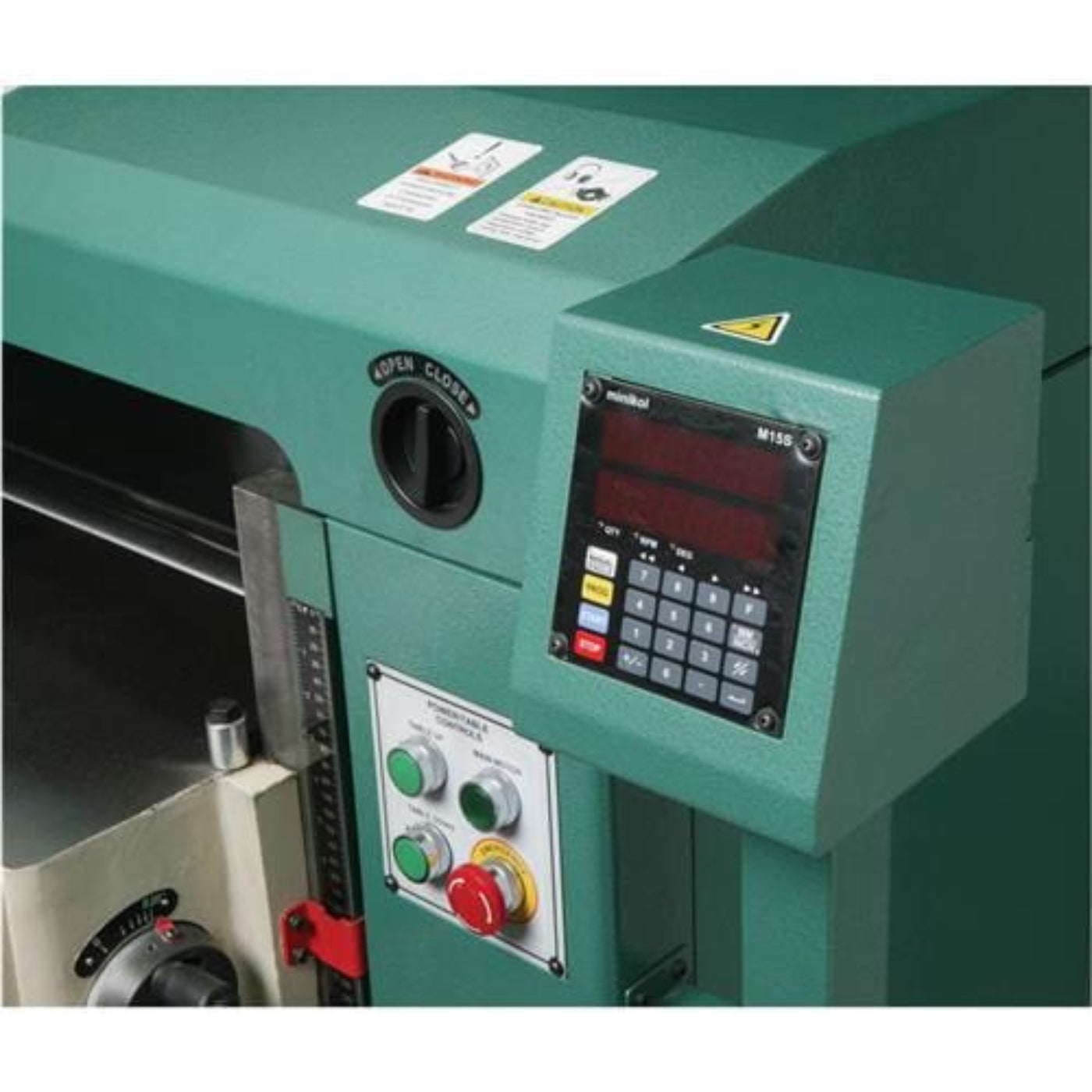

The highly programmable digital control has a convenient readout so you always know what thickness the planer is set on.
Simply enter a desired thickness on the easy-to-use keypad and the planer adjusts the table to your entry.
The segmented chip breaker leads directly into the dust hood with a 5” dust port to help ensure the work area stays as clear as possible.

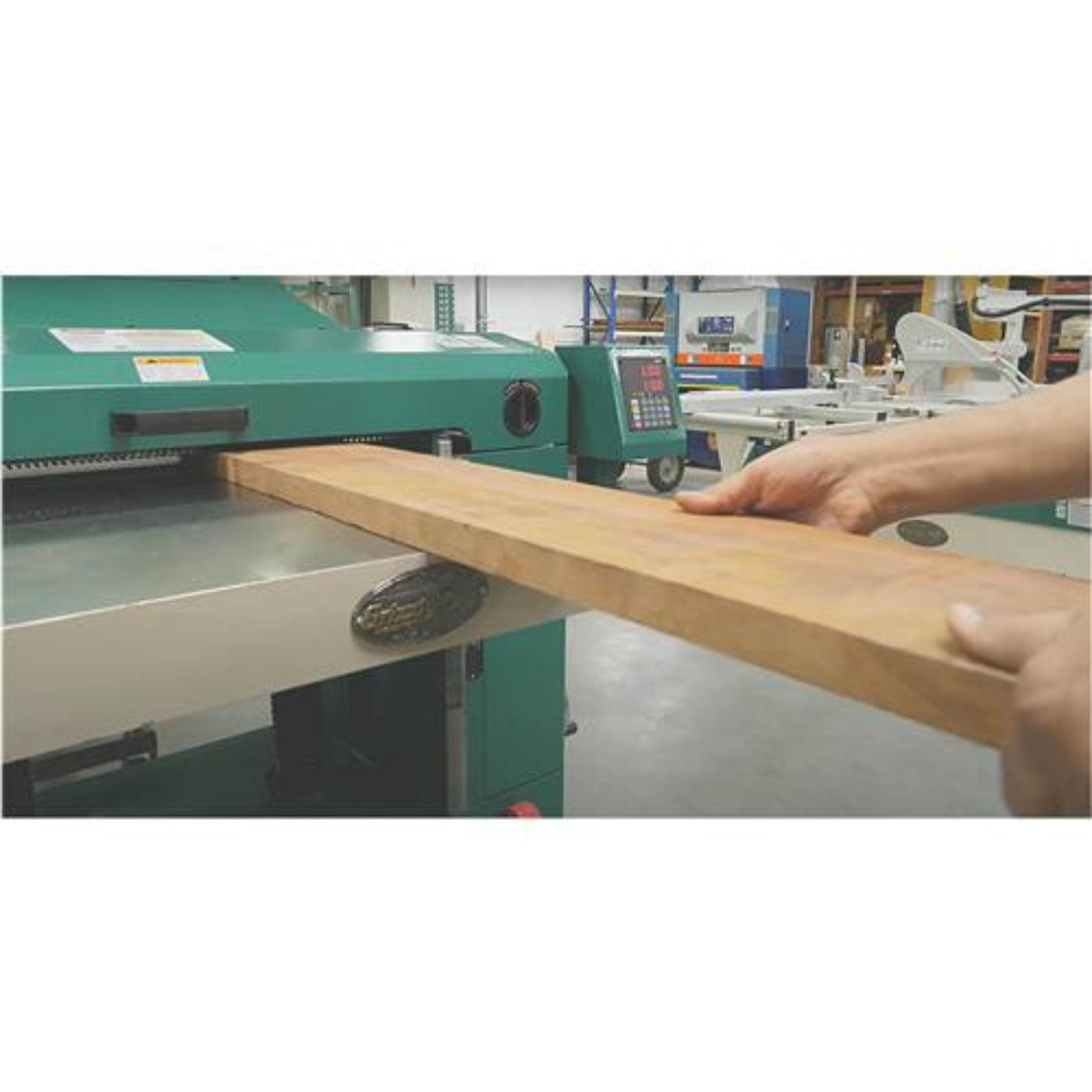

No more thickness gauges or guesswork. This planer delivers accurate cuts.
Like all Grizzly planers, the G0603X comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0603X manual was written by our U.S. based Technical Documentation Department and is packed with useful information.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the planer may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Digitally controlled table elevation

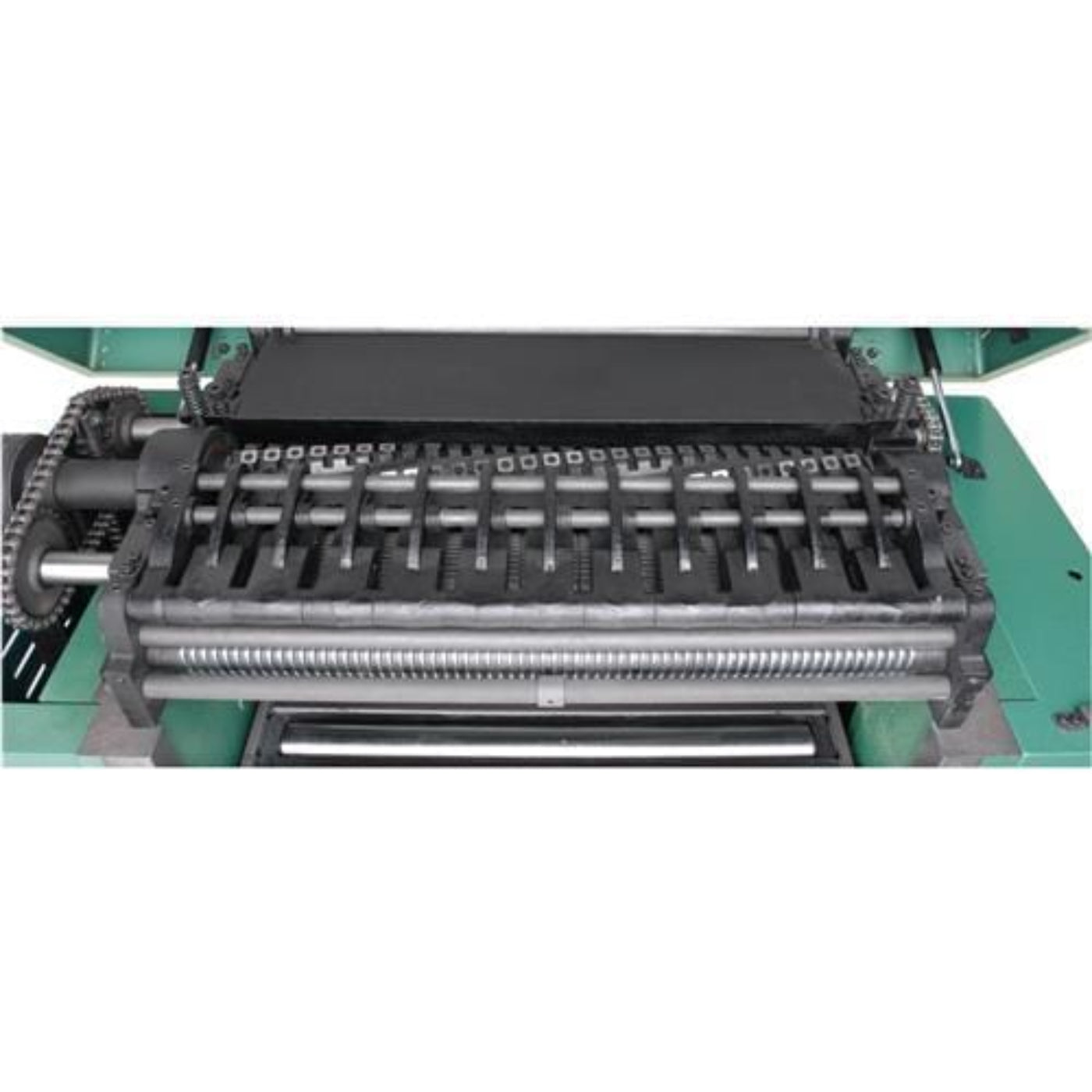

- Segmented chip breaker
- 5" dust port
- Micro-adjustable table height
- Serrated steel infeed roller
- Finished steel outfeed roller
- Adjustable bed rollers
- Easy-access cutterhead
- 3-Speed (20, 25, 30) feed Rate
- Inch/metric readout

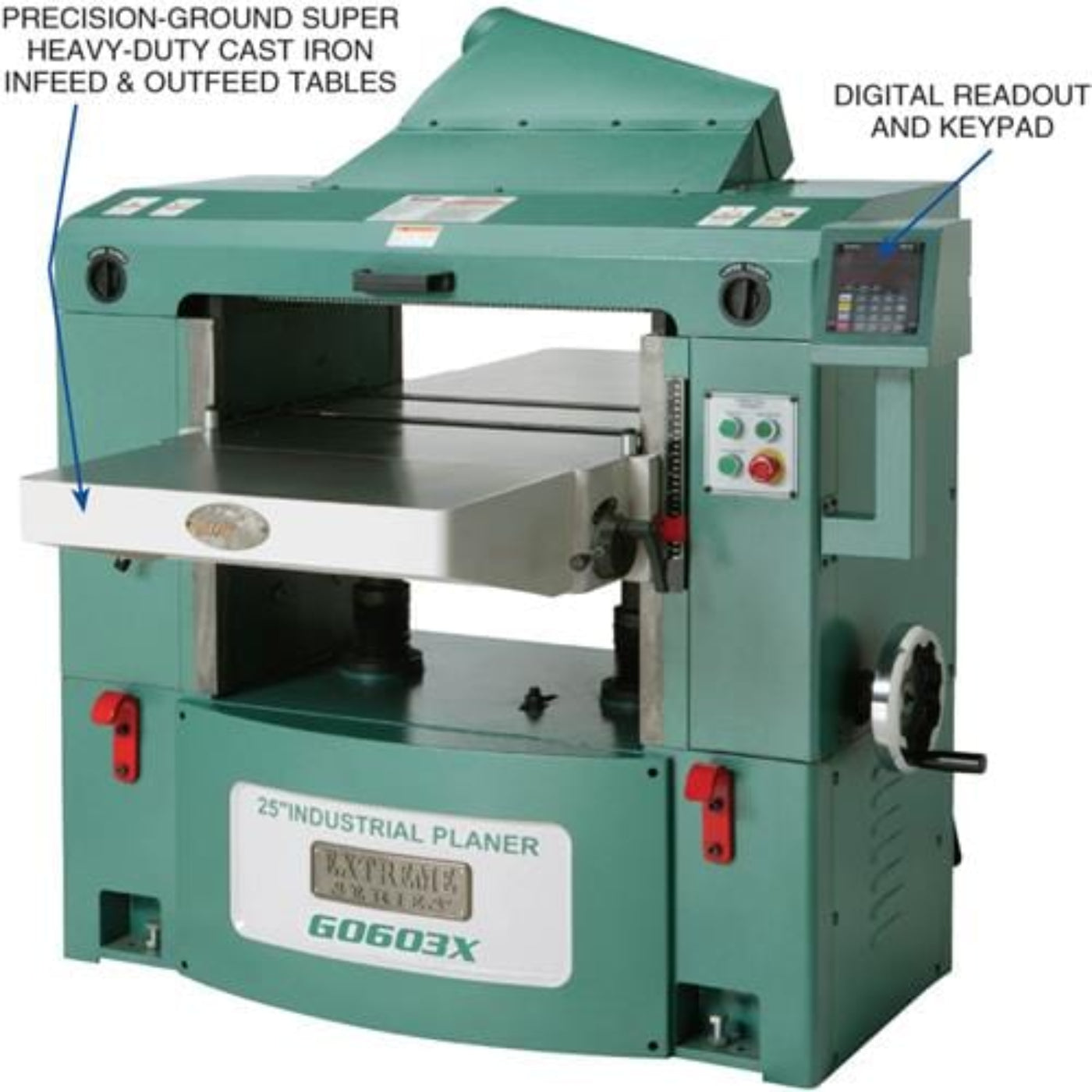

- Precision-ground cast-iron table
- Emergency stop button
Specifications
| Main Motor |
15 HP, 220V/440V* (prewired for 220V), 3-phase, 37A/18.5A |
| Table Elevation Motor |
1/2 HP, 3-phase, 2A/1A |
| Maximum Stock Width |
25" |
| Maximum Stock Thickness |
9" |
| Minimum Stock Thickness |
1/4" |
| Minimum Stock Length |
10" |
| Maximum Cutting Depth |
1/8" |
| Cutterhead Diameter |
3-1/2" |
| Cutterhead Type |
6-row helical with 174 inserts |
| Insert Size & Type |
15 x 15 x 2.5mm, indexable carbide |
| Feed Rate |
20, 25, 30 FPM |
| Table Size with Extensions |
25-1/8" W x 69-5/8" L |
| Table Movement |
9" |
| Overall Dimensions |
54-1/2" W x 57" D x 54-1/2" H |
| Approximate Shipping Weight |
2057 lbs. |
What our Experts Think
-
Industrial-Grade Power: Equipped with a 15 HP, 3-phase motor, delivering exceptional performance for high-volume woodworking.
-
25" Planing Capacity: Handles large workpieces effortlessly, making it ideal for professional shops and heavy-duty applications.
-
Helical Cutterhead: Features indexable carbide inserts for a smoother finish, quieter operation, and extended blade life.
-
Precision & Efficiency: Designed for superior accuracy with adjustable feed rates and precision-ground cast iron tables for stability.
-
Heavy-Duty Construction: Built to last, with a sturdy cast iron body, reducing vibration and ensuring long-term durability.
Q&A
Q: What is the Grizzly G0603X Planer?
A: The Grizzly G0603X is a 25-inch, heavy-duty industrial planer with a 15 HP 3-phase motor and a helical cutterhead for superior finish quality and efficiency in high-volume woodworking.
Q: What makes the helical cutterhead beneficial?
A: The helical cutterhead features carbide inserts arranged in a spiral pattern, reducing noise, improving chip ejection, and delivering an ultra-smooth finish with minimal tear-out.
Q: What materials can the G0603X handle?
A: This planer is designed for processing hardwoods, softwoods, and composite materials, making it ideal for cabinetry, furniture making, and industrial woodworking shops.
Q: What are the key features of this planer?
A: It includes a digital readout for precise thickness adjustments, a powerful 15 HP motor for continuous heavy-duty use, a cast-iron table for stability, and variable feed speeds for optimal control.
Q: Is the Grizzly G0603X suitable for professional use?
A: Yes, with its high-power motor, helical cutterhead, and durable build, this planer is perfect for professional woodworkers, millwork shops, and production facilities.
Maintenance Tips
-
Cutterhead Care: Clean and inspect the helical cutterhead regularly. Rotate or replace carbide inserts as needed to maintain a sharp cutting edge.
-
Lubrication: Apply lubricant to bearings, feed rollers, and adjustment mechanisms to ensure smooth operation.
-
Feed System Check: Keep feed rollers clean and free of dust buildup to prevent uneven feeding. Adjust roller pressure as required.
-
Table & Bed Maintenance: Wax or lubricate the planer table to reduce friction and ensure consistent material feeding.
-
Chip Collection: Ensure the dust collection system is functioning properly to prevent clogs and maintain shop cleanliness.
-
Motor & Electrical Inspection: Check wiring, connections, and overload protection for safe and efficient operation.
-
Blade Height & Alignment: Regularly check cutterhead alignment and bed parallelism for precise planing results.
