An upgraded jointer with a V-helical cutterhead.

Stepping up from our G0814 6" Jointer, the G0814X comes equipped with a 4-row V-helical cutterhead for unmatched finish and long-lasting cutter edge durability.

The V-helical cutterhead features 24 indexable carbide inserts that can each be rotated up to three times to expose a new sharp edge.

The inserts slice through wood at an angle to achieve a sheering effect. You’ll get quieter operation, and most importantly, a significantly better finish with less tear-out using this cutterhead versus a straight-knife model.

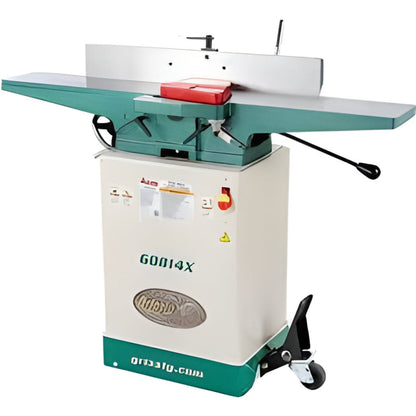

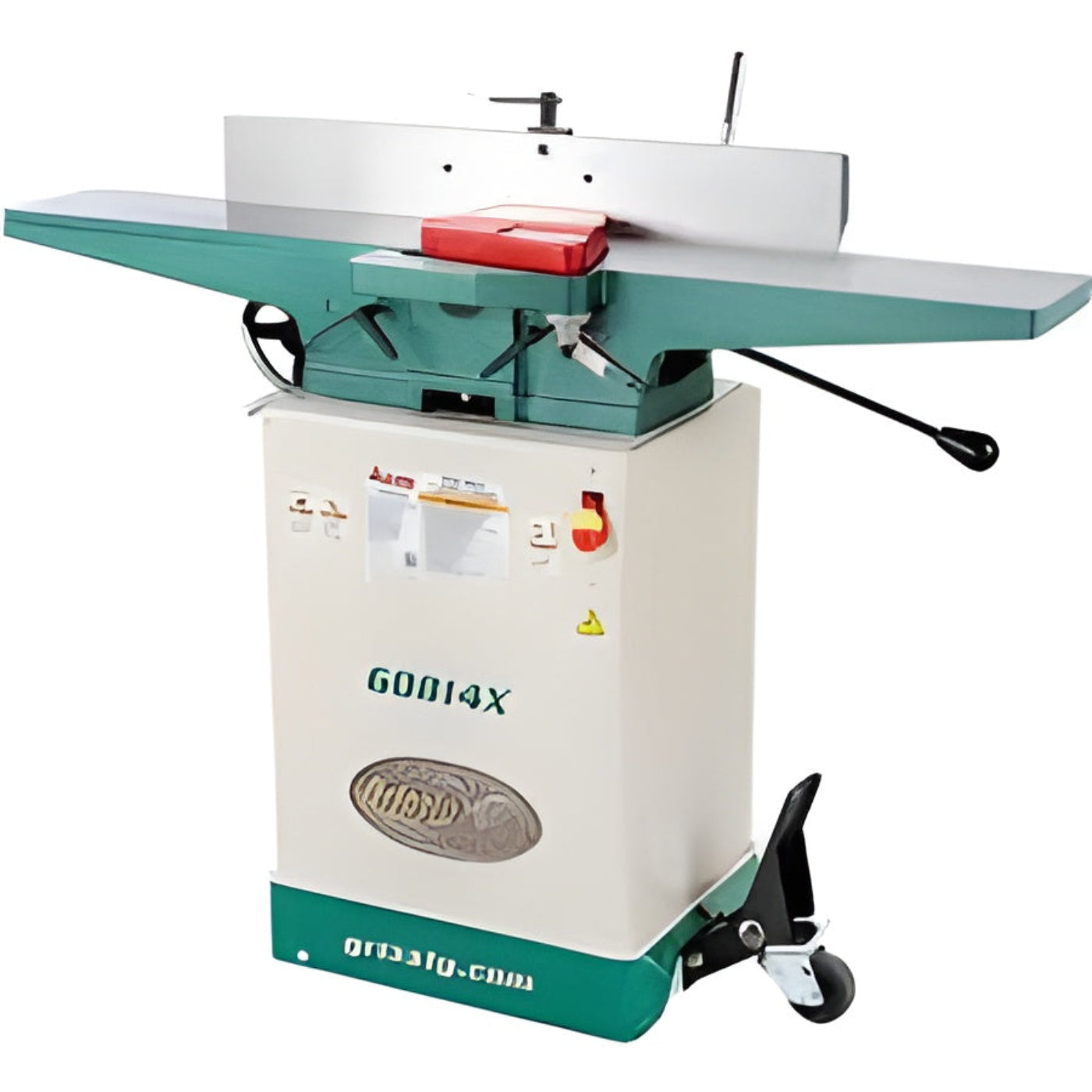

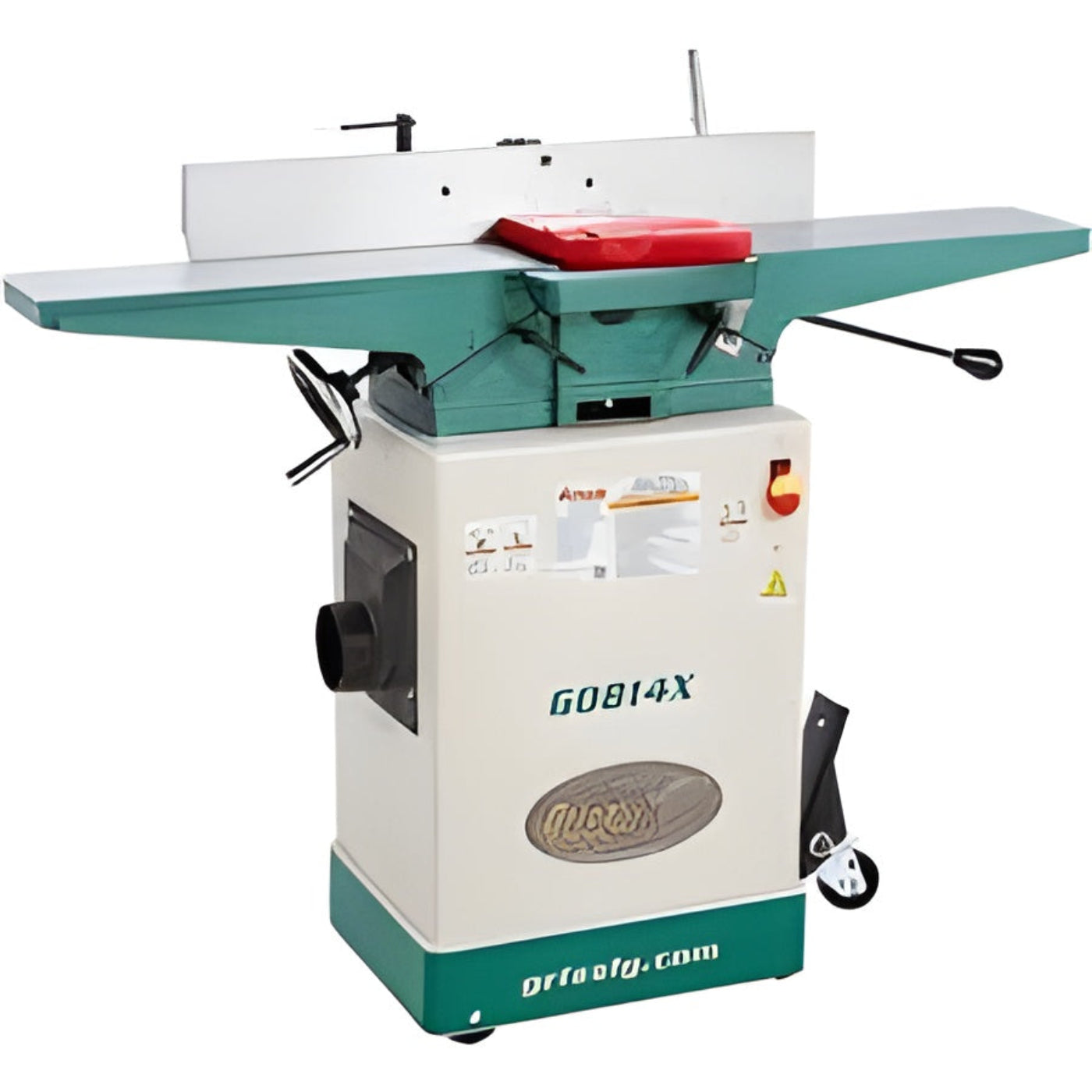

For increased mobility, the cabinet stand comes with a built-in mobile base. Engage the foot pedal caster to move your machine around. Lock the machine down when you are ready to work.

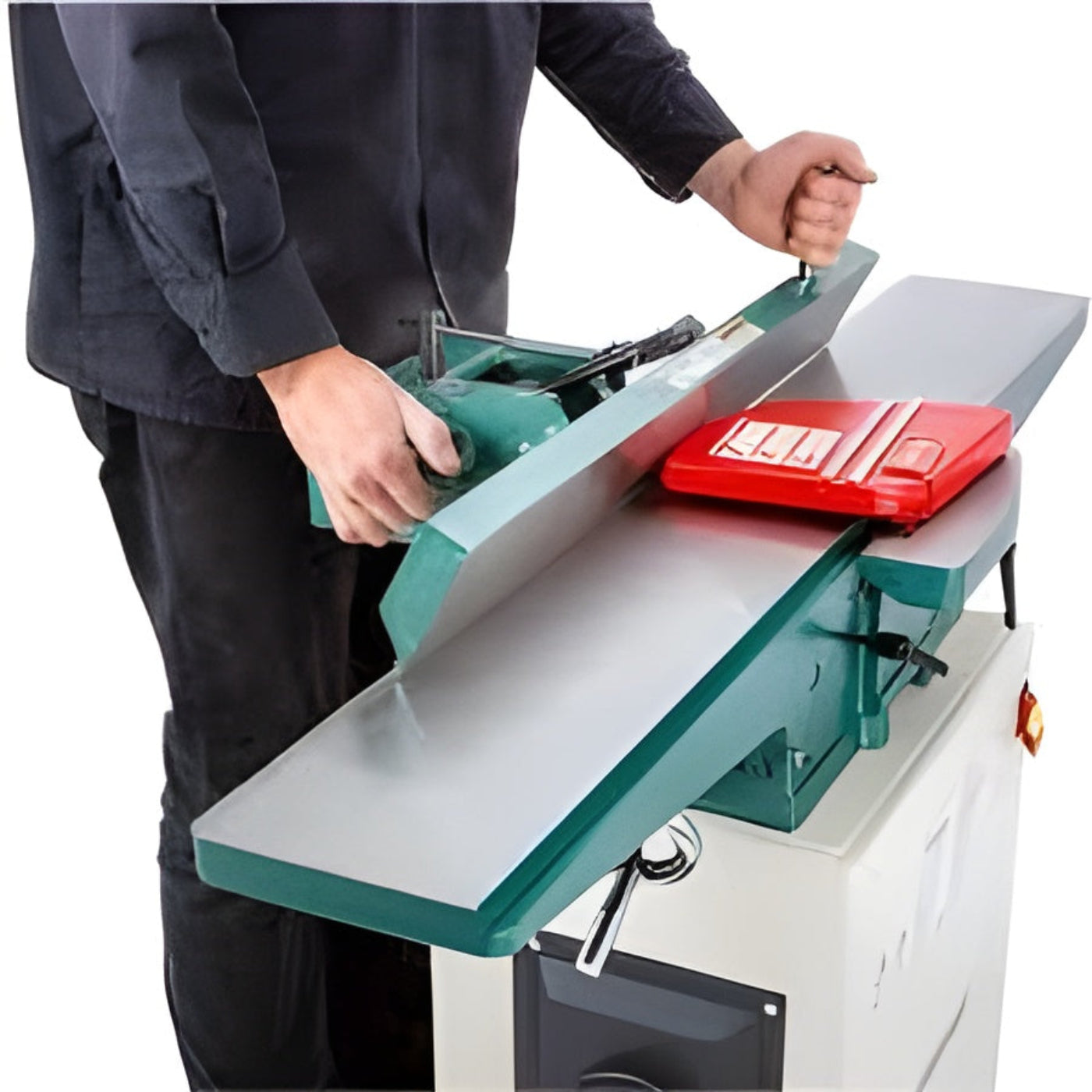

The fence is fully adjustable from 45° to 135°. It has built-in stops at 45°, 90° and 135°.

The precision-ground cast-iron tables move on dovetail ways for smooth and accurate table adjustments.

The H9893 replacement inserts are available when the stock inserts get dull.

Like all Grizzly jointers, the G0814X comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.

The G0814X manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your jointer.

The Grizzly Customer Service and Technical Support Teams are also U.S.-based.

Parts for the jointer may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

Features

• 4-row V-helical cutterhead with 26 indexable carbide inserts
• Cabinet stand with built-in mobile base
• Precision-ground cast-iron tables with dovetailed ways
• Heavy-duty center-mounted fence with stops at 45°, 90°, and 135°
• V-belt drive system
• Cabinet-mounted power switch

Specifications

What our Experts Think

• Precision Jointing – 6" cutting width is ideal for edge jointing and flattening boards.

• V-Helical Cutterhead – Provides smoother cuts, reduced tear-out, and quieter operation.

• Heavy-Duty Stand – Ensures stability and vibration control for precise results.

• Compact & Efficient – Perfect for small workshops and home woodworkers.

• Perfect For – Woodworkers needing a high-quality, space-saving jointer with superior cutting performance.

Q&A

Q: What is the U.S. Industrial Grizzly 6" Jointer with Stand & V-Helical Cutterhead (G0814X)?
A: A 6-inch jointer with a V-helical cutterhead, designed for smooth, precise edge jointing in woodworking applications.

Q: What is the motor power and voltage?
A: Features a 1.5 HP, 120V/240V motor, delivering reliable performance for clean and accurate cuts.

Q: What is the cutterhead type and advantage?
A: - V-helical cutterhead with indexable carbide inserts for superior finish and reduced tear-out.

• Quieter operation compared to straight knife cutterheads.

Q: What is the cutting capacity?
A: - Maximum cutting width: 6 inches

• Maximum depth of cut: 1/8 inch

Q: What are the table and fence specifications?
A: - Precision-ground cast iron table for stability.

• Fence tilts 45° left and right for bevel cuts.

Q: Does it have dust collection?

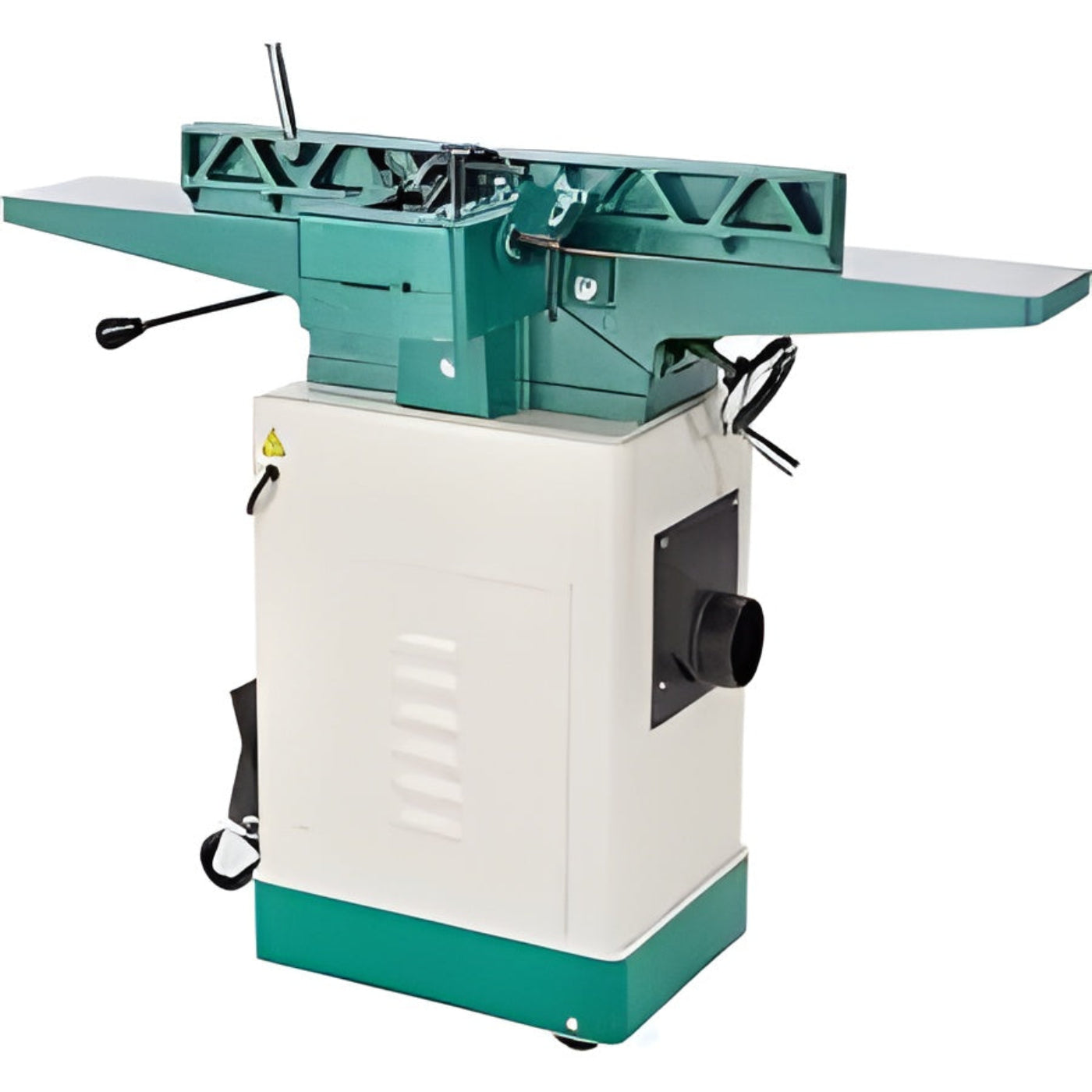

A: Yes, includes a 4-inch dust port for efficient chip and dust removal.

Q: Why choose this jointer?
A: Its V-helical cutterhead, powerful motor, precision fence, and sturdy stand make it an ideal choice for woodworkers needing a compact yet high-performance jointer.

Maintenance Tips

• Cutterhead Care: Keep V-helical cutterhead clean; rotate or replace inserts as needed.

• Fence & Table Maintenance: Clean and wax surfaces to reduce friction and prevent rust.

• Belt & Pulley Inspection: Check for wear and maintain proper tension.

• Dust Collection System: Ensure proper airflow by cleaning ports and emptying dust bins.

• Lubrication: Apply lubricant to moving parts like infeed/outfeed table adjustments.

• Knife & Depth Adjustment: Periodically check and adjust for accurate jointing.

• Electrical & Safety Check: Inspect wiring, switches, and emergency stops for safe operation.
