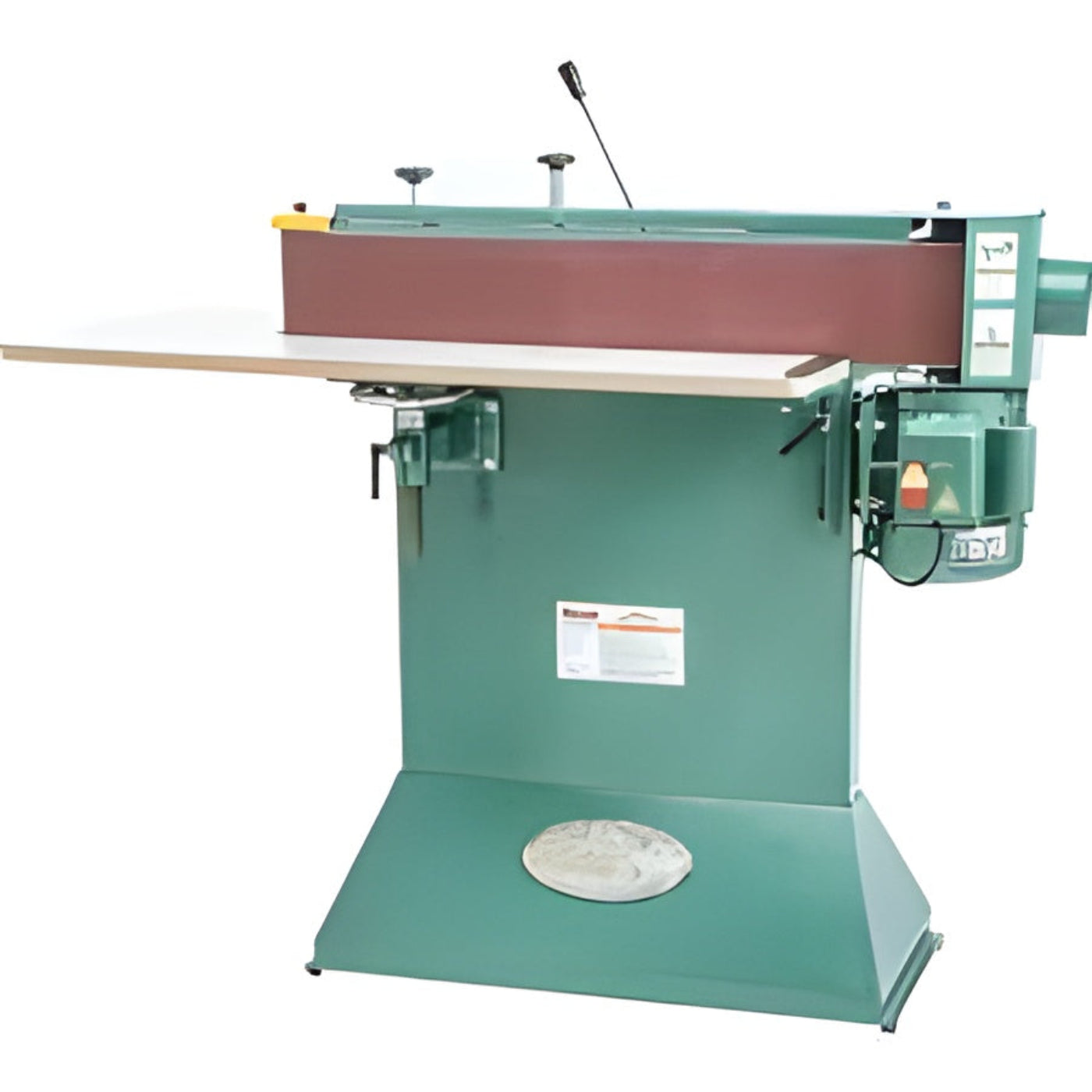

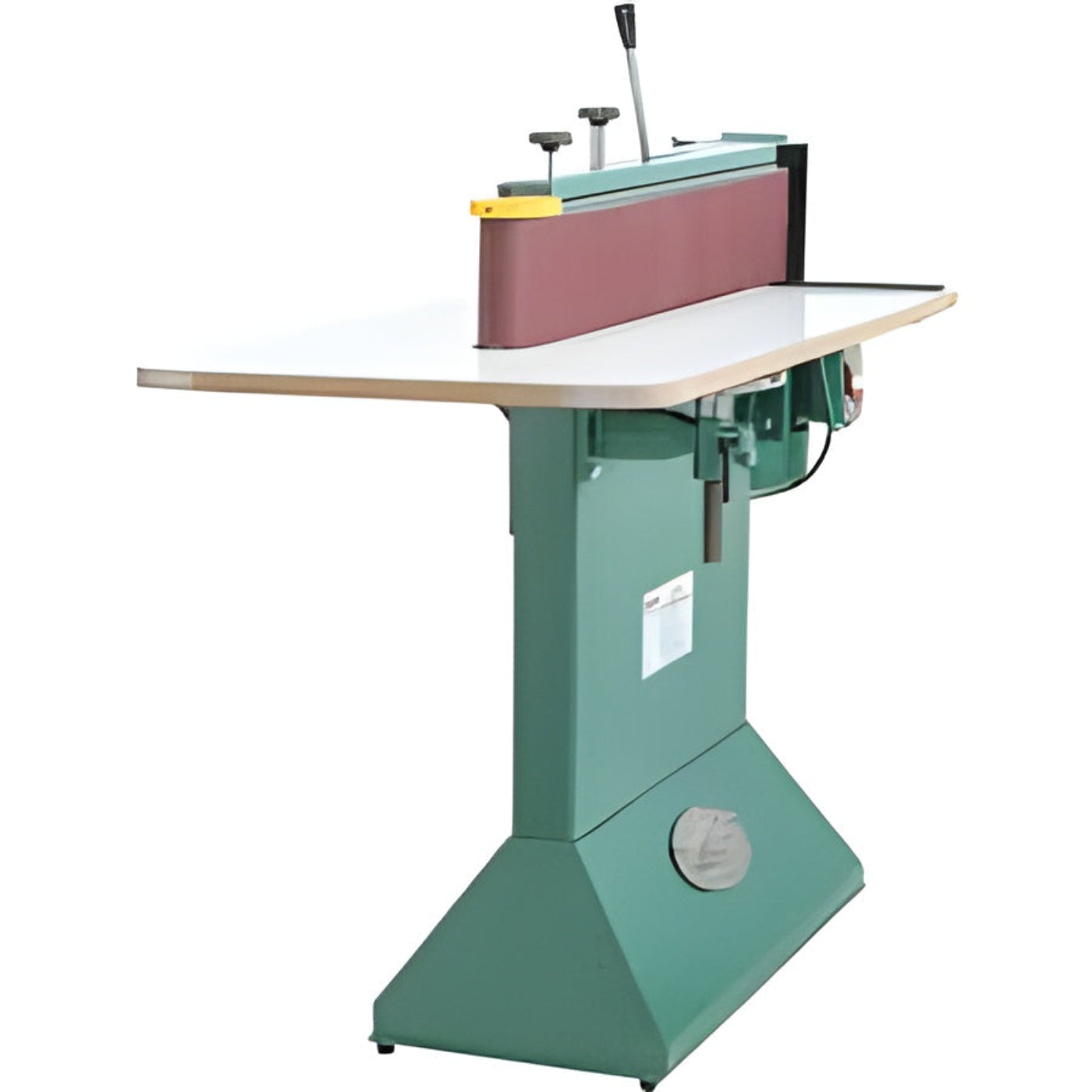

U.S Industrial Grizzly Industrial 6" x 80" Edge Sander w/ Wrap-Around Table - G0512
The G0512 Edge Sander was developed for those projects that require a large support area and have long straight sides or curves.
The specially designed 2-1/8" diameter roller allows you to get into tighter radius projects like guitar bodies, curved chair legs, etc.
The table is supported in four positions to eliminate sagging and to provide a stable base while working.
The quick-release belt tension lever allows fast belt changes.
Additional replacement belts are available.
Like all Grizzly sanders, the G0512 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0512 manual was written by our U.S. based Documentation Department is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your shaper.
The Grizzly Technical Support team is U.S. based. Parts for the sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Paddle safety switch with removable key
- Direct-drive power transfer
- Shielded and permanently lubricated ball bearings
- Welded-steel powder-coated base
- Composite with plastic laminate surface table
- Extended sanding surface
- Work stop

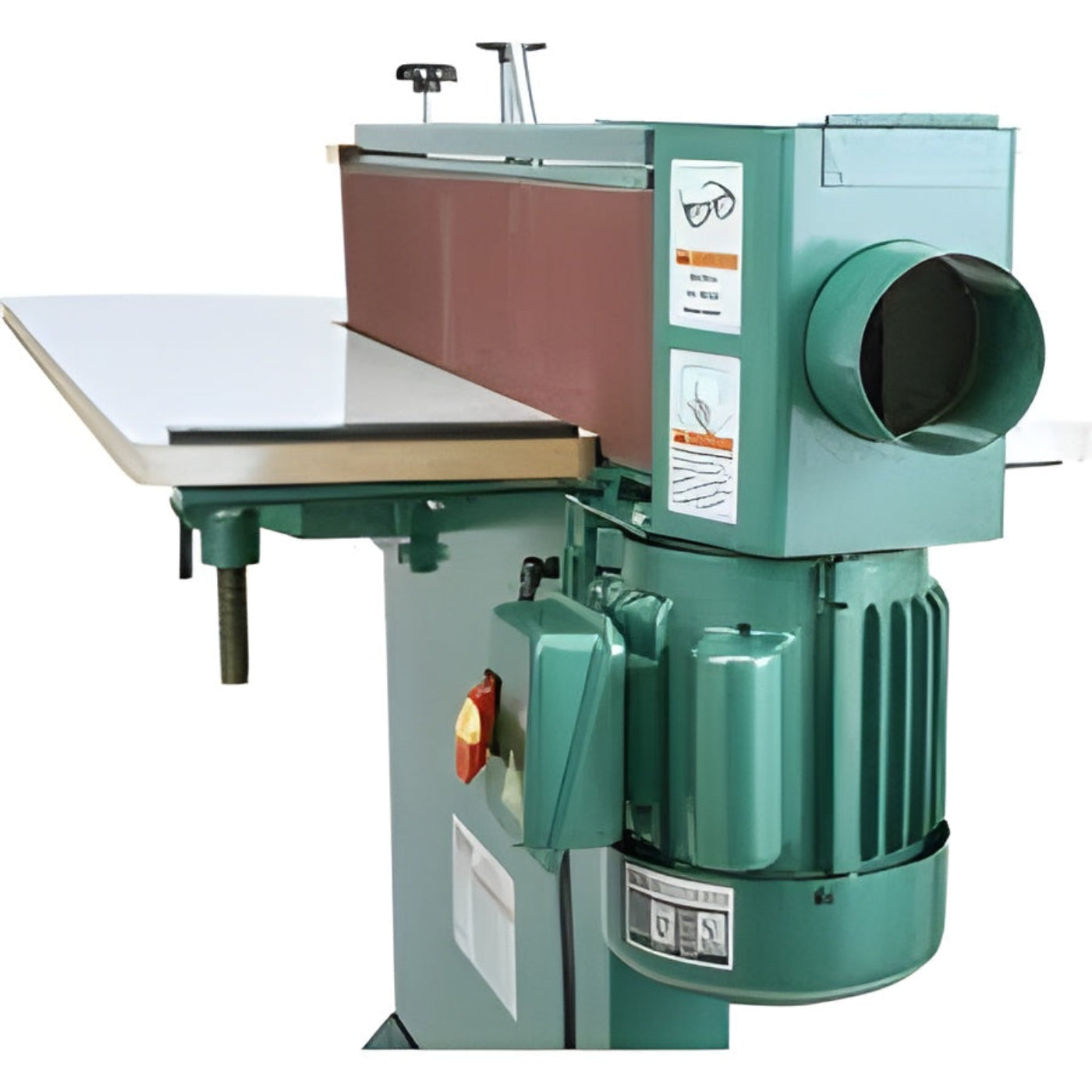

- 4" Dust port
- Quick-release belt tension lever
- Belt tracking and tension adjustment
- Handwheel table height adjustment
Specifications
| Motor |
1-1/2 HP, 110V/220V (prewired 220V), single-phase, 20A/10A |
| Sanding Belt Speed |
1800 FPM |
| Sanding Belt Size |
6" x 80" |
| Table Size |
24" x 42-1/4" |
| Table Height |
33"–39" |
| Platen |
6-1/4" x 31-1/2", graphite-coated |
| Rubber Idler Roller |
2-1/8" |
| Drive Roller |
4-1/2", cast aluminum |
| Footprint |
32" L x 14-1/2" W |
| Overall Size |
52-1/2" W x 24" D x 48-3/4" H |
| Approximate Shipping Weight |
251 lbs. |
What our Experts Think
-
Large Sanding Capacity – 6" x 80" sanding belt allows for smooth, consistent edge sanding on long workpieces.
-
Wrap-Around Table – Provides extra support and adjustable angle options for versatile sanding configurations.
-
Powerful & Reliable Motor – Ensures consistent performance for smooth, clean edges on a variety of materials.
-
Heavy-Duty Construction – Built for industrial use with a robust frame and long-lasting components.
-
Perfect For – Woodshops and professional woodworkers needing precision edge sanding and surface finishing.
Q&A
Q: What is the U.S. Industrial Grizzly 6" x 80" Edge Sander with Wrap-Around Table (G0512)?
A: A 6-inch x 80-inch edge sander with a wrap-around table, designed for precision edge, face, and contour sanding in woodworking applications.
Q: What is the motor power and voltage?
A: Equipped with a 2 HP motor, typically running on 220V, delivering consistent power for smooth sanding.
Q: What is the sanding capacity?
A: - Belt size: 6 inches wide x 80 inches long
Q: What is the advantage of the wrap-around table?
A: The wrap-around design offers full support for sanding long workpieces and improves sanding precision for edges and curves.
Q: What is the adjustable feature of the table?
A: The table is tiltable from 0° to 45°, allowing for a variety of sanding angles for versatility.
Q: Does it have dust collection?
A: Yes, it includes a 4-inch dust port for connecting to a dust collector to maintain a clean workspace.
Q: Why choose this edge sander?
A: Its wide sanding belt, wrap-around table, tiltable feature, and strong motor make it a reliable choice for woodworkers needing high-quality edge and contour sanding.
Maintenance Tips
-
Belt Inspection & Alignment: Regularly check the sanding belt for wear and ensure proper tracking.
-
Table Cleaning & Adjustment: Keep the wrap-around table clean and adjust for smooth, even sanding.
-
Motor & Drive System: Inspect the motor, pulleys, and belts for wear; replace any worn components.
-
Dust Collection System: Empty and clean dust ports and bins to ensure proper suction and prevent clogs.
-
Lubrication: Apply lubricant to moving parts such as rollers and table adjustments.
-
Electrical & Safety Check: Inspect switches, wiring, and safety features like the emergency stop for proper function.
-
Belt Tension: Regularly check and adjust the tension to maintain optimal sanding performance
