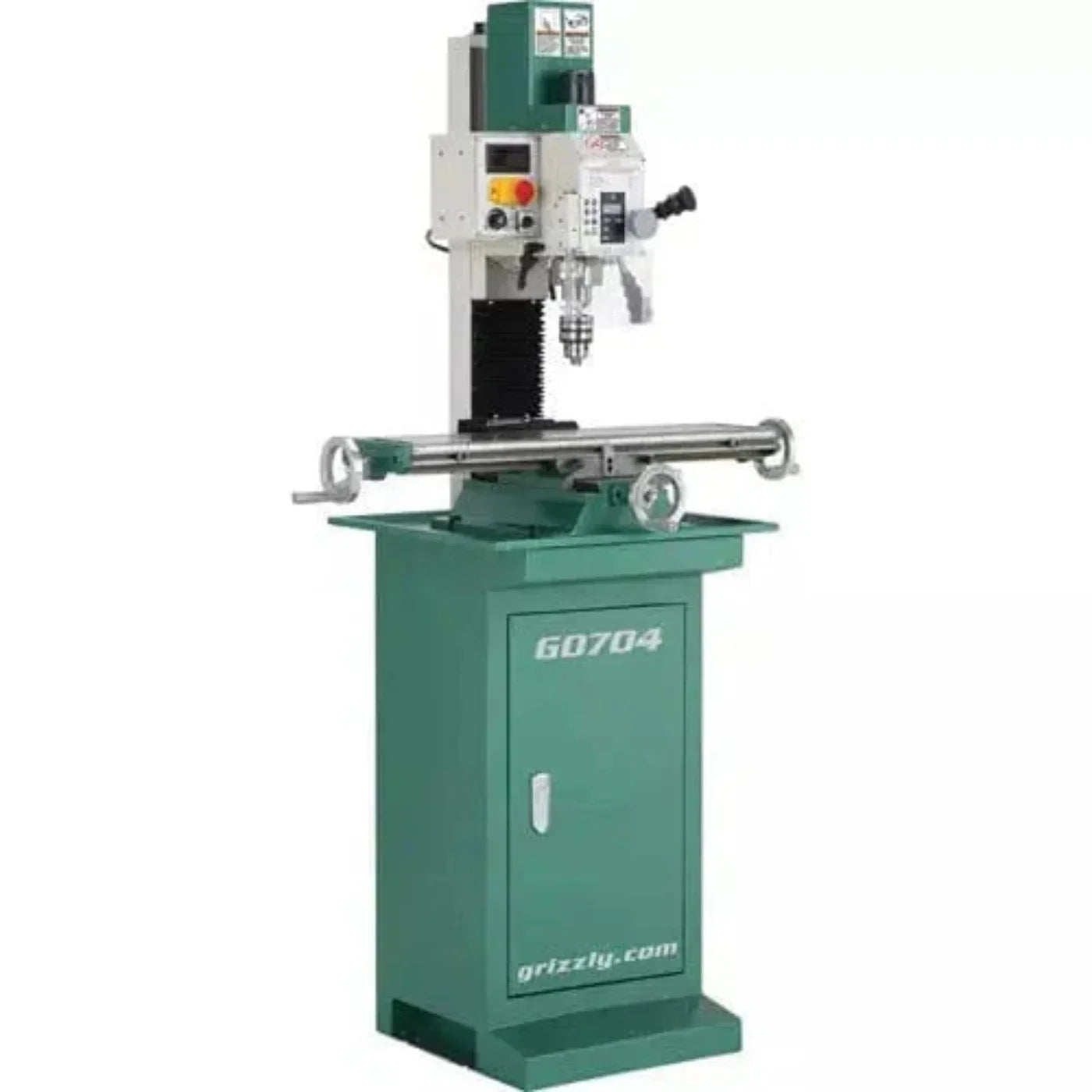

U.S Industrial Grizzly Industrial 7" x 27" 1 HP Mill/Drill with Stand - G0704
The G0704 7" x 27" 1 HP Mill Drill with Stand can be used as a dedicated, single-purpose machine in a professional shop. It can be easily operated by those just learning to mill in their home shop as well.
It is an excellent value and has some of the same features found on much larger mill drills. That’s why it is one of the best-selling mill drills in the country!

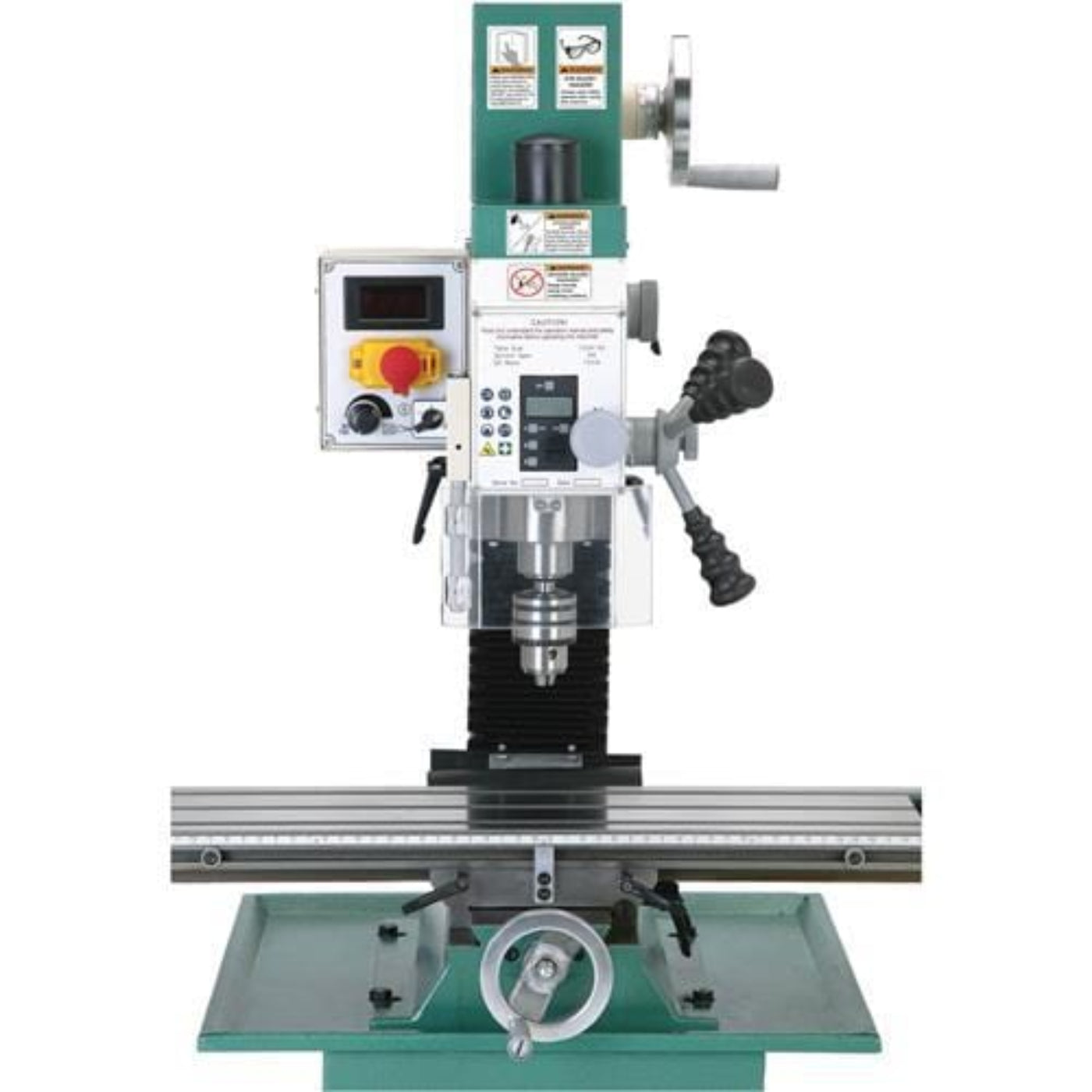

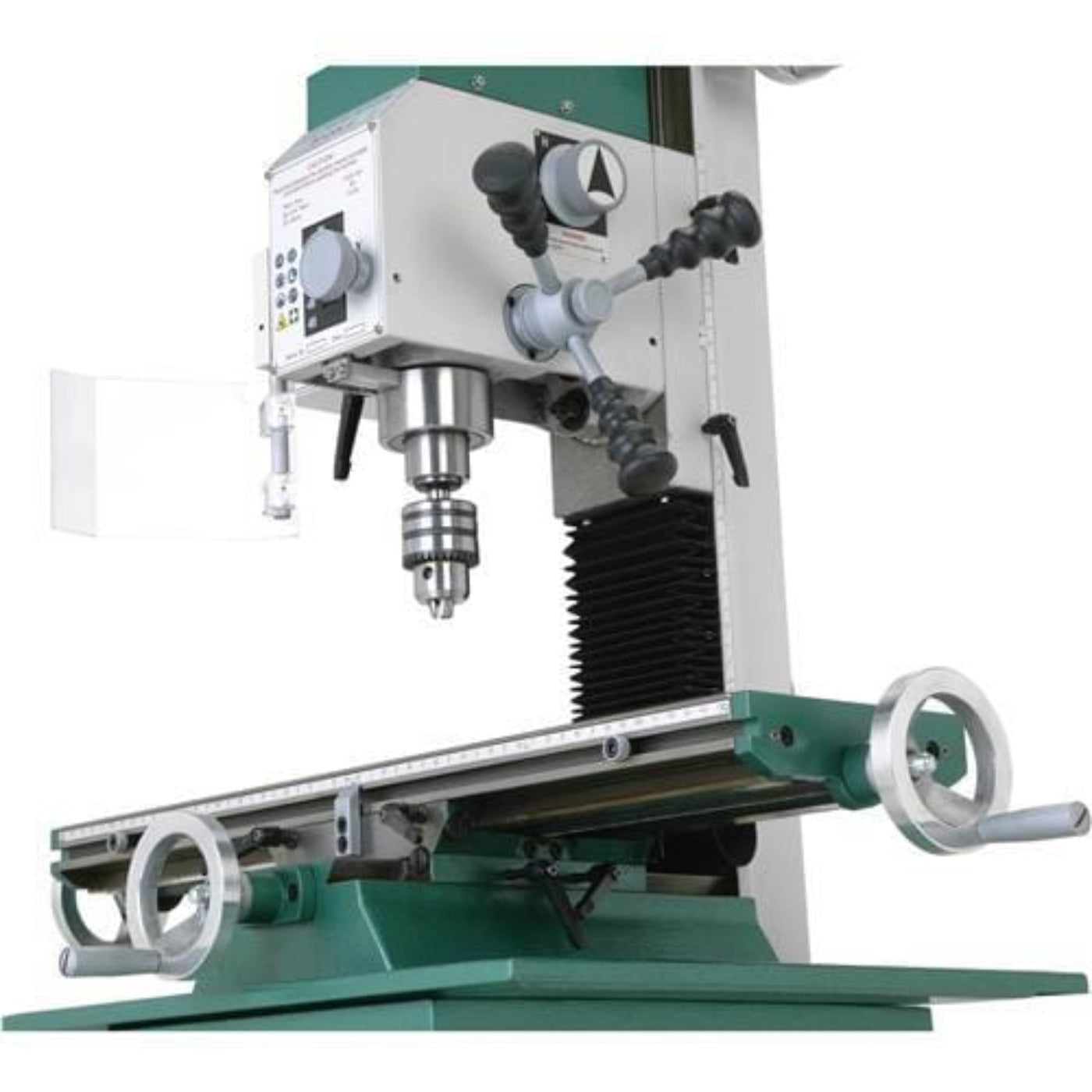

The variable-speed 1 HP motor powers the R-8 spindle from 50–1125 RPM in low and 100–2250 RPM in high. Spindle RPM can be monitored on the convenient digital readout. A clear chip guard on the spindle keeps debris from flying at the operator.

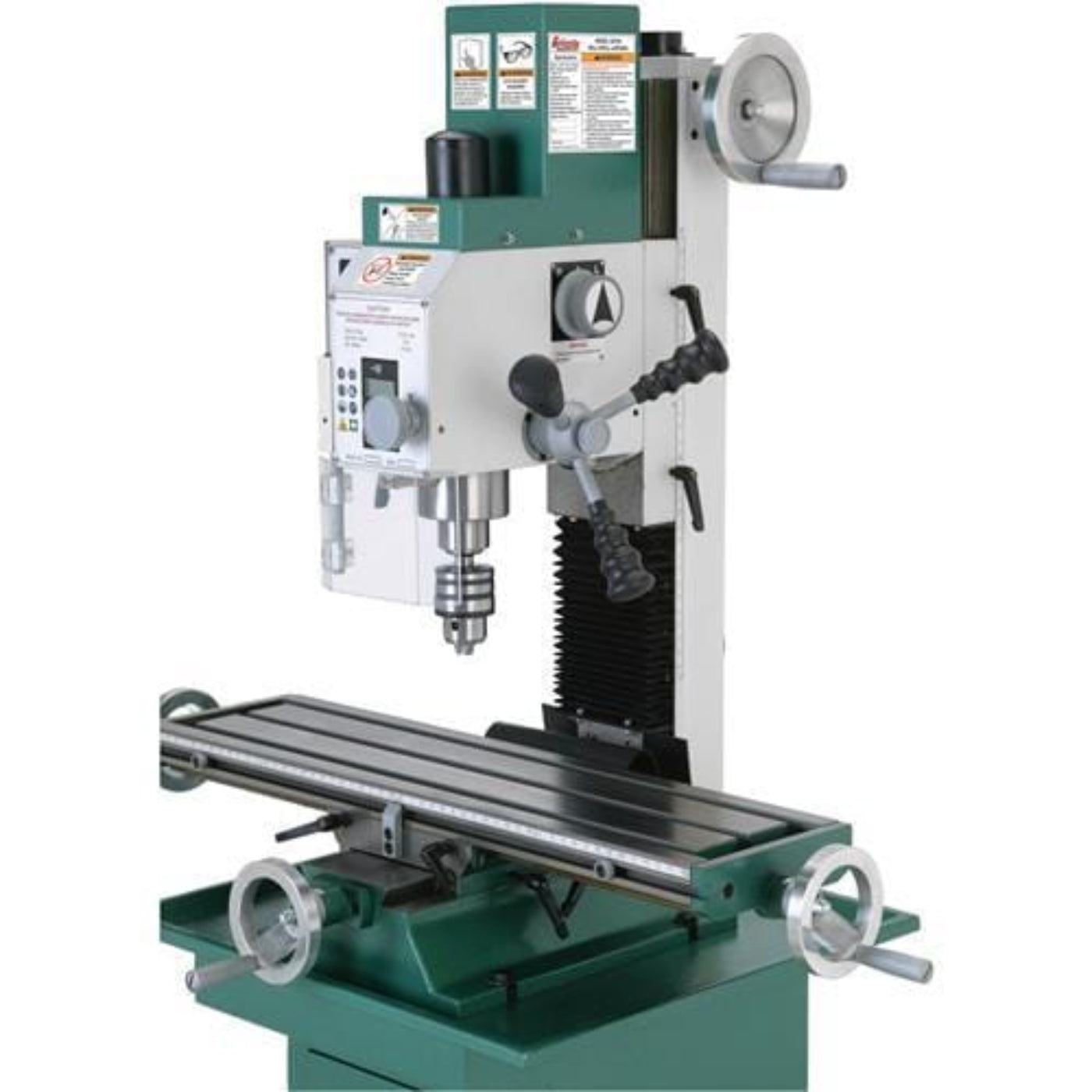

The G0704 has a large 7-1/16" x 26-5/8" table that can be moved by handwheels in both the longitudinal and cross directions. Both feed directions can be locked by table lock levers.

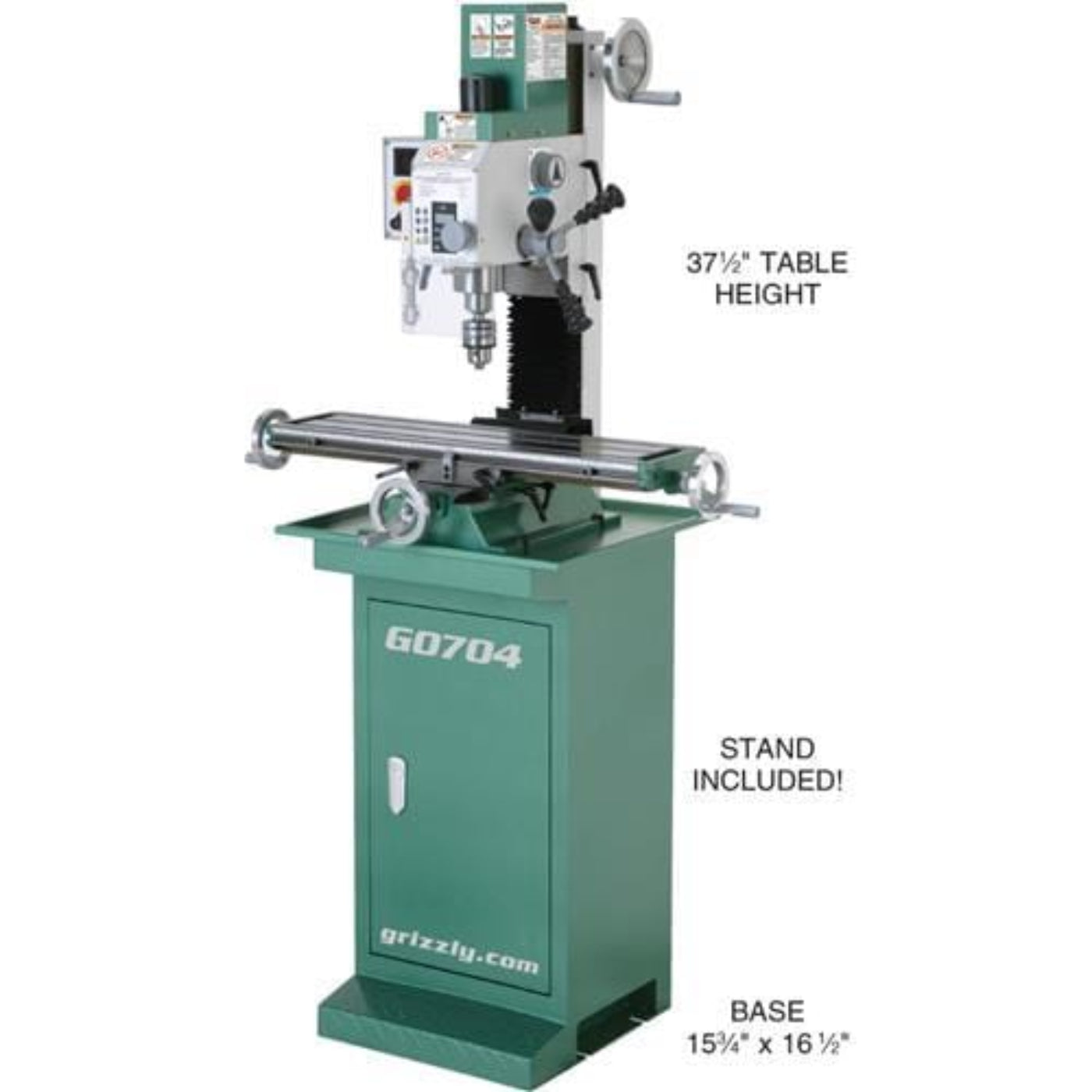

The G0704 also features tapered gibs with double locks which adds accuracy and rigidity, a dovetail column; and it comes with its own stand.
Like all Grizzly mill drills, the G0704 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0704 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill drill.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the mill drill may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
Features
- Spindle RPM DRO
- Spindle depth display
- Fine feed head control
- 2-Speed gearbox
- Clear guard on spindle
- Cast-iron dovetail column
- Rubber chip guards on ways
- Zero setting dials
- Dials read inches
- Forward/reverse switch
- Start/emergency stop buttons
Specifications
| Motor |
1 HP, 110V, single-phase, 12A |
| Swing |
15" |
| Spindle Taper |
R-8 |
| Max. Distance Spindle to Table |
13" |
| Max. Distance Spindle to Column |
7-1/2" |
| Spindle Travel |
2" |
| Spindle Speed |
Variable, 50–2250 RPM |
| Vertical Head Travel |
11" |
| Head Tilt |
90° left/right |
| Table Size |
7-1/16" x 26-5/8" |
| Table Travel (Longitudinal) |
18-7/8" |
| Table Travel (Cross) |
6-7/8" |
| T-Slots |
3 slots, 2-1/2" centers, 7/16" wide |
| Drilling Capacity |
5/8" mild steel |
| Stand Footprint |
15-3/4" x 16-1/2" |
| Overall Dimensions |
38" x 34" x 67" |
| Approximate Shipping Weight |
372 lbs. |
What our Experts Think
-
Compact & Versatile – 7" x 27" table provides ample space for precision milling, drilling, and tapping.
-
1 HP Motor – Delivers smooth, consistent power for a variety of materials.
-
Variable Speed Control – Allows fine-tuned adjustments for greater cutting precision.
-
Heavy-Duty Stand Included – Ensures stability and reduced vibration for more accurate machining.
-
Perfect For – Hobbyists and small workshops needing a reliable, space-saving mill/drill combo.
Q&A
Q: What is the U.S. Industrial Grizzly 7" x 27" 1 HP Mill/Drill with Stand (G0704)?
A: A compact milling and drilling machine with a 1 HP motor and stand, designed for precision machining in small workshops and home garages.
Q: What is the motor power and voltage?
A: Equipped with a 1 HP, 110V motor, providing ample power for milling and drilling applications.
Q: What is the table size and travel?
A: - Table size: 7-1/16" x 26-5/8"
-
X-axis (longitudinal travel): 18-7/8"
-
Y-axis (cross travel): 6-7/8"
-
Z-axis (vertical travel): 11"
Q: What spindle speeds does it offer?
A: - Variable speed control from 50 to 2250 RPM, allowing precise adjustments based on material and tooling.
Q: What materials can it handle?
A: Suitable for metals, plastics, and composites, making it ideal for hobbyists, machinists, and small-scale production.
Q: Does it have a digital readout (DRO)?
A: No built-in DRO, but it can be upgraded with an aftermarket DRO system for enhanced precision.
Q: Does it come with a stand?
A: Yes, it includes a sturdy stand for improved stability and ergonomic operation.
Q: Why choose this mill/drill?
A: Its compact size, variable speed, precision table, and included stand make it an affordable and versatile choice for machining small to medium-sized workpieces.
Maintenance Tips
-
Lubrication: Regularly oil lead screws, ways, and spindle bearings for smooth operation.
-
Spindle & Chuck Care: Keep clean, check for runout, and tighten as needed.
-
Belt & Pulley Inspection: Ensure proper tension and replace worn belts for consistent power transmission.
-
Table & Column Cleaning: Wipe down surfaces to prevent rust and remove debris buildup.
-
Feed & DRO Accuracy: Periodically check and calibrate for precise milling.
-
Chip & Coolant Management: Keep work area clean and maintain coolant levels if used.
-
Electrical & Safety Check: Inspect wiring, emergency stop, and grounding for safe operation.
