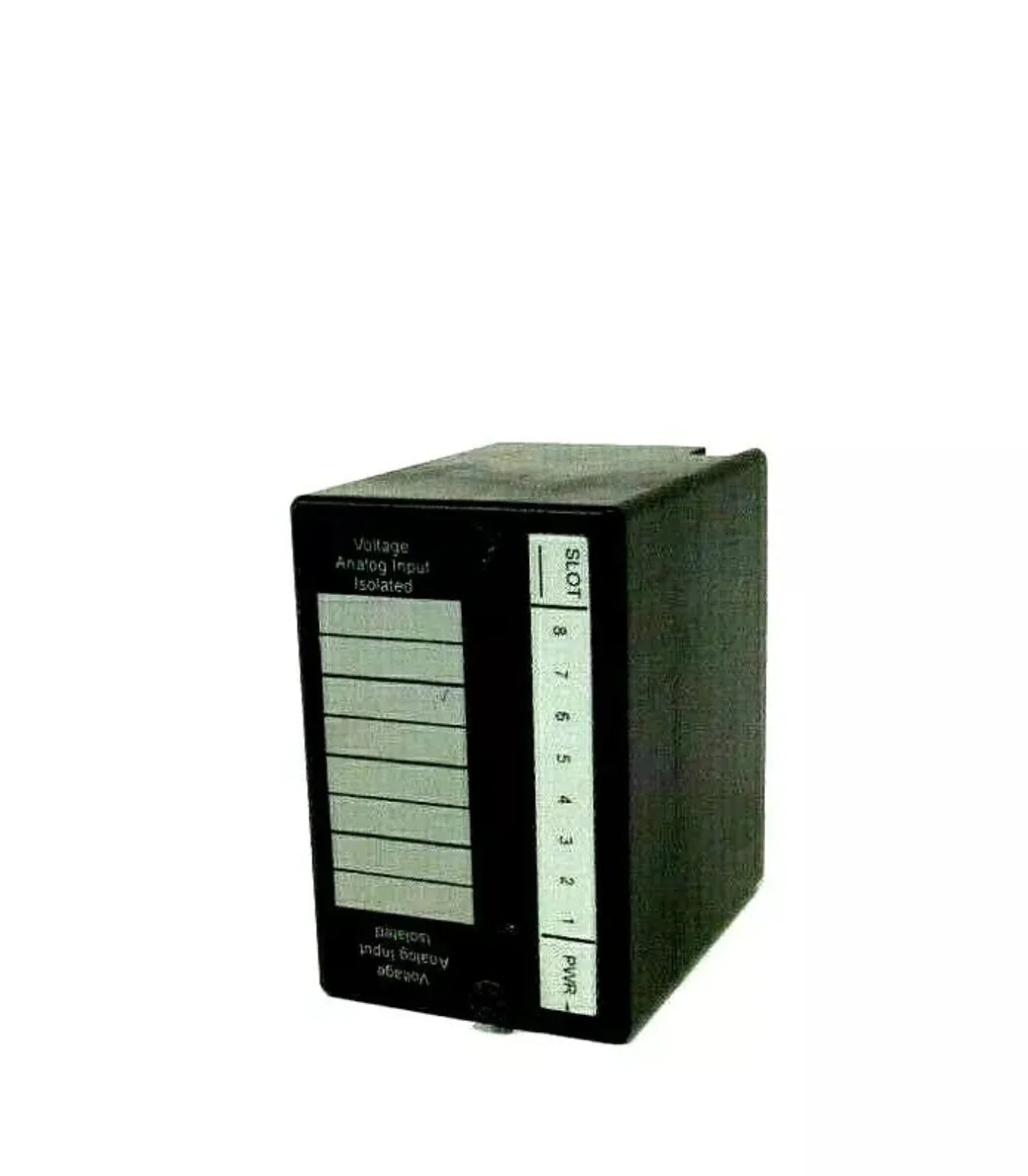

The GE Fanuc HE670ADC830C Field Control Analog Input Module is a high-precision, 8-channel input module designed for GE Fanuc Field Control systems. It provides 12-bit resolution (11 bits + sign) and supports a voltage input range of 0 to +10VDC or -10 to +10VDC.
The HE670ADC830C Analog Input Module is engineered to convert voltage input signals into digital values, making them accessible through communication with the Bus Interface Unit (BIU). It operates with a standard Field Control I/O case, providing compatibility with multiple I/O bases for flexible installation. The module features a 1MΩ input impedance and a maximum error of ±0.1% full scale at 25°C, ensuring high accuracy in data acquisition systems
With high accuracy, robust isolation, and flexible configuration, the GE Fanuc HE670ADC830C is an ideal choice for industrial process control, data acquisition, and automation applications..
Features
- 8 analog input channels with selectable voltage ranges (0 to +10VDC, -10 to +10VDC).
- 12-bit resolution (11 bits + sign) for accurate signal conversion.
- Channel-to-channel isolation: 400VDC for noise immunity and safety.
- Channel-to-ground isolation: 1000VDC for enhanced system protection.
- Input impedance: 1MΩ, ensuring minimal signal interference.
- High precision: ±0.1% full-scale accuracy at 25°C.
- Output format: Set by BIU, normally 10V = 10,000 counts.
- Operating temperature range: 0 to 75°C for industrial applications.
- Relative humidity tolerance: 5% to 95%, non-condensing.
- Power consumption: 130mA from backplane, 24VDC ±10% input power.
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc |
| Category |
PLCs and Accessories |
| Part Number |
HE670ADC830C |
| Subcategory |
PLC Expansion Modules |
Power Consumption |
130mA from backplane |
| Number of Channels |
8 |
| Range |
0 to +10VDC -10 to +10VDC Selectable by the BIU |
| Channel –to– Channel Isolation |
400VDC |
| Channel –to– Backplane Isolatio |
1000VDC |
| Input Impedance |
1 Mohm |
| Resolution (0 to +10) (-10 to +10) |
12-bits 11-bits + sign |
| Output Format |
Set by BIU, Normally 10V = 10000 counts |
| Maximum error at 25°C |
+/- 0.1% Full Scale |
| Operating Temperature |
0 to 75°C |
| Relative Humidity |
5% to 95%, non-condensing |
| Input Power |
24VDC +/-10% |
What Our Experts Think
-
High-Resolution Conversion: Offers 12-bit resolution (11 bits plus sign), ensuring precise analog-to-digital conversion for accurate data acquisition.
-
Flexible Input Ranges: Supports selectable voltage ranges of 0 to +10VDC or ±10VDC, providing versatility for various industrial applications.
-
Robust Isolation: Features 400VDC channel-to-channel isolation and 1000VDC channel-to-backplane isolation, enhancing noise immunity and system protection.
-
Wide Operating Conditions: Operates effectively within a temperature range of 0 to 75°C and a relative humidity of 5% to 95% (non-condensing), suitable for diverse industrial environments.
-
Compact and Efficient: Consumes 130mA from a 24VDC ±10% input, optimizing power usage without compromising performance.
-
Easy Integration: Designed for compatibility with GE Fanuc Field Control systems, facilitating seamless integration into existing setups.
Q&A
Q: What is the GE Fanuc HE670ADC830C Analog Input Module?
A: The HE670ADC830C is an 8-channel analog input module designed for GE Fanuc Field Control systems. It converts voltage signals into digital data for precise process monitoring.
Q: What applications is the HE670ADC830C suitable for?
A: Ideal for industrial automation systems requiring accurate analog signal acquisition, such as process control, data acquisition, and monitoring applications.
Q: Is the HE670ADC830C compatible with other GE Fanuc modules?
A: Yes, it integrates seamlessly with other GE Fanuc Field Control modules when used with a compatible Bus Interface Unit (BIU).
Q: Where can I purchase the HE670ADC830C Analog Input Module?
A: The HE670ADC830C is available through authorized industrial automation distributors.
Maintenance Tips
-
Signal Calibration: Periodically verify and recalibrate analog input ranges.
-
Inspect Terminals: Check for corrosion, loose wiring, or signal dropouts.
-
Clean Carefully: Remove dust with anti-static tools to protect circuitry.
-
Shielded Cabling: Use proper grounding and shielding to minimize noise.
-
Environmental Control: Maintain stable temperature and humidity conditions.
-
Firmware Verification: Ensure configuration and firmware are up to date using GE tools.
