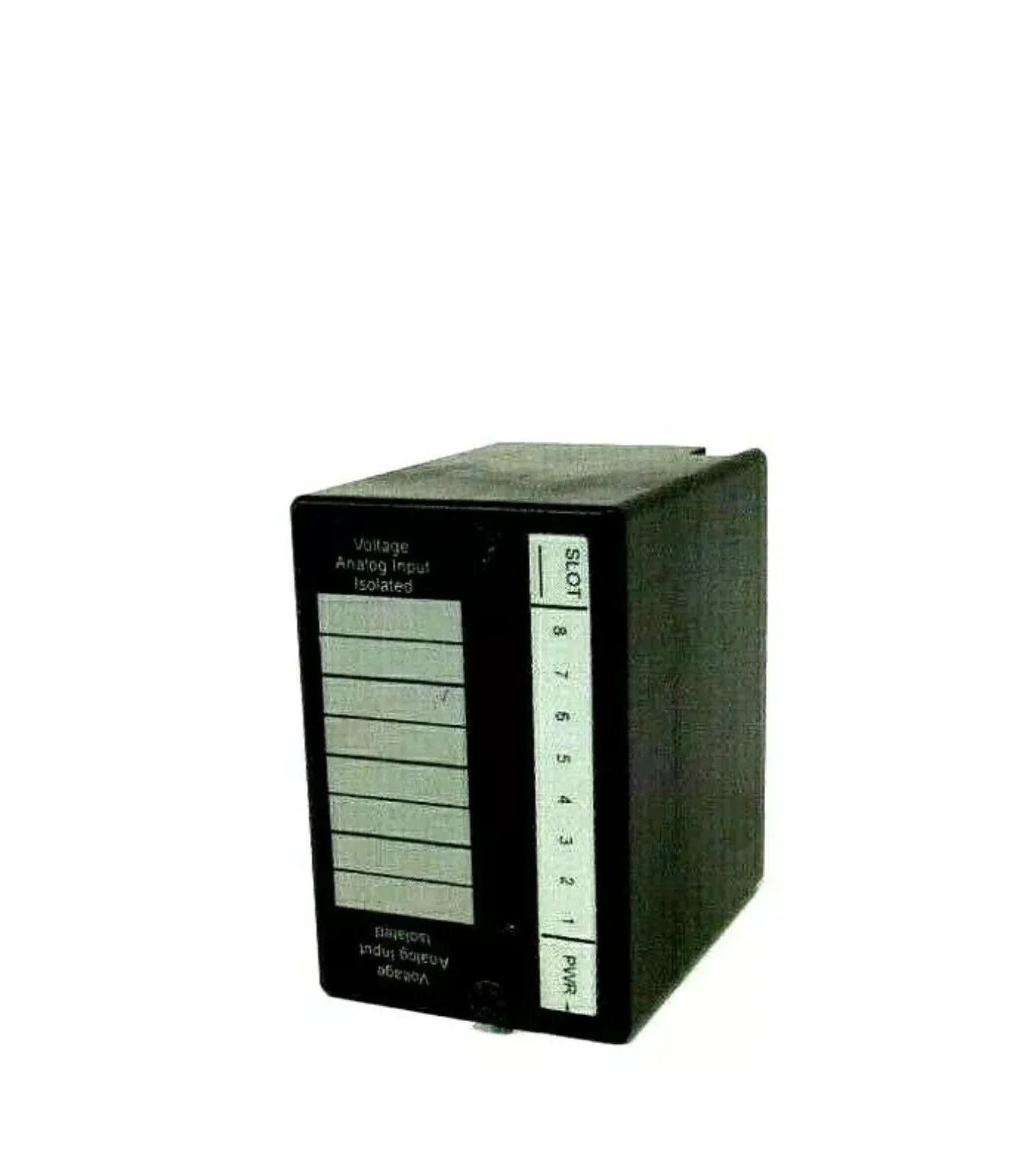

The GE Fanuc HE670ADC830C Field Control Analog Input Module is a high-precision, 8-channel input module designed for GE Fanuc Field Control systems. It provides 12-bit resolution (11 bits + sign) and supports a voltage input range of 0 to +10VDC or -10 to +10VDC.

The HE670ADC830C Analog Input Module is engineered to convert voltage input signals into digital values, making them accessible through communication with the Bus Interface Unit (BIU). It operates with a standard Field Control I/O case, providing compatibility with multiple I/O bases for flexible installation. The module features a 1MΩ input impedance and a maximum error of ±0.1% full scale at 25°C, ensuring high accuracy in data acquisition systems.

With high accuracy, robust isolation, and flexible configuration, the GE Fanuc HE670ADC830C is an ideal choice for industrial process control, data acquisition, and automation applications.

Features

• 8 analog input channels with selectable voltage ranges (0 to +10VDC, -10 to +10VDC).
• 12-bit resolution (11 bits + sign) for accurate signal conversion.
• Channel-to-channel isolation: 400VDC for noise immunity and safety.
• Channel-to-ground isolation: 1000VDC for enhanced system protection.
• Input impedance: 1MΩ, ensuring minimal signal interference.
• High precision: ±0.1% full-scale accuracy at 25°C.
• Output format: Set by BIU, normally 10V = 10,000 counts.
• Operating temperature range: 0 to 75°C for industrial applications.
• Relative humidity tolerance: 5% to 95%, non-condensing.
• Power consumption: 130mA from backplane, 24VDC ±10% input power.

Specifications

What Our Experts Think

• Precise Signal Conversion: Converts analog signals to digital with high accuracy, ensuring reliable process control.

• Wide Input Range: Supports a broad range of input voltages and currents, offering flexibility across various industrial applications.

• Durable Build: Designed to operate in demanding environments, ensuring long-term reliability in automated systems.

• Easy Integration: Compatible with GE Fanuc PLCs, simplifying setup and reducing integration time.

• Advanced Diagnostics: Provides built-in diagnostic capabilities for easier troubleshooting and maintenance.

Q&A

Q: What is the HE670ADC830C Analog Input Module?
A: It’s a GE Fanuc field control analog input module used to interface analog signals with Fanuc automation systems.

Q: What systems is it compatible with?
A: It is compatible with Fanuc field control and PLC systems, enabling seamless integration.

Q: What inputs does it support?
A: It accepts multiple analog input signals, providing high-precision data conversion for industrial processes.

Q: Is this an original OEM product?
A: Yes, it is a genuine Fanuc module, ensuring optimal compatibility and durability.

Maintenance Tips

• Calibration: Periodically verify and calibrate analog input signals for accuracy.

• Connection Check: Ensure all connections are tight, corrosion-free, and secure.

• Dust Management: Clean terminals and connectors with anti-static tools to prevent buildup.

• Signal Integrity: Use shielded cables to minimize electrical noise and interference.

• Environmental Control: Keep the module in a stable, dry, and dust-free environment.

• Firmware Updates: Keep the module's firmware up to date using official GE Fanuc tools.
