Heliatos RV Freeze Protected Solar Water Heater Kit with Built-In Heat Exchanger

Heliatos RV Freeze Protected Solar Water Heater Kit with Built-In Heat Exchanger

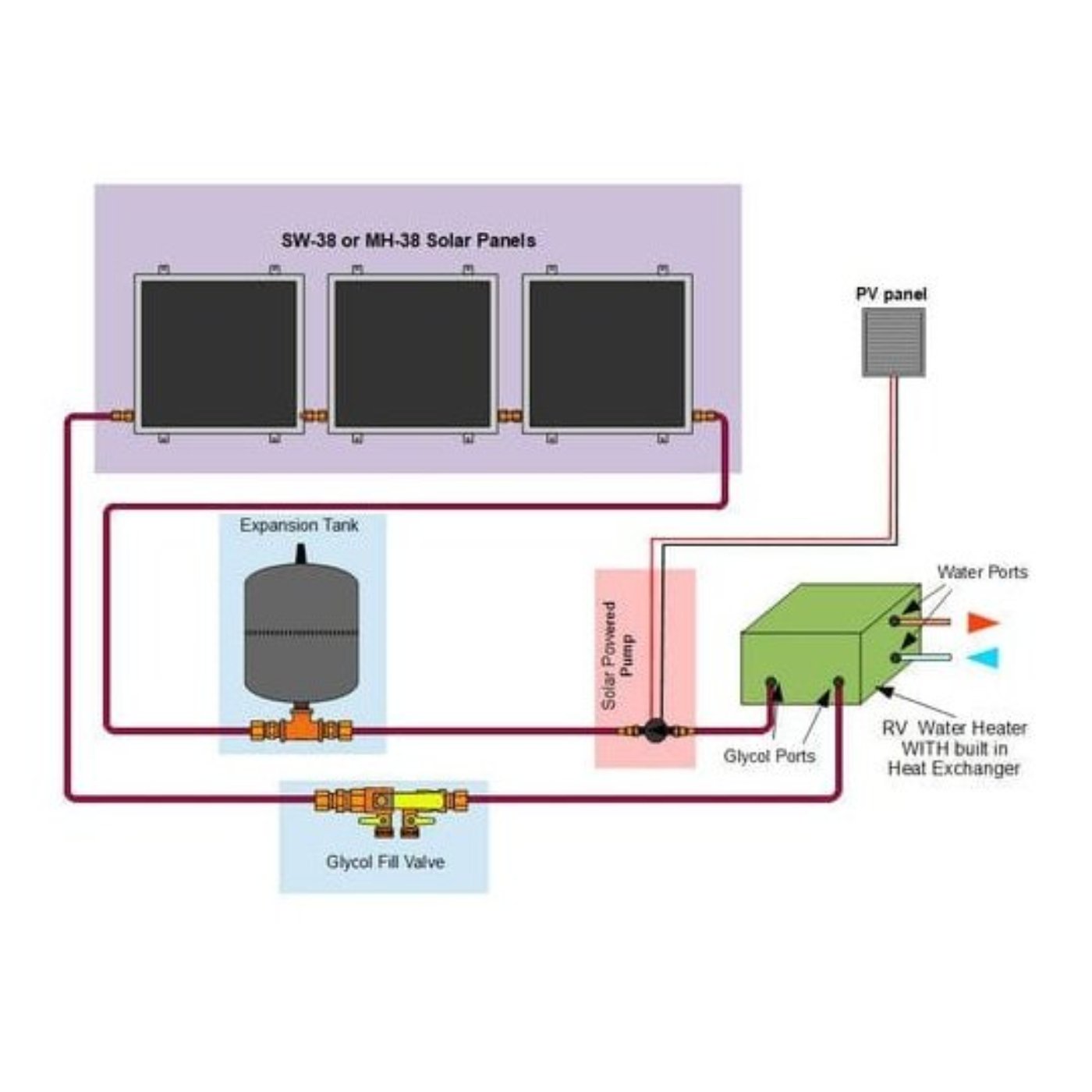

This RV water heater kit includes all the components necessary to easily integrate a top-notch freeze protected solar water heater, specifically designed for vehicles and equipped with a built-in heat exchanger. With the Heliatos SW-38 heating panels, the solar loop's antifreeze is heated to a high temperature, ensuring reliable performance even at high speeds. The panels' sturdy aluminum structure and unbreakable twinwall polycarbonate glazing make them lightweight at just 12 lbs, without sacrificing durability.

SW-38 Solar Panel

Materials

• Glazing: UV resistant twin wall polycarbonate
• Frame: Architectural grade aluminum alloy 6063
• Insulation: Polyiso foam (meets requirements for ASTM-C1289, Type 1
• specification)
• Water Conduit: Copper Tubing (Alloy C12200 certified for public water supplies
• meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
• Fittings: Brass, Lead Free compliant with Federal Reduction of Lead in
• Drinking Water Act , Dezincification resistant
• Seals: Butyl Rubber

Physical

• Length: 24.0 Inches
• Width: 25.25 Inches
• Height: 2.125 Inches
• Active Collector Area: 3.674 ft2
• Mounting Hole Spacing: 24.75 x 17.00 Inches x Inches
• Volume of Liquid in Collector: 7.7 fl. oz.
• Total Panel Weight: 11.6 lb.
• Input and Output Connections: 3/8 “ Compression Fitting

Maximum Ratings

• Pressure: 150 Psi
• Collector Temperature: 203 ºF
• Mounting Surface Unevenness: ¼ Inch (corner to corner)

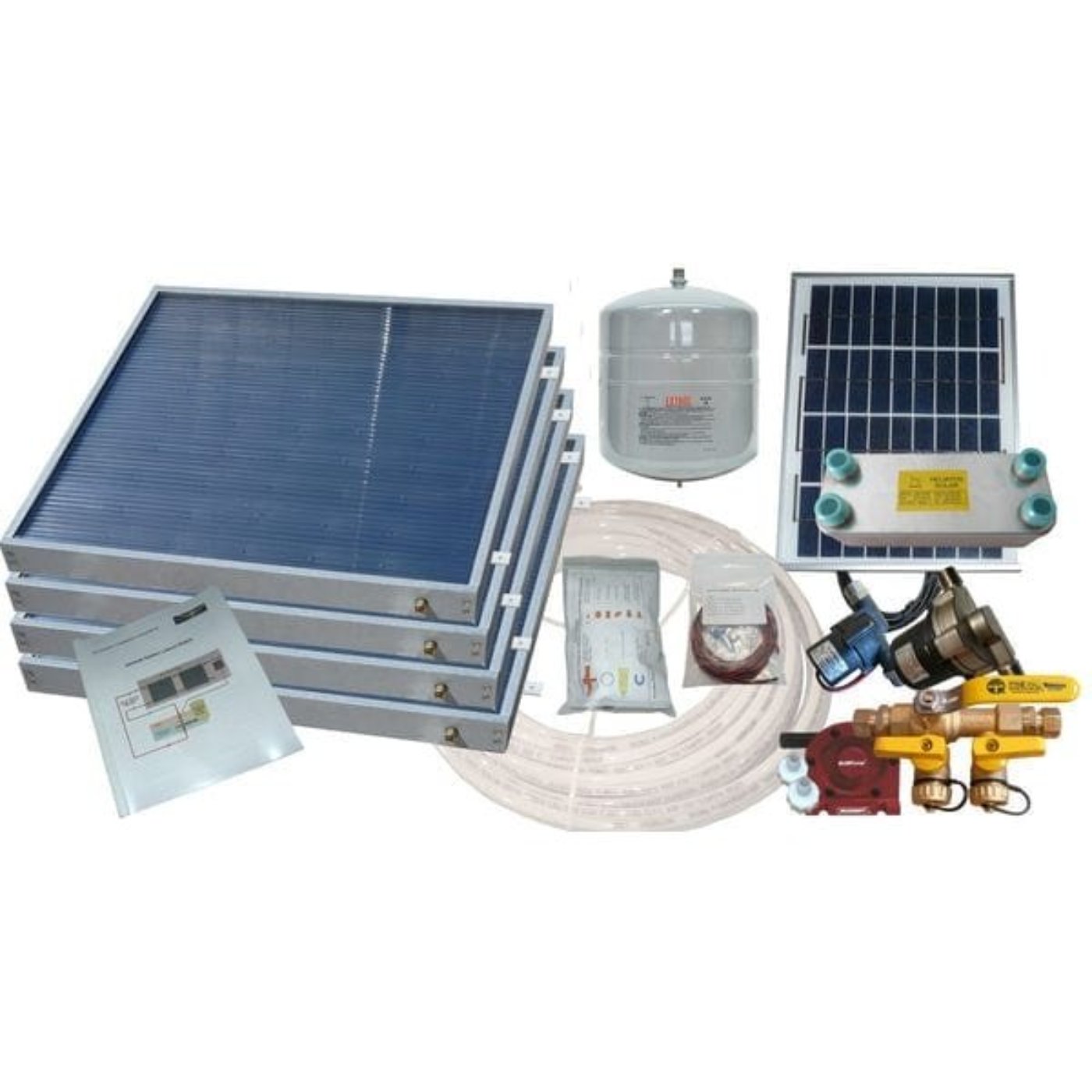

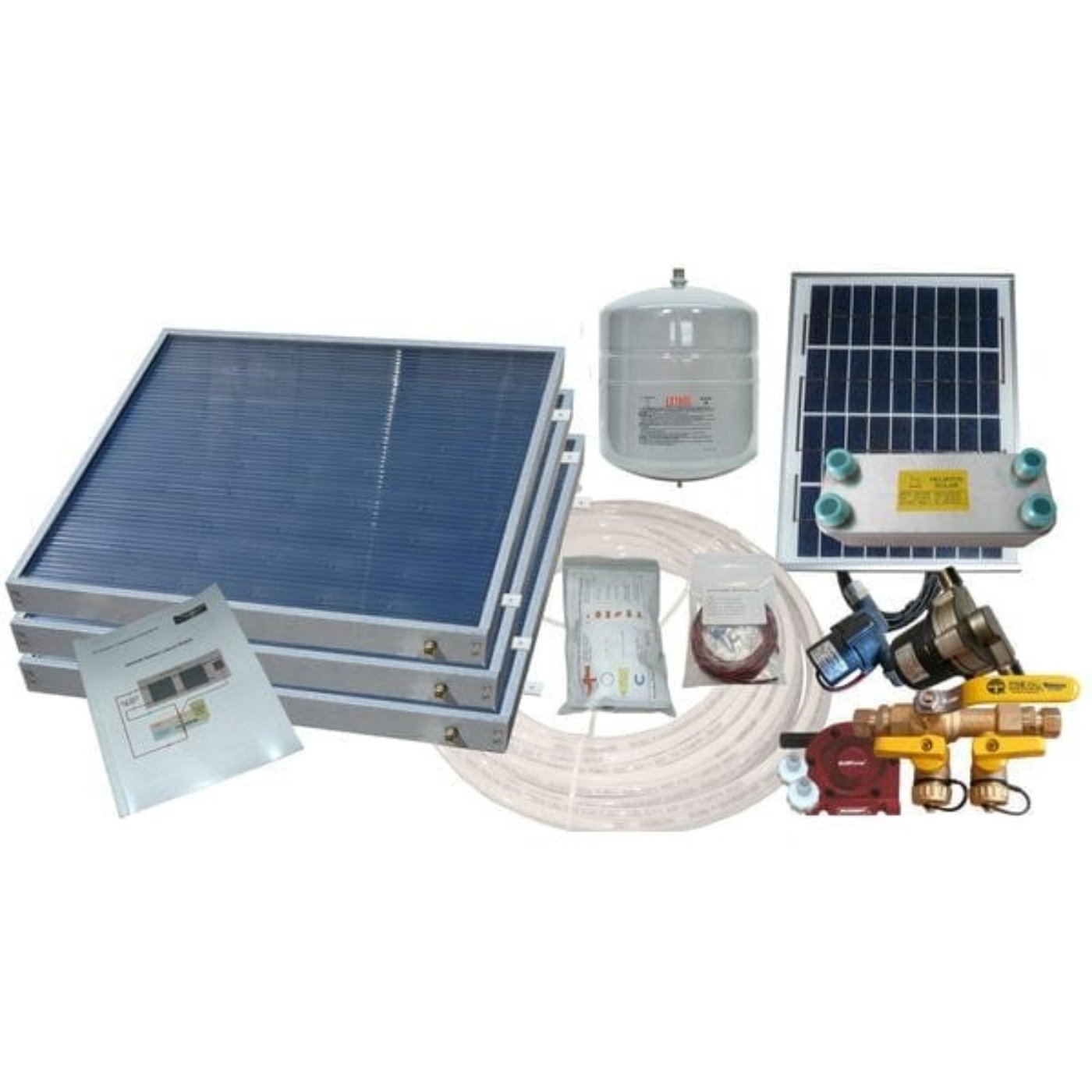

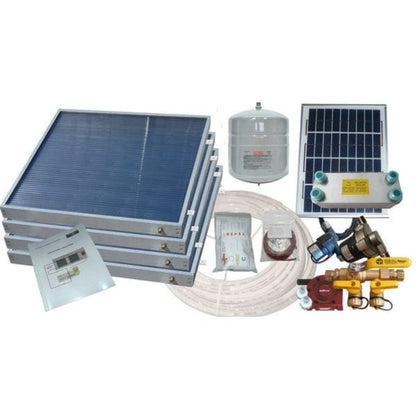

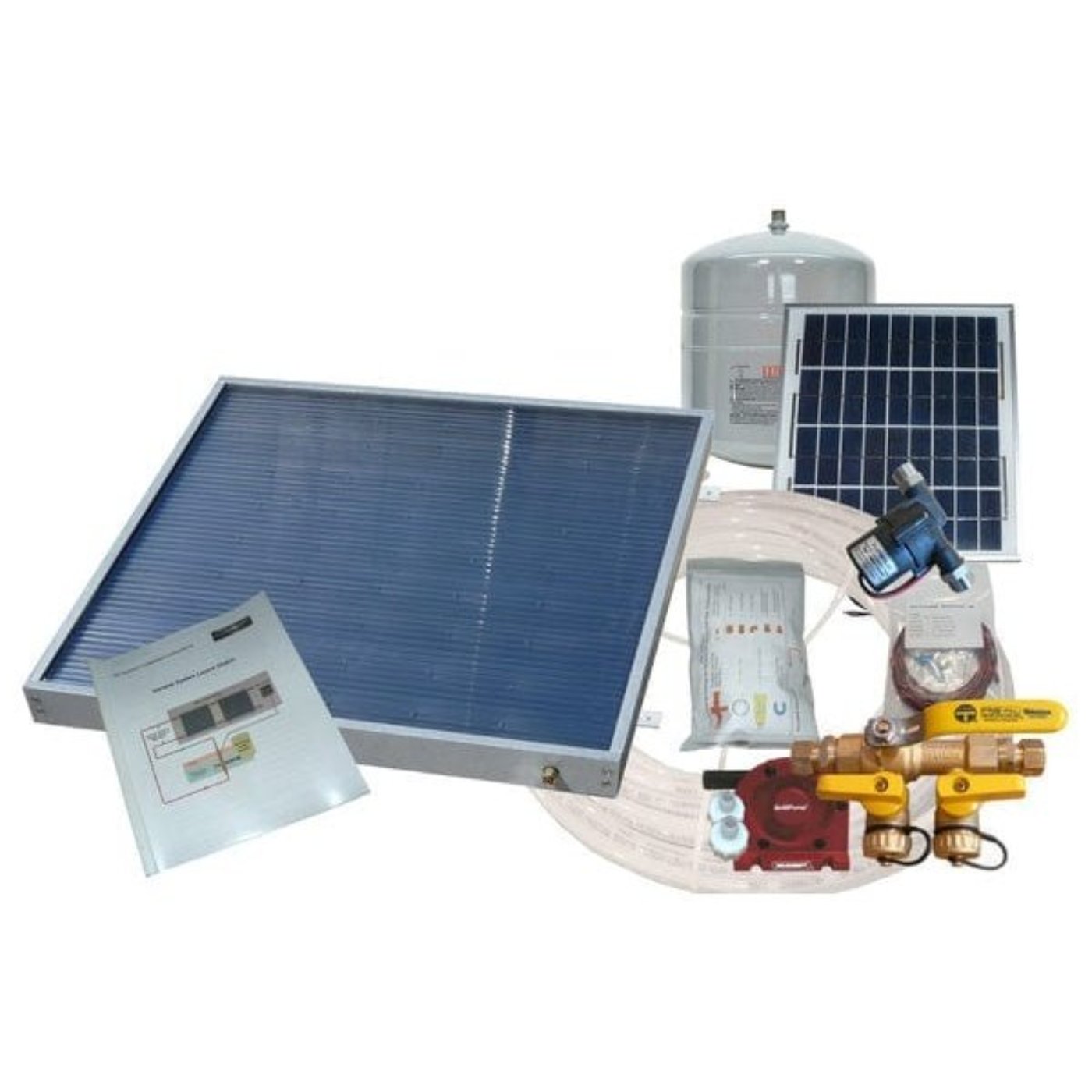

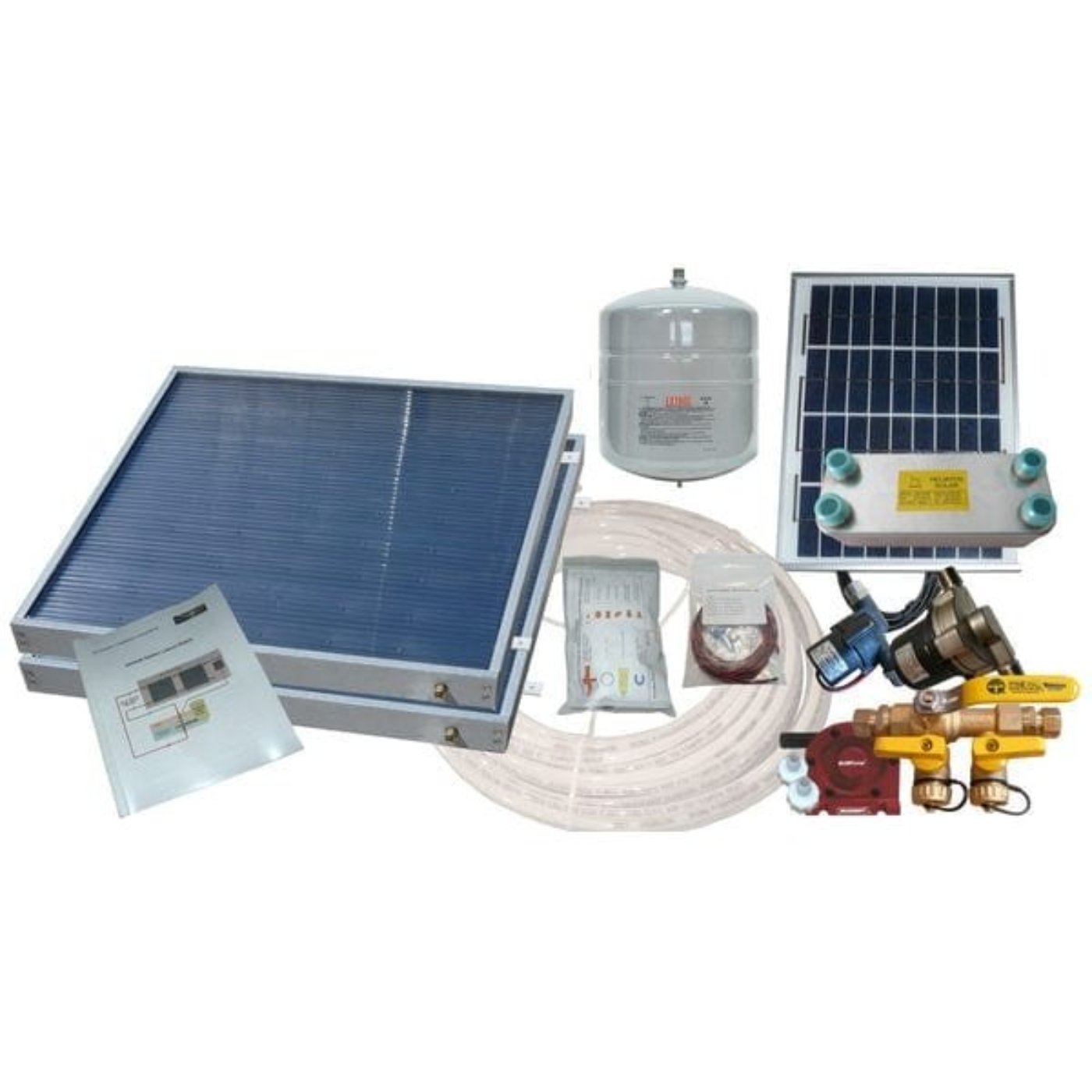

• Your selected quantity of Heliatos SW-38 Solar Water Heating Panel

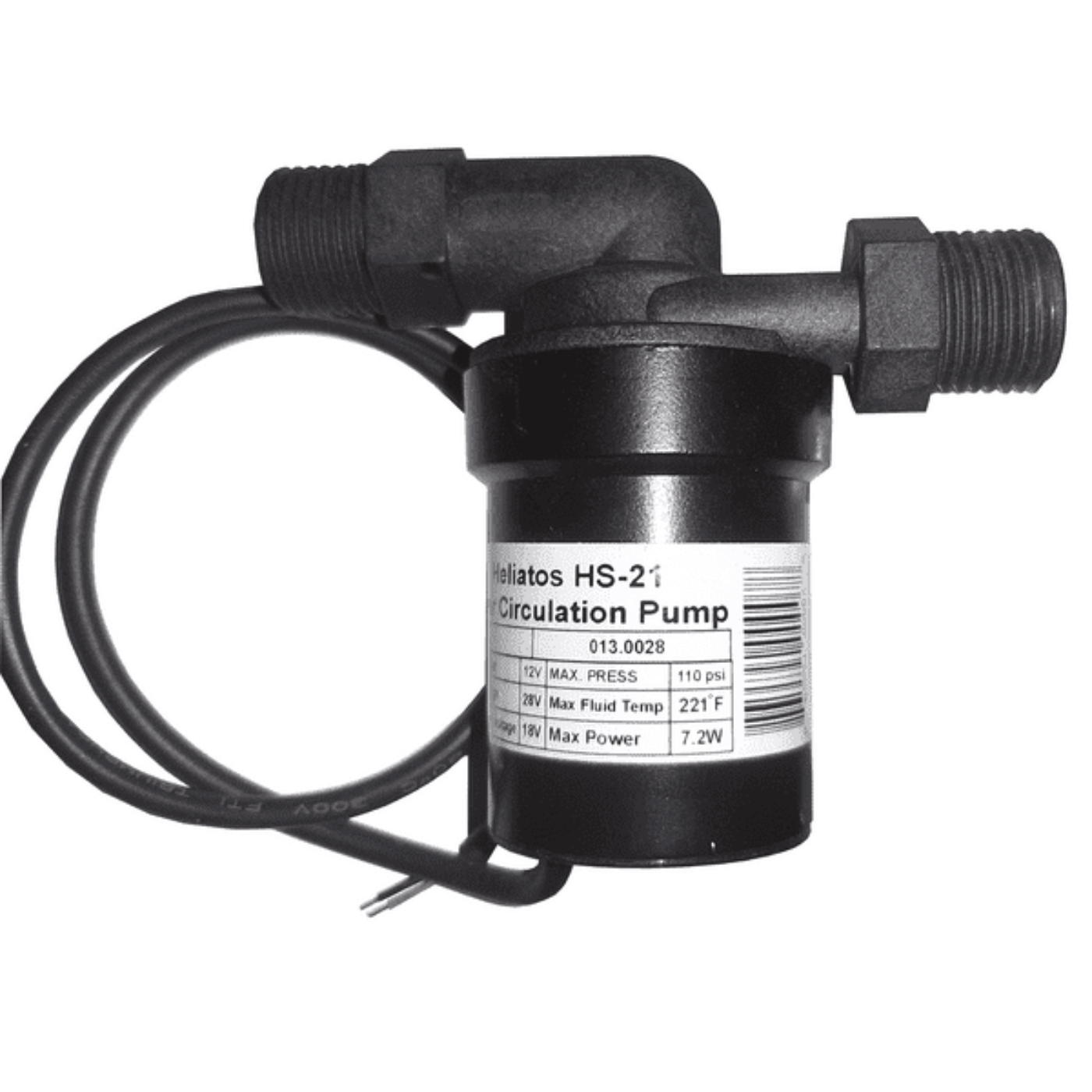

• 1 Heliatos HS-21 solar circulation pump

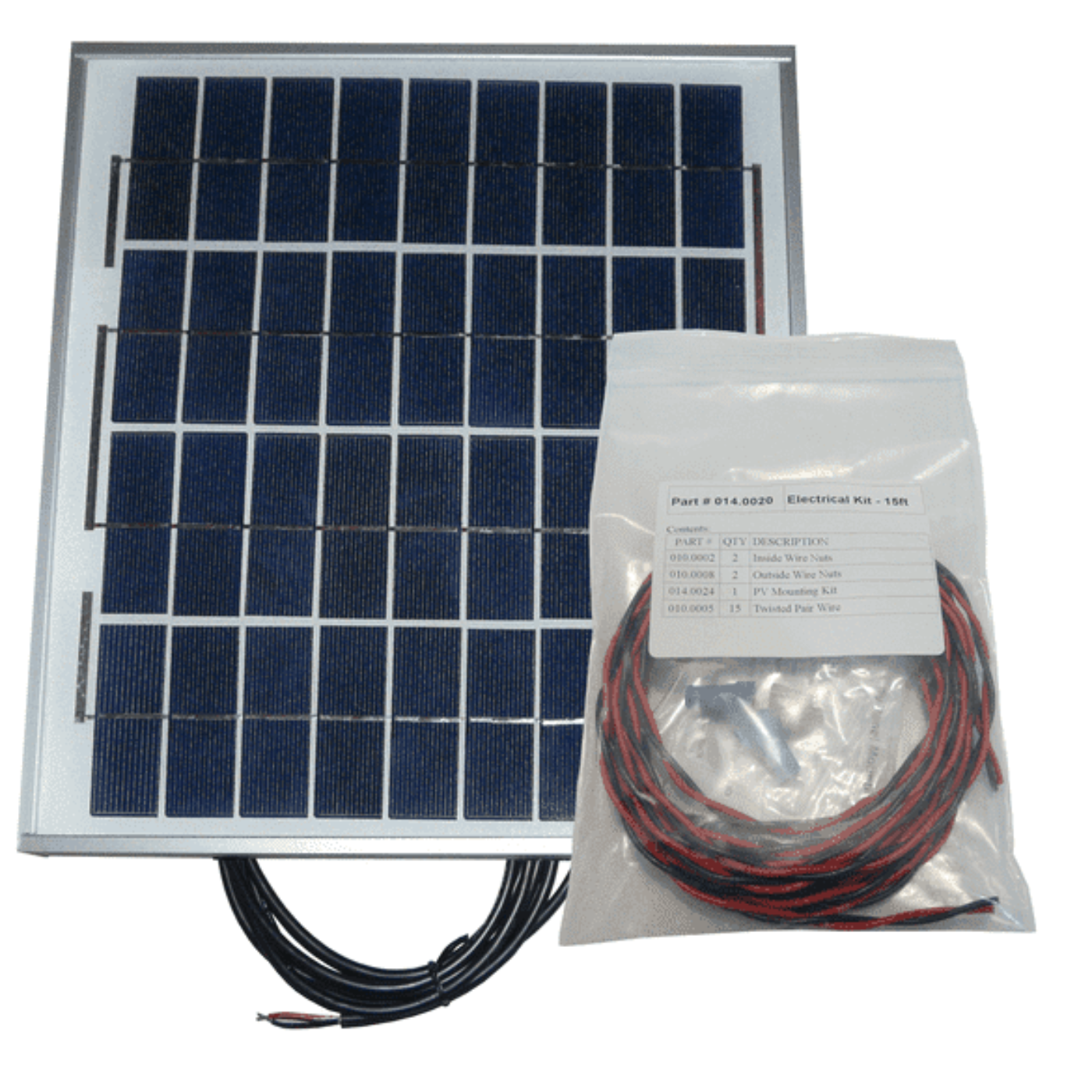

• 1 10 Watt PV Solar panel to power the pump
• Wire and PV panel mounting tabs

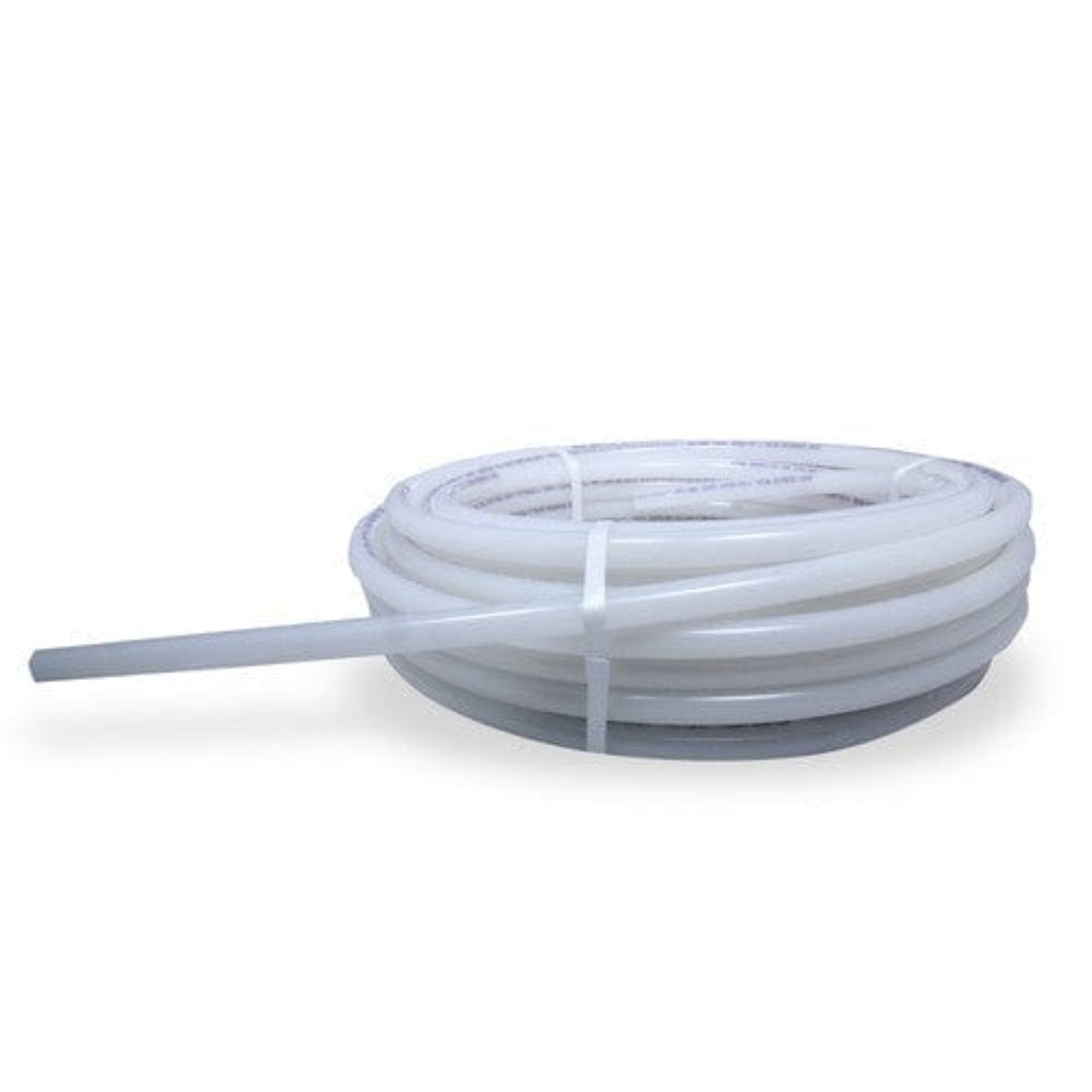

• 25 ft of 1/4' PEX tubing
• Amtrol #15 Expansion Tank

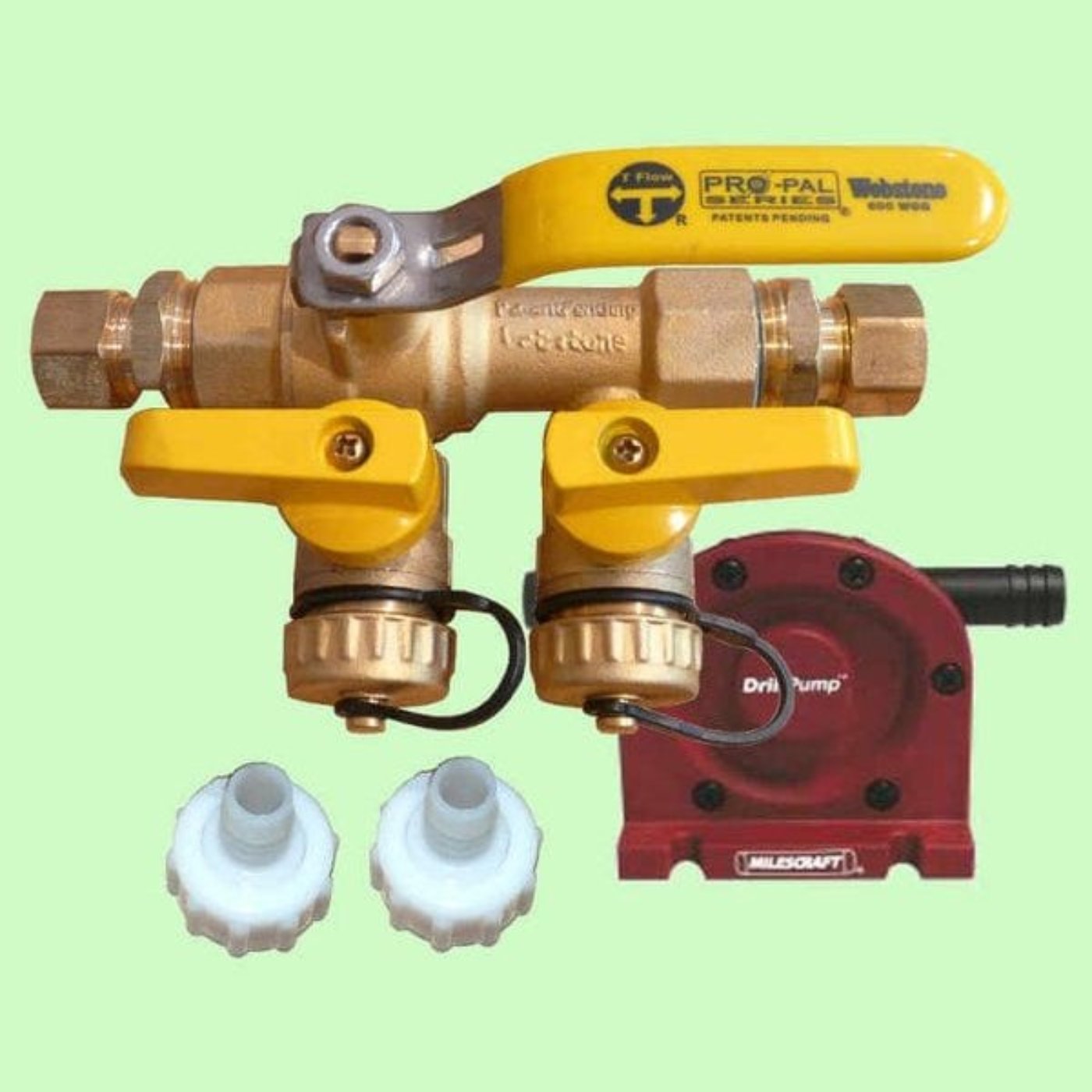

• RV Glycol Fill and Purge Valve with Drill Pump and Instructions
• 1 Complete Set of Fittings and Adapters
• Assumes RV water heater with 1/2' NPT connections (most common)
• Contact us for non-standard Water Heaters or Connections

All You Have To Supply Is

• Fasteners to attach the panels
• Insulation for the tubing
• Your existing RV water heater
• Tools needed for installation

• Installation Instructions
