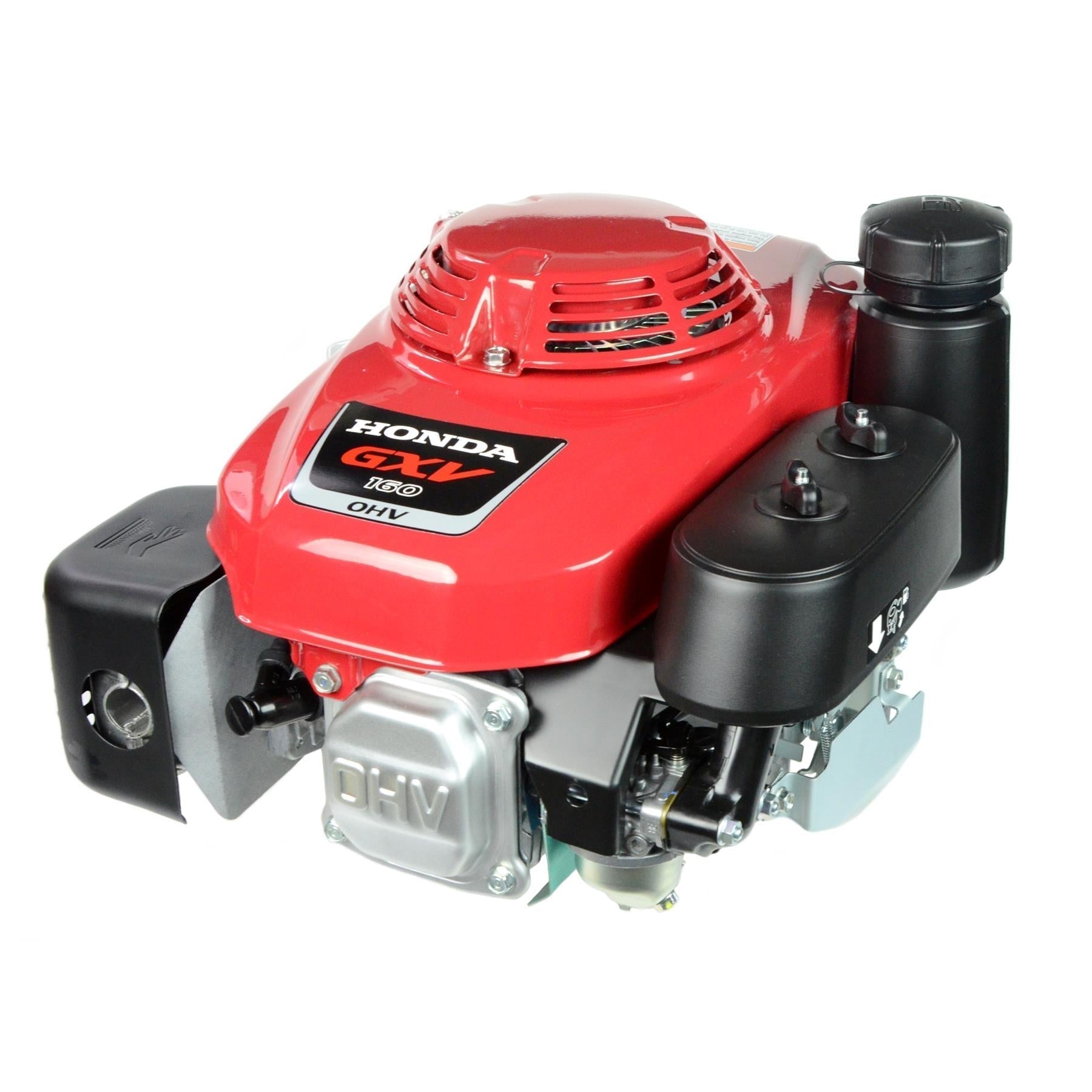

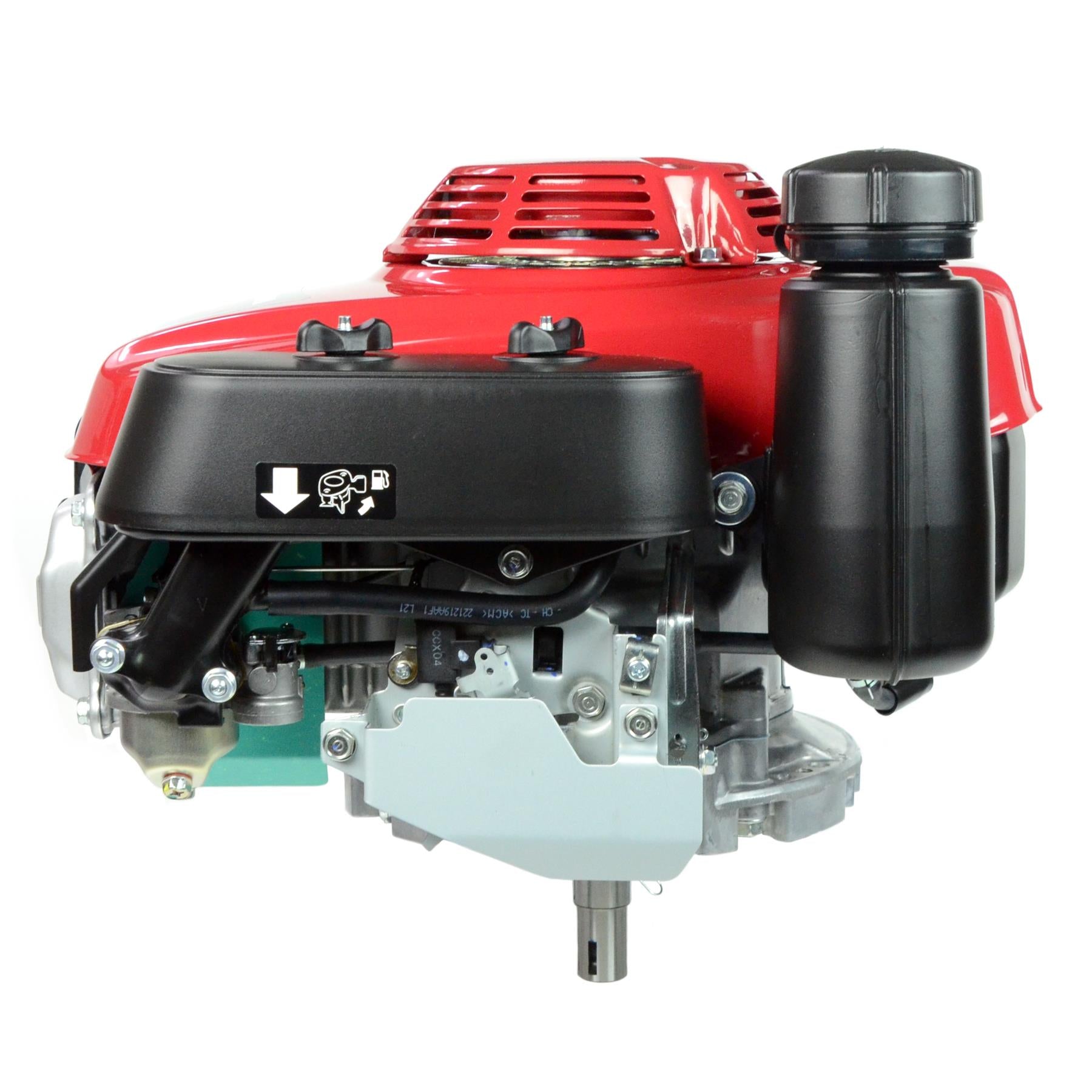

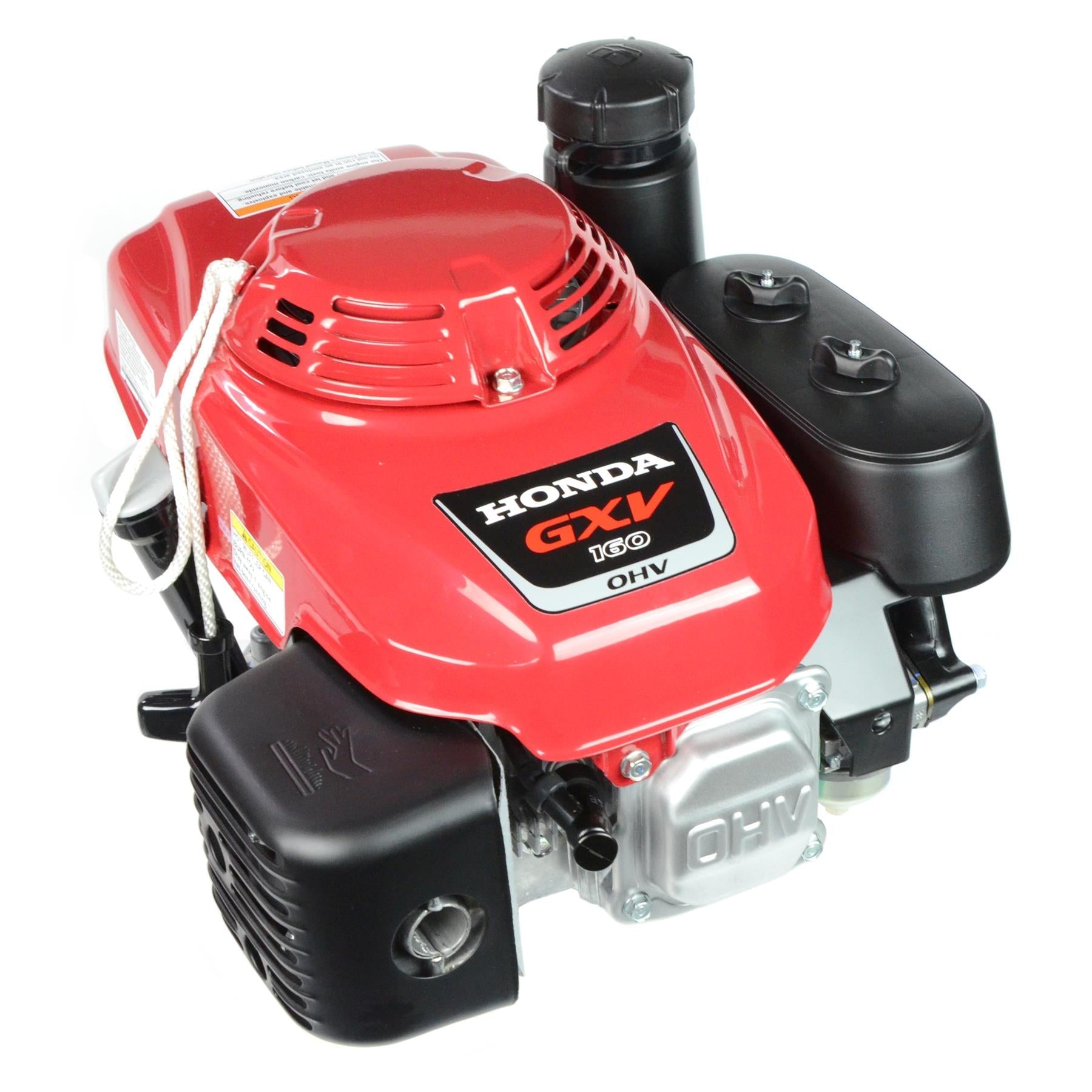

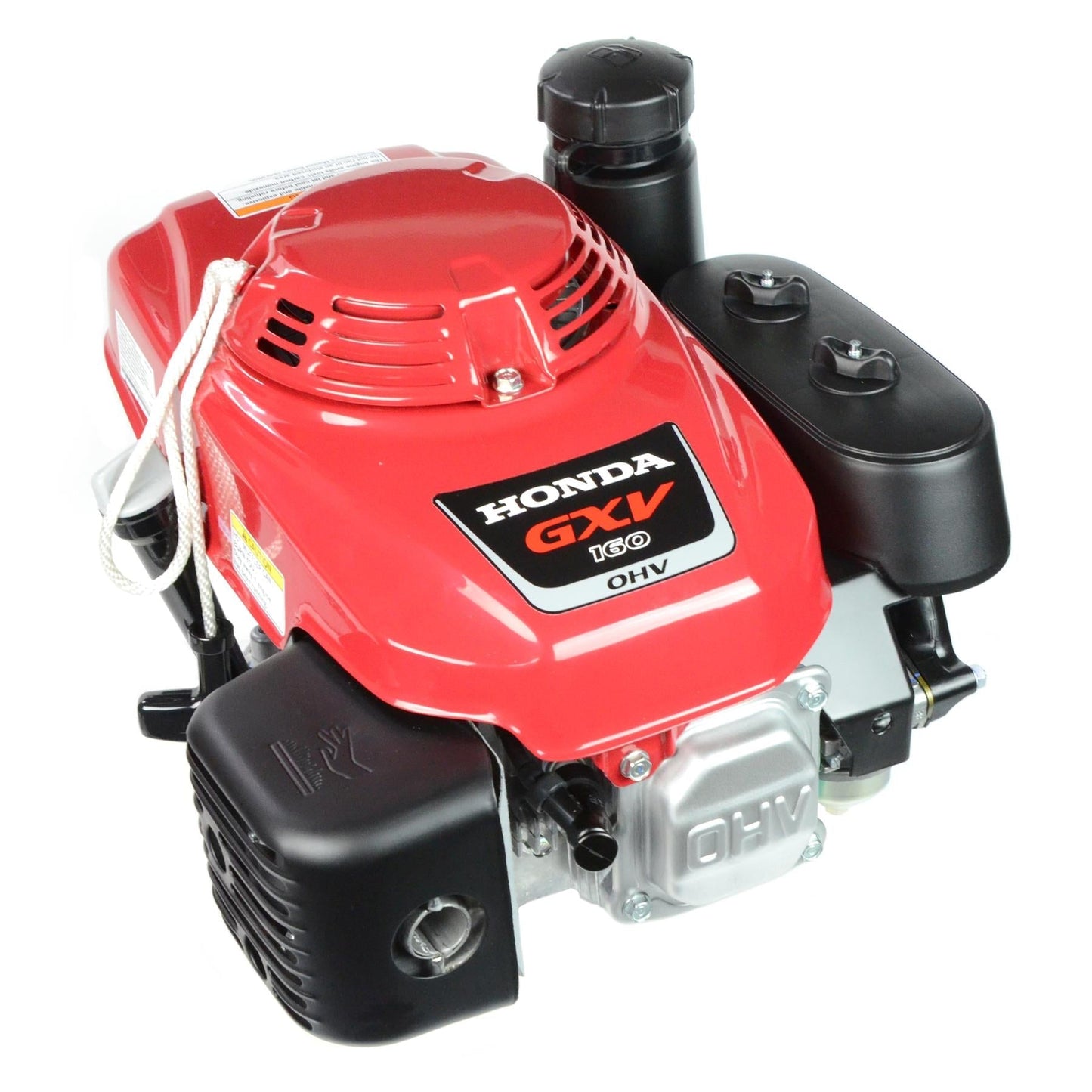

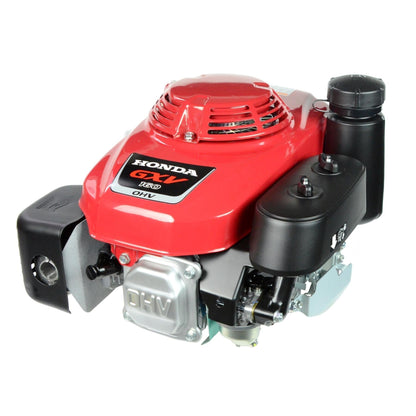

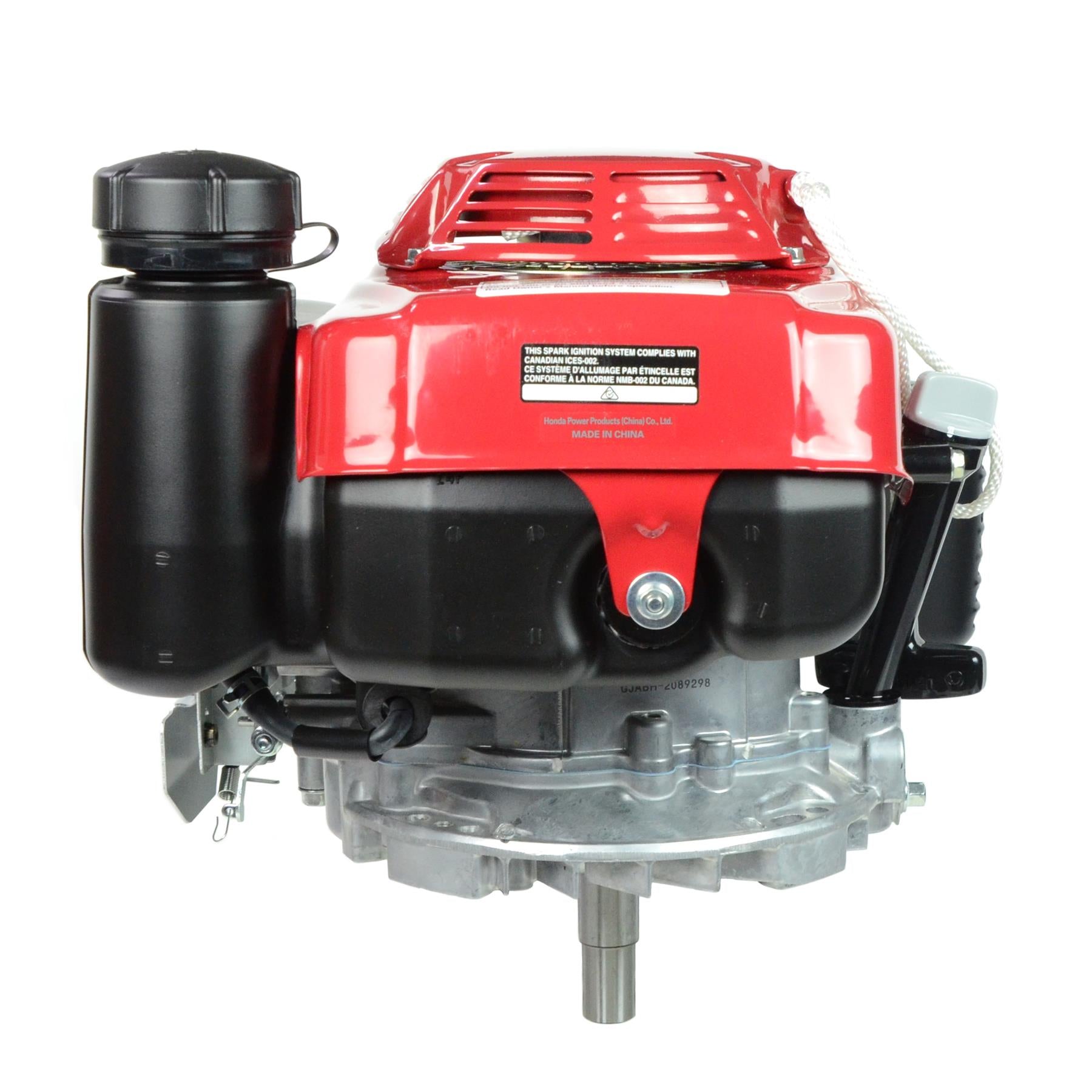

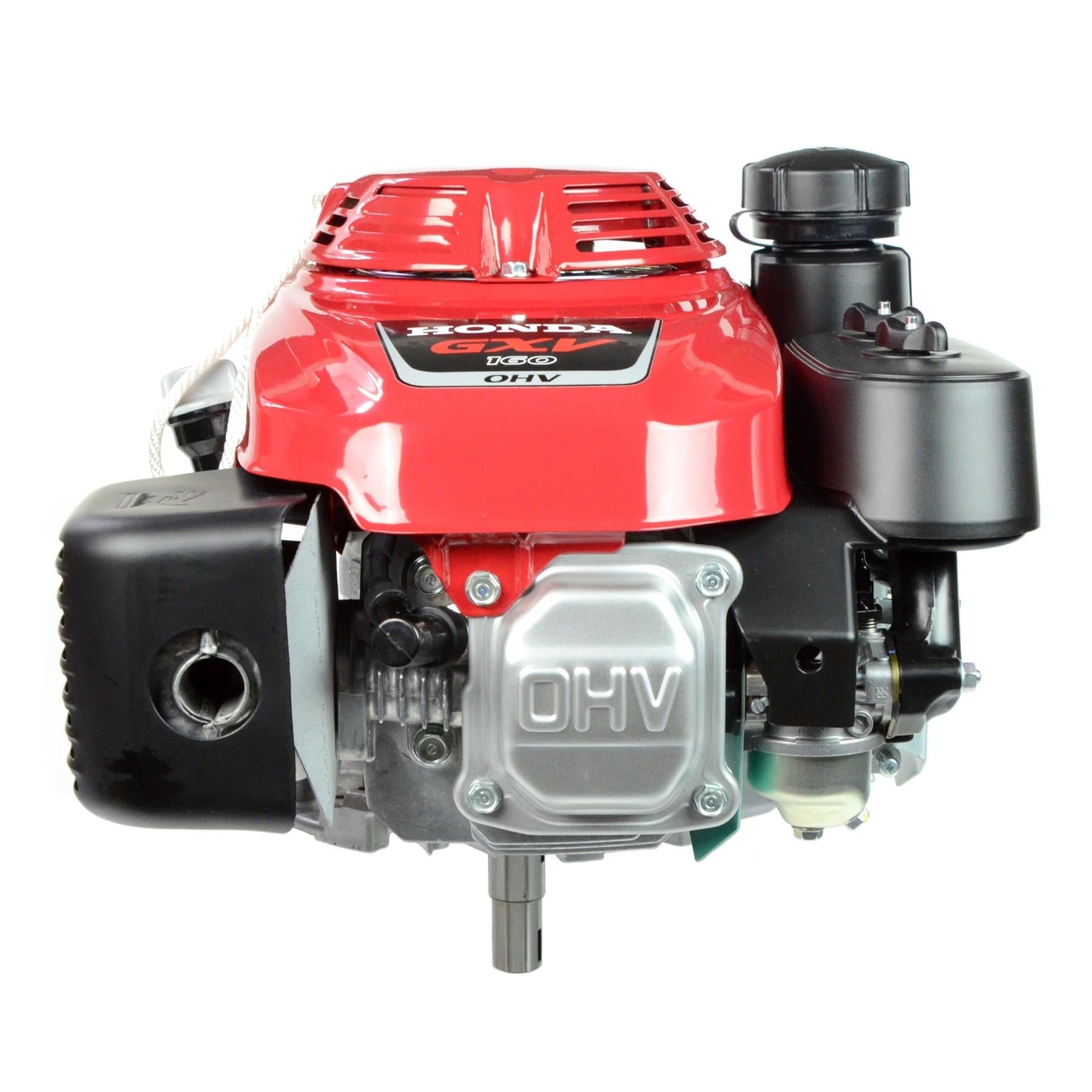

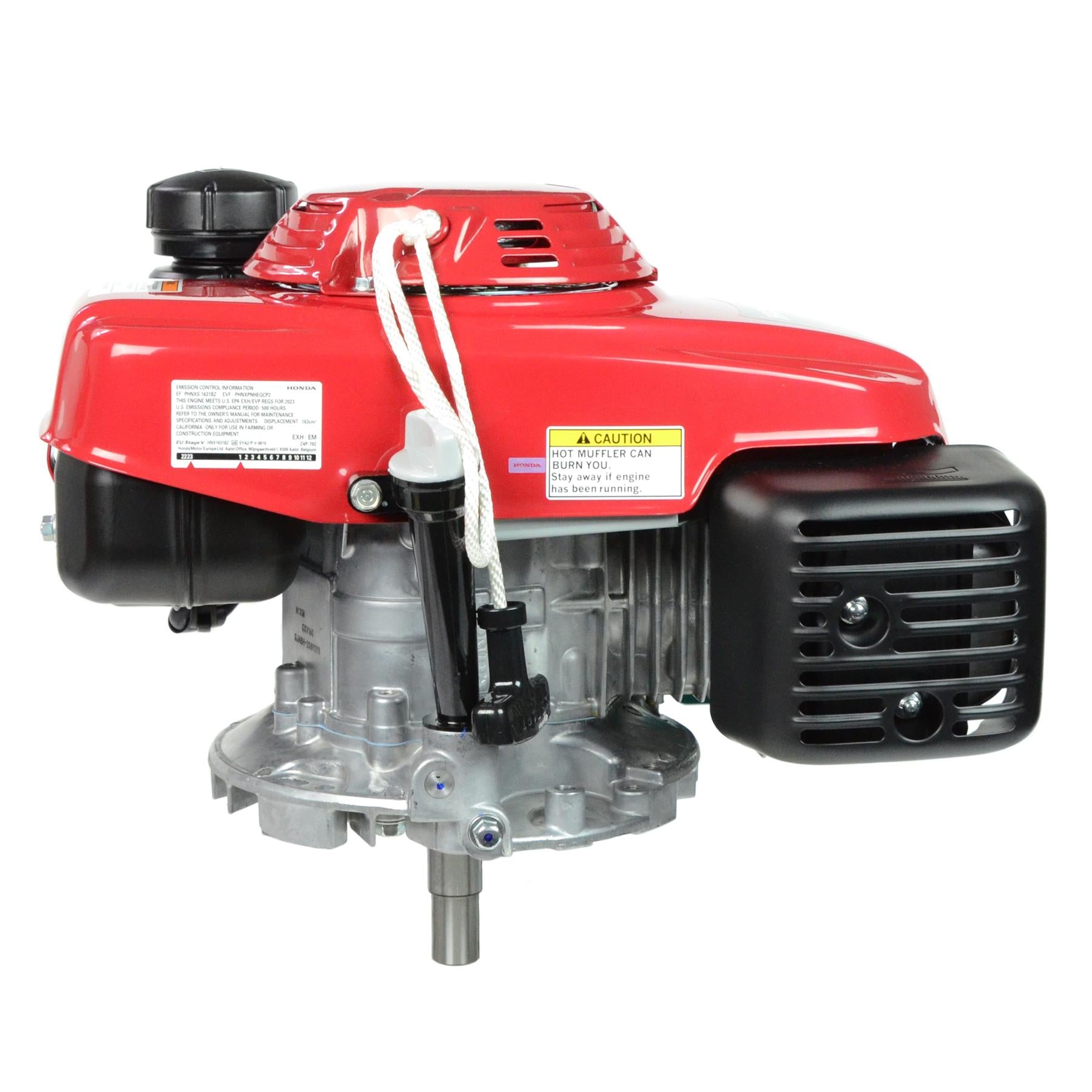

Honda Vertical Engine - HDA,GXV160-N1XM
Honda GXV160 N1XM Vertical OHV Engine, 163cc, 4.3 Net HP, 7/8" x 3.14" Crankshaft, 3/8"-24 UNF Drilled & Tapped, Two Woodruff Keys (No Keyway), Remote Controls, Replaces GXV160 N1MH and GXV160 N1XH
Specifications
| Brand |
Honda |
| Model Number |
GXV160UH2N1XM |
| Internal ID |
HDA-GXV160-N1XM |
| Replaces Models |
GXV160 N1MH, GXV160 N1XH |
| Warranty |
2 Year Residential |
| Available to California |
Not Available to Ship to California |
| Weight |
40.0 lb |
| Power Output |
4.3 HP @ 3600 RPM |
| Torque |
7.1 lb-ft (9.6 Nm) @ 2500 rpm |
| Crankshaft Orientation |
Vertical |
| Crankshaft Type |
Straight |
| Crankshaft Diameter |
7/8" |
| Crankshaft Length |
3.14" |
| Crankshaft Dimensions |
7/8" x 3.14" |
| End Tapped Size |
3/8"-24 |
| Keyway |
5/32" |
| Rotation Direction |
Counter-Clockwise |
| Starter Type |
Recoil |
| Ignition System |
Transistorized Magneto |
| Carburetor |
Float Type |
| Number of Cylinders |
One |
| Air Cleaner |
Dual Element |
| Oil Capacity |
0.69 qt |
| Fuel |
Unleaded 86 Octane or Higher |
| Fuel Tank Capacity |
0.98 qt |
| Fuel Pump |
N/A |
| Governor System |
Centrifugal Mechanical |
| Lubrication System |
Splash |
| Bore x Stroke |
68mm x 45mm |
| Compression Ratio |
8.0 : 1 |
What Our Experts Think
-
Efficient & Reliable Power: The Honda GXV160-N1XM Vertical Engine delivers consistent and dependable power, making it perfect for a wide range of applications, from generators to industrial machinery.
-
Fuel Efficient: Designed with fuel economy in mind, it ensures longer run times with fewer refuels, reducing operational costs and maximizing productivity.
-
Smooth & Quiet Operation: Engineered to reduce vibration and noise, this engine offers smooth, quiet operation, enhancing user comfort and minimizing wear on connected equipment.
-
Durability: Built to last, the GXV160-N1XM is designed with high-quality components to withstand tough working conditions and provide long-lasting, reliable performance.
-
Compact & Versatile: Its compact design makes it an ideal choice for space-constrained applications, while its versatility allows it to power a range of small to medium-duty equipment.
-
Easy Maintenance: The engine is designed for ease of maintenance, ensuring a hassle-free experience and long-term reliability with minimal upkeep.
Q&A
Q: What is the Honda Vertical Engine - HDA, GXV160-N1XM?
A: The Honda Vertical Engine - HDA, GXV160-N1XM is a reliable and efficient engine designed for various outdoor equipment. Featuring a vertical shaft design, it is commonly used in applications such as lawnmowers, pressure washers, and small pumps, offering consistent power with low maintenance requirements.
Q: What are the key features of the GXV160-N1XM engine?
A: The GXV160-N1XM engine features Honda’s advanced OHV (Overhead Valve) technology for smooth operation, fuel efficiency, and reduced emissions. It offers reliable power, easy starting, and is designed for durability and longevity, making it ideal for light-duty applications.
Q: What are the benefits of using the GXV160-N1XM engine?
A: The GXV160-N1XM engine provides excellent fuel efficiency, low emissions, and reliable performance for a variety of small equipment. Its vertical shaft design makes it easy to integrate into many outdoor machines, and its smooth operation reduces vibration, making it comfortable for extended use.
Q: Is the GXV160-N1XM engine easy to maintain?
A: Yes, the GXV160-N1XM engine is designed for easy maintenance with accessible components for oil changes, air filter replacement, and general servicing. Its durability and low-maintenance design help reduce downtime and keep the engine performing at its best.
Q: What equipment is the GXV160-N1XM engine best suited for?
A: The GXV160-N1XM engine is ideal for a wide range of outdoor equipment such as lawnmowers, pressure washers, small generators, and pumps, providing reliable power and performance for residential and light-duty commercial applications.
Maintenance Tips
-
Oil Change: Change the engine oil every 50 hours or annually, whichever comes first. Regularly check oil levels for proper lubrication.
-
Air Filter: Clean or replace the air filter regularly to maintain proper airflow and engine performance.
-
Spark Plug: Inspect and replace the spark plug annually or if performance issues arise, such as poor starting or rough operation.
-
Fuel System: Use fresh, clean fuel and drain the fuel tank if the engine will not be used for an extended period.
-
General Inspection: Regularly inspect for leaks, clean around the engine, and ensure all components are secure and functioning properly.
-
Cooling System: Keep cooling fins and ventilation areas free from dirt and debris to prevent overheating.
