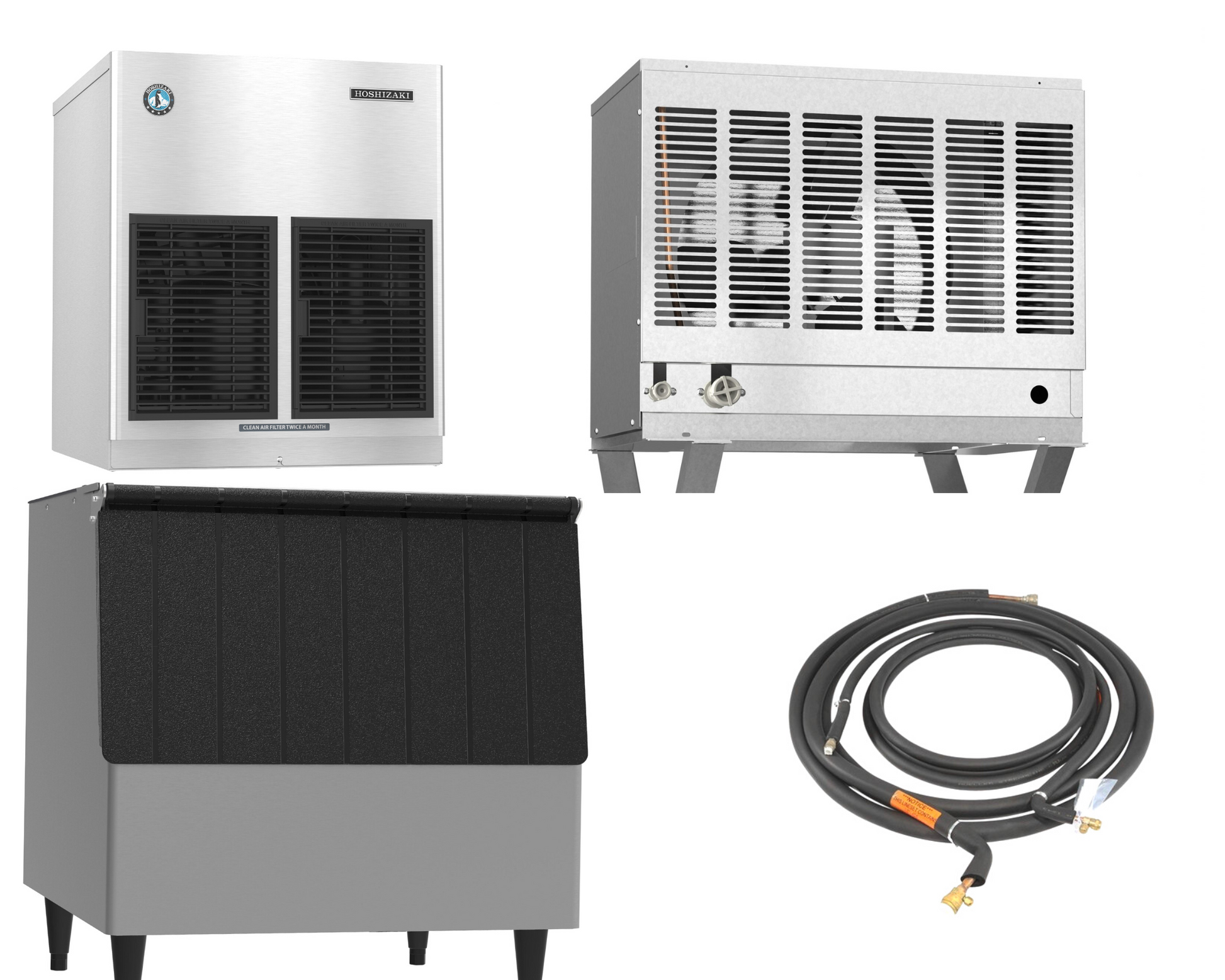

Hoshizaki Bundle - FD-650MRJZ-C Remote Cooled Cubelet Ice Maker | URC-5FZ Remote Condenser | B-250SF Ice Bin | HS-5588 Tubing Kit - FD-650MRJZ-CBUNDLE

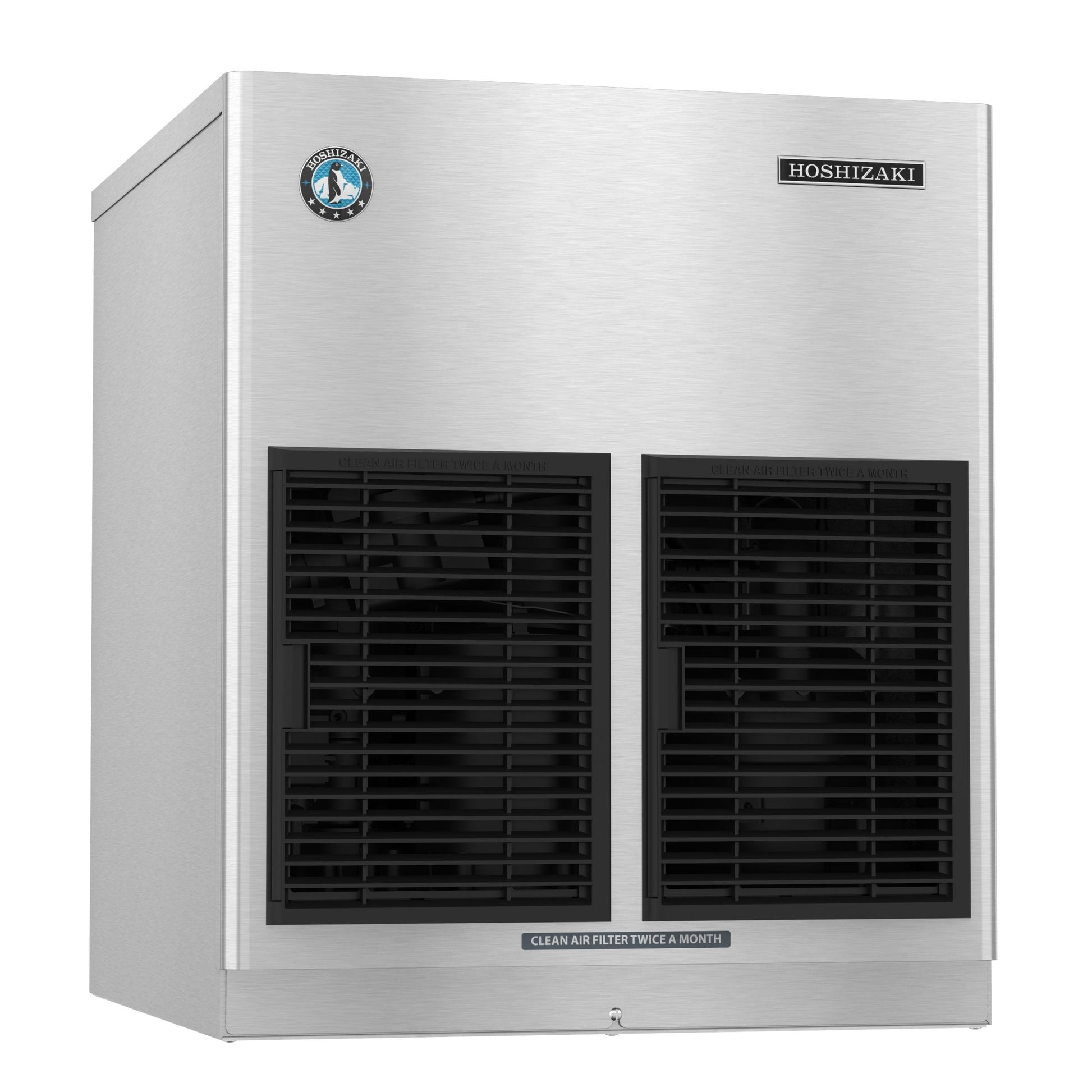

FD-650MRJZ-C Remote-Cooled Cubelet Ice Maker
The FD-650MRJZ-C is capable of producing approximately 588 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with URC-5FZ features an Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FD-650MRJZ-C requires a Single phase, 115v/60/1, 3 wire, including ground electrical connection. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900. ENERGY STAR qualified. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 22″ W x 24″ D x 26″ H
- Up to 588 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces small cubelet nugget-style ice
- Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900
- Heat Rejection:5900 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 10.9 amps (20 Amp Max fuse)
- 4.95 kwh/100 lbs. 90/70
- Single phase, 115v/60/1, 3 wire, including ground
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).

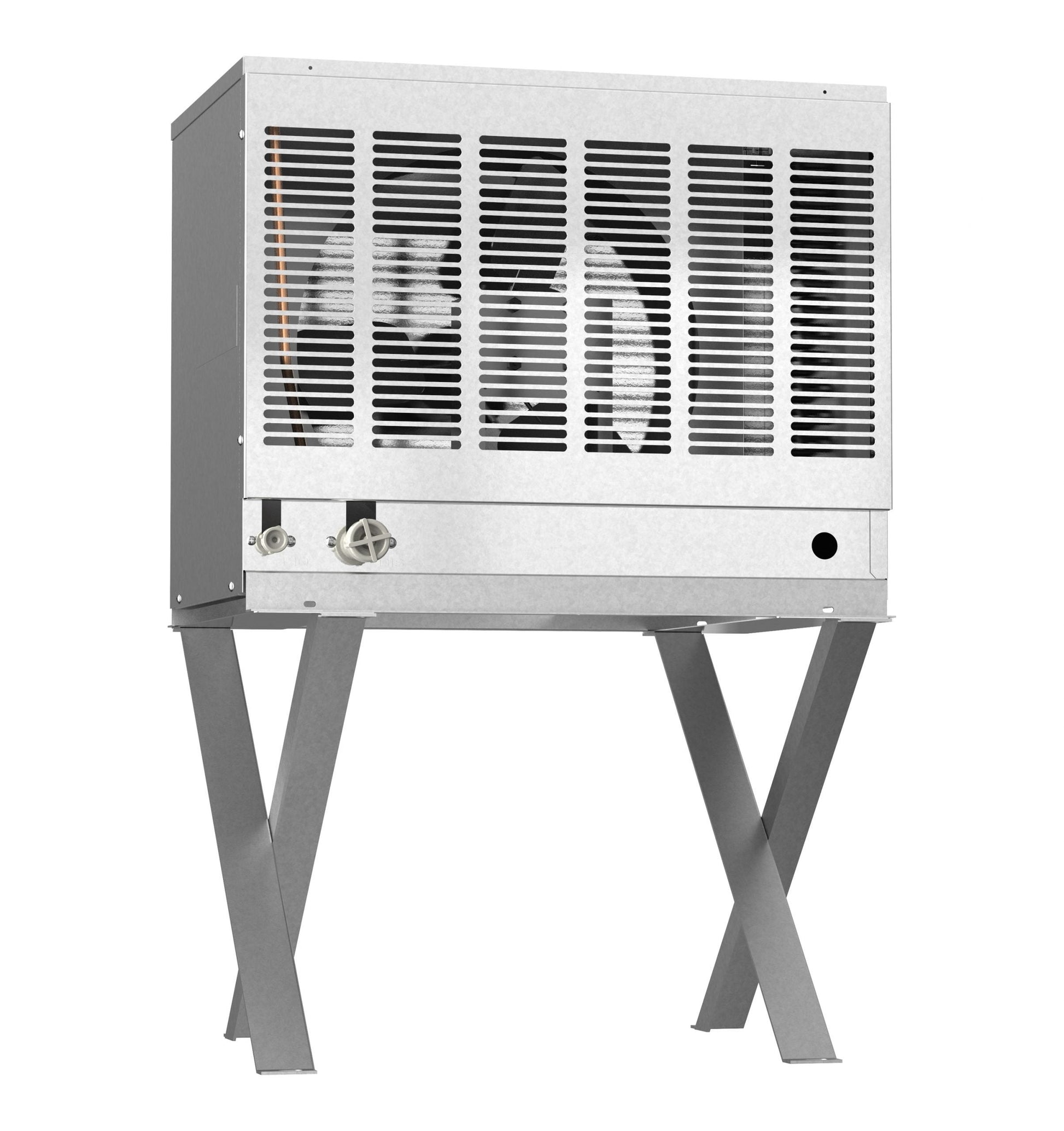

URC-5FZ Remote Condenser
The URC-5FZ, URC Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The URC-5FZ Remote Condenser operates on Single Phase, 115v/60/1, Must be hardwired at the site (3 wire, including ground), and R-404a refrigerant (1 lb. 14 oz. / 850 g). Compatible icemakers, sold separately: KM-520MRJZ, KM-660MRJZ, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C. The unit is UL Listed, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
Features
-
Dimensions: 21-13/16″ W x 14-1/16″ D x 32-13/16″ H
- Remote condenser for KM-520MRJZ, KMD-530MRJZ, KM-660MRJZ, FD-650MRJZ-C, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C
- Must be hardwired at the site (3 wire, including ground)
- Allow 24″ clearance for best performance
- Single Phase, 115v/60/1, Must be hardwired at the site (3 wire, including ground)
- R-404a refrigerant (1 lb. 14 oz. / 850 g)
- Compatible icemakers, sold separately: KM-520MRJZ, KM-660MRJZ, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C
- Three Years: Parts & Labor warranty on entire unit.
- Five Years: Parts warranty on air-cooled condenser coil.
B-250SF Ice Storage Bin
Safely store up to 250 lbs of ice* with this B-250SF 30″ high-capacity ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The B-250SF features a durable Stainless Steel exterior cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes Standard with 6″ Painted Legs and a Top-hinged front-opening bin door. 3/4″ FPT drain. The unit is ETL Verified and includes a Two Years: Parts & Labor warranty (Before January 2012 production). *Capacity based on 10.3 ft3 x 30lbs/ft3 average density of ice
Features
- Dimensions: 30″ W x 32- 3/10″ D x 33- 2/5 ” H
- Stores up to 250 lbs of ice
- Capacity based on 10.3 ft3 x 30lbs/ft3 average density of ice
- Polyethylene bin liner for sanitary ice storage
- Top-hinged front-opening bin door
- Standard with 6″ Painted Legs
- 3/4″ FPT drain
- 130 lbs

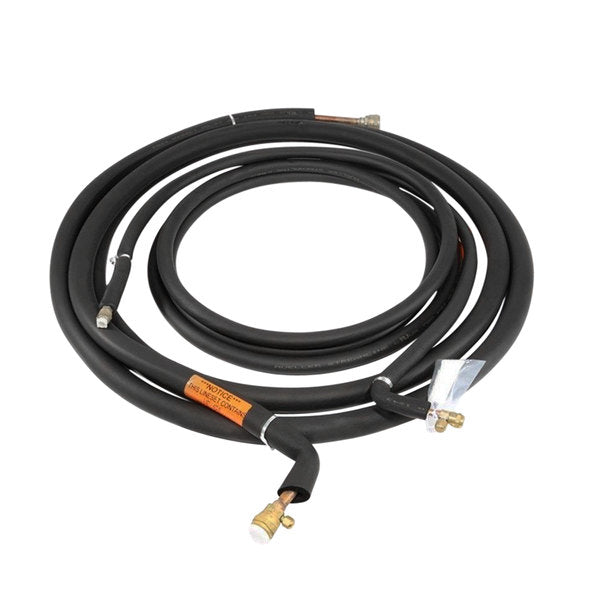

HS-5588 35 ft Ice Bin Tubing Kit Brazing
Use this Hoshizaki HS-5588 35' remote ice machine condenser line kit to connect your remote cooled ice machine to a URC-5FZ remote condenser. These lines are vital components, as they will reliably exchange refrigerant between the two units and ensure smooth operation.
This line set allows you to install your condenser unit on the roof or in another location away from the rest of your operation. This helps to reduce clutter in your kitchen, streamline your workspace, and eliminate additional heat build-up or strain on your HVAC system. This line set will require refrigerant to be added and will need brazing at the time of installation.
What Our Experts Think
The Hoshizaki FD-650MRJZ-C Bundle is a reliable, remote-cooled ice-making system designed for efficient cubelet ice production.
-
FD-650MRJZ-C Ice Maker – Produces soft, chewable cubelet ice, ideal for beverages and healthcare use.
-
URC-5FZ Remote Condenser – Reduces heat and noise for improved efficiency.
-
B-250SF Ice Bin – 250 lb storage capacity for steady ice availability.
-
HS-5588 Tubing Kit – Ensures secure and leak-free connections.
-
Energy-Efficient & Durable – Built for long-term, high-performance operation.
Q&A
Q: What is included in this bundle?
A: This bundle includes the Hoshizaki FD-650MRJZ-C remote-cooled cubelet ice maker, URC-5FZ remote condenser, B-250SF ice storage bin, and HS-5588 tubing kit.
Q: What is the daily ice production capacity?
A: The FD-650MRJZ-C can produce up to 634 lbs of cubelet ice per day under optimal conditions.
Q: What type of ice does this machine produce?
A: It produces soft, chewable cubelet ice, ideal for beverages, healthcare, and blended drinks.
Q: What is the purpose of the remote condenser?
A: The URC-5FZ remote condenser reduces indoor heat and noise by relocating the cooling unit outdoors for better efficiency.
Q: How much ice can the storage bin hold?
A: The B-250SF ice bin has a 250-lb storage capacity, ensuring a steady supply of ice.
Q: Is the tubing kit included?
A: Yes, the HS-5588 tubing kit is included for connecting the ice maker to the remote condenser.
Q: Is professional installation required?
A: Yes, a certified technician should install the unit to ensure proper refrigerant charging, plumbing, and optimal performance.
Maintenance Tips
-
Clean the Ice Maker Regularly: Use a Hoshizaki-approved cleaner to remove mineral deposits and maintain optimal ice production.
-
Inspect & Maintain the Condenser: Keep the URC-5FZ condenser free from dust and debris to ensure efficient cooling.
-
Sanitize the Ice Bin: Regularly clean and disinfect the B-250SF ice bin to prevent mold, bacteria, and ice contamination.
-
Check Tubing & Connections: Inspect the HS-5588 tubing kit for leaks, blockages, or wear to ensure proper refrigerant flow.
-
Monitor Ice Production: If ice output decreases, check for airflow obstructions, water supply issues, or scaling in the system.
