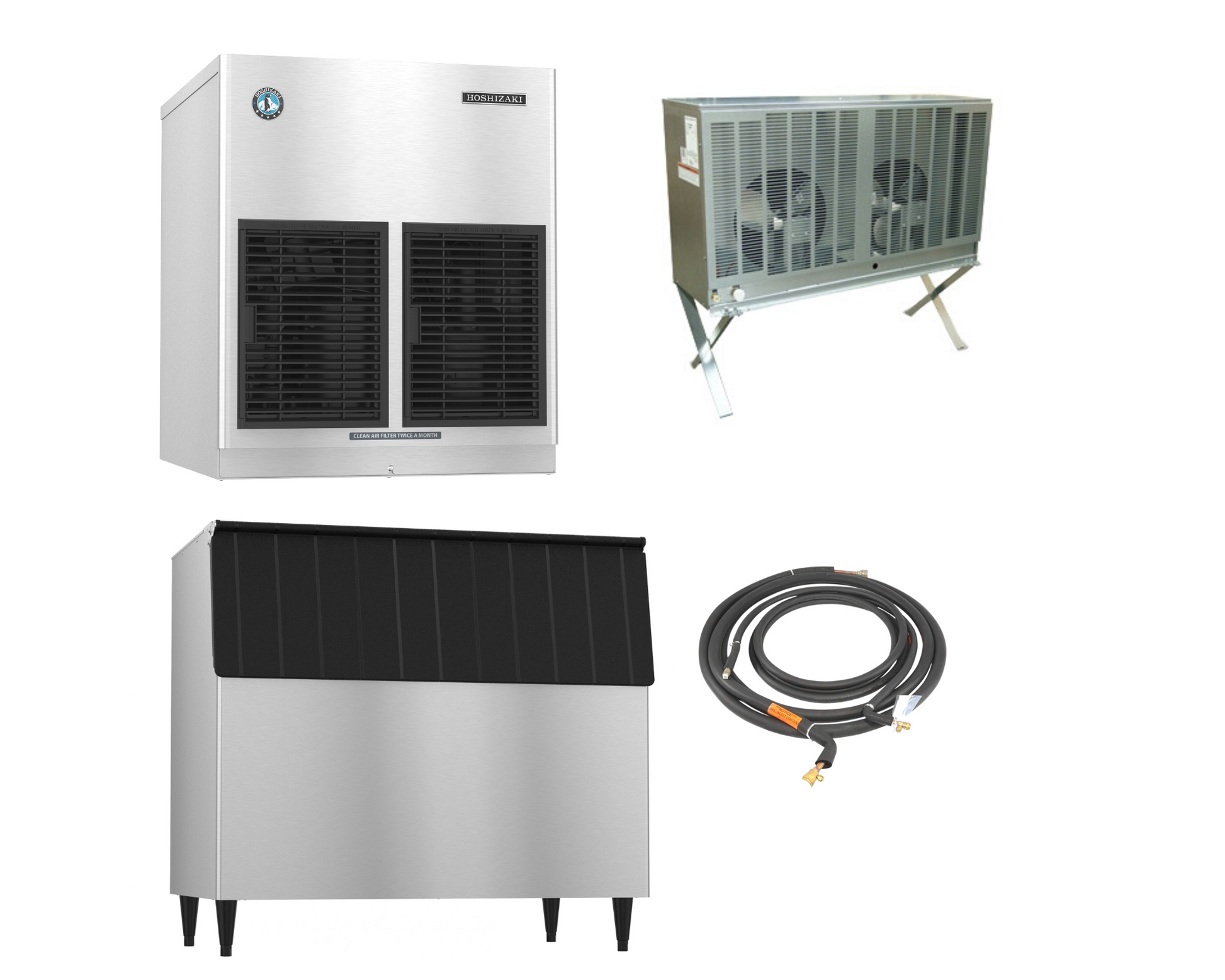

Hoshizaki Bundle - KMD-860MRJZ Remote Cooled Crescent Cuber Ice Maker | URC-9FZ Remote Condenser | B-800SF Ice Bin | HS-5605 Tubing Kit - KMD-860MRJZBUNDLE

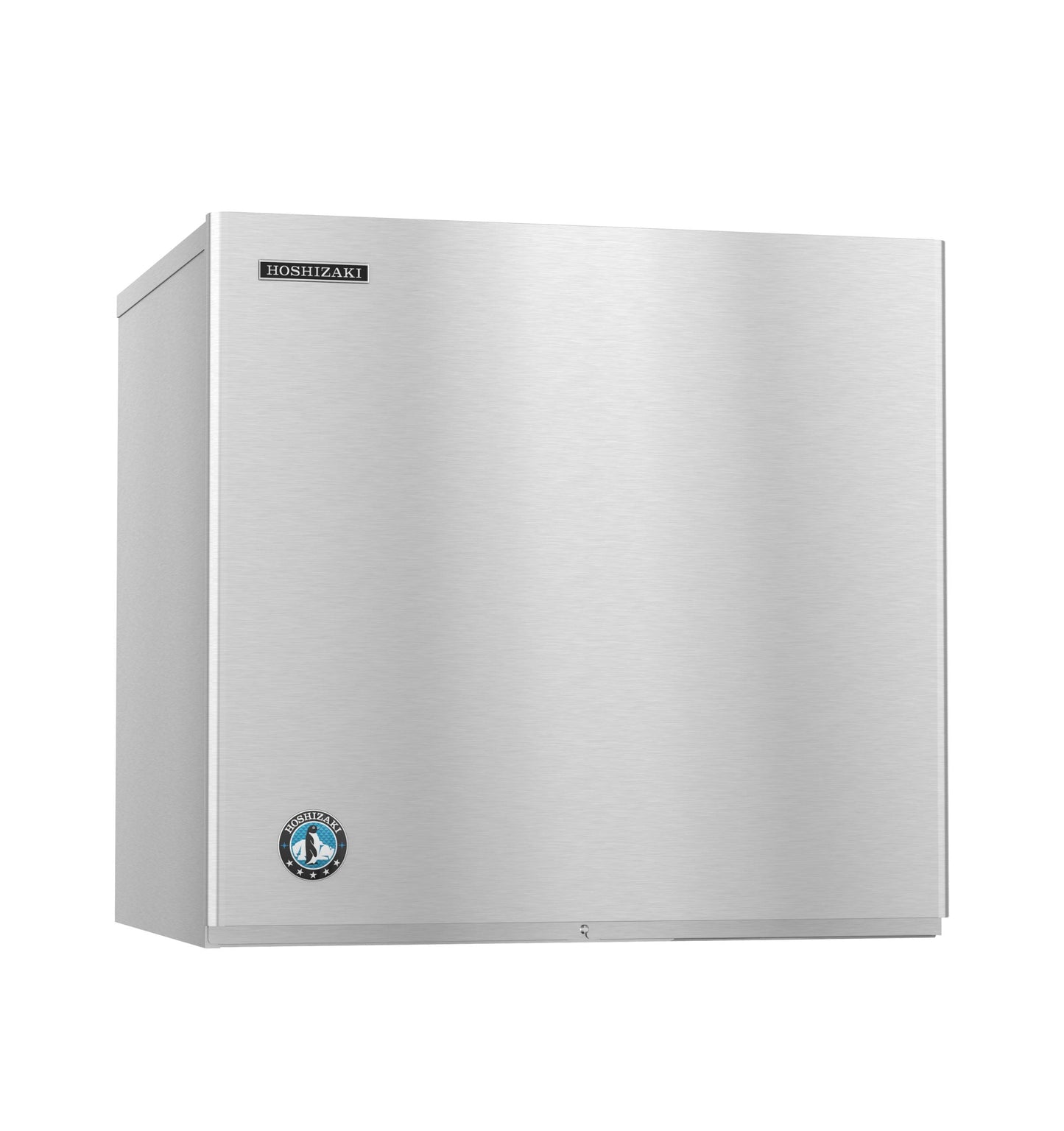

KMD-860MRJZ Remote-Cooled Crescent Cuber Ice Maker
The KMD-860MRJZ is capable of producing approximately 967 lbs of crescent cubed ice. The energy efficient KMEdge design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled with URC-9FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-860MRJZ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 30″ W x 24-5/8″ D x 28″ H
- Up to 967 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces crescent shaped ice cubes
- Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 187 – 253V
- 12.5 amps (20 Amp Max fuse)
- 5.05 kwh/100 lbs. 90/70
- Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Features

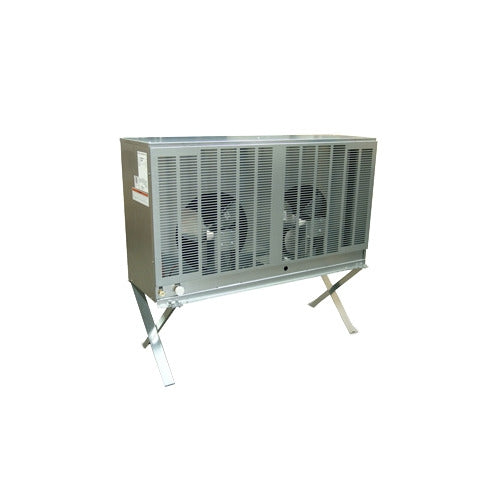

- Remote condensers for KM Series Cubers and F Series Flakers / Cubelets
- Quiet operation
- Weather resistant cabinet for longer life
- May be installed outdoors up to 55 feet from icemaker using a pre-charged tubing kit
- For installations exceeding 55 feet, contact Factory Service Department

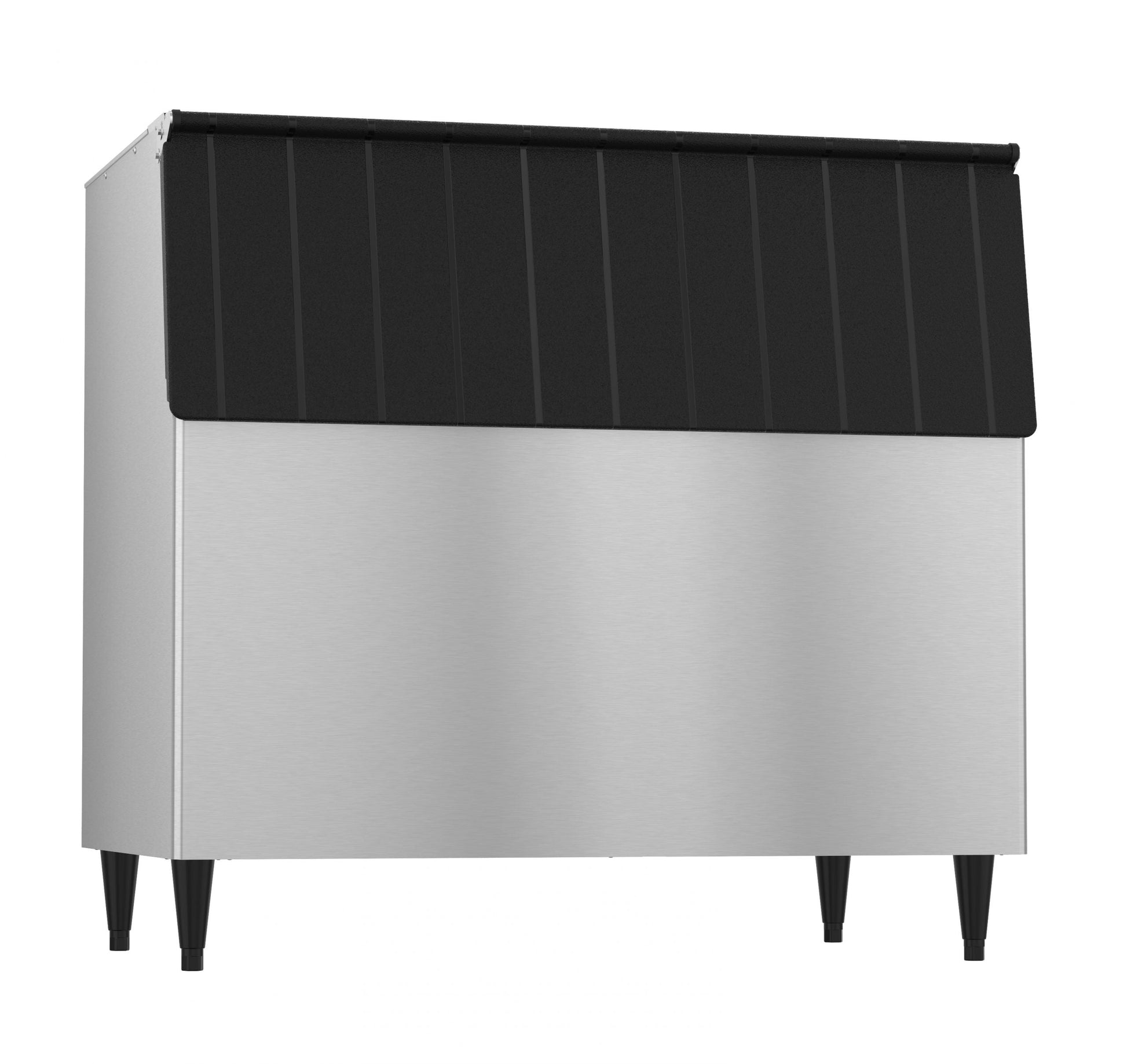

B-800SF Ice Storage Bin
Safely store up to 800 lbs of ice* with this B-800SF 48″ high-capacity ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The B-800SF features a durable Stainless Steel exterior cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes Standard with 6″ Painted Legs and a Top-hinged front-opening bin door. 3/4″ FPT drain. The unit is ETL Verified, NSF and includes a Two Years: Parts & Labor warranty (Before January 2012 production). *Capacity based on 26.9 ft3 x 30lbs/ft3 average density of ice
Features
- Dimensions: 48″ W x 32- 1/2 ” D x 46″ H
- Stores up to 800 lbs of ice
- Capacity based on 26.9 ft3 x 30lbs/ft3 average density of ice
- For top-mounted ice maker, top kits sold separately (See spec sheet for details)
- Top-hinged front-opening bin door
- Sturdy construction capable of supporting stacked ice machine configurations
- Standard with 6″ Painted Legs
- Optional: Four, 6″ Stainless Steel Legs – LP-6 LEG
- 3/4″ FPT drain
- 210 lbs

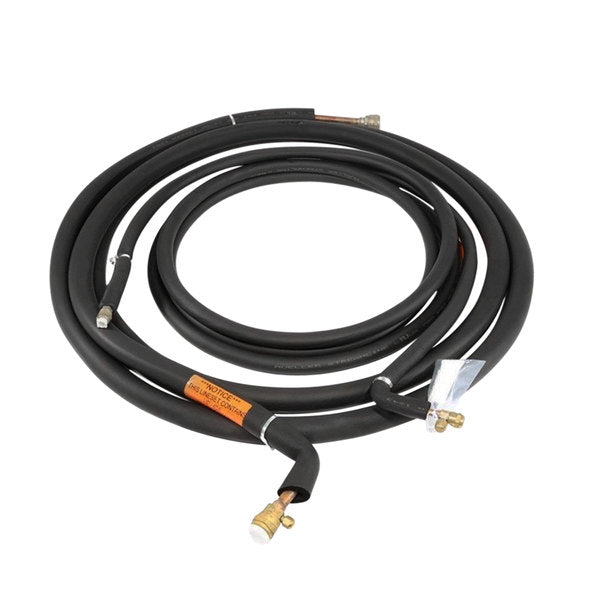

HS-5605 35 ft Ice Bin Tubing Kit Brazing
Use this Hoshizaki HS-5605 35' remote ice machine condenser line kit to connect your remote cooled ice machine to a URC-9FZ, URC-14FZ remote condenser. These lines are vital components, as they will reliably exchange refrigerant between the two units and ensure smooth operation.
This line set allows you to install your condenser unit on the roof or in another location away from the rest of your operation. This helps to reduce clutter in your kitchen, streamline your workspace, and eliminate additional heat build-up or strain on your HVAC system. This line set will require refrigerant to be added and will need brazing at the time of installation.
What Our Experts Think
The Hoshizaki KMD-860MRJZ Bundle is a high-capacity, remote-cooled ice-making system designed for businesses needing a reliable crescent cube supply.
-
KMD-860MRJZ Ice Maker – Produces high-quality crescent cubes, perfect for beverages.
-
URC-9FZ Remote Condenser – Enhances efficiency by minimizing heat and noise.
-
B-800SF Ice Bin – Large 800 lb storage capacity ensures ample ice availability.
-
HS-5605 Tubing Kit – Provides secure, leak-free connections.
-
Durable & Energy-Efficient – Built for high-output commercial environments.
Q&A
Q: What is included in this bundle?
A: This bundle includes the Hoshizaki KMD-860MRJZ remote-cooled crescent cuber ice maker, URC-9FZ remote condenser, B-800SF ice storage bin, and HS-5605 tubing kit.
Q: What is the daily ice production capacity?
A: The KMD-860MRJZ can produce up to 865 lbs of crescent ice per day under optimal conditions.
Q: What type of ice does this machine produce?
A: It produces crescent-shaped ice cubes, which are hard, slow-melting, and ideal for beverages.
Q: What is the purpose of the remote condenser?
A: The URC-9FZ remote condenser reduces heat and noise by relocating the cooling unit outdoors, improving efficiency and performance.
Q: How much ice can the storage bin hold?
A: The B-800SF ice bin has a 800-lb storage capacity, ensuring a large and steady ice supply.
Q: Is the tubing kit included?
A: Yes, the HS-5605 tubing kit is included for connecting the ice maker to the remote condenser.
Q: Is professional installation required?
A: Yes, a certified technician should install the unit to ensure proper refrigerant charging, plumbing, and optimal operation.
Maintenance Tips
-
Clean the Ice Maker Regularly: Use a Hoshizaki-approved cleaner to remove mineral buildup and maintain efficient ice production.
-
Inspect & Maintain the Condenser: Keep the URC-9FZ remote condenser free from dust and debris to ensure optimal cooling performance.
-
Sanitize the Ice Bin: Regularly clean and disinfect the B-800SF ice bin to prevent mold, bacteria, and ice contamination.
-
Check Tubing & Connections: Inspect the HS-5605 tubing kit for leaks, wear, or blockages to maintain proper refrigerant flow.
-
Monitor Ice Production: Ensure consistent ice output and check for unusual noises or decreased efficiency, which may indicate maintenance needs.
