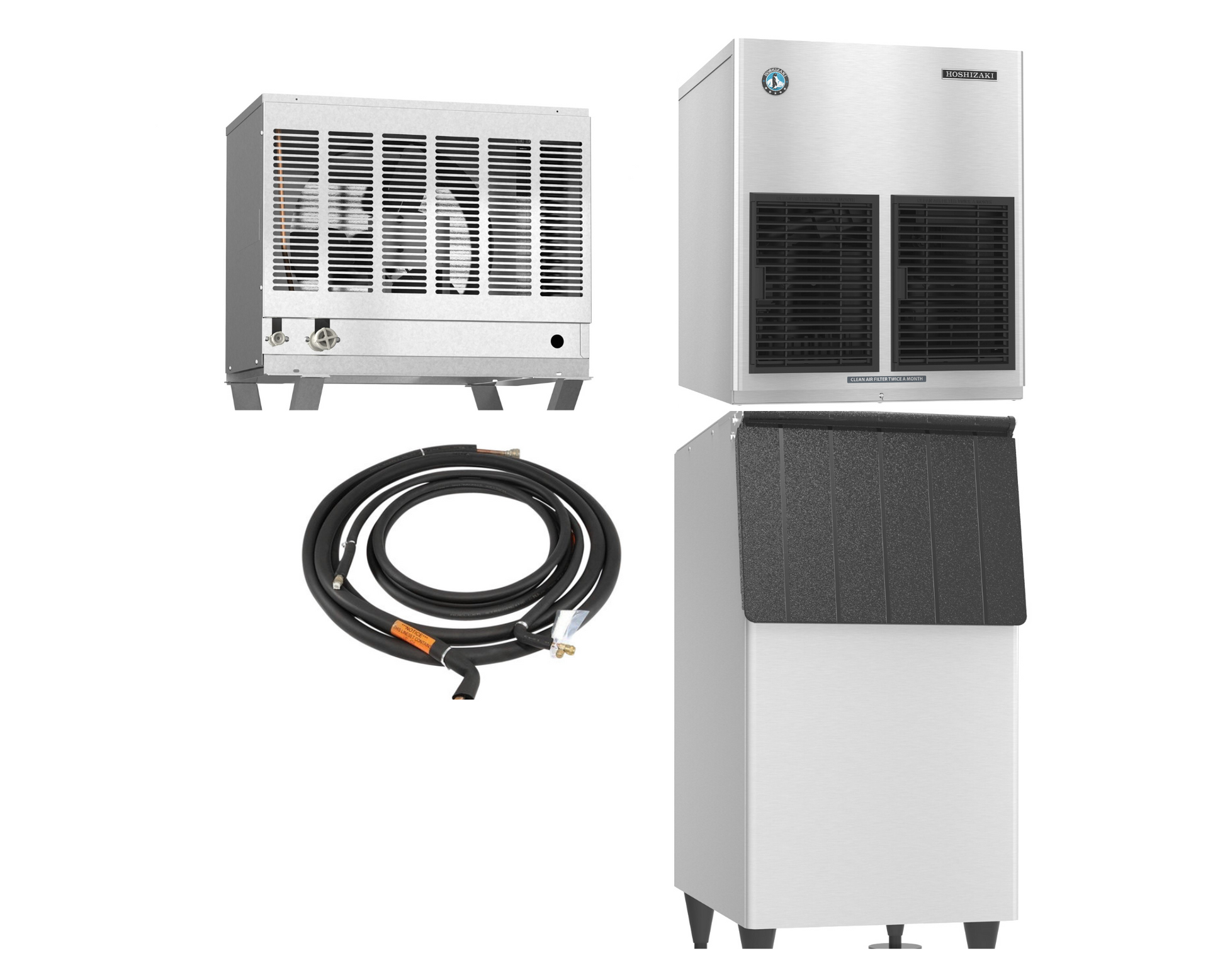

Hoshizaki Bundle -Remote Cooled Flaker URC-5FZ Remote Condenser B-300SF Ice Bin - HS-5588 Tubing Kit

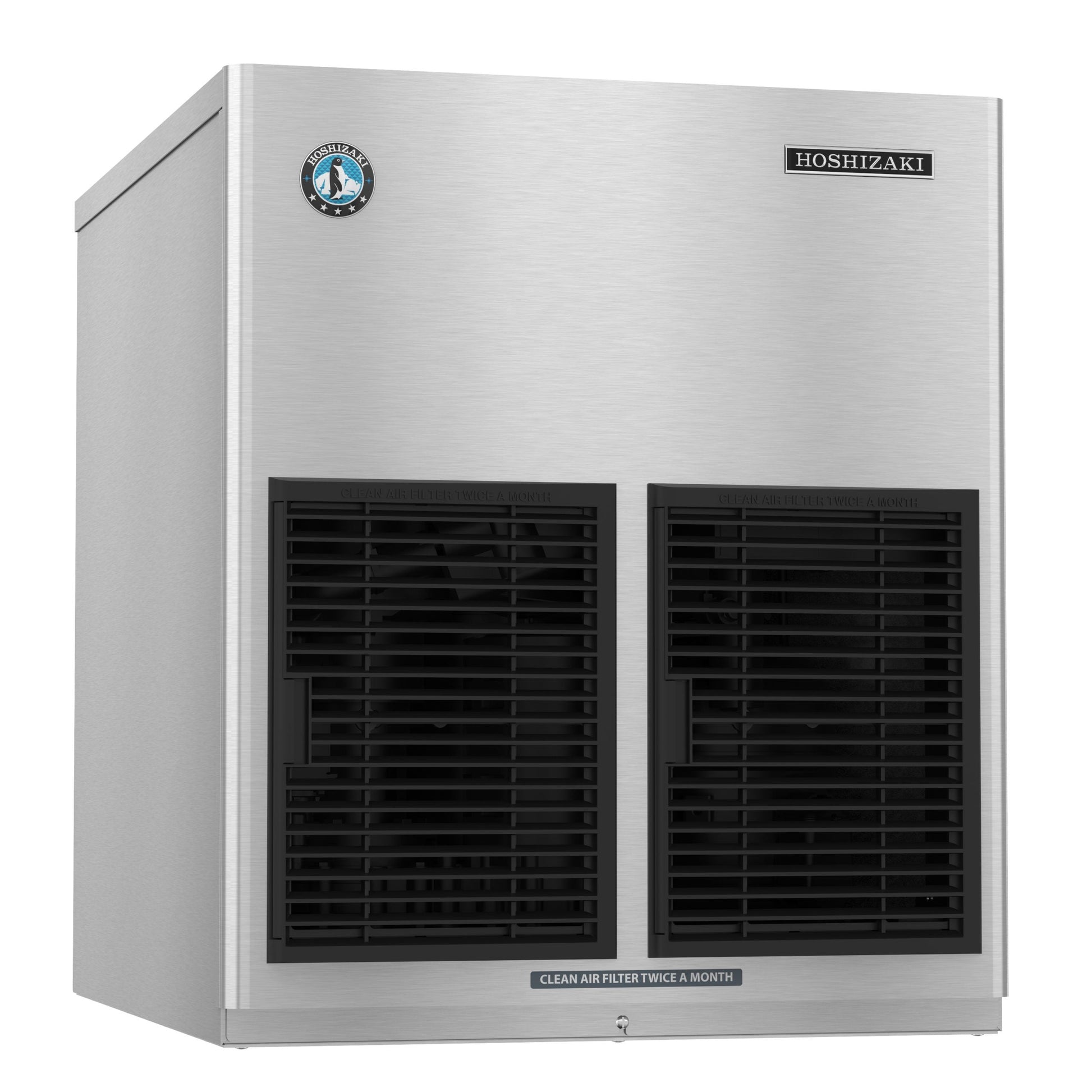

F-1002MRJZ Remote-Cooled Flaker Ice Maker
The F-1002MRJZ is capable of producing approximately 907 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Remote-cooled with URC-5FZ icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MRJZ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.
Features
-
Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
- Up to 907 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces flaked ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 15.23 amps (20 Amp Max fuse)
- 4.51 kwh/100 lbs. 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included

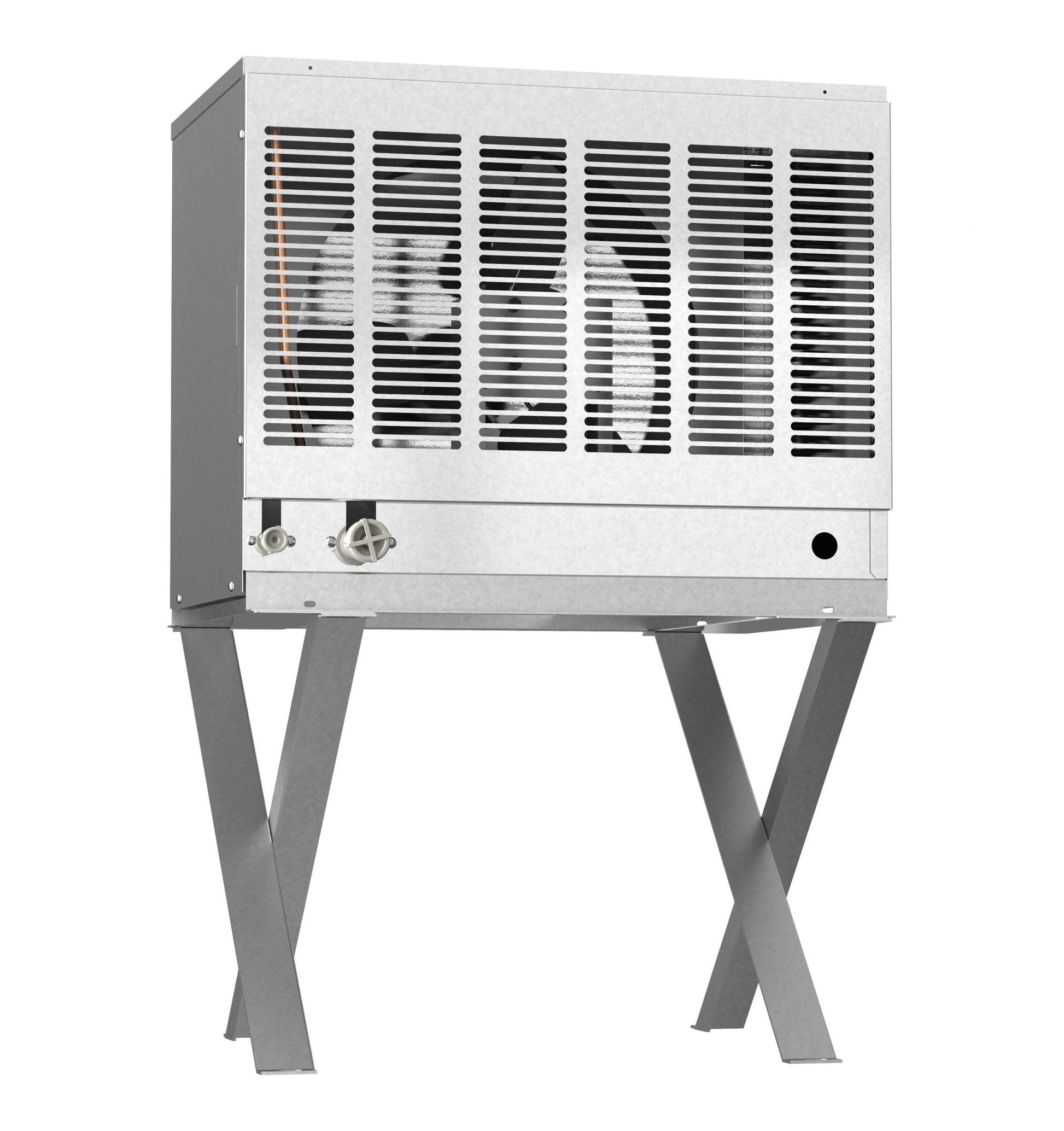

URC-5FZ Remote Condenser
The URC-5FZ, URC Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The URC-5FZ Remote Condenser operates on Single Phase, 115v/60/1, Must be hardwired at the site (3 wire, including ground), and R-404a refrigerant (1 lb. 14 oz. / 850 g). Compatible icemakers, sold separately: KM-520MRJZ, KM-660MRJZ, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C. The unit is UL Listed, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
Features
-
Dimensions: 21-13/16″ W x 14-1/16″ D x 32-13/16″ H
- Remote condenser for KM-520MRJZ, KMD-530MRJZ, KM-660MRJZ, FD-650MRJZ-C, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C
- Must be hardwired at the site (3 wire, including ground)
- Allow 24″ clearance for best performance
- Single Phase, 115v/60/1, Must be hardwired at the site (3 wire, including ground)
- R-404a refrigerant (1 lb. 14 oz. / 850 g)
- Compatible icemakers, sold separately: KM-520MRJZ, KM-660MRJZ, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C
- Three Years: Parts & Labor warranty on entire unit.
- Five Years: Parts warranty on air-cooled condenser coil.

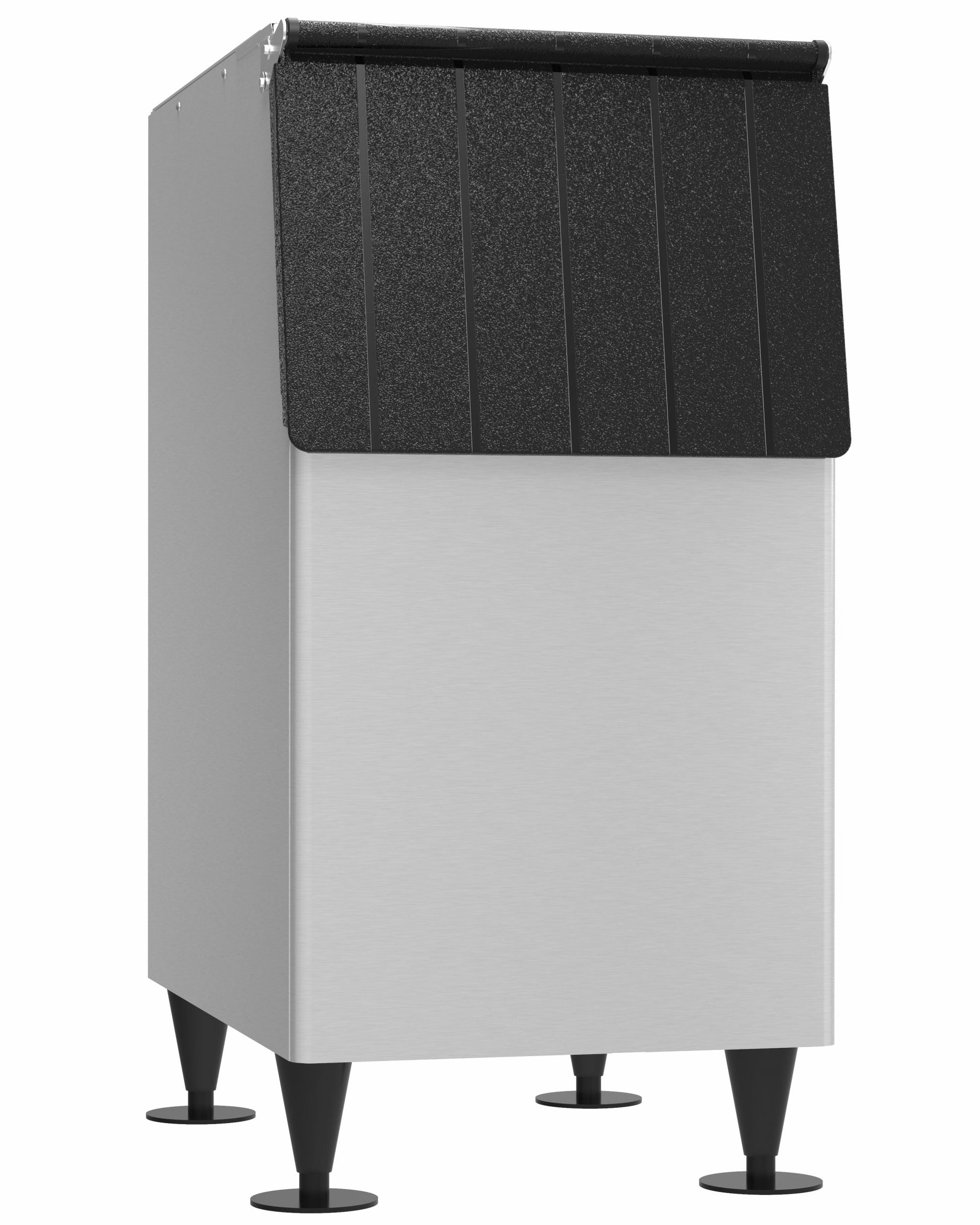

B-300SF Ice Storage Bin
Safely store up to 300 lbs of ice* with this B-300SF 22″ high-capacity ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The B-300SF features a durable Stainless Steel exterior cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes Standard with 6″ Painted Flange Legs and a Top-hinged front-opening bin door. 3/4″ FPT drain. The unit is ETL Verified, NSF and includes a Two Years: Parts & Labor warranty (Before January 2012 production). *Capacity based on 11.51 ft3 x 30lbs/ft3 average density of ice
- Dimensions: 22″ W x 32- 1/2 ” D x 46″ H
- Stores up to 300 lbs of ice
- Capacity based on 11.51 ft3 x 30lbs/ft3 average density of ice
- Polyethylene bin liner for sanitary ice storage
- Foamed-in-place polyurethane insulation
- For top-mounted ice maker
- Top-hinged front-opening bin door
- Standard with 6″ Painted Flange Legs
- 3/4″ FPT drain
- 135 lbs

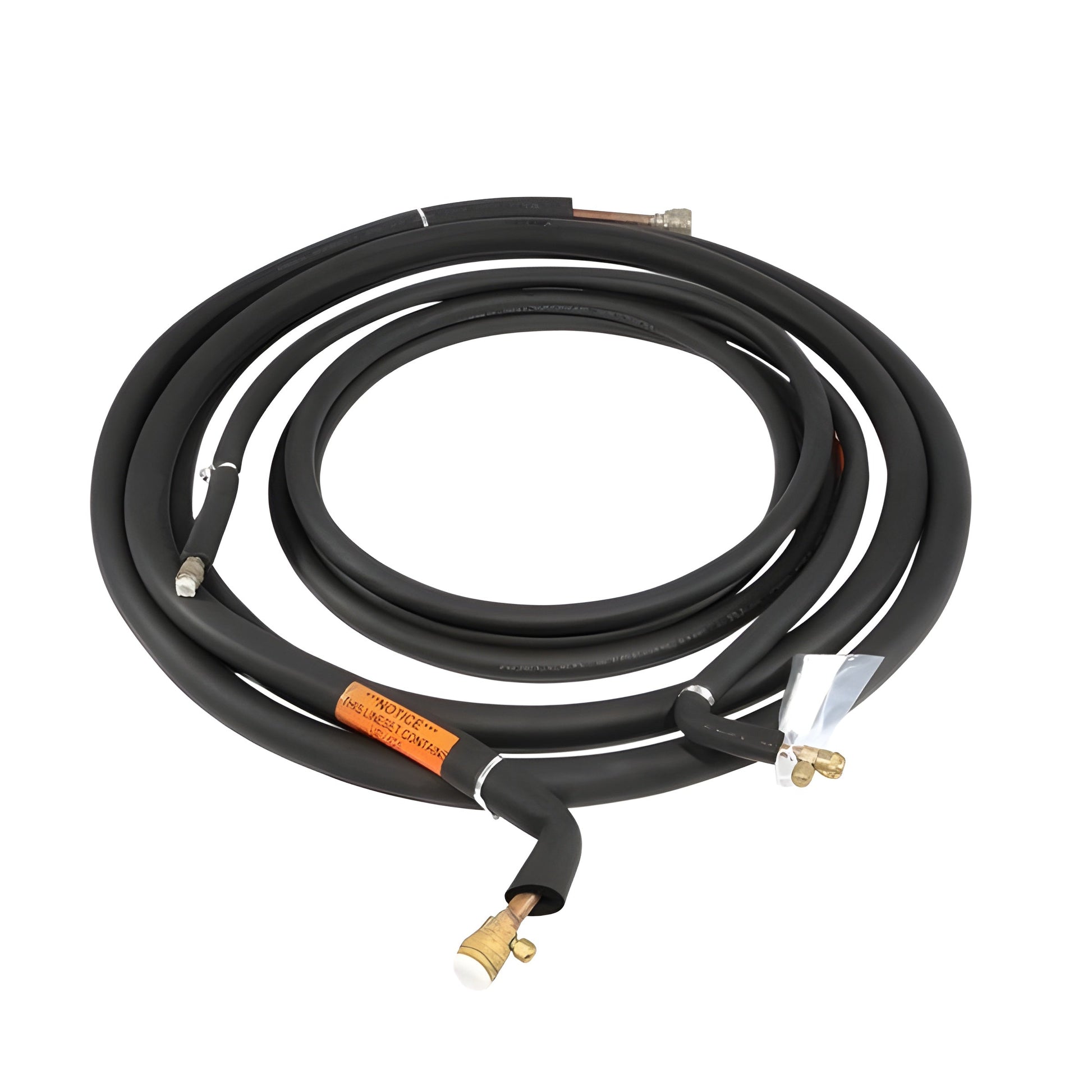

HS-5588 35 ft Ice Bin Tubing Kit Brazing
Use this Hoshizaki HS-5588 35' remote ice machine condenser line kit to connect your remote cooled ice machine to a URC-5FZ remote condenser. These lines are vital components, as they will reliably exchange refrigerant between the two units and ensure smooth operation.
This line set allows you to install your condenser unit on the roof or in another location away from the rest of your operation. This helps to reduce clutter in your kitchen, streamline your workspace, and eliminate additional heat build-up or strain on your HVAC system. This line set will require refrigerant to be added and will need brazing at the time of installation.
What Our Experts Think
The Hoshizaki Remote-Cooled Flaker Bundle is a high-performance ice-making system designed for businesses needing soft, flake ice for food preservation, healthcare, and beverages.
-
Remote-Cooled Flaker Ice Maker – Produces high-quality flake ice, ideal for display cases and medical applications.
-
URC-5FZ Remote Condenser – Reduces heat and noise for efficient operation.
-
B-300SF Ice Bin – 300 lb storage capacity ensures a steady ice supply.
-
HS-5588 Tubing Kit – Provides secure and leak-free connections.
-
Energy-Efficient & Reliable – Built for long-term, high-output performance.
Q&A
Q: What is included in this bundle?
A: This bundle includes a Hoshizaki remote-cooled flaker ice machine, URC-5FZ remote condenser, B-300SF ice storage bin, and HS-5588 tubing kit for installation.
Q: What type of ice does this machine produce?
A: It produces flake ice, which is soft, moldable, and ideal for seafood displays, healthcare, and food preservation.
Q: What is the daily ice production capacity?
A: The production capacity depends on the specific flaker model, but Hoshizaki flakers typically produce between 500–1000 lbs of ice per day under optimal conditions.
Q: What is the storage capacity of the ice bin?
A: The B-300SF ice bin has a 300-lb storage capacity, ensuring a steady supply of ice.
Q: Why is a remote condenser included?
A: The URC-5FZ remote condenser reduces heat and noise by relocating the cooling system outdoors, improving efficiency and performance.
Q: Is the tubing kit included?
A: Yes, the HS-5588 tubing kit is included for proper connection between the ice machine and the remote condenser.
Maintenance Tips
-
Clean the Ice Maker Regularly: Use a Hoshizaki-approved cleaner to remove mineral buildup and ensure efficient ice production.
-
Inspect & Maintain the Condenser: Keep the URC-5FZ remote condenser free from dust and debris to optimize cooling performance.
-
Sanitize the Ice Bin: Regularly clean and disinfect the B-300SF bin to prevent mold, bacteria, and ice contamination.
-
Check Tubing & Connections: Inspect the HS-5588 tubing kit for leaks, blockages, or wear to ensure proper refrigerant flow.
-
Monitor Ice Output & Performance: Ensure consistent ice production and address any unusual noises or efficiency drops promptly.
