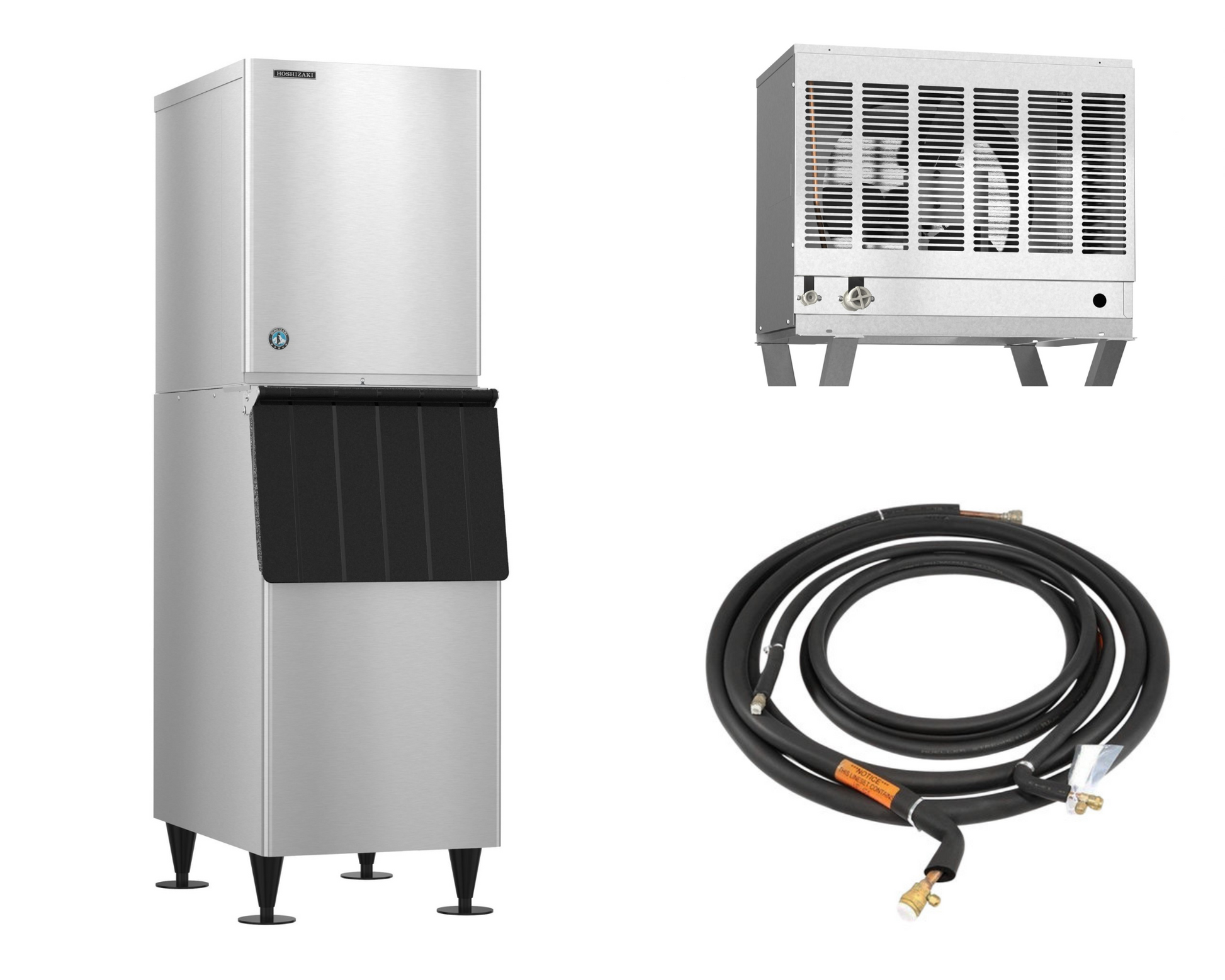

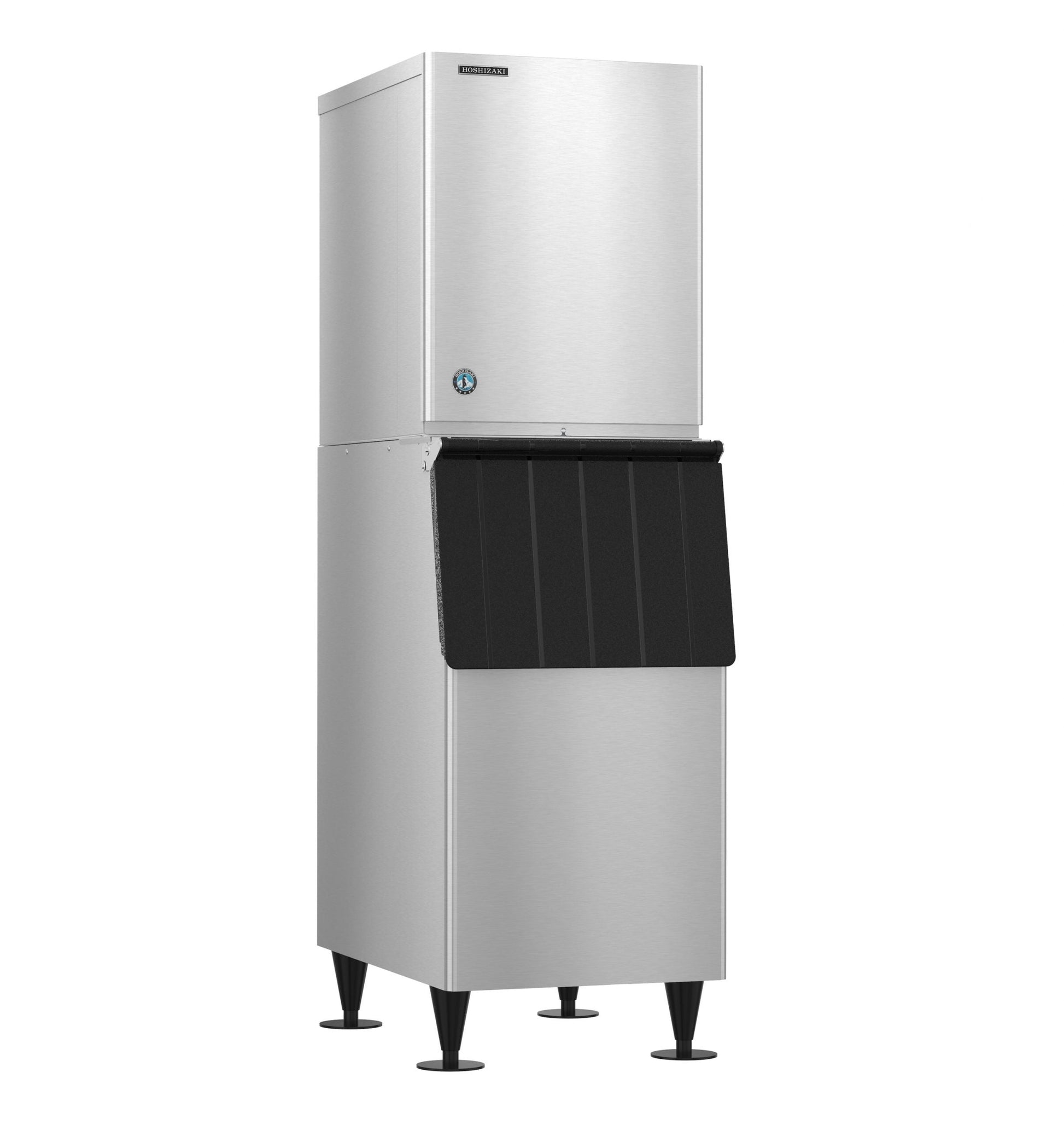

Hoshizaki Bundle - KM-520MRJZ Ice Maker, URC-5FZ Condenser, B-300SF Bin, HS-5588 Tubing Kit - KM-520MRJZBUNDLE

Hoshizaki Bundle - KM-520MRJZ Remote Cooled Crescent Cuber Ice Maker | URC-5FZ Remote Condenser | B-300SF Ice Bin | HS-5588 Tubing Kit - KM-520MRJZBUNDLE

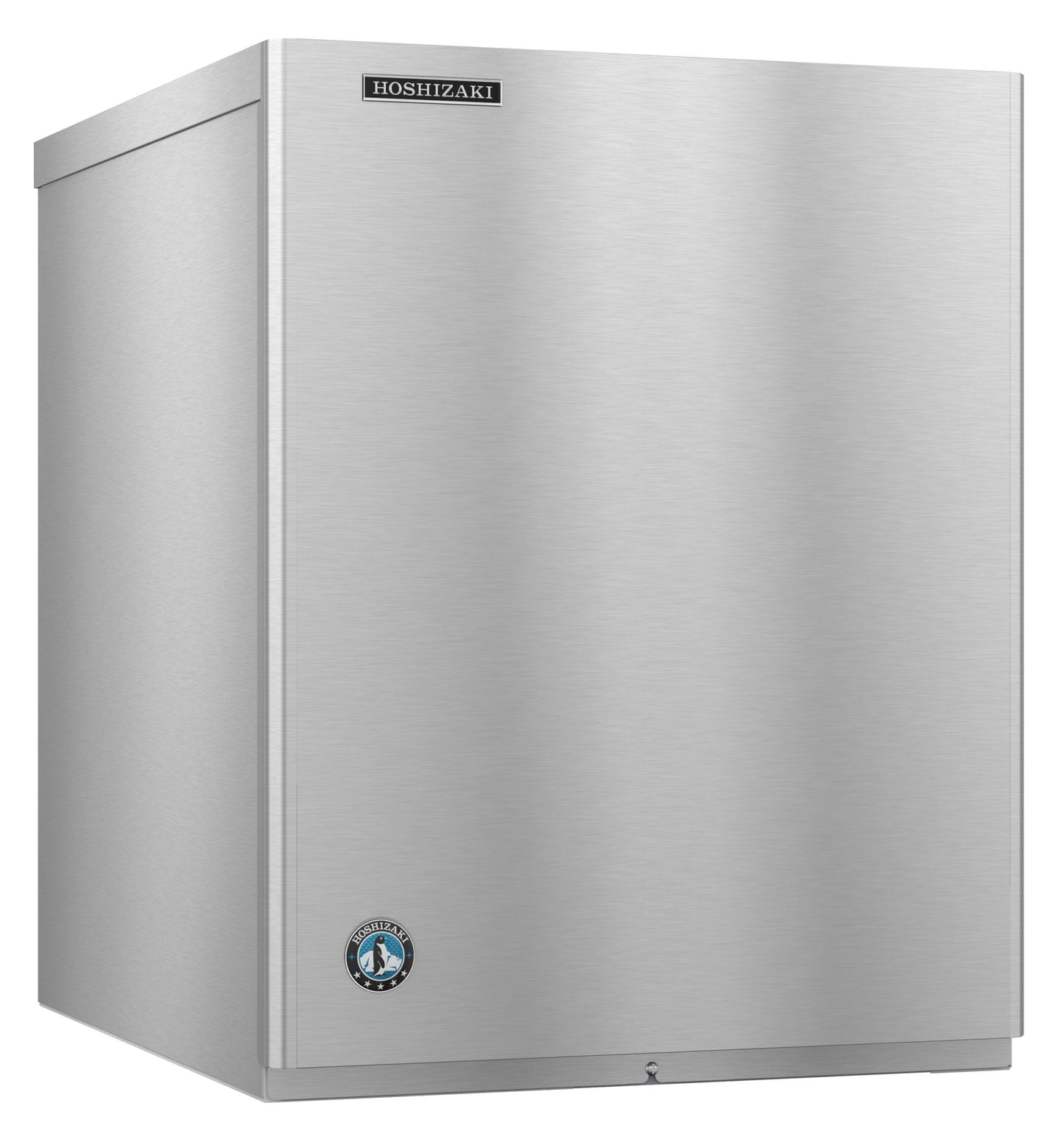

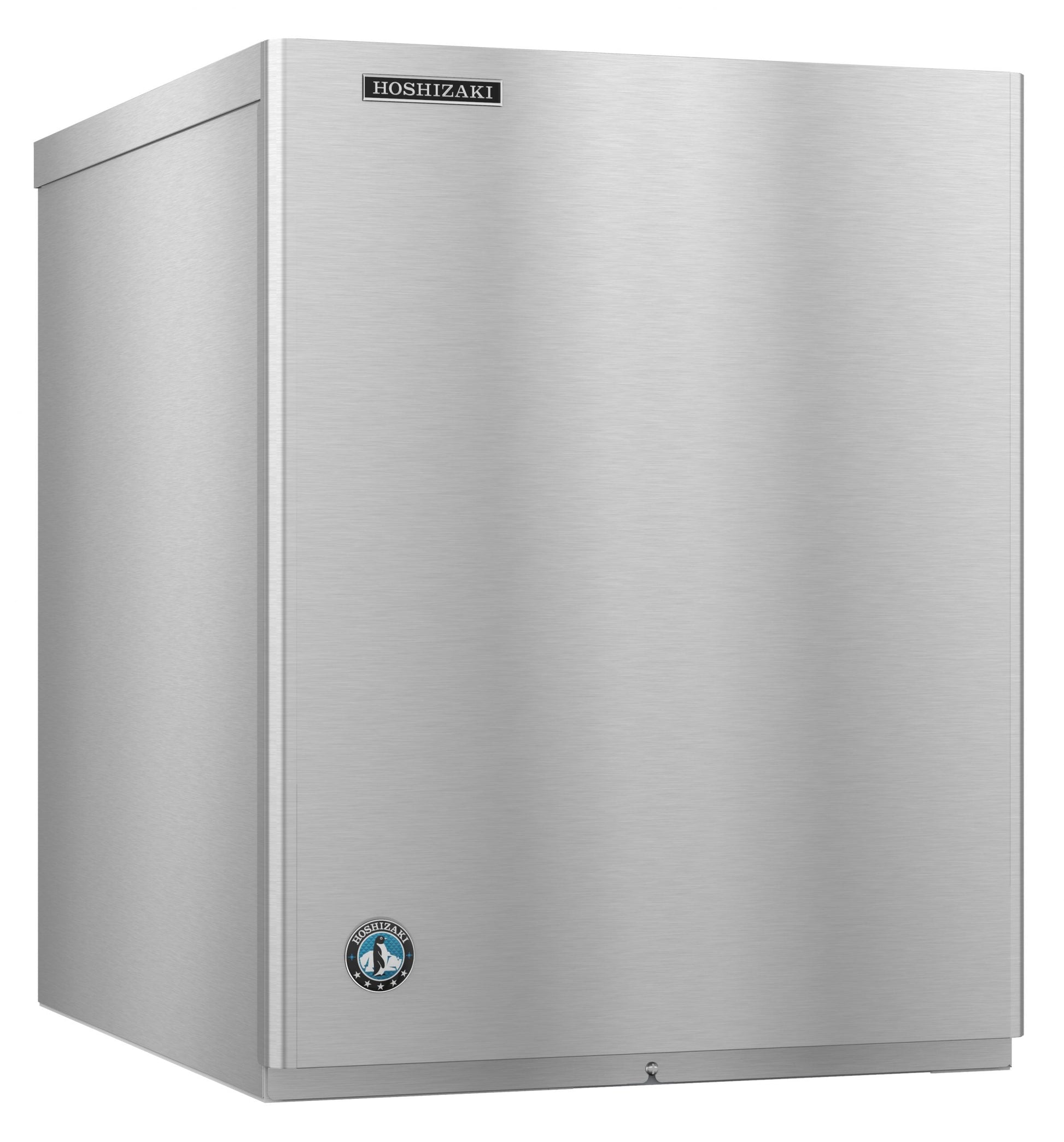

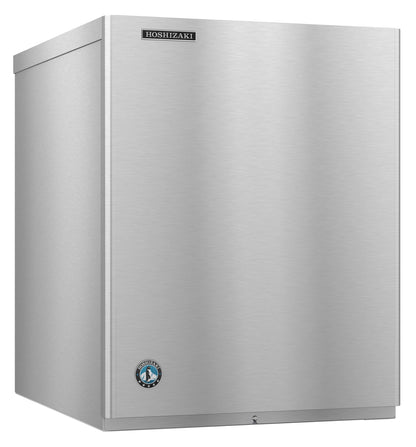

KM-520MRJZ Remote-Cooled Crescent Cuber Ice Maker

The KM-520MRJZ is capable of producing approximately 547 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-5FZ icemaker features a CycleSaver™ design and includes the EverCheck alert system making the unit energy efficient and simple to maintain. The KM-520MRJZ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. ENERGY STAR qualified. Please consult the Specification Sheet for additional details

Features

• Dimesions: 22″ W x 27-3/8″ D x 28″ H
• Up to 547 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent shaped ice cubes
• Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
• Heat Rejection:6200 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 12.05 amps (20 Amp Max fuse)
• 4.8 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts & Labor warranty on evaporator.

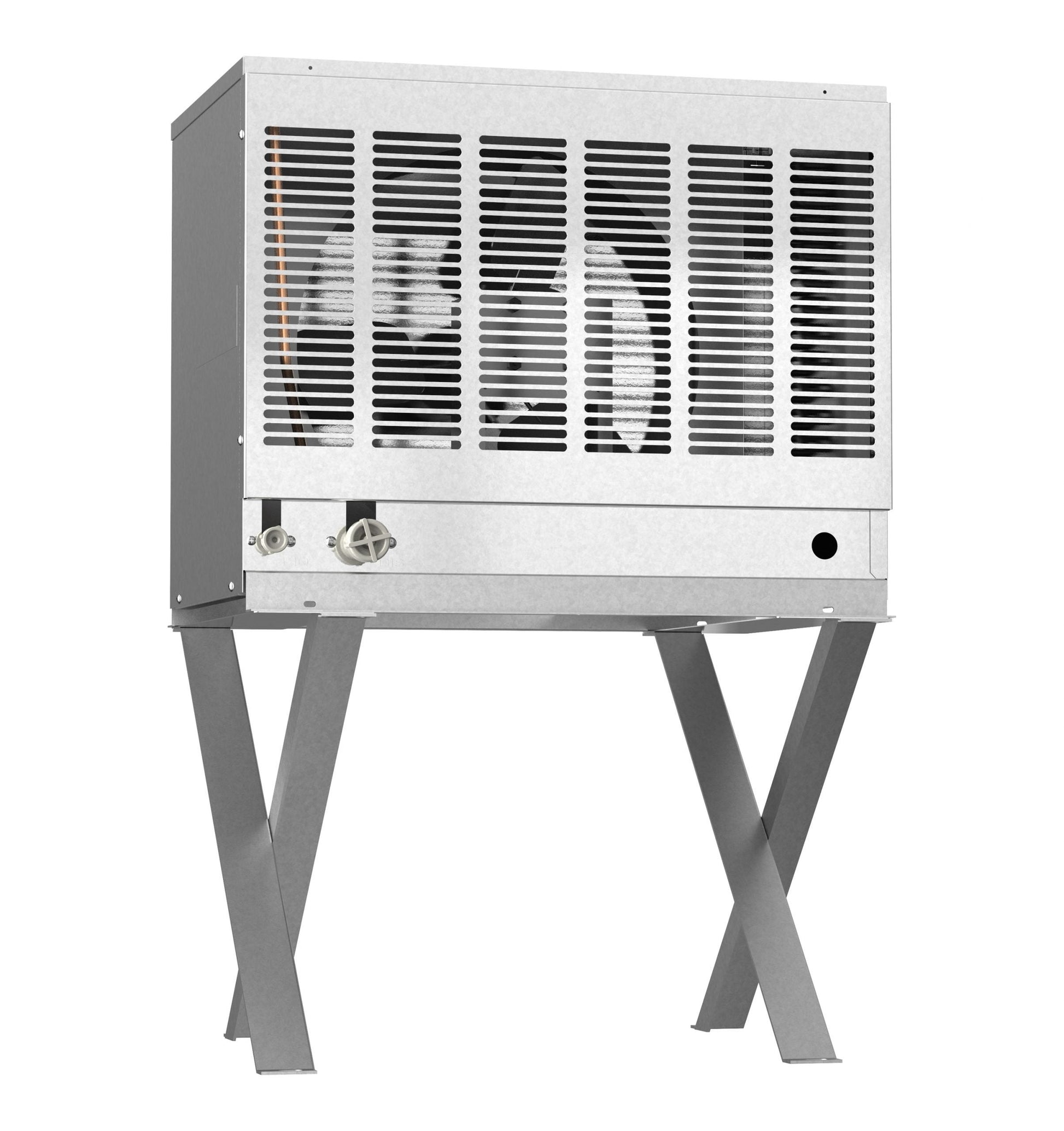

URC-5FZ Remote Condenser

The URC-5FZ, URC Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The URC-5FZ Remote Condenser operates on Single Phase, 115v/60/1, Must be hardwired at the site (3 wire, including ground), and R-404a refrigerant (1 lb. 14 oz. / 850 g). Compatible icemakers, sold separately: KM-520MRJZ, KM-660MRJZ, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C. The unit is UL Listed, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.

• Dimensions: 21-13/16″ W x 14-1/16″ D x 32-13/16″ H
• Remote condenser for KM-520MRJZ, KMD-530MRJZ, KM-660MRJZ, FD-650MRJZ-C, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C
• Must be hardwired at the site (3 wire, including ground)
• Allow 24″ clearance for best performance
• Single Phase, 115v/60/1, Must be hardwired at the site (3 wire, including ground)
• R-404a refrigerant (1 lb. 14 oz. / 850 g)
• Compatible icemakers, sold separately: KM-520MRJZ, KM-660MRJZ, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C
• Three Years: Parts & Labor warranty on entire unit.
• Five Years: Parts warranty on air-cooled condenser coil.

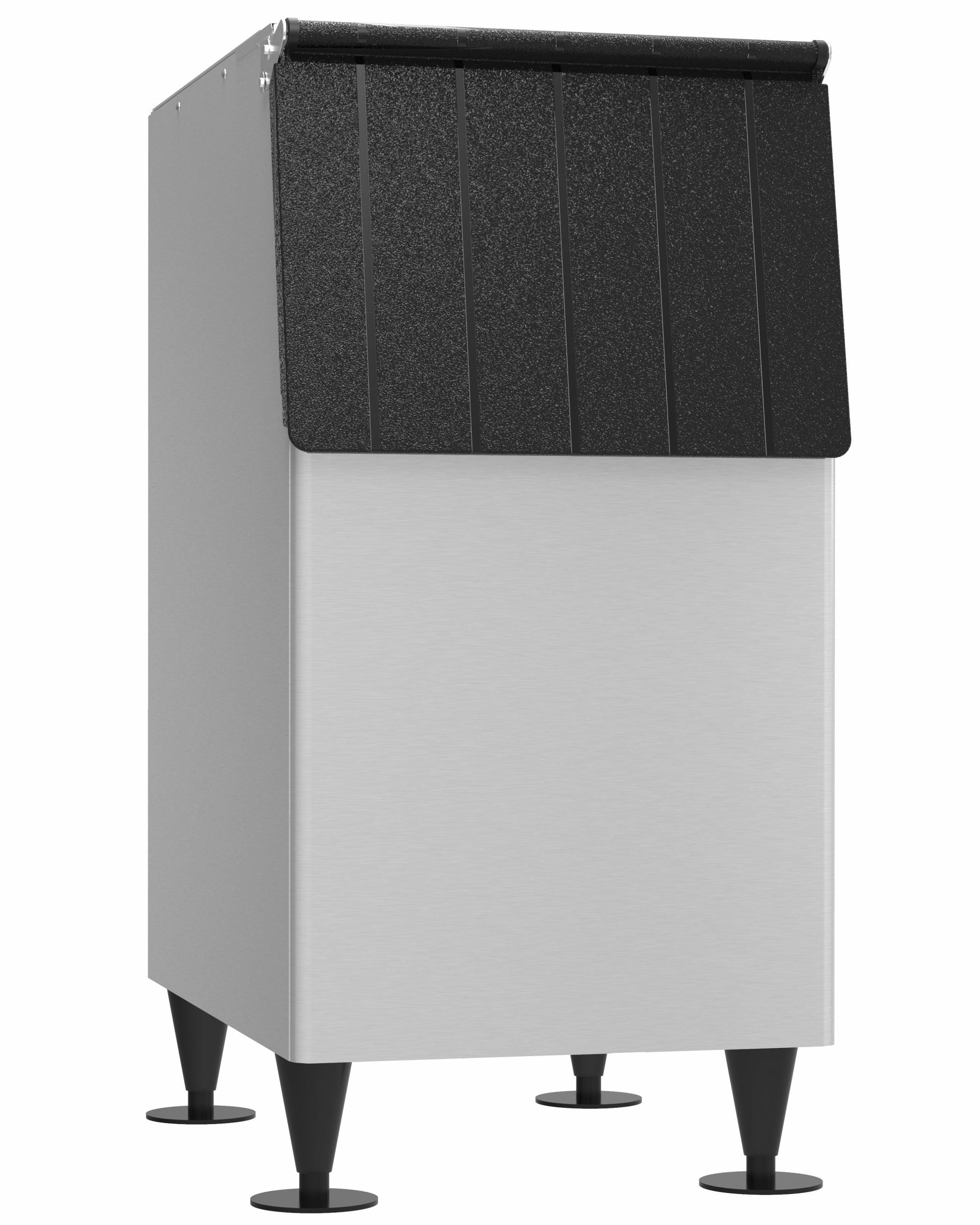

B-300SF Ice Storage Bin

Safely store up to 300 lbs of ice* with this B-300SF 22″ high-capacity ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The B-300SF features a durable Stainless Steel exterior cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes Standard with 6″ Painted Flange Legs and a Top-hinged front-opening bin door. 3/4″ FPT drain. The unit is ETL Verified, NSF and includes a Two Years: Parts & Labor warranty (Before January 2012 production). *Capacity based on 11.51 ft3 x 30lbs/ft3 average density of ice

• Dimensions: 22″ W x 32- 1/2 ” D x 46″ H
• Stores up to 300 lbs of ice
• Capacity based on 11.51 ft3 x 30lbs/ft3 average density of ice
• Polyethylene bin liner for sanitary ice storage
• Foamed-in-place polyurethane insulation
• For top-mounted ice maker
• Top-hinged front-opening bin door
• Standard with 6″ Painted Flange Legs
• 3/4″ FPT drain
• 135 lbs

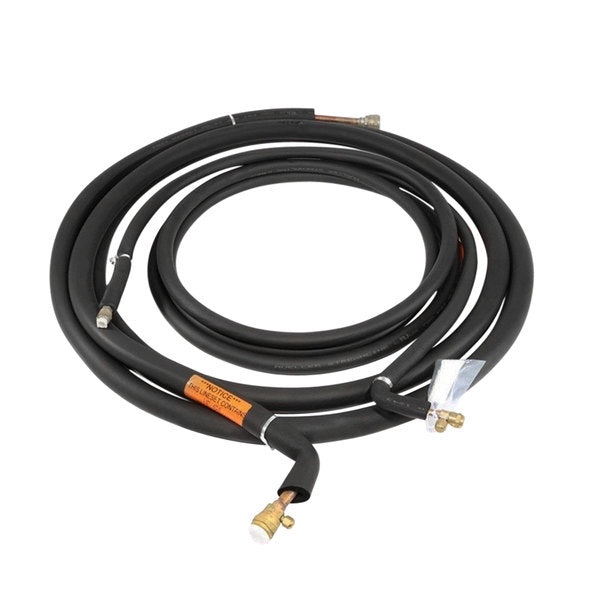

HS-5588 35 ft Ice Bin Tubing Kit Brazing

Use this Hoshizaki HS-5588 35' remote ice machine condenser line kit to connect your remote cooled ice machine to a URC-5FZ remote condenser. These lines are vital components, as they will reliably exchange refrigerant between the two units and ensure smooth operation.

This line set allows you to install your condenser unit on the roof or in another location away from the rest of your operation. This helps to reduce clutter in your kitchen, streamline your workspace, and eliminate additional heat build-up or strain on your HVAC system. This line set will require refrigerant to be added and will need brazing at the time of installation.

What Our Experts Think

The Hoshizaki KM-520MRJZ Bundle is a premium remote-cooled ice-making system designed for efficient and consistent crescent cube production.

• KM-520MRJZ Ice Maker – Produces high-quality crescent-shaped ice, perfect for beverages.
• URC-5FZ Remote Condenser – Enhances cooling efficiency while reducing heat and noise.
• B-300SF Ice Bin – 300 lb storage capacity ensures a steady ice supply.
• HS-5588 Tubing Kit – Provides secure and reliable connections.
• Energy-Efficient & Space-Saving – Designed for durability and long-term performance.

Q&A

Q: What is included in this bundle?
A: This bundle includes the Hoshizaki KM-520MRJZ remote-cooled crescent cuber ice maker, URC-5FZ remote condenser, B-300SF ice storage bin, and HS-5588 tubing kit.

Q: What is the daily ice production capacity?
A: The KM-520MRJZ can produce up to 556 lbs of crescent ice per day under optimal conditions.

Q: What type of ice does this machine produce?
A: It produces crescent-shaped ice cubes, which are hard, slow-melting, and ideal for beverages.

Q: What is the purpose of the remote condenser?
A: The URC-5FZ remote condenser reduces heat and noise by relocating the cooling unit outdoors, improving efficiency.

Q: How much ice can the storage bin hold?
A: The B-300SF ice bin has a 300-lb storage capacity, ensuring a steady supply of ice.

Q: Is the tubing kit included?
A: Yes, the HS-5588 tubing kit is included for proper connection between the ice maker and remote condenser.

Q: Is professional installation required?
A: Yes, a certified technician should install the unit to ensure proper refrigerant charging and system performance.

Maintenance Tips

• Clean the Ice Maker Regularly: Use a manufacturer-approved cleaner to remove scale buildup and maintain ice quality.
• Inspect & Maintain the Condenser: Keep the URC-5FZ remote condenser free from dust and debris for optimal cooling efficiency.
• Sanitize the Ice Bin: Clean and disinfect the B-300SF ice bin frequently to prevent mold, bacteria, and ice contamination.
• Check Tubing & Connections: Inspect the HS-5588 tubing kit for leaks, wear, or blockages to ensure proper refrigerant flow.
• Monitor Ice Production: Ensure consistent ice output and check for unusual noises or decreased efficiency, which may indicate maintenance needs.
