The H-Burner Rectangular Fire Pit Burner Insert from HPC Fire

The most impressive flame on the market, these HPC's CSA certified fire pit inserts are made of durable steel and designed to be efficient and safe.

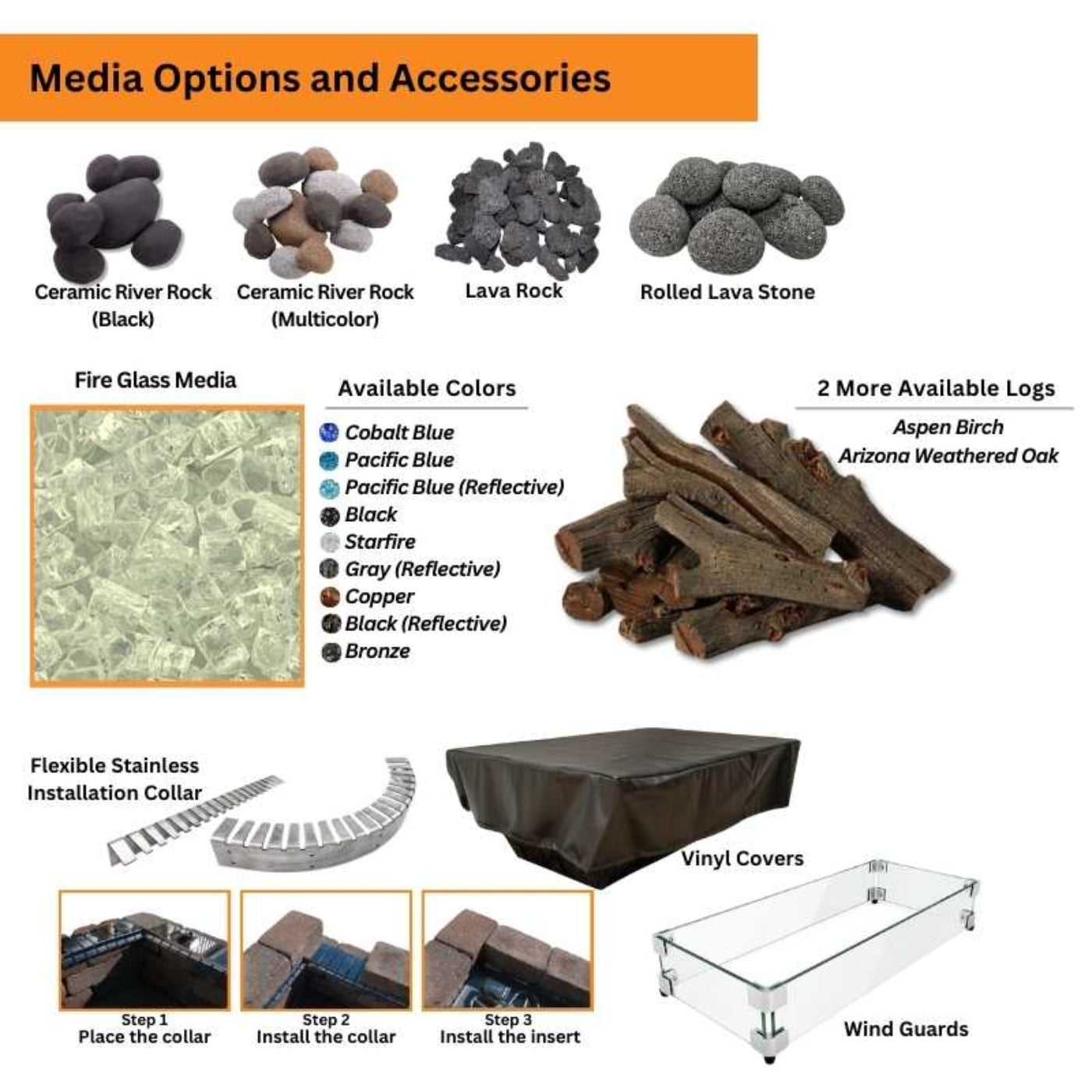

Customize Your Fire Pit with Media

Media enhances the overall appearance of your fire feature by making it look more natural, stylized, or by making the flames stand out more.

Lava Rock (657): increase combustion while maintaining a classy look! The size of each rock varies from 1" to 2".

Rolled Lava Stone (857S/M): Unique finish lava stones rolled smooth. Available in small or medium sizes.

Ceramic River Rock Series (FPR84MC): A unique alternative to lava rock & fire glass. HPC's River Rocks are made from lightweight ceramic fiber and are gel casted. The durable design is great to withstand outdoor elements. Available in two styles: Black or Multi Color.

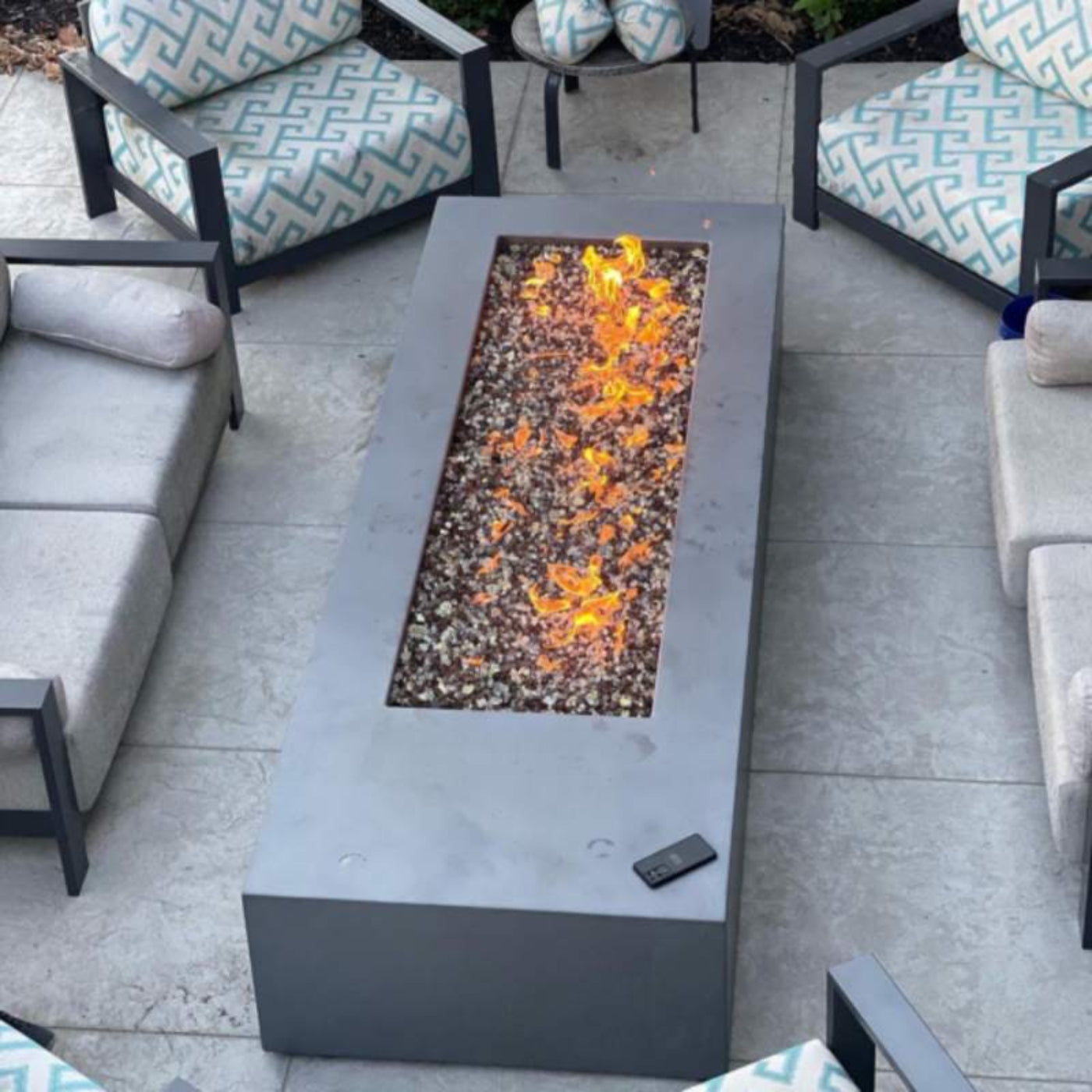

Fire Glass (FPGL):  HPCs Fire Glass has a reflective surface that bends the light produced by the fire pit creating a mesmerizing fire experience. Available in multiple colors.

Fire Logs (FLPL): Create the look of a traditional wood burning fire with HPC Outdoor Fire Logs. Choose from 3 styles: Arizona Weathered Oak, Aspen Birch, Western Driftwood. We recommend combining with Lava Rock.

Features

• Bowl design includes a 1.3" lip to rest over paving stones / enclosure.
• Depth to pan allows for better media retention
• Fully assembled, commercial grade, CSA-certified fire pit insert
• Raised hub for water mitigation
• Welded gas fitting for strength
• Weep holes for drainage
• Fully assembled
• Commercial Grade
• CSA Certified Fire Pit


Installation Considerations

1. Minimum of 2" clearance between bottom of insert and ground is required
2. 48" clearance to combustibles
3. Minimum (2) sides of enclosure ventilated
4. Minimum 50% free air space within enclosure
5. 24VAC models (available upon request) require HPC/SEBCO 24VAC, 100W power supply for inserts ONLY

Ignition & Control Options for your Fire Pit Insert

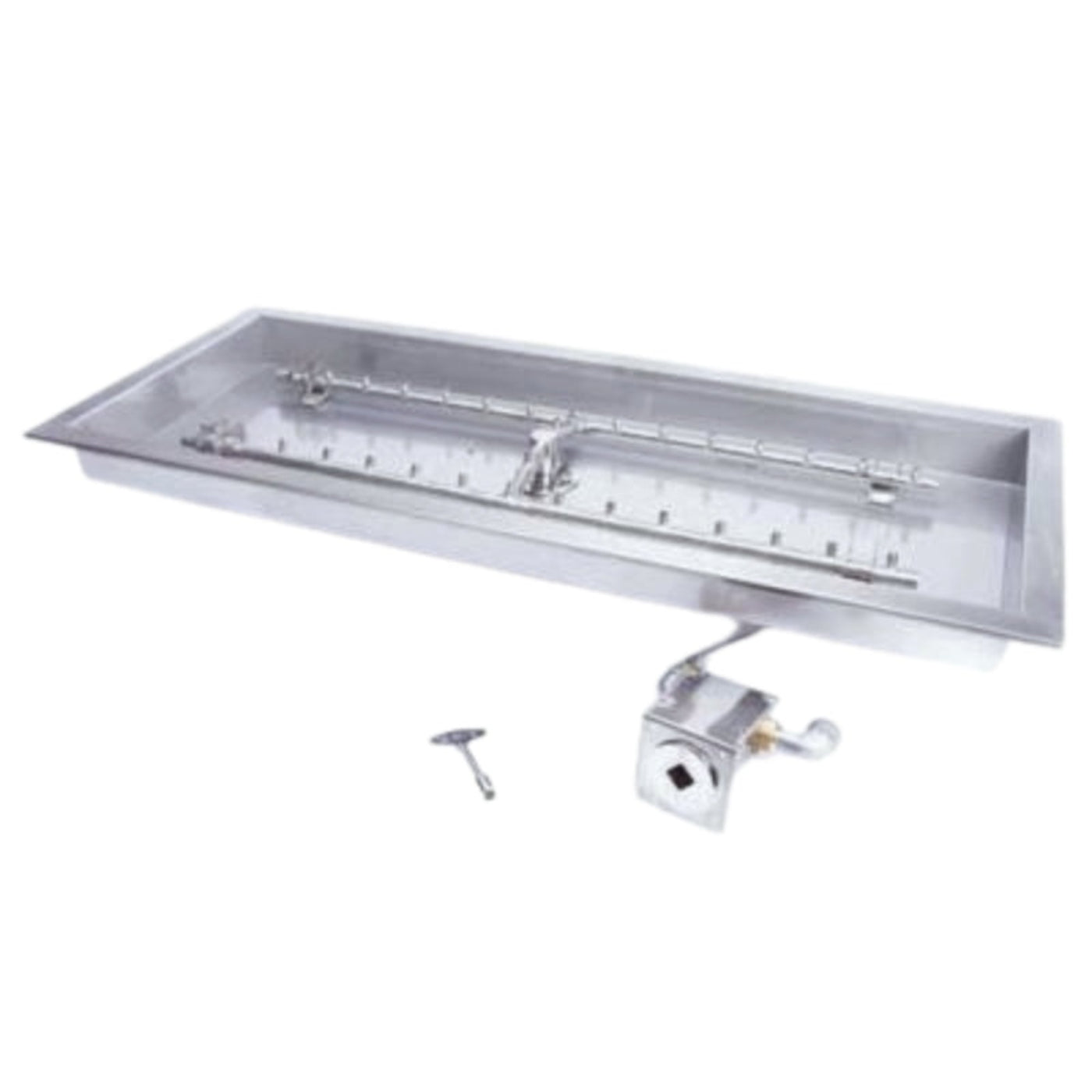

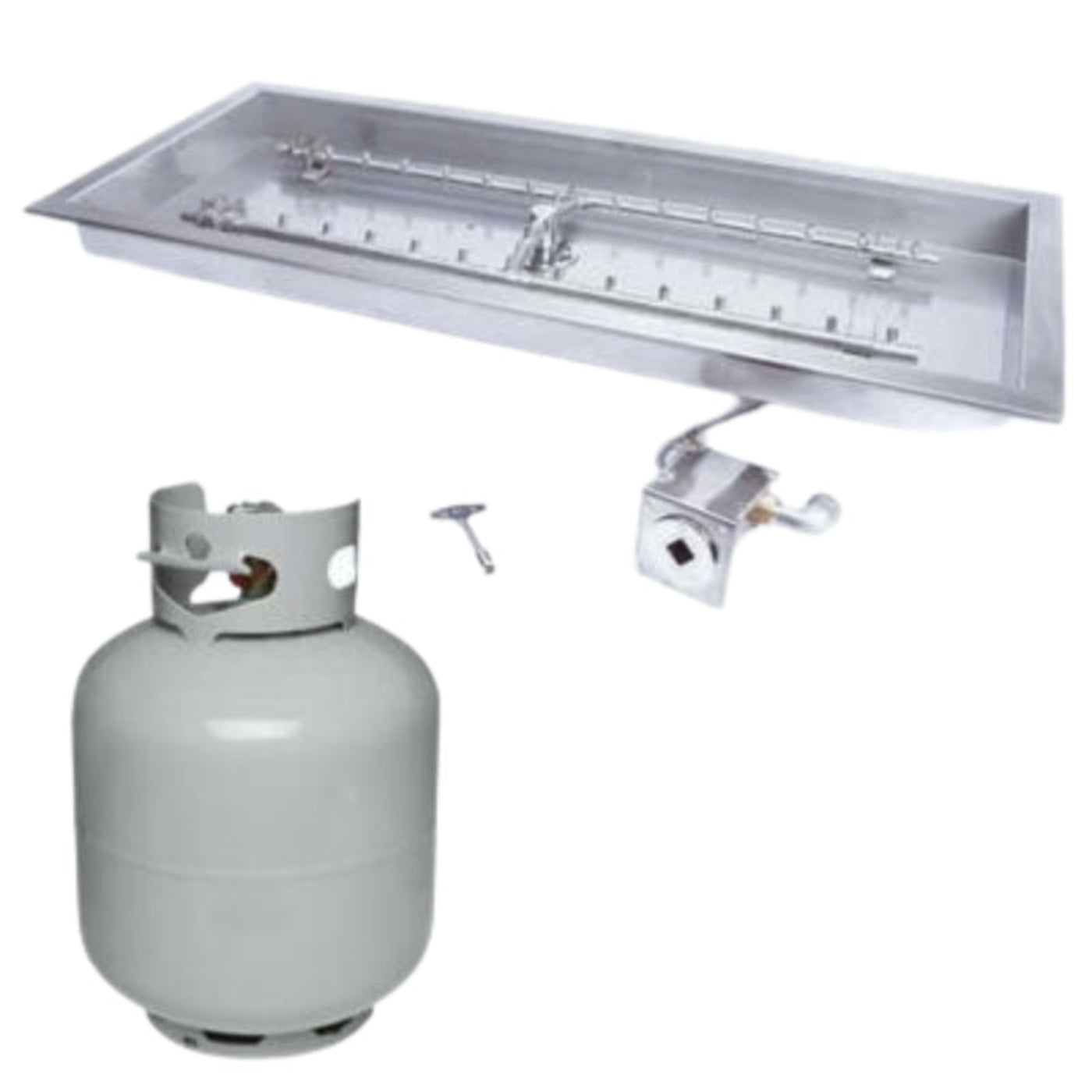

1. Match Lit - match lit fire pits are ignited simply by turning the key valve and lighting the gas with a lighter.

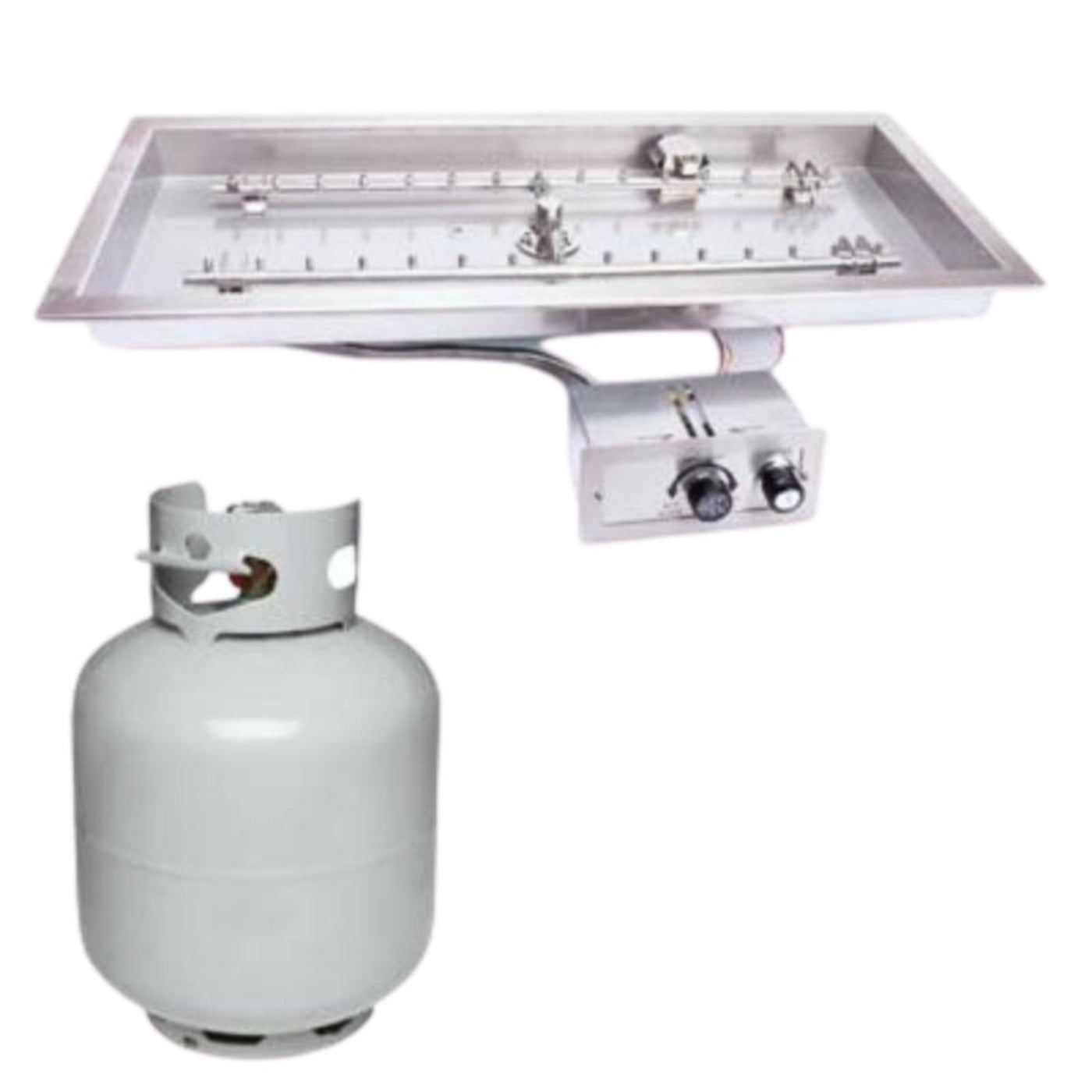

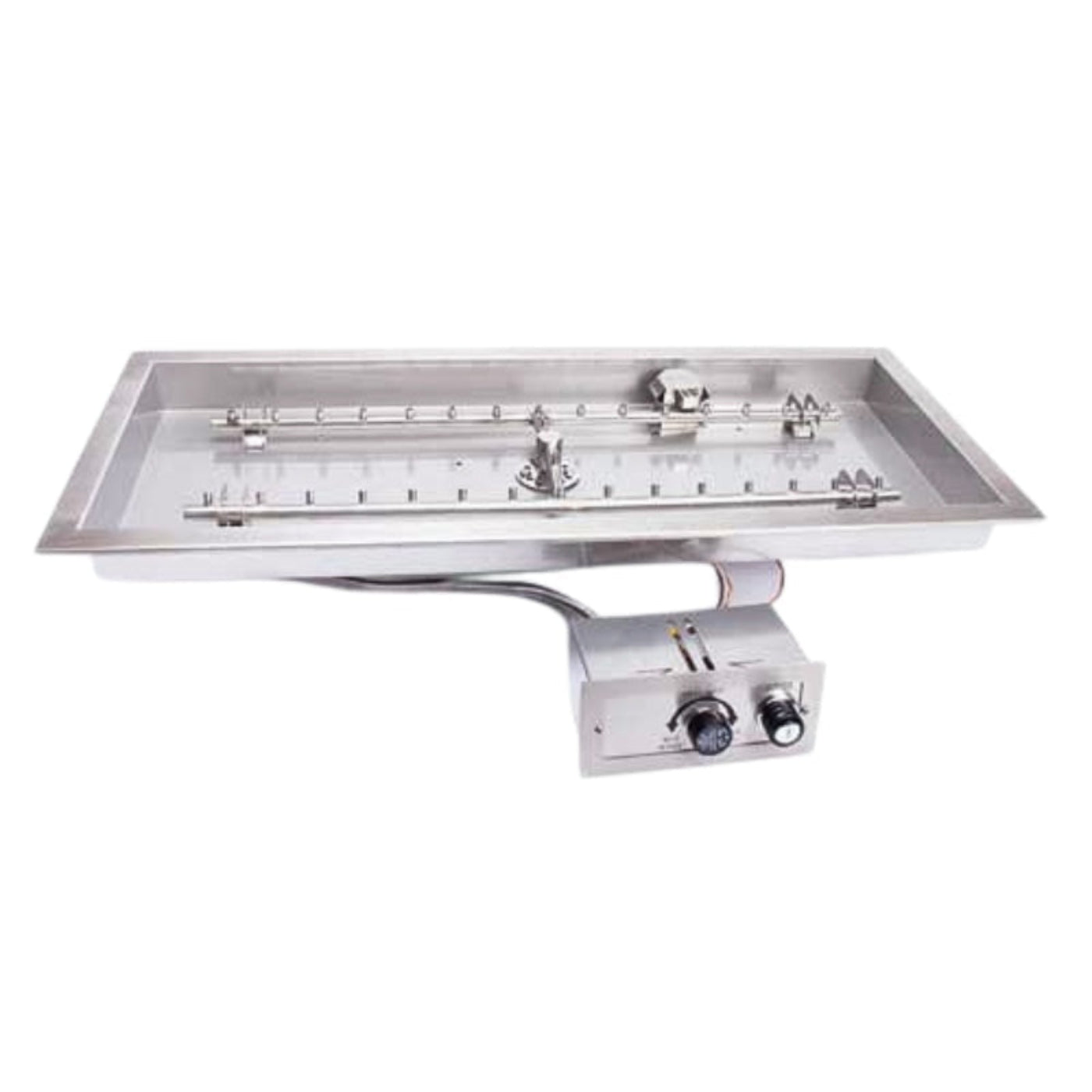

2. Push Button - push button fire pits are controlled using a simple knob and button on a stainless steel valve box and features a flame-sensing system to turn off gas if flame is lost.

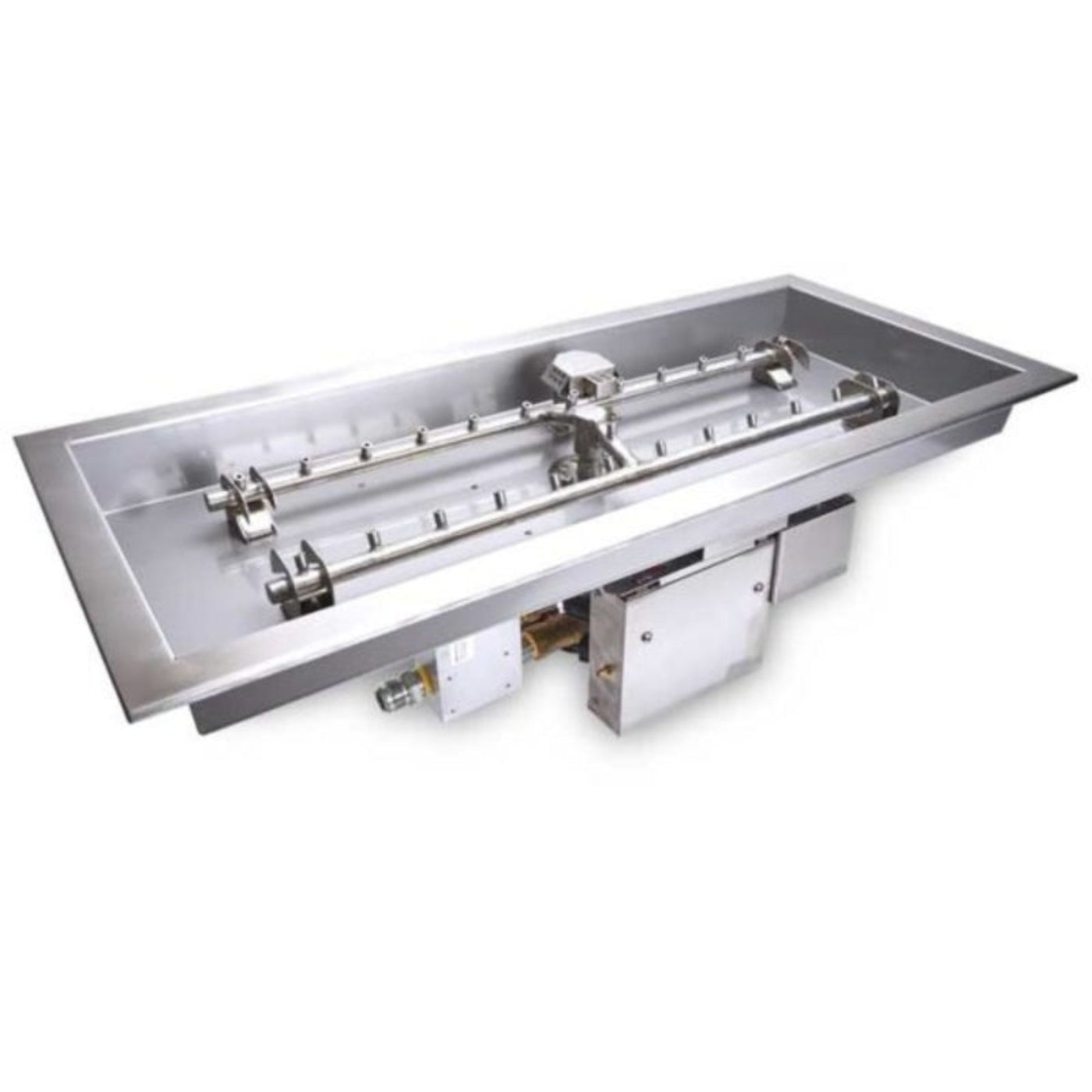

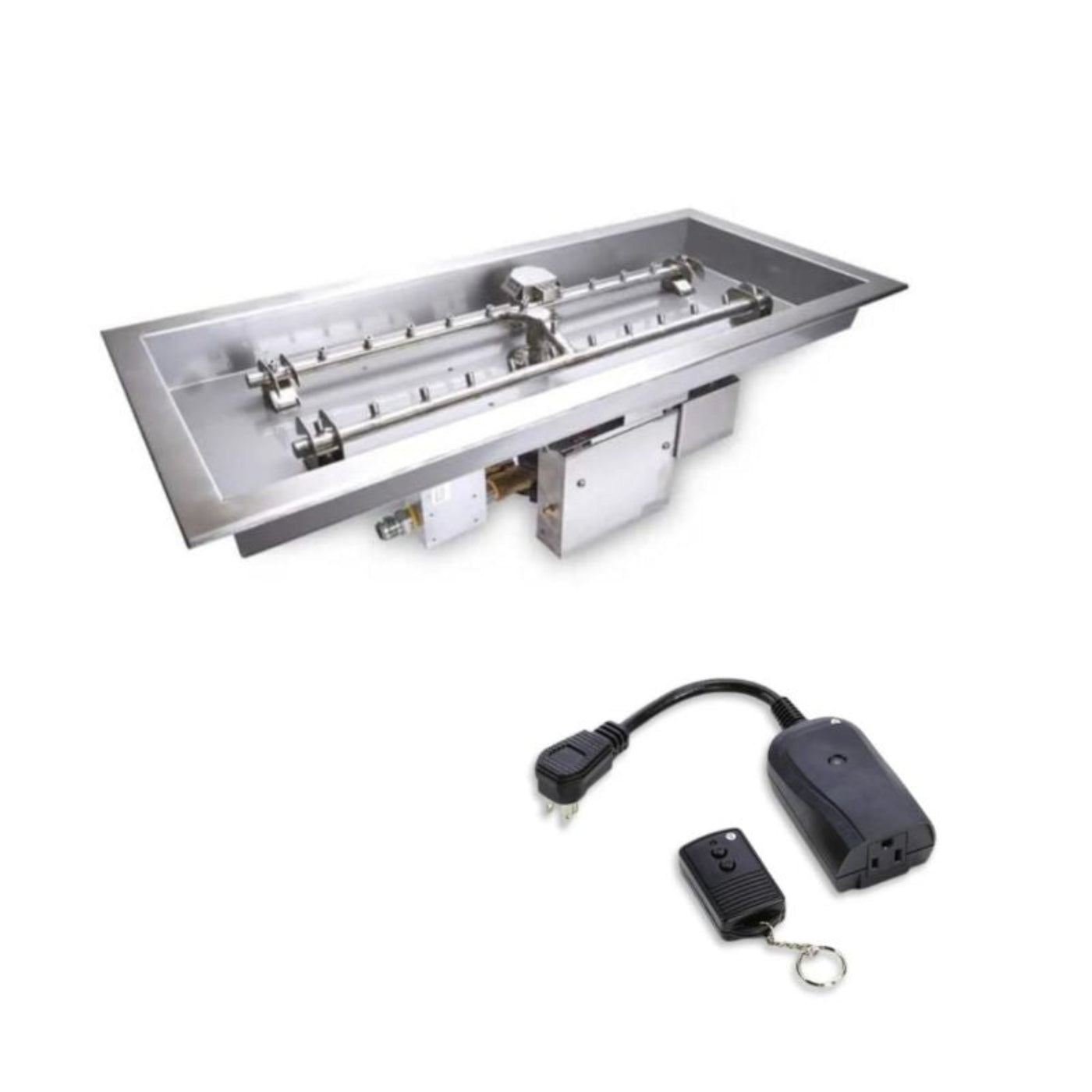

3. Electronic Ignition On/Off - remote controlled ignition. On/Off control only.

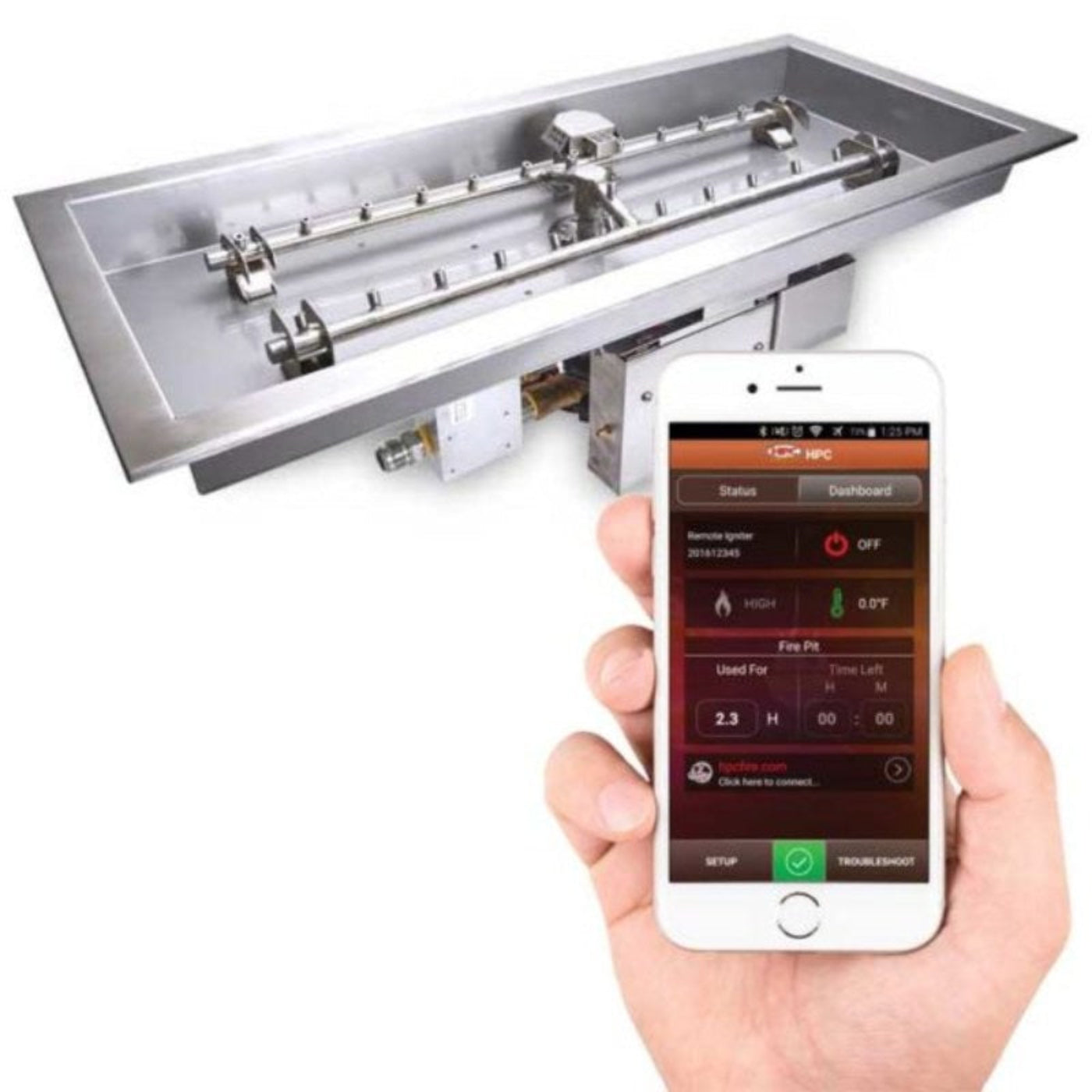

4. Electronic Ignition Hi/Low (Bluetooth) - control your fire pit from your smartphone or tablet. On/Off plus adjustable flame height control.

Accessories

Optional Accessories

Accessories to go with your fire pit. Use the media & accessory chart to make sure you choose the right size accessory for your fire pit.

Vinyl Covers: Protect your fire pit from the elements when you are not using it.

Wind Guards: HPCs Wind Guards are made of high quality glass that is designed to complement your fire pit and provide additional safety against active flames. Wind guards reduce flame disturbance cause by the wind and prevent loose items from getting too close to the fire.

Install Collars: The flex form installation collar merges the gap between your fire pit structure and the insert pan for easy installation. The flexible install collar allows for an easy 3 step installation, saving you time with our one size fits all product. The collar can be formed to fit any shaped fire pit and offers an auto-centering feature with a curved lip.

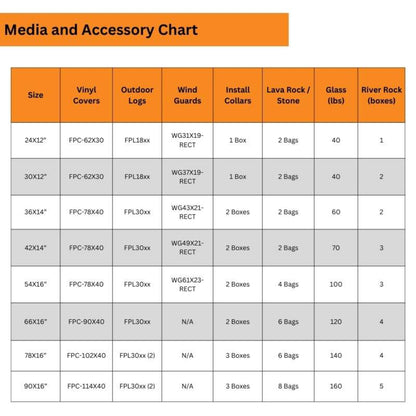

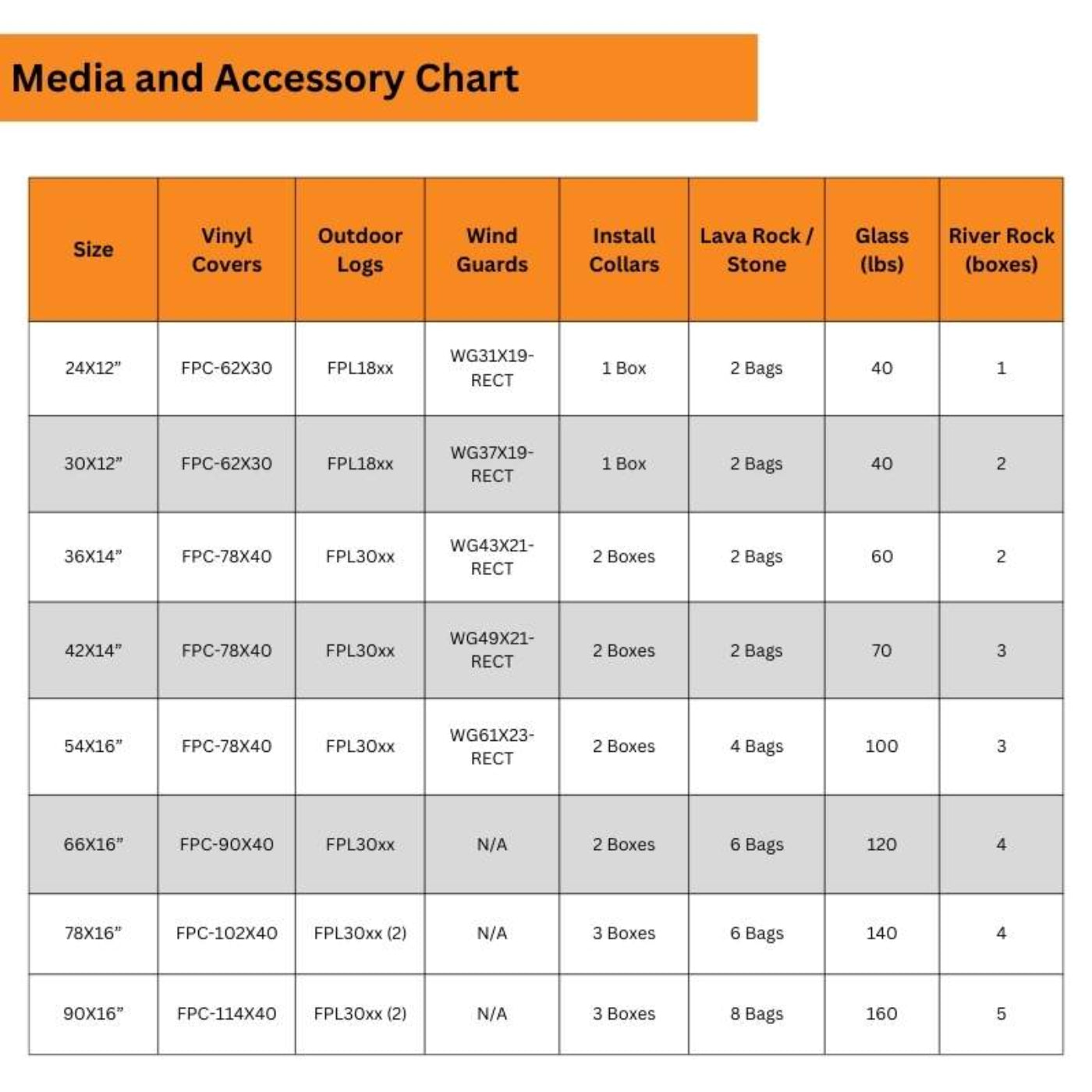

Media & Accessory Chart

Specifications

H-Burner Rectangular Burner Insert Specifications

HPC H-Burner Rectangular Burner Insert Resources

Manual

• Electronic Ignition High/Low
• Electronic Ignition On/Off
• Fire Pit Insert Match Lit
• Push Button Flame Sense


What our Experts Think

• Premium Rectangular Burner: The HPC Fire H-Burner provides a stunning, even flame for a high-end fire pit experience.
• Durable Stainless Steel Construction: Built to withstand outdoor conditions and ensure long-lasting performance.
• Efficient Natural Gas Operation: Designed for clean, consistent, and cost-effective burning.
• MLFPK Match Light System: Simple, reliable ignition without the need for electronics or power.
• Flexible Installation: The included flex line makes setup easier in various fire pit designs.

Q&A

Q: What is included with the HPC Fire H-Burner Rectangular Fire Pit Burner Insert (TOR-MLFPK24X12-H-FLEX-NG)?
A: This kit includes a 24" x 12" stainless steel H-burner, a flex gas line, and a match-lit ignition system designed for natural gas use.

Q: Is this burner suitable for outdoor use?
A: Yes, it's built with weather-resistant materials and is ideal for outdoor fire pits.

Q: How is this burner ignited?
A: It uses a match-lit ignition system, meaning you manually light the gas with a match or lighter.

Q: What type of fuel does this burner use?
A: This model is designed for natural gas (NG). A propane (LP) version is also available.

Q: Is professional installation required?
A: While installation is straightforward, professional setup is recommended for safety and compliance with local gas codes.

Maintenance Tips

• Clean Burner Regularly: Remove debris, dust, and ash to maintain optimal flame performance.
• Inspect Gas Lines: Check for leaks or blockages; use a soapy water solution to detect leaks.
• Keep Air Vents Clear: Ensure proper airflow by keeping burner holes and vents free of obstruction.
• Protect from Weather: Use a cover when not in use to prevent rust and corrosion.
• Check Ignition System: Ensure the ignition and control system function properly before each use.
• Seasonal Maintenance: Before long periods of inactivity, disconnect the gas supply and clean thoroughly.
