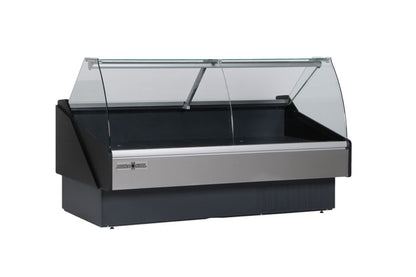

Hydra-Kool - Commercial - 60" Full Service Fresh Meat Deli Case, Self-Contained - KFM-CG-60-S
Hydra-Kool KFM-CG-60-S, 60-inch Refrigerated Curved Glass Deli Case, Self Contained is a commercial appliance, specifically designed for storing and displaying cold products. This deli case display is equally perfect for fresh red and white meat, as well as for sausages, cheese, and vegetables. It has a triple-pane glass front and thermo-pane rear sliding doors for better energy saving.
The display refrigerator is self-contained and uses a mounted 1/3 HP compressor, aimed to give great efficiency at minimum energy consumption. Inside temperature ranges from 33° to 40°F, while reliability is ensured by the defrost timer system, which prevents icing. To withstand wear, the refrigerator has stainless steel exterior (including the internal bottom) and an aluminum interior (sides).
Features
Features
- CFC free injected foam insulation
- Stainless steel interior
- Stainless steel rear workbench
- Silver-colored PVC coated steel front panel
- Black steel kick plate
- Foamed polystyrene black end panels
- Tempered tilt-forward front glass
- Removable rear tempered glass sliding doors
- LED lighting in canopy
- Temperature and defrost regulated by a digital controller
- Removable condensate evaporating pan for easy cleaning on
- self-contained units
- Slide-out condensing unit on self-contained units
- Digital thermometer
- Leveling feet
Specifications
Specifications
| Brand |
Hydra-Kool |
| Voltage |
115 V |
| Capacity |
18.88 cu. ft. |
| Door Style |
Glass Door |
| Number of Doors |
2 |
| Horsepower |
0.5 HP |
| Refrigerant |
R404A |
| Temperature Range |
33 – 40 °F |
| NEMA Plug |
5-15P |
| Amps |
14.01 Amps |
| Exterior Material |
Silver PVC Coated Steel |
| Interior Material |
Stainless Steel |
| Interior Lighting |
LED |
Dimensions & Weight
Dimensions & Weight
-
Height In Inches: 49.375
-
Width in Inches: 60
-
Depth In Inches: 43.375
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Full-Service Deli Design: 60″ wide case with ample front display, ideal for pre-packaged meats and deli items.
-
Curved Glass Visibility: Tilt-forward tempered front glass and tempered side panels enhance product presentation and customer appeal.
-
Remote Refrigeration: Connects to a remote condensing unit, reducing internal heat, improving layout flexibility, and maintaining optimal product temperatures.
-
Durable Construction: Gray PVC-coated steel interior, silver PVC-coated steel exterior, black kick plate, rear sliding tempered glass doors, and LED canopy lighting for long-lasting commercial performance.
-
Temperature Performance: Maintains safe refrigerated conditions for deli products (33 °F to 40 °F) under standard store ambient conditions.
-
Installation Considerations: Requires proper placement of remote condensing unit with ventilation, service access, stable floor, and sufficient aisle clearance for customers and staff.
Q&A
Q: What is the Hydra-Kool KPM-CG-60-R?
A: A commercial-grade, full-service refrigerated deli display case designed for packaged meat or deli products, featuring a curved glass front and remote refrigeration.
Q: What are its key dimensions and capacity?
A: Width: ~60.0″, Depth: ~43.4″, Height: ~47.25″. Usable display volume is approximately 18.9 cu. ft.
Q: What refrigeration features does it offer?
A: Remote refrigeration system maintaining product temperatures between 33–40 °F, with digital temperature and defrost control.
Q: What display and access features are included?
A: Tilt-forward curved tempered glass front, tempered glass sides, rear sliding glass doors for staff access, LED canopy lighting, and adjustable product stops on shelves.
Q: What materials and build quality are used?
A: Interior: stainless steel. Exterior front panel: silver PVC-coated steel with black kick plate and foamed black polystyrene end panels.
Q: What certifications does it hold?
A: ETL Listed and ETL-Sanitation certified for commercial foodservice use.
Q: What are typical applications?
A: Ideal for full-service deli counters in supermarkets or grocery stores where staff serve packaged meats or deli products to customers.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product presentation.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Inspect and clean the remote condenser unit monthly to ensure efficient cooling and prevent dust buildup.
-
Check door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor temperature settings daily to keep deli products fresh and safe.
-
Schedule annual professional servicing to maintain optimal refrigeration performance.
