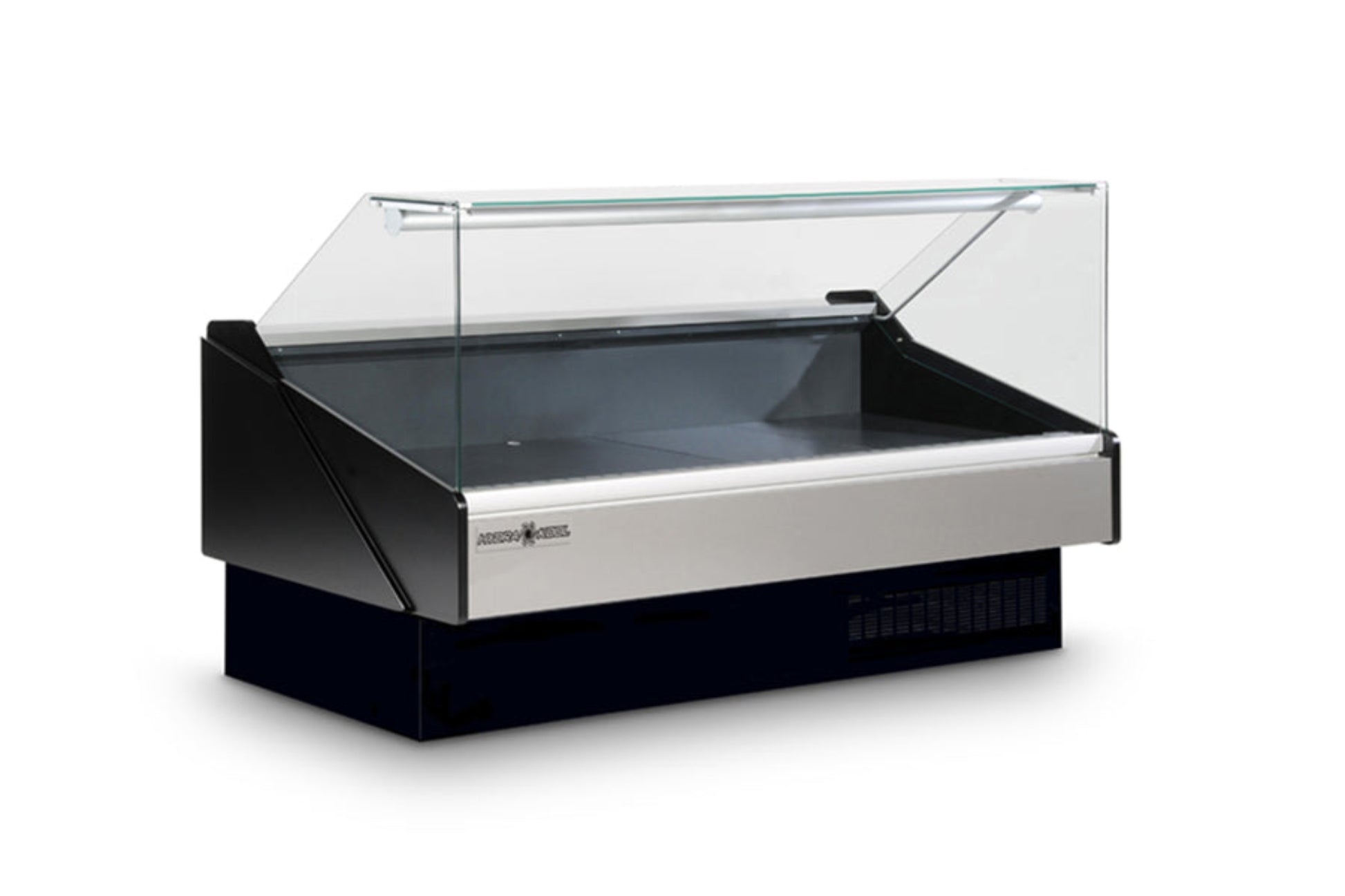

Hydra-Kool - Commercial - 40" Full Service Fresh Meat Deli Case, Self-Contained - KFM-FG-40-S
This KFMSC40S seafood case with ice pans, with self contained refrigeration by Hydra-Kool has a tilt forward curved tempered front glass and rear tempered sliding doors.
Features
Features
- Coated evaporator coil
- Stainless steel frame
- Stainless steel interior
- Stainless steel rear work bench
- Silver colored PVC coated steel front panel
- CFC free injected foam insulation
- Black steel kick plate
- Foamed polystyrene black end panels
- Tempered tilt foward front glass
- Removable rear tempered glass sliding door
- LED lighting in canopy
- Temperature and defrost regulated by a digital controller
- Slide out condensing unit on self-contained units
- Anti condensing system for front glass
- Digital thermometer
- Levelling feet
- Ice/fish pan kit. See table above
- Stainless steel exterior
- Other colors available
- Joining Kit
- Partition
- Scale stand with receptable
- Cutting Board
- Knife Support
- Casters add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra-Kool |
| SKU |
KFMSC40S |
| UPC |
6997390003671 |
| Stock ID |
735365 |
| Product Number |
KFM-SC-40-S |
| Warranty Info |
Brand New |
| Type |
Deli |
| Color |
Black |
| Door Style |
Sliding |
| Glass Style |
Curved |
| Compressor Location |
Bottom |
| Capacity |
12.35 cu. ft. |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass-Through |
No |
| Heavy Duty |
No |
| Horsepower |
3/8 HP |
| Installation Type |
Freestanding |
| Temperature Range |
33 - 40 °F |
| Amps |
15 Amps |
| Hertz |
60 Hz |
| Phase |
1 |
| Voltage |
115 Volts |
| Exterior Width |
40" |
Â
Dimensions & Weight
Dimensions & Weight
-
Width: 40.4"
-
Depth: 43.3125"
-
Height: 49.609375"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Ideal width for self-service flow: The Hydra‑Kool KFM‑OF‑60‑S, with an approximate width of 60″, hits a sweet spot between compact counter space and ample product display.
-
Low-profile height for customer access: With a height around 34–35″, it keeps the product level comfortable for customers while freeing up sight lines in the deli or grocery environment.Â
-
Strong visual appeal & durability: The case features a stainless-steel interior, tempered glass front and sides for visibility, and a self-contained refrigeration unit for ease of installation.Â
-
Efficient refrigeration for food safety: Holds product temperatures in the 33℉–40℉ range, ideal for fresh meat, deli trays and prepared items. The ½ HP compressor and insulation assist in maintaining stable conditions.Â
-
Installation & space considerations: Because it is self-contained, you need adequate ventilation, a load-bearing level floor, and sufficient aisle space in front for customers. It's also essential to verify that the ambient environment (temperature/humidity) doesn’t exceed typical design limits.
-
Best suited for: Deli counters, grocery self-service display lines, and fresh-prep zones where visibility, accessibility and turnover are key — rather than heavy equipment traffic or freezer-level conditions.
Q&A
Q: What is the Hydra-Kool KFM-OF-60-S?
A: A commercial self-service open-front refrigerated deli display case designed to showcase fresh or packaged meats, deli items, and other chilled foods in retail or foodservice environments.
Q: What are its main dimensions and specifications?
A: Width: ~60″, Depth: ~43.3″, Height: ~33.5″. Equipped with a self-contained refrigeration system using a ½ HP compressor and R-404A refrigerant.
Q: What temperature range does it maintain?
A: Designed to hold products between approximately 33 °F and 40 °F for safe and consistent cooling. Features a digital temperature and defrost control system.
Q: What materials and finishes are used?
A: Interior made of PVC-coated gray steel for easy cleaning. Exterior front panel in silver PVC-coated steel with a black kick plate and foamed black polystyrene end panels. Tempered glass sides enhance visibility and product presentation.
Q: What display features does it include?
A: Open self-service front design, LED interior lighting for product visibility, and adjustable shelving for flexible product arrangement.
Q: What certifications does it have?
A: ETL Listed and ETL-Sanitation certified for commercial foodservice use.
Q: Where is this unit typically used?
A: Ideal for self-service deli counters, supermarkets, and convenience stores where customers can easily access pre-packaged or fresh items.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product appeal.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Vacuum condenser coils monthly to ensure efficient cooling and prevent dust buildup.
-
Inspect door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor temperature settings daily to keep deli items fresh and safe.
-
Schedule annual professional maintenance to ensure reliable refrigeration performance.
