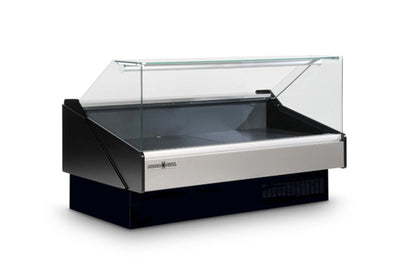

Hydra-Kool - Commercial - 60" Full Service Fresh Meat Deli Case, Self-Contained - KFM-FG-60-S
This KFMSC60S seafood case with ice pans, with self contained refrigeration by Hydra-Kool has a tilt forward curved tempered front glass and rear tempered sliding doors.
Features
Features
- Coated evaporator coil
- Stainless steel frame
- Stainless steel interior
- Stainless steel rear work bench
- Silver colored PVC coated steel front panel
- CFC free injected foam insulation
- Black steel kick plate
- Foamed polystyrene black end panels
- Tempered tilt foward front glass
- Removable rear tempered glass sliding door
- LED lighting in canopy
- Temperature and defrost regulated by a digital controller
- Slide out condensing unit on self-contained units
- Anti condensing system for front glass
- Digital thermometer
- Levelling feet
- Ice/fish pan kit. See table above
- Stainless steel exterior
- Other colors available
- Joining Kit
- Partition
- Scale stand with receptable
- Cutting Board
- Knife Support
- Casters add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra-Kool |
| SKU |
KFMSC60S |
| UPC |
6997390003633 |
| Stock Id |
735368 |
| Product Number |
KFM-SC-60-S |
| Warranty Info |
Brand New |
| Type |
Deli |
| Color |
Black |
| Door Style |
Sliding |
| Glass Style |
Curved |
| Compressor Location |
Bottom |
| Capacity |
18.88 cu. ft. |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass-Through |
No |
| Heavy Duty |
No |
| Horsepower |
1/2 HP |
| Installation Type |
Freestanding |
| Temperature Range |
33 - 40 °F |
| Amps |
15 Amps |
| Hertz |
60 Hz. |
| Phase |
1 |
| Voltage |
115 Volts |
| Exterior Width |
60" |
| Warranty Terms |
1 year parts & labor, 4 years compressor (part only) |
| ETL |
Yes |
| Weight |
626 lbs |
| AHRI Certified |
No |
| NSF Certified |
No |
| CE |
No |
| UL |
No |
| Energy Star |
No |
| ADA |
No |
Dimensions & Weight
Dimensions & Weight
-
Width: 60"
-
Depth: 43.3125"
-
Height: 49.609375"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Full-Service Deli Design: 60″ wide case with ample front display, ideal for pre-packaged meats and deli items.
-
Curved Glass Visibility: Tilt-forward tempered front glass and tempered side panels enhance product presentation and customer appeal.
-
Remote Refrigeration: Connects to a remote condensing unit, reducing internal heat, improving layout flexibility, and maintaining optimal product temperatures.
-
Durable Construction: Gray PVC-coated steel interior, silver PVC-coated steel exterior, black kick plate, rear sliding tempered glass doors, and LED canopy lighting for long-lasting commercial performance.
-
Temperature Performance: Maintains safe refrigerated conditions for deli products (33 °F to 40 °F) under standard store ambient conditions.
-
Installation Considerations: Requires proper placement of remote condensing unit with ventilation, service access, stable floor, and sufficient aisle clearance for customers and staff.
Q&A
Q: What is the Hydra-Kool KPM-CG-60-R?
A: A commercial-grade, full-service refrigerated deli display case designed for packaged meat or deli products, featuring a curved glass front and remote refrigeration.
Q: What are its key dimensions and capacity?
A: Width: ~60.0″, Depth: ~43.4″, Height: ~47.25″. Usable display volume is approximately 18.9 cu. ft.
Q: What refrigeration features does it offer?
A: Remote refrigeration system maintaining product temperatures between 33–40 °F, with digital temperature and defrost control.
Q: What display and access features are included?
A: Tilt-forward curved tempered glass front, tempered glass sides, rear sliding glass doors for staff access, LED canopy lighting, and adjustable product stops on shelves.
Q: What materials and build quality are used?
A: Interior: stainless steel. Exterior front panel: silver PVC-coated steel with black kick plate and foamed black polystyrene end panels.
Q: What certifications does it hold?
A: ETL Listed and ETL-Sanitation certified for commercial foodservice use.
Q: What are typical applications?
A: Ideal for full-service deli counters in supermarkets or grocery stores where staff serve packaged meats or deli products to customers.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product presentation.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Inspect and clean the remote condenser unit monthly to ensure efficient cooling and prevent dust buildup.
-
Check door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor temperature settings daily to keep deli products fresh and safe.
-
Schedule annual professional servicing to maintain optimal refrigeration performance.
