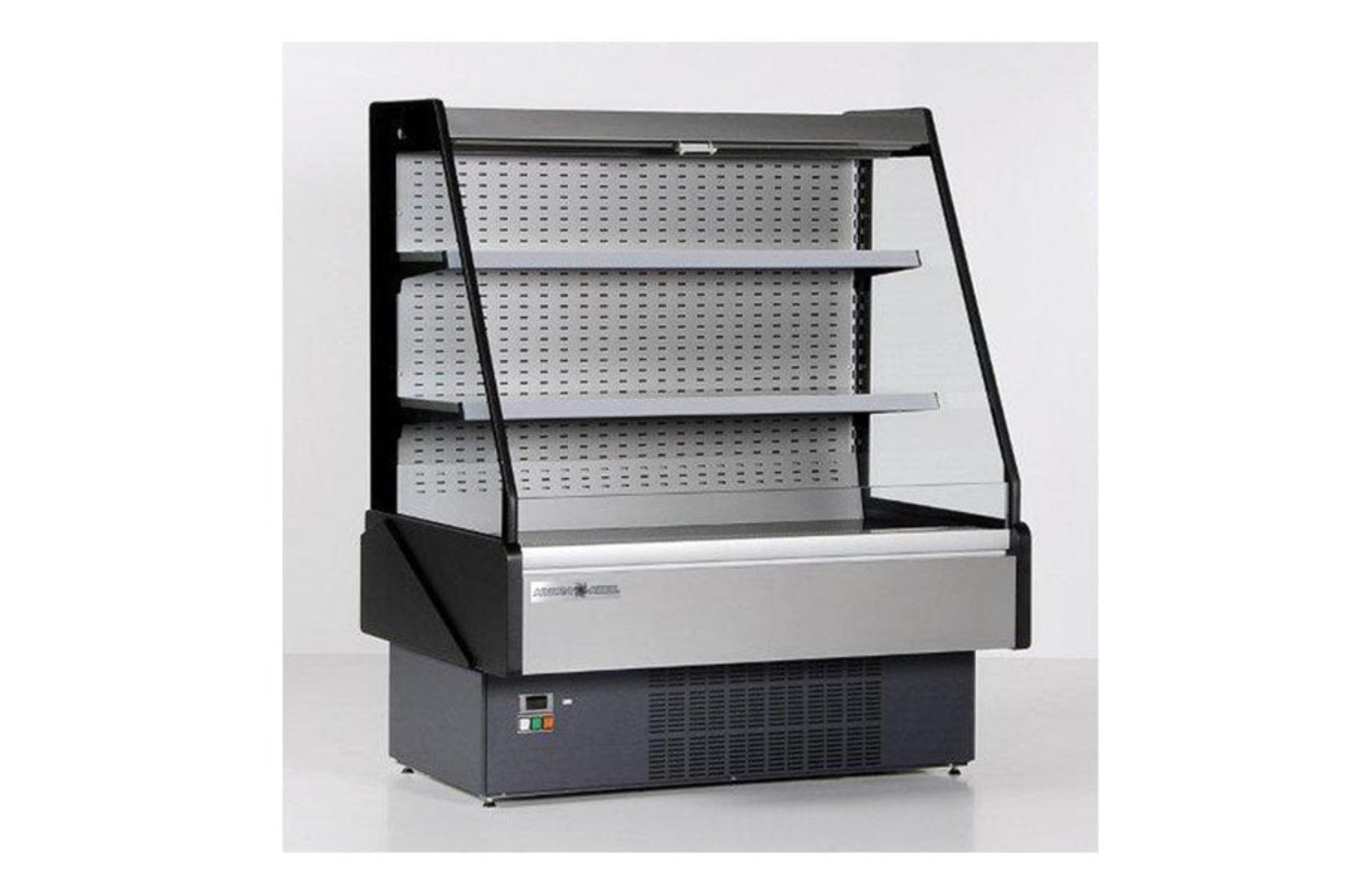

Hydra-Kool - Commercial - 41" Vertical Open Merchandiser, Self-Contained - KGL-OF-40-S
This KGLOF40S grab-n-go low profile case with self contained refrigeration by Hydra-Kool features LED lighting in canopy and under all shelves and adjustable feet.
Features
Features
- Case holds 36°F TO 40°F
- Forced air refrigeration
- Open front
- Front loading
- LED lighting in canopy and under all shelves
- Pull down night curtain
- Cases can be multiplexed
- Silver colored PVC coated steel front panel
- Pull down night curtain
- CFC free injected foam insulation
- PVC coated steel gray interior
- Black steel kick plate
- Foamed polystyrene black end panels
- Tempered side glass
- Height adjustable shelves can be tilted
- Products stop on shelves
- Temperature and defrost regulated by a digital controller
- Digital thermometer
- Slide out condensing unit on self-contained units
- Removable condensate evaporating pan for easy
- cleaning on self contained units
- Cord and plug KGL-OF-40S only
- Levelling feet
- Stainless steel exterior and / or interior
- Other colors available
- Additional shelves
- Price tag molding
- Joining kit
- Partition or product dividers
- Condensate evaporating pan for remote cases
- Casters-add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra-Kool |
| SKU |
KGLOF40S |
| UPC |
6997390003152 |
| Stock ID |
736288 |
| Product Number |
KGL-40-S |
| Warranty Info |
Brand New |
| Type |
Open Air |
| Sections |
1 |
| Color |
Black |
| Shelves |
2 |
| Glass Style |
Angled |
| Compressor Location |
Bottom |
| Capacity |
12.98 cu. ft. |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass-Through |
No |
| Heavy Duty |
No |
| Horsepower |
5/8 HP |
| Installation Type |
Freestanding |
| Temperature Range |
36 - 40 °F |
| Amps |
20 Amps |
| Hertz |
60 Hz |
| Phase |
1 |
| Voltage |
115 Volts |
| Exterior Width |
40" |
| ETL Certified |
Yes |
| Weight |
507 lbs |
Dimensions & Weight
Dimensions & Weight
-
Width: 41"
-
Depth: 33.46875"
-
Height: 59.25"
-
Brand: Hydra-Kool
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Ideal width for self-service flow: The Hydra‑Kool KFM‑OF‑60‑S, with an approximate width of 60″, hits a sweet spot between compact counter space and ample product display.
-
Low-profile height for customer access: With a height around 34–35″, it keeps the product level comfortable for customers while freeing up sight lines in the deli or grocery environment.
-
Strong visual appeal & durability: The case features a stainless-steel interior, tempered glass front and sides for visibility, and a self-contained refrigeration unit for ease of installation.
-
Efficient refrigeration for food safety: Holds product temperatures in the 33℉–40℉ range, ideal for fresh meat, deli trays and prepared items. The ½ HP compressor and insulation assist in maintaining stable conditions.
-
Installation & space considerations: Because it is self-contained, you need adequate ventilation, a load-bearing level floor, and sufficient aisle space in front for customers. It's also essential to verify that the ambient environment (temperature/humidity) doesn’t exceed typical design limits.
-
Best suited for: Deli counters, grocery self-service display lines, and fresh-prep zones where visibility, accessibility and turnover are key — rather than heavy equipment traffic or freezer-level conditions.
Q&A
Q: What is the Hydra-Kool KFM-OF-60-S?
A: A commercial self-service open-front refrigerated deli display case designed to showcase fresh or packaged meats, deli items, and other chilled foods in retail or foodservice environments.
Q: What are its main dimensions and specifications?
A: Width: ~60″, Depth: ~43.3″, Height: ~33.5″. Equipped with a self-contained refrigeration system using a ½ HP compressor and R-404A refrigerant.
Q: What temperature range does it maintain?
A: Designed to hold products between approximately 33 °F and 40 °F for safe and consistent cooling. Features a digital temperature and defrost control system.
Q: What materials and finishes are used?
A: Interior made of PVC-coated gray steel for easy cleaning. Exterior front panel in silver PVC-coated steel with a black kick plate and foamed black polystyrene end panels. Tempered glass sides enhance visibility and product presentation.
Q: What display features does it include?
A: Open self-service front design, LED interior lighting for product visibility, and adjustable shelving for flexible product arrangement.
Q: What certifications does it have?
A: ETL Listed and ETL-Sanitation certified for commercial foodservice use.
Q: Where is this unit typically used?
A: Ideal for self-service deli counters, supermarkets, and convenience stores where customers can easily access pre-packaged or fresh items.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product appeal.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Vacuum condenser coils monthly to ensure efficient cooling and prevent dust buildup.
-
Inspect door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor temperature settings daily to keep deli items fresh and safe.
-
Schedule annual professional maintenance to ensure reliable refrigeration performance.
