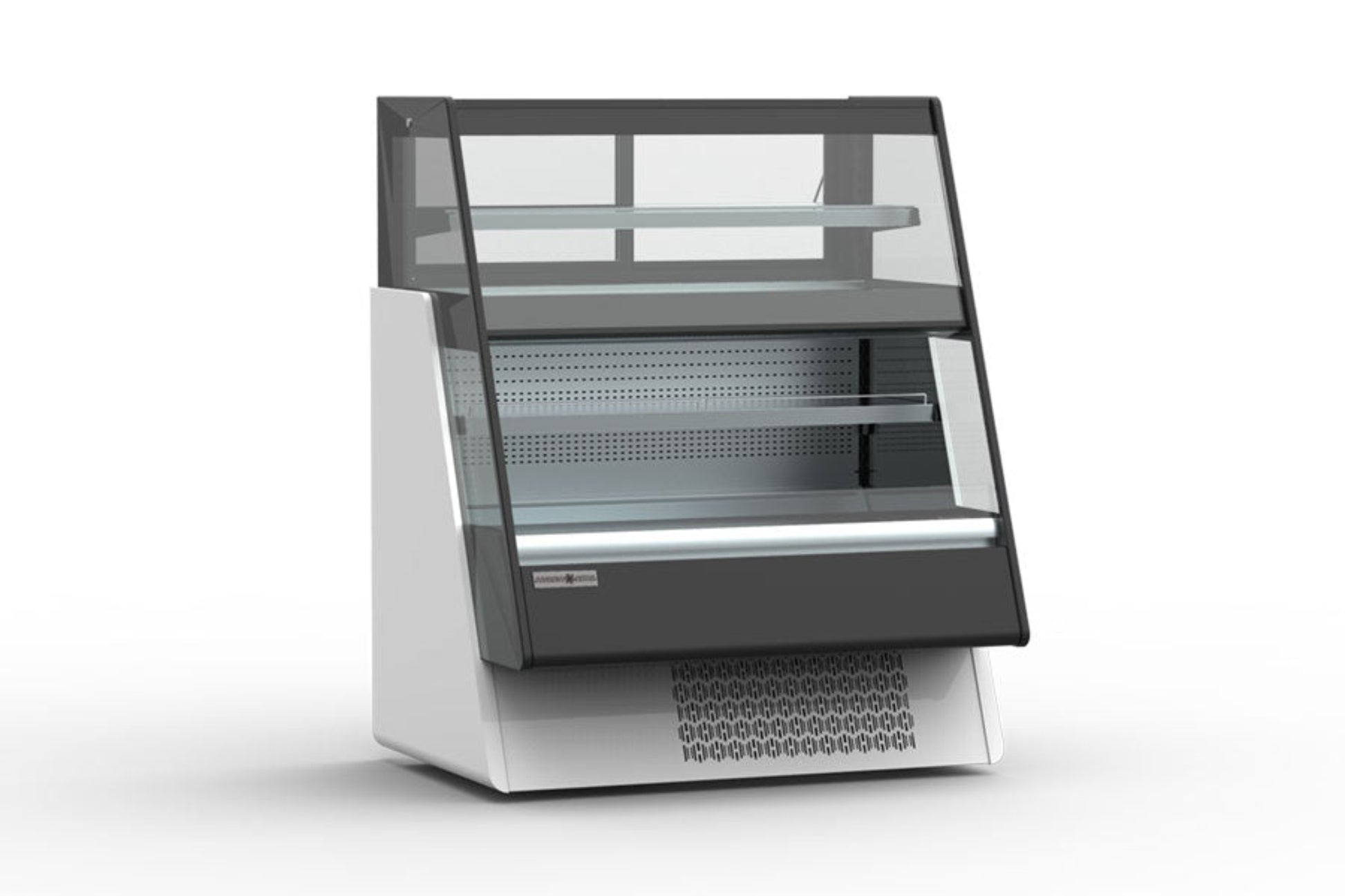

Hydra-Kool - Commercial - Over Under Display Case - KGL-OU-48-S
This Combination Type Case by Hydra-Kool can operate as both refrigerated or dry. The unit features LED lighting, CFC free injected foam insulation and height adjustable shelves that can be tilted.
Features
Features
- Case holds 36°F to 40°F
- Upper section can be operated as refrigerated or dry
- Multiple uses
- Forced air refrigeration
- Open front lower section
- Front loading lower section
- Tempered glass rear sliding doors in upper section
- CFC free injected foam insulation
- Silver colored PVC coated steel front panel
- PVC coated steel gray interior
- Wood laminate covered end panels
- LED lighting in canopy and under all shelves
- Height adjustable shelves can be tilted
- Temperature and defrost regulated by a digital controller
- Removable condensate evaporating pan for easy cleaning
- Slide out condensing unit on self-contained units
- Stainless steel front panel
- Stainless steel base and / or interior
- Mirror rear sided doors (upper section)
- Mirrored side glass
- Front panel bumper protector
- PVC coated gray steel folding rear shelf
- Stainless steel folding rear shelf
- Acrylic product partitions
- Shelf price tag moldings
- Casters add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra-Kool |
| Model / Product Number |
KGL-OU-48-S |
| SKU |
KGLOU48S |
| Stock ID |
974727 |
| UPC |
6997390003213 |
| Condition |
Brand New |
| Type |
Open Air |
| Sections |
2 |
| Color |
Silver |
| Doors |
2 |
| Shelves |
2 |
| Door Style |
Sliding |
| Glass Style |
Angled |
| Compressor Location |
Bottom |
| Capacity |
11 cu. ft. |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass-Through |
No |
| Heavy Duty |
No |
| Horsepower |
3/4 HP |
| Installation Type |
Freestanding |
| Temperature Range |
36 – 40 °F |
| Amps |
25 Amps |
| Hertz |
60 Hz |
| Phase |
1 |
| Voltage |
115 Volts |
| Exterior Width |
48″ |
| Warranty Terms |
1 year parts & labor; 4 years compressor (parts only) |
| Weight |
708 lbs |
| AHRI Certified |
No |
| NSF Certified |
No |
| CE |
No |
| UL |
No |
| Energy Star |
No |
| ADA Compliant |
No |
Dimensions & Weight
Dimensions & Weight
-
Width: 48.03"
-
Depth: 37.515625"
-
Height: 59.25"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Premium Meat Display: The Hydra-Kool KFM-FG-100-S features a 101" wide case with flat tempered glass and stainless-steel interior for professional presentation.
-
Freshness & Temperature Control: Maintains 33–40°F with digital temperature and defrost controls to keep meat safe and appealing.
-
Durable Commercial Build: Self-contained refrigeration, CFC-free injected foam insulation, and rear sliding tempered glass doors ensure reliability.
-
Optimized Merchandising: Flat glass front with canopy LED lighting enhances visibility and product appeal.
-
Flexible & Practical: Modular design allows joining multiple units; adjustable feet and service-friendly layout support daily use.
Q&A
Q: What is the Hydra-Kool KFM-FG-100-S?
A: A 101" full-service deli display case for fresh meat, with self-contained refrigeration and a flat-glass front, designed for commercial use in delis, butcher shops, and grocery stores.
Q: What refrigeration features does it include?
A: Self-contained refrigeration with digital temperature and defrost control, maintaining a chilled range of approximately 33–40°F.
Q: How is it built for display and durability?
A:
-
Flat tempered front glass and tempered rear sliding doors for easy service.
-
Stainless steel interior and PVC-coated steel exterior with black kickplate.
-
CFC-free injected foam insulation for energy efficiency.
Q: What are the dimensions and capacity?
A: Width: ~101.2" | Depth: ~43.4" | Height: ~47.25" | Capacity: ~32.5 cu ft.
Q: Are there optional features or accessories?
A: LED canopy lighting, adjustable legs, and the ability to join multiple units for longer display runs.
Q: Where is it best used?
A: Ideal for butcher shops, full-service delis, supermarkets, and gourmet grocery stores needing high-visibility, reliable refrigerated meat display.
Maintenance Tips
-
Clean interior and exterior daily with mild detergent to maintain hygiene and product presentation.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Vacuum condenser coils monthly to prevent dust buildup and ensure efficient cooling.
-
Inspect door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to avoid clogs and odors.
-
Monitor temperature settings daily to keep meat fresh and safe.
-
Schedule annual professional maintenance to maintain optimal refrigeration performance.
