Hydra-Kool - Commercial - 60" Full Service Refrigerated Deli Display Case, Self-Contained - KPM-FG-60-S

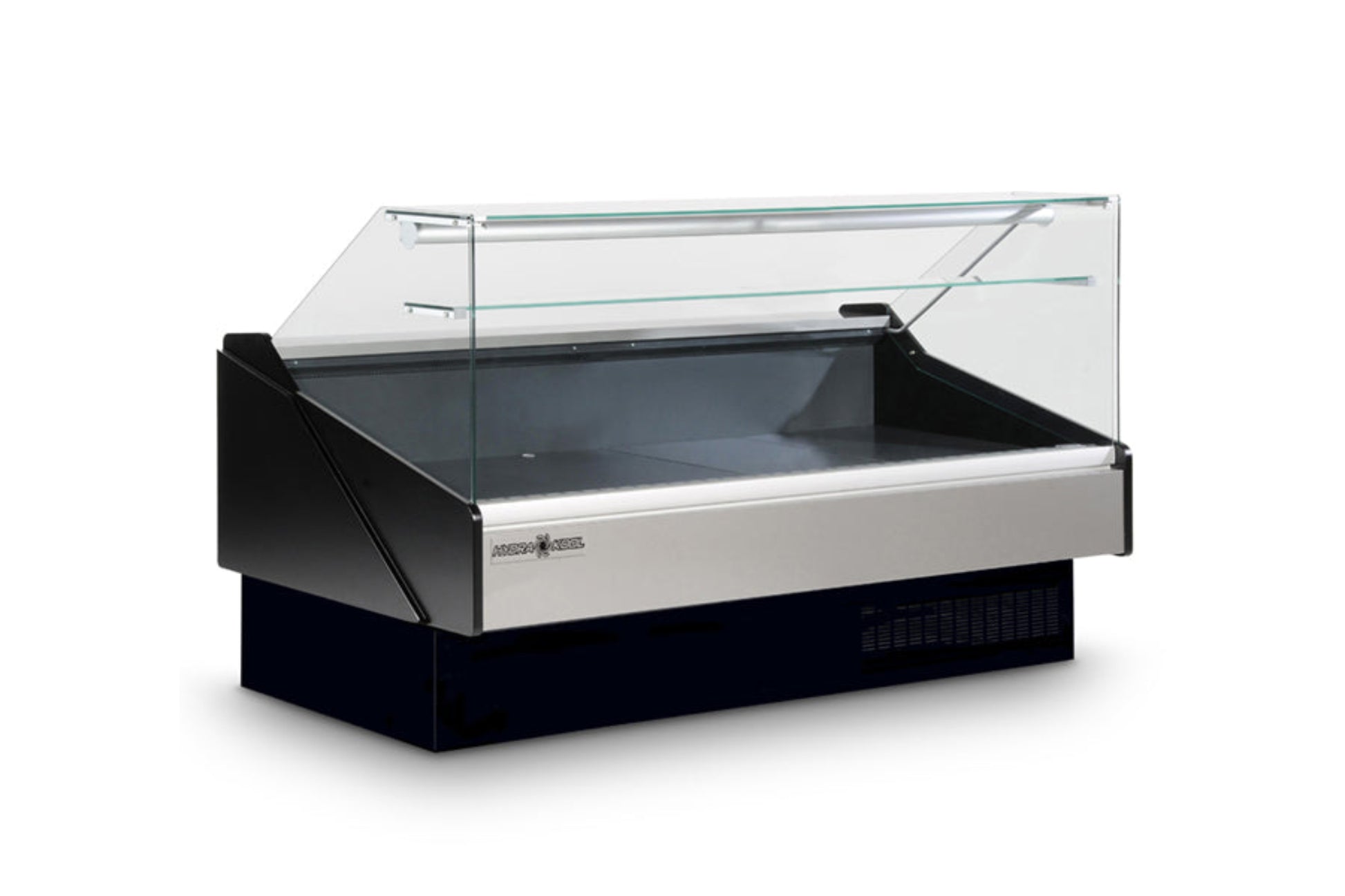

This KPMFG60S flat glass deli case with self contained refrigeration by Hydra-Kool with tilt out flat tempered front glass and rear tempered sliding doors is designed for deli products and packaged meat.
Features
Features
- Case holds 33°F to 40°F
- Forced air refrigeration
- Tempered tilt-out flat front glass
- Tempered side glass and rear doors
- Refrigerated rear storage cases can be multiplexed
- CFC free injected foam insulation
- Silver colored PVC coated steel front panel
- PVC coated steel gray interior
- Black steel kick plate
- Foamed polystyrene black end panels
- Tempered tilt-forward front glass
- Rear work bench
- Removable rear tempered glass sliding doors
- Tempered glass inside shelf is NON-REFRIGERATED
- LED lighting in canopy
- Temperature and defrost regulated by a digital controller
- Removable condensate evaporating pan for easy cleaning on
- self contained units
- Slide out condensing unit on self-contained units
- Anti-condensate system for front glass
- Digital thermometer
- Levelling feet
- Lift up front glass
- Stainless steel interior and / or exterior
- Other colors available
- White epoxy bi-level wire racks; 2 or 3 level step sham
- Scale stand with receptacle
- Cutting board
- Knife support
- Joining Kit
- Partition
- Condensate evaporating pan
- Casters add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra‑Kool |
| Model / SKU |
KPM‑FG‑60‑S / KPMFG60S |
| UPC |
6997390004265 |
| Stock ID |
735616 |
| Product Number |
KPM‑FG‑60‑S |
| Warranty Info |
Brand New |
| Type |
Deli Display |
| Color |
Black |
| Door Style |
Sliding |
| Glass Style |
Cubed |
| Compressor Location |
Bottom |
| Capacity |
23.47 cu. ft. |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass‑Through |
No |
| Heavy Duty |
No |
| Horsepower (HP) |
½ HP |
| Installation Type |
Freestanding |
| Temperature Range |
33 °F – 40 °F |
| Amps |
15 Amps |
| Hertz |
60 Hz |
| Phase |
1 |
| Voltage |
115 Volts |
| Exterior Width |
60″ |
| ETL Listed |
Yes |
| Weight |
714 lbs |
| AHRI Certified |
No |
| NSF Certified |
No |
| CE Certified |
No |
| UL Certified |
No |
| Energy Star |
No |
| ADA Compliant |
No |
Â
Dimensions & Weight
Dimensions & Weight
-
Width: 60"
-
Depth: 43.3125"
-
Height: 47.25"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Spacious Display Footprint: Measures 77″ wide × 43″ deep × 33.5″ high, providing ample product visibility while remaining accessible for customers.
-
Open-Front Self-Service Design: Ideal for sliced meats, cheeses, and prepared deli items, promoting easy access and customer engagement.
-
Durable Construction: Stainless steel interior, tempered glass sides, and PVC-coated steel exterior ensure longevity in high-traffic commercial environments.
-
Efficient Refrigeration: Self-contained unit with forced-air refrigeration maintains safe holding temperatures, powered by a 5/8 HP compressor.
-
Service-Friendly Features: Digital controller, evaporating pan, and slide-out condensing unit simplify cleaning and maintenance.
-
Installation Considerations: Requires a level, strong floor and adequate back clearance for ventilation and servicing; unit weighs approximately 714 lbs.
Q&A
Q: What is the Hydra-Kool KFM-OF-80-S?
A: A commercial-grade, open-front self-service refrigerated deli display case, designed for high-volume retail use such as delis, supermarkets, and convenience stores.
Q: What are the key dimensions and capacity?
A: Dimensions: approximately 77.5″ wide × 43.3″–43.4″ deep × 33.5″ high. Usable display volume is around 12.15 cu. ft.
Q: What refrigeration and display features does it offer?
A: Self-contained refrigeration system with a bottom-mounted compressor, maintaining 33°F–40°F. Includes a digital controller for precise temperature and defrost regulation, open front for customer access, and tempered glass sides for visibility.
Q: What materials and build quality features are included?
A: Interior is stainless steel. Exterior front panel is PVC-coated steel with black polystyrene end panels. Adjustable feet for leveling.
Q: Is it certified for safety and sanitation?
A: Yes, ETL Listed and ETL-Sanitation certified.
Q: What are typical use-cases for this display case?
A: Ideal for self-service deli counters, grab-and-go retail areas, and high-traffic environments showcasing meats, salads, or packaged foods.
Q: What type of service does it support?
A: Self-service display, allowing customers easy access to products while keeping them properly refrigerated.
Q: Can multiple units be combined?
A: Yes, the unit is designed to be multiplexed for side-by-side installation, creating longer continuous display cases.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product presentation.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Vacuum condenser coils monthly to ensure efficient cooling and prevent dust buildup.
-
Inspect door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor temperature settings daily to keep deli products fresh and safe.
-
Schedule annual professional maintenance for optimal refrigeration performance.
