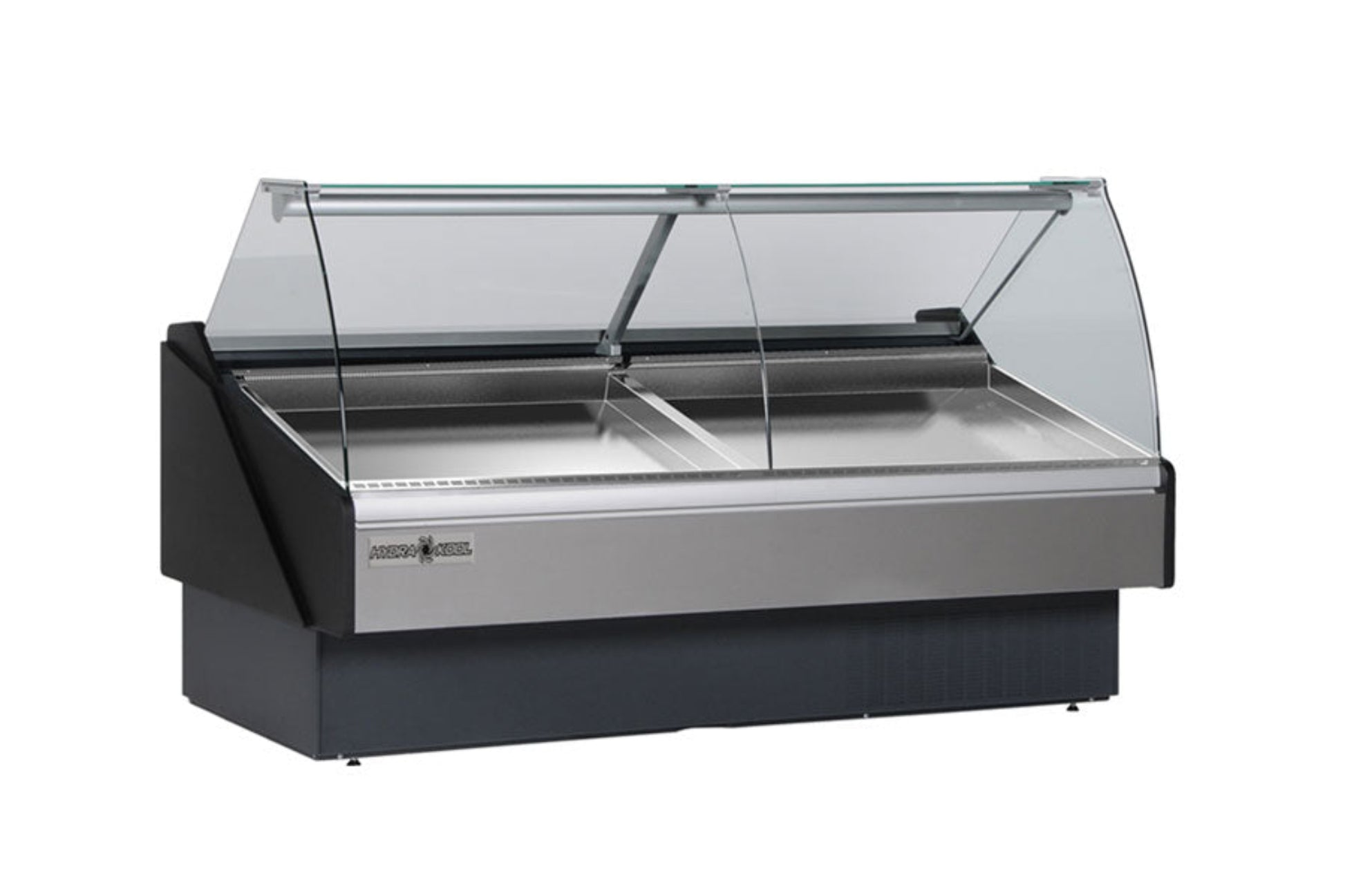

Hydra-Kool - Commercial - 60" Deli Display Case Fresh Seafood, Remote - KFM-SC-60-R
This KFMSC60R seafood case with ice pans, with remote refrigeration by Hydra-Kool has a tilt forward curved tempered front glass and rear tempered sliding doors.
Features
Features
- Insulation - Stainless Steel
- Exterior - PVC coated steel - silver
- Ends - foamed black polystyrene
- Tilt - forward tempered front glass
- Cord and Plug
- Cases are multiplexible
- LED lighting in canopy
- Removable rear tempered glass sliding doors
- Defrost and temperature regulated by a digital controller
- Pull - out condensing unit -ON S/C only
- Anti - condensate system for front glass
- Adjustable feet
- ETL listed to UL471 and Sanitation Classified to NSF7
- These cases comply with the National Energy Standards
Optional Features
- Lift up front glass
- Casters - adds 4.375" to height
- Adjustable stainless steel legs - from 5.125" to 7.625"
- Other colors available
- Stainless Steel Exterior
- Scale stand with receptacle
Specifications
Specifications
| Brand |
Hydra‑Kool |
| Model / SKU |
KFM‑SC‑60‑R / KFMSC60R |
| Stock ID |
735355 |
| Product Number |
KFM‑SC‑60‑R |
| Warranty Info |
Brand New |
| Type |
Deli Display |
| Color |
Black |
| Door Style |
Sliding |
| Compressor Location |
Bottom |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Temperature Range |
32 °F – 40 °F |
| Amps |
15 Amps |
| Hertz |
60 Hz |
| Voltage |
115 Volts |
| Cooling Capacity (BTU) |
3,159 BTU |
| ETL Listed |
Yes |
| Weight |
626 lbs |
| AHRI Certified |
No |
| NSF Certified |
No |
| CE Certified |
No |
| UL Certified |
No |
| Energy Star |
No |
| ADA Compliant |
No |
Dimensions & Weight
Dimensions & Weight
-
Width: 60"
-
Depth: 43.375"
-
Height: 49.375"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Spacious Display Footprint: Measures 77″ wide × 43″ deep × 33.5″ high, providing ample product visibility while remaining accessible for customers.
-
Open-Front Self-Service Design: Ideal for sliced meats, cheeses, and prepared deli items, promoting easy access and customer engagement.
-
Durable Construction: Stainless steel interior, tempered glass sides, and PVC-coated steel exterior ensure longevity in high-traffic commercial environments.
-
Efficient Refrigeration: Self-contained unit with forced-air refrigeration maintains safe holding temperatures, powered by a 5/8 HP compressor.
-
Service-Friendly Features: Digital controller, evaporating pan, and slide-out condensing unit simplify cleaning and maintenance.
-
Installation Considerations: Requires a level, strong floor and adequate back clearance for ventilation and servicing; unit weighs approximately 714 lbs.
Q&A
Q: What is the Hydra-Kool KFM-OF-80-S?
A: A commercial-grade, open-front self-service refrigerated deli display case, designed for high-volume retail use such as delis, supermarkets, and convenience stores.
Q: What are the key dimensions and capacity?
A: Dimensions: approximately 77.5″ wide × 43.3″–43.4″ deep × 33.5″ high. Usable display volume is around 12.15 cu. ft.
Q: What refrigeration and display features does it offer?
A: Self-contained refrigeration system with a bottom-mounted compressor, maintaining 33°F–40°F. Includes a digital controller for precise temperature and defrost regulation, open front for customer access, and tempered glass sides for visibility.
Q: What materials and build quality features are included?
A: Interior is stainless steel. Exterior front panel is PVC-coated steel with black polystyrene end panels. Adjustable feet for leveling.
Q: Is it certified for safety and sanitation?
A: Yes, ETL Listed and ETL-Sanitation certified.
Q: What are typical use-cases for this display case?
A: Ideal for self-service deli counters, grab-and-go retail areas, and high-traffic environments showcasing meats, salads, or packaged foods.
Q: What type of service does it support?
A: Self-service display, allowing customers easy access to products while keeping them properly refrigerated.
Q: Can multiple units be combined?
A: Yes, the unit is designed to be multiplexed for side-by-side installation, creating longer continuous display cases.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product presentation.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Vacuum condenser coils monthly to ensure efficient cooling and prevent dust buildup.
-
Inspect door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor temperature settings daily to keep deli products fresh and safe.
-
Schedule annual professional maintenance for optimal refrigeration performance.
