Description

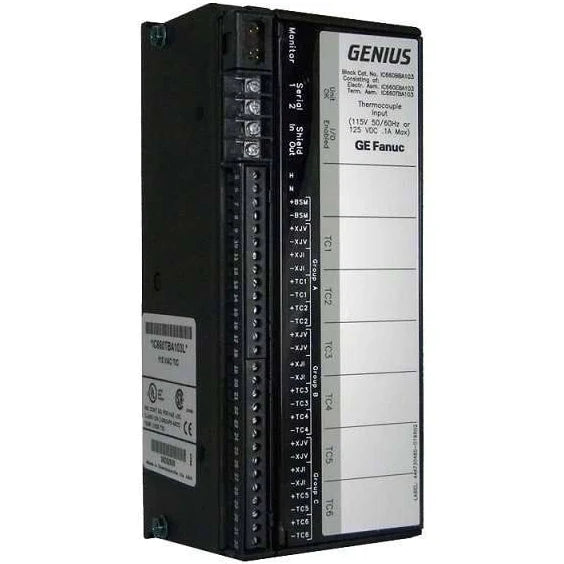

The IC660BBA103 by GE Fanuc Emerson is a Thermocouple input block featuring six (6) input circuits arranged in three (3) groups of two (2) circuits each. Compatible with Thermocouple types J, K, T, E, B, R, S, and N, as well as millivolt signals ranging from 25.0mV to +150mV, this block boasts an update frequency of 2.0 seconds (typical) and 3.0 seconds (maximum). It operates with an input supply voltage of 115VAC/125VDC.
Â
Â
Technical Specifications
Â
Specifications
Â
|
Part #
|
IC660BBA103
|
|
Manufacturer
|
FANUC
|
|
Product Type
|
Thermocouple Input Block
|
|
Number of Inputs
|
6
|
|
Block Power
|
115V AC, 125V DC
|
|
Heat Dissipation
|
9 W
|
|
Block to Block Isolation
|
1500 Volts
|
|
Group to Group Isolation
|
300 Volts
|
|
Dimensions
|
8.83 x 3.34 x 3.91 inches
|
|
Thermocouple Type
|
J/K/T/E/B/R/S/N
|
Â
Â
Information About IC660BBA103
Â
The GE Fanuc IC660BBA103 is a Thermocouple input block designed for industrial applications. Featuring six (6) input circuits organized into three (3) groups of two (2) circuits each, this module facilitates precise thermocouple signal acquisition. The compatibility extends to Thermocouple types J, K, T, E, B, R, S, and N, providing flexibility to accommodate various thermocouple configurations.
The IC660BBA103 is engineered to accept millivolt signals within the range of 25.0mV to +150mV, ensuring accurate measurement and monitoring capabilities. The update frequency of the block is specified at 2.0 seconds (typical) and 3.0 seconds (maximum), enabling real-time data acquisition and processing. This responsiveness is crucial for applications requiring timely feedback and control adjustments.
Powering the IC660BBA103 is an input supply voltage of 115VAC/125VDC, ensuring stable and reliable operation within industrial power systems. The module is designed to dissipate heat efficiently, with a specified heat dissipation of 9 watts. This feature contributes to the overall reliability and longevity of the module in demanding operational environments.
The block provides isolation measures to enhance performance and safety. The block-to-block isolation is rated at 1500 volts, ensuring that signals remain independent and unaffected by neighboring modules. Additionally, the group-to-group isolation is specified at 300 volts, further enhancing signal integrity within the module.
In terms of physical dimensions, the IC660BBA103 measures 8.83 x 3.34 x 3.91 inches. The module is structured into three groups, each containing two circuits. This design allows for efficient organization and wiring within the control system.
Â
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
