The IC660BBS103 is a PLC Module/Rack designed for use in industrial automation systems. It is part of the GE Fanuc Genius I/O series and is used to facilitate the connection and control of various input and output devices within a PLC-based system. The module is engineered for integration into distributed control systems and is suitable for use in harsh industrial environments.

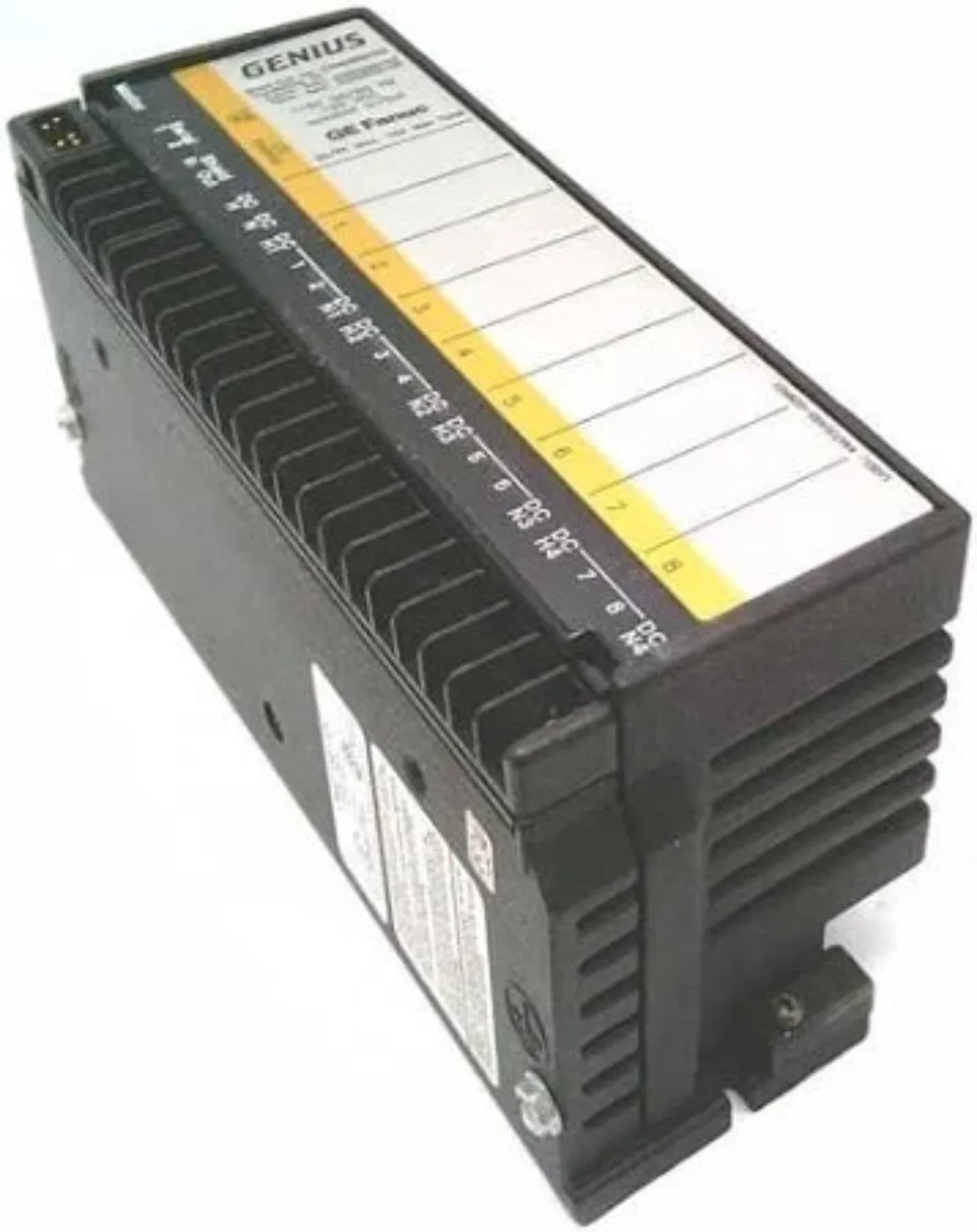

The GE Fanuc IC660BBS103 is a robust and versatile Output Block, specifically designed for integration into industrial automation systems within the Genius I/O series. This output block is engineered to provide reliable and efficient control over various industrial devices by managing up to eight individual outputs. Each output is designed to handle both AC and DC voltage types, offering flexibility in various industrial applications where diverse power requirements are common. The IC660BBS103 is a critical component for those looking to maintain precise control in complex industrial environments.

The IC660BBS103 supports output isolation, ensuring that each output is electrically isolated from the others. This feature is crucial in preventing electrical interference between outputs, which could otherwise lead to malfunctions or inaccurate operations in connected devices. By providing output isolation, the IC660BBS103 enhances the overall reliability and safety of the control system, making it suitable for use in environments where maintaining signal integrity is paramount.

With a maximum output current load of 2 Amps per channel, this output block is capable of controlling a wide range of industrial equipment, from small actuators to larger relays or motors. The ability to manage such loads makes the IC660BBS103 versatile and adaptable to various applications, whether in manufacturing, process control, or other industrial automation tasks where reliable output control is necessary.

The IC660BBS103 operates at nominal voltages of 115 Volts AC and 125 Volts DC, making it compatible with standard industrial power systems. This compatibility ensures that the output block can be easily integrated into existing infrastructure without requiring significant modifications or additional equipment. The wide voltage compatibility also adds to the module’s flexibility, allowing it to be used in different regions or industrial setups with varying power standards.

Designed to function within a maximum operating temperature of 60 degrees Celsius, the IC660BBS103 is built to perform reliably even in challenging industrial environments where heat generation and temperature fluctuations are common. This thermal tolerance is crucial for maintaining the longevity and stability of the output block, reducing the risk of overheating and ensuring consistent performance over extended periods.

The physical dimensions of the IC660BBS103 are 8.83 x 3.5 x 3.94 inches (HxWxD), and it weighs 14 pounds. These dimensions make it a compact yet sturdy component, suitable for installation in standard control panels or equipment racks without taking up excessive space. Despite its compact size, the module’s weight reflects its robust construction, designed to withstand the physical demands of industrial environments, including vibrations and potential impacts.

Heat dissipation is an important consideration in the design of any industrial component, and the IC660BBS103 is no exception. It has a heat dissipation rating of 16.8 Watts, which is managed effectively to prevent overheating and ensure stable operation. Proper heat management is critical in ensuring that the output block can maintain its performance specifications over time, even in environments where high power outputs and continuous operation are required.

The IC660BBS103 is part of GE Fanuc’s Genius I/O series, known for its reliability and ease of integration into distributed control systems. As with other components in this series, the IC660BBS103 is designed for seamless communication with Genius Bus controllers, facilitating straightforward integration into existing automation networks. This compatibility ensures that the output block can be incorporated into complex control architectures with minimal effort, making it an ideal choice for both new installations and system upgrades.

In addition to its primary function as an output block, the IC660BBS103 includes several features that enhance its durability and operational reliability in industrial environments. The support for output isolation, combined with its robust physical construction, ensures that the module can withstand the rigors of industrial use, providing long-term reliability and reducing the need for frequent maintenance or replacement.

In summary, the GE Fanuc IC660BBS103 is a high-performance Output Block designed to meet the demanding needs of industrial automation systems. With its ability to manage eight isolated outputs, handle both AC and DC voltages, and operate under challenging conditions, this module is a versatile and reliable component for a wide range of applications. Its compact yet durable design, combined with its compatibility with the Genius I/O series, makes it an excellent choice for engineers and system integrators seeking to implement efficient and dependable control solutions in their industrial processes. Whether used in new installations or as part of an existing system, the IC660BBS103 provides the flexibility, reliability, and performance needed to support complex automation tasks in modern industrial environments.
