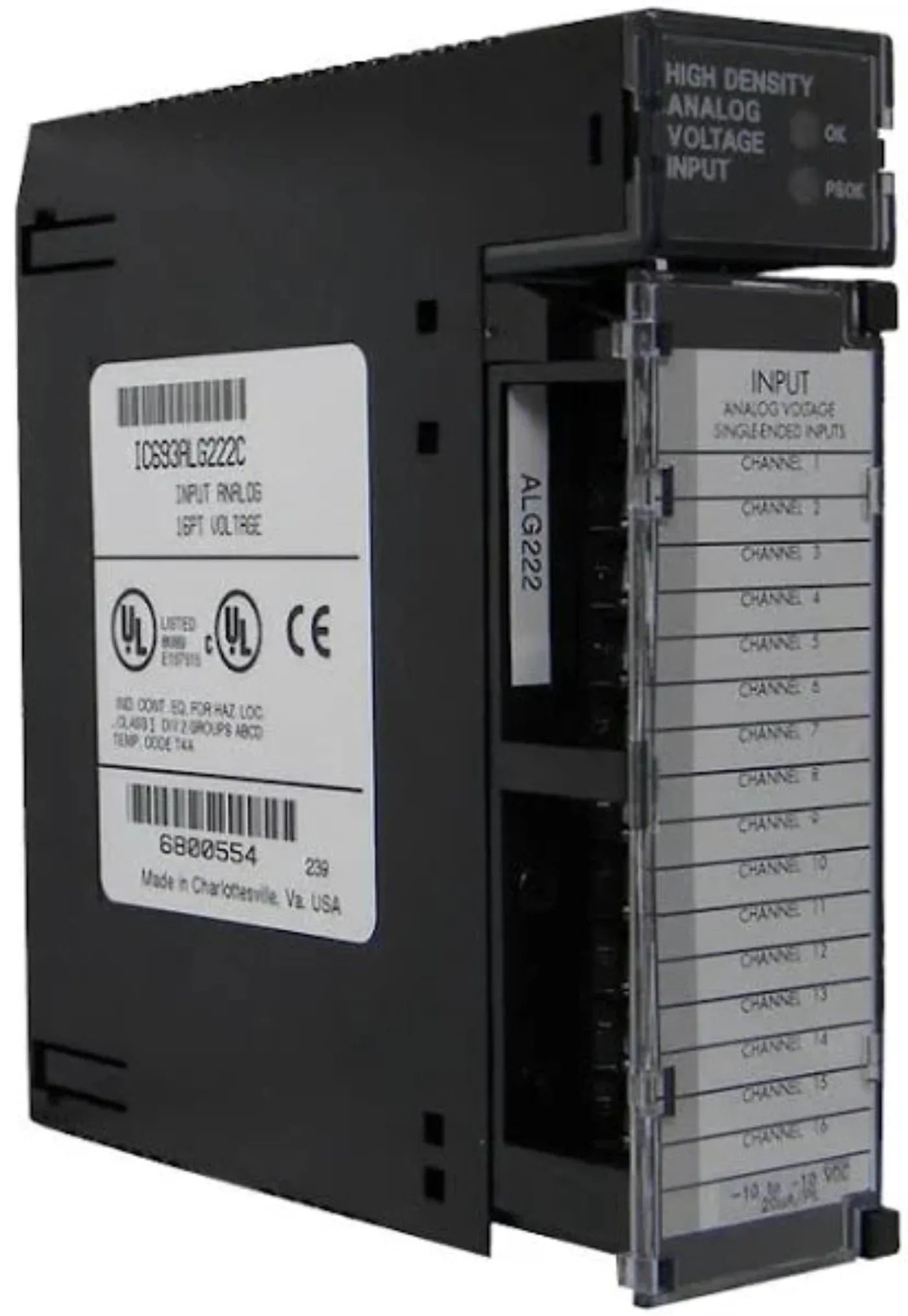

High-Density Input: Offers 16 single-ended or 8 differential analog voltage input channels.
Flexible Signal Ranges: Supports input ranges of 0–10 V (unipolar) or -10 to +10 V (bipolar), configurable per channel.
Fast Update Rate: Achieves a 6 ms update rate for 16 single-ended channels and 3 ms for 8 differential channels.
High Accuracy: Provides linearity of less than 1 least significant bit (LSB) and absolute accuracy of ±0.25% of full scale at 25°C.
Robust Isolation: Features 1,500 V RMS continuous isolation between field and logic sides, ensuring protection in industrial environments.
Easy Integration: Designed for seamless installation in GE FANUC Series 90-30 PLC systems, with a connector block for user connections.
Q: What is the IC693ALG222 PLC Module?
A: The IC693ALG222 is a GE Fanuc analog input module for Series 90-30 PLC systems, designed to convert analog signals into digital data for industrial automation applications.
Q: What systems is it compatible with?
A: This module is compatible with GE Fanuc Series 90-30 PLC systems, ideal for use in manufacturing, process control, and automation environments.
Q: What does the PLC module do?
A: The IC693ALG222 processes analog input signals, such as temperature, pressure, and flow, converting them into digital values that the PLC can use for control and monitoring.
Q: Why choose the IC693ALG222?
A: It offers precise and reliable analog-to-digital conversion, ensuring accurate control and monitoring of industrial processes, enhancing system efficiency and performance.
Q: Is this an OEM product?
A: Yes, the IC693ALG222 is a genuine GE Fanuc part, guaranteeing full compatibility, durability, and long-term reliability in industrial applications.
Visual Inspection: Regularly check the module for any signs of damage such as burnt components, cracked or damaged connectors, or broken traces. Look for signs of overheating or physical damage.
Clean the Module: Use dry compressed air or an anti-static brush to remove dust and debris. Avoid using liquid cleaners as they may cause damage or create short circuits.
Verify Input/Output Signals: Ensure that input and output signals fall within the specified voltage ranges. Incorrect voltage levels can lead to improper module function or damage.
Inspect Wiring and Connectors: Ensure all wiring and connectors are securely attached and free from corrosion or wear. Loose or corroded connections can cause unreliable operation or signal failures.
Run Diagnostics: Use diagnostic tools or software to test the module’s functionality. Look for error codes, abnormal behavior, or issues with the connected devices.
Monitor Power Supply: Ensure the module is receiving the correct voltage from the power supply. Voltage fluctuations or incorrect power can cause instability or failure of the module.
Temperature Check: Monitor the module’s temperature and ensure it stays within the recommended operating range. Excessive heat can degrade performance and reduce the module's lifespan.
Inspect the PCB: Look for signs of wear or corrosion on the printed circuit board (PCB). Ensure the solder joints are intact, as poor soldering can cause performance issues.
Check Communication Ports: Ensure communication ports are free of debris or physical damage. A damaged communication port can result in communication errors or data loss.
ESD Precautions: Handle the module with electrostatic discharge (ESD) protection, such as wrist straps or anti-static mats, to avoid damaging sensitive components
