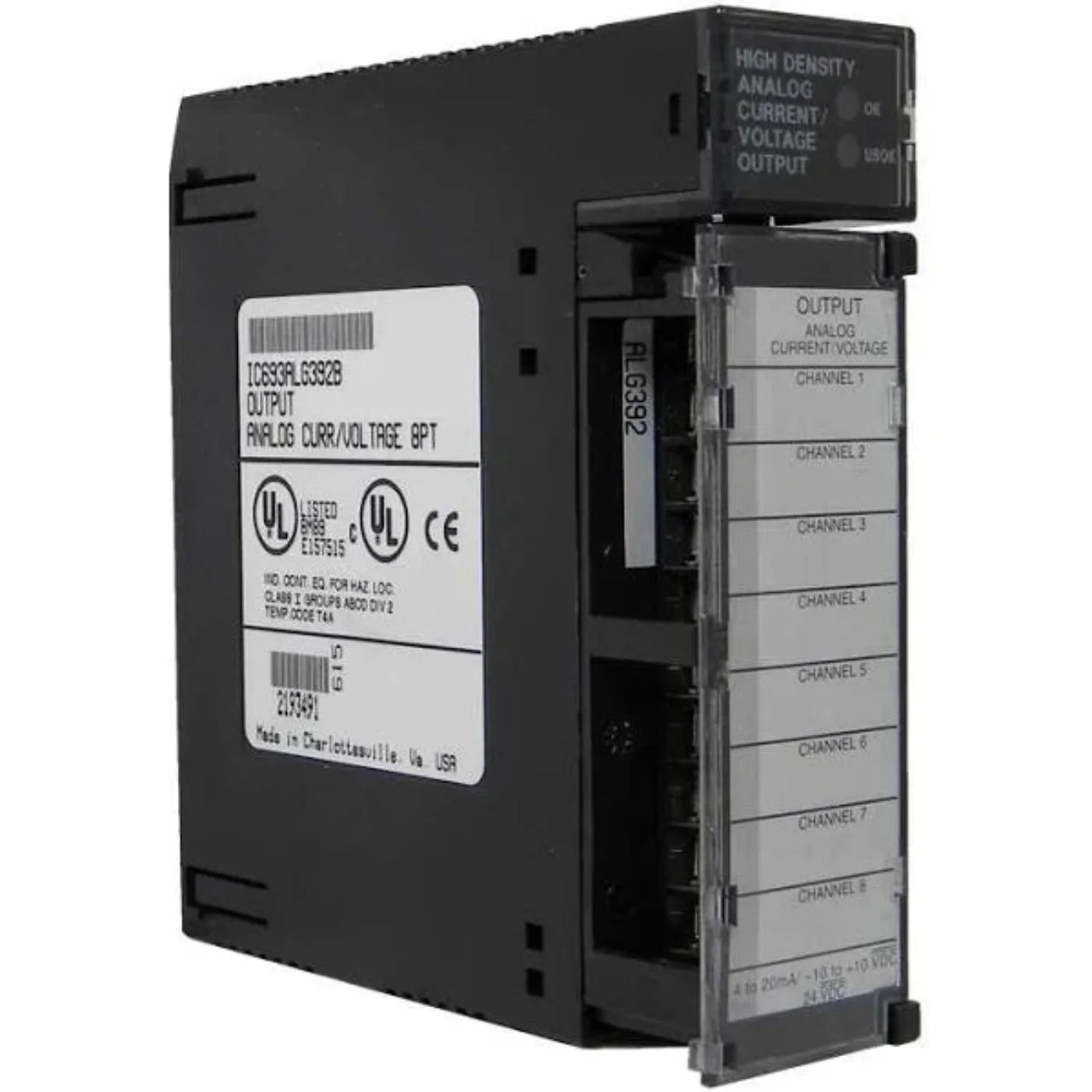

The GE Fanuc IC693ALG392 is a member of the Series 90-30 family and functions as an 8-Channel Analog Current-Voltage Output Module. This module is designed to deliver analog output capabilities with eight single-ended channels. It is equipped to provide voltage outputs ranging from 0 to +10 volts (unipolar) or -10 to +10 volts (bipolar), along with output signals in the range of 0 to 20 milliamps or 4 to 20 milliamps.
Each channel on the IC693ALG392 module is configurable for either 15 or 16 bit resolution, depending on the selected output range. This flexibility allows users to tailor the module's performance to specific application requirements, optimizing precision and accuracy in analog signal generation.
The IC693ALG392, manufactured by GE Fanuc, is a Series 90-30 module designed as an analog output module. It comprises eight single-ended output channels capable of providing 0 to +10 volts (unipolar) or -10 to +10 volts (bipolar) voltage outputs and 0 to 20 milliamps / 4 to 20 milliamps output signals. Each channel offers configurable resolution, allowing for either 15 or 16-bit resolution based on the selected output range.
This module serves as a crucial component in industrial control systems, facilitating precise control and monitoring of analog processes. With its eight channels, it enables the control system to interface with external devices and systems requiring analog voltage or current signals for operation.
The IC693ALG392 module offers versatility in its output capabilities, supporting both unipolar and bipolar voltage outputs to accommodate various system requirements. Additionally, the inclusion of the 0 to 20 milliamps / 4 to 20 milliamps output signals ensures compatibility with different types of devices and sensors commonly used in industrial environments.
Furthermore, the ability to configure each channel's resolution allows for fine-tuning of the output signals, ensuring optimal precision and accuracy in analog control applications. This feature is particularly useful in systems where precise control over voltage or current levels is essential for maintaining process integrity and efficiency.
