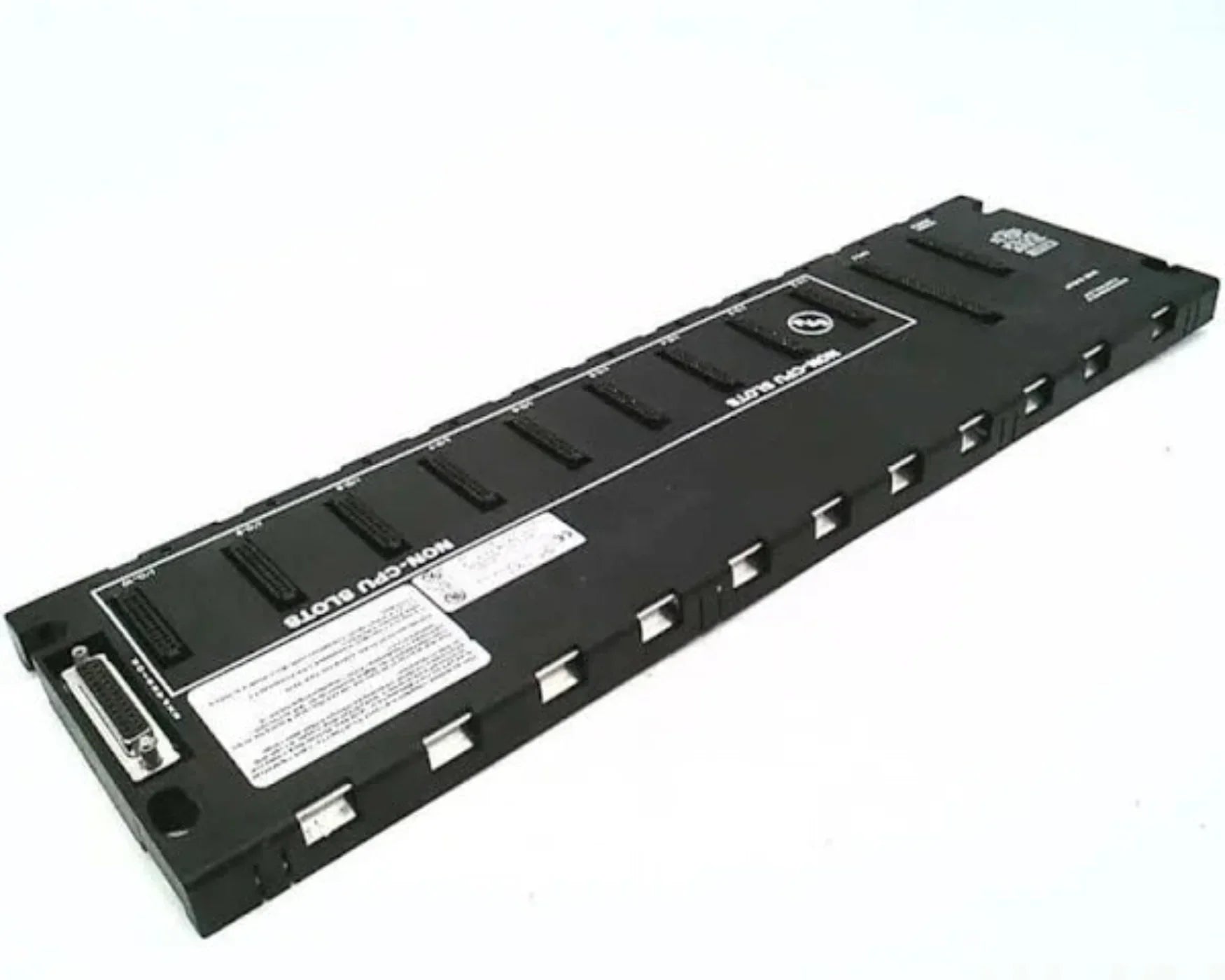

The IC693CHS391 is a Series 90-30 component that is manufactured by GE Fanuc. This is a 10-slot Modular CPU baseplate. This baseplate hosts the CPU slot, non-CPU or I/O slots, Power supply and I/O expansion bus port. It also hosts the local electronic backplane to power the attached modules. Only One (1) CPU baseplate can be installed in a system, other baseplate permitted are expansion or remote I/O baseplate.

Information About IC693CHS391
The IC693CHS391 is a Modular CPU baseplate. This baseplate is part of the Series 90-30 that is manufactured by GE Fanuc. This device houses the connection ports, allowing modular CPUs, I/O modules and Power supply module installation. It has a total of Ten (10) slots with One (1) slot assigned to the CPU and Nine (9) slots for the I/O modules. Power supply slot is not included in the slot count as well as the bus expansion port.

Since this is a modular CPU slot, it is by default assigned with a node address of 0 which can be modified through the programming software. Only One (1) modular CPU slot is supported by a system. Other slots in the system could be expansion or remote I/O baseplates.

Power supply is installed to the left most slot which is not included in the counting of slots, allowing more I/O to be supported by this baseplate. CPU is installed only the Slot 1 as this slot is especially sized for CPU connection or special option module such as the FIP Bus Remote I/O scanner. Slot number 2 and higher are particularly sized for I/O or option modules. Expansion or remote I/O basesplate are connected through the expansion port at the right most portion of the baseplate. Depending on the CPU hosted by the IC693CHS391, up to Four (4) or Seven (7) expansion baseplates are supported by the IC693CHS391 Modular CPU baseplate. This baseplate supports panel mounting only, fastened by screws and washers through the mounting holes provided.

The IC693CHS391 baseplate is a GE Fanuc manufactured expansion baseplate equipped with ten slots. It runs with a current rating of 420 mA and it has a voltage rating of 5 Volts DC. It is equipped with a DIP switch. The expansion base plate is connected to the Series 90-30 PLCs along with other modules. A power supply module is plugged into the left slot the baseplate. The IC693CHS391 baseplate is modular in size and it has an open enclosure. It can be easily installed and replaced or changed to a different type if an extra feature is required. A power supply port is present on the left side of the plate along with connectivity slots for CPU and non-CPU slots. It also has a 25-pin female connector present on the right hand side for connecting expansion and remote baseplates.

To be connected with a remote baseplate, the IC693CHS391 expansion baseplate requires a cable with a length of less than 700 feet. The baseplate cannot be used as a single entity. It can either be connected to a PLC device or a personal computer that is using a PCI card. It can connect to up to 7 CPUs at a time depending on the model of the CPUs that are used. The IC693CHS391 baseplate can be mounted either vertically or horizontally depending on the layout of the PLC or the CPU. The environmental temperature should always be in the specified range. The plate should be kept away from water splashes and sources of dust, dirt, and harmful chemicals. The IC693CHS391 baseplate is certified by several global environmental and industrial standards.

Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Specifications

What our Experts Think

• Expansion Capability:
  Designed to expand the Series 90-30 PLC system, this baseplate can accommodate up to 10 I/O modules, enhancing system scalability.

• Efficient Power Usage:
  The baseplate operates with a 420 mA at 5 VDC internal power consumption, ensuring effective energy use within the control system.

• Compact Dimensions:
  Measures approximately 14.2 cm x 44.3 cm x 13 cm, making it suitable for installation in standard industrial panel enclosures.

• Flexible Connectivity:
  Features a 25-pin female connector for linking to expansion and remote baseplates, providing the flexibility to grow the system.

• Mounting Options:
  Can be mounted in both vertical and horizontal orientations, offering versatility for system integration.

• Environmental Considerations:
  Should be installed in environments free from excessive dust, moisture, and corrosive substances to maintain long-term performance.

• Seamless Integration:
  Compatible with Series 90-30 PLCs, supporting a wide range of I/O modules and communication protocols.

Q&A

Q: What is the GE Fanuc 10-Slot Modular CPU Baseplate?
A: It is a baseplate designed for the GE Fanuc Series 90-30 PLC system, accommodating one CPU module and up to nine I/O or option modules.

Q: How many slots does the baseplate have?
A: The baseplate has 10 slots in total, with one slot dedicated to the CPU and the remaining nine for I/O and option modules.

Q: Can the baseplate be expanded?
A: Yes, additional expansion baseplates can be connected to support more modules.

Q: What is the power requirement for this baseplate?
A: The baseplate operates on a 5V DC power supply and consumes approximately 420 mA of current.

Q: Is the baseplate suitable for panel mounting?
A: Yes, it is designed for easy panel mounting in control systems.

Maintenance Tips

• Regularly Inspect for Physical Damage: Check for signs of wear, corrosion, or physical damage, especially around connectors and mounting points.

• Ensure Proper Ventilation: Maintain adequate airflow around the baseplate to prevent overheating.

• Verify Secure Module Connections: Ensure that all modules are securely seated in their respective slots to prevent communication issues.

• Monitor Power Supply: Check that the power supply is stable and within the specified voltage range to prevent damage to the baseplate and connected modules.

• Keep the Environment Clean: Regularly clean the baseplate to remove dust and debris, which can affect performance and cause overheating.

• Check Expansion Connections: If using expansion baseplates, ensure that the connections are secure and that the total system does not exceed the maximum supported configuration

• Update Firmware as Necessary: Keep the firmware updated to ensure compatibility with other modules and to benefit from performance improvements.
