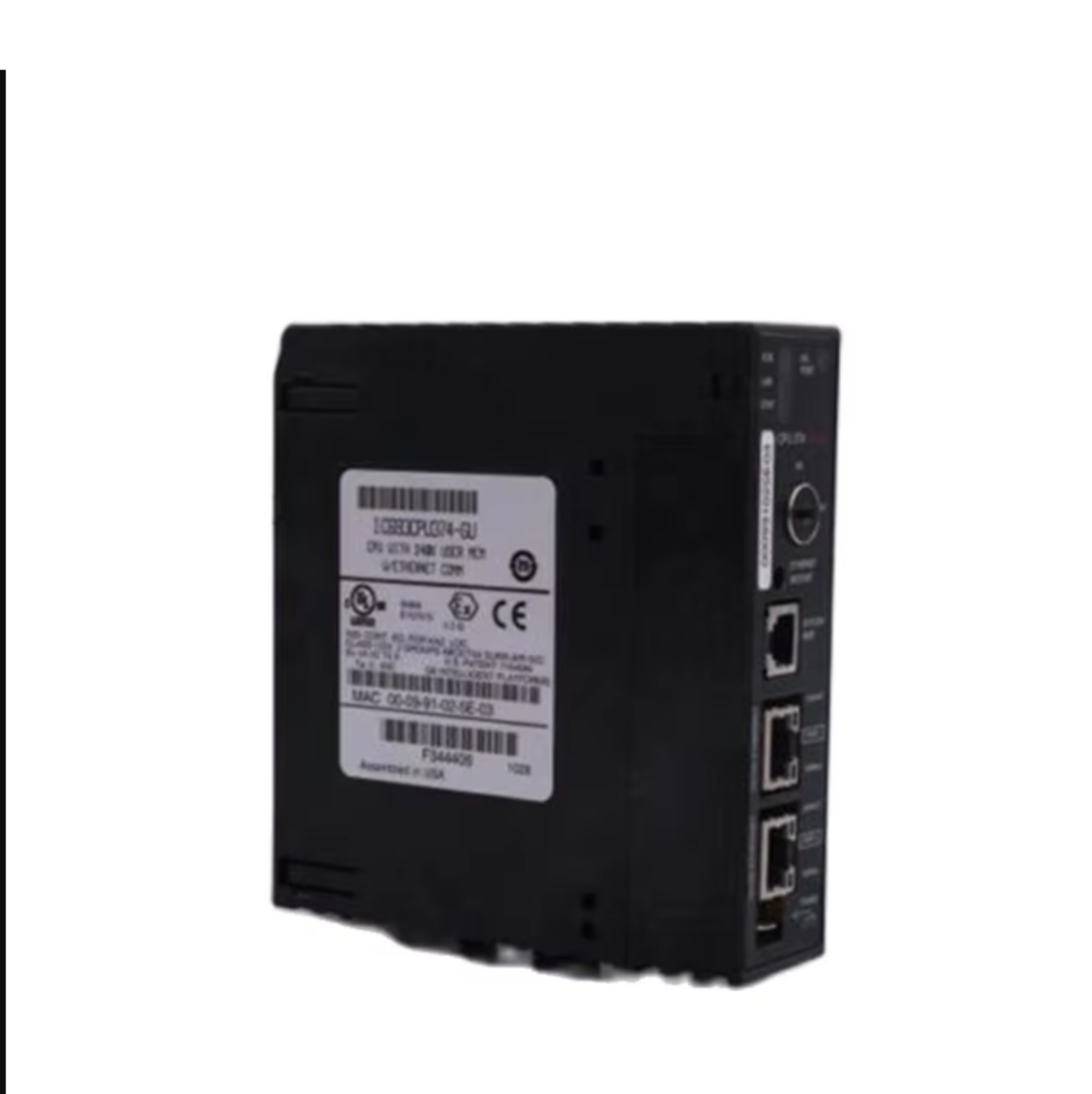

The IC693CPU374-GU is a CPU module within the GE Fanuc Series 90-30 PLC system. It is designed to facilitate the management and processing of data within automation and control applications. This module supports up to 2048 I/O points, enabling extensive input and output operations for various industrial processes. The design ensures compatibility with the Series 90-30 architecture, providing reliable performance and efficient operation in diverse automation environments.
The GE Fanuc IC693CPU374-GU is a high-performance CPU module designed for use in the Series 90-30 programmable logic controller (PLC) system. This module is engineered to handle complex automation tasks with efficiency and reliability. With a processing speed of 133 Megahertz, the IC693CPU374-GU ensures rapid execution of control logic, making it suitable for demanding industrial applications.
Equipped with a robust register memory of 240 kilobytes, this CPU module can manage extensive data handling, enabling it to support up to 2048 I/O points. This extensive capability allows for the integration of numerous input and output devices, which is essential for comprehensive automation systems. The IC693CPU374-GU's architecture supports floating-point math, enhancing its ability to perform complex calculations required in various control processes.
The module features an embedded AMD SC520 processor model, known for its efficiency and performance in industrial settings. This CPU type is a single-slot design that includes an embedded Ethernet interface, facilitating seamless networking and communication within the control system. The IC693CPU374-GU is equipped with two Ethernet ports, allowing for versatile connectivity options that support both local and remote communication.
For serial communication, the module includes an RS-485 serial port, enabling integration with various devices and systems through the power supply. The power requirements for the IC693CPU374-GU are 7.4 watts at 5 volts DC, making it energy efficient while delivering high performance.
Operating under a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) ensures that this module can function effectively in standard industrial environments. Additionally, it can withstand storage temperatures ranging from -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), providing flexibility for various applications and storage conditions.
