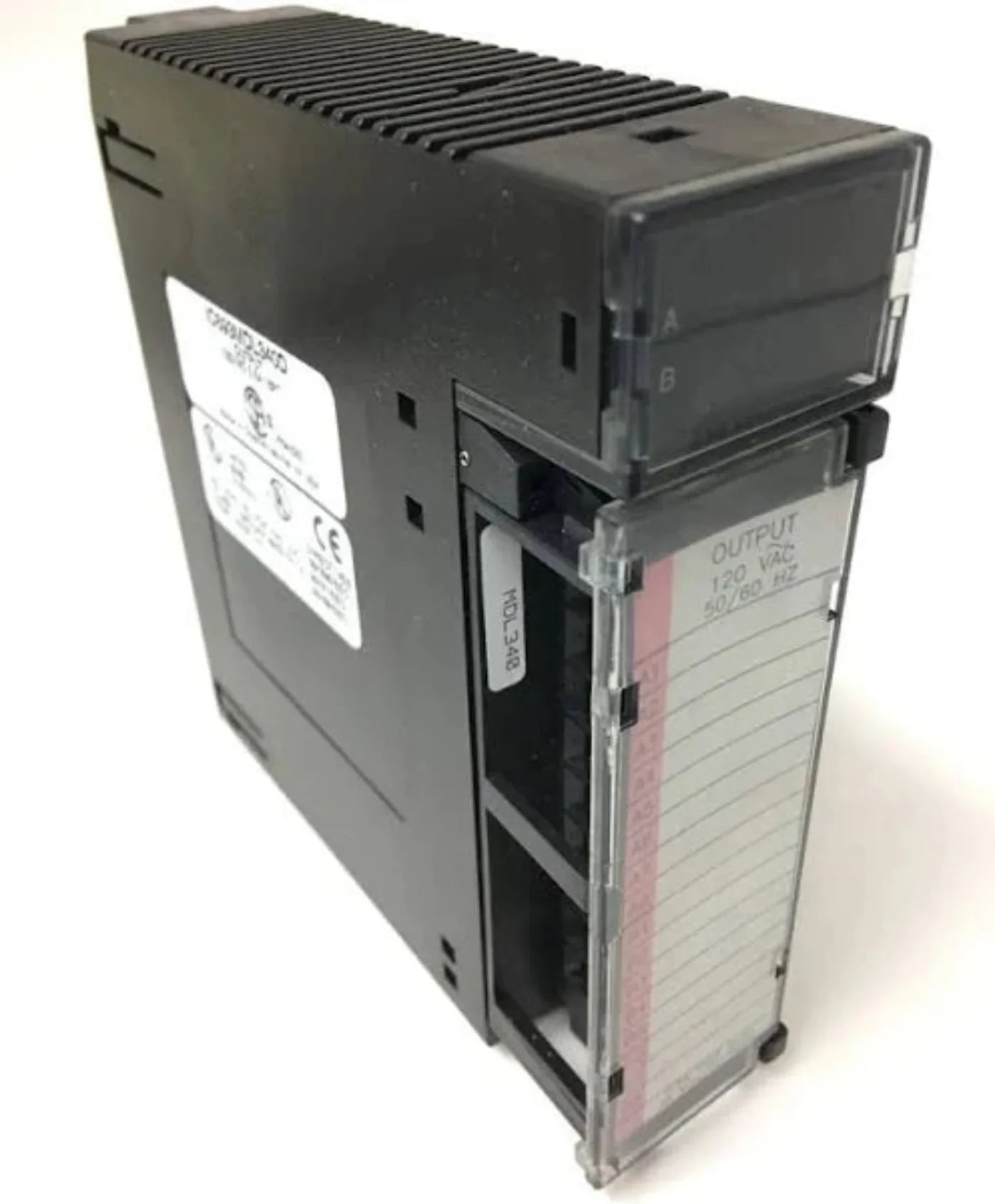

Fanuc Corporation GE FANUC Series 90-30 - IC693MDL340
The IC693MDL340 is a Series 90-30 Discrete output module formerly manufactured by GE Fanuc, now under Emerson Automation. This module features Sixteen (16) 120 VAC output channels in Two (2) groups of Eight (8) channels each group. It delivers 85-132 VAC output voltage range and output current of 0.5 A per point. This module has backplane current draw of 315 mA when all outputs activated.
Information About IC693MDL340
The IC693MDL340 is a Series 90-30 Discrete output module. This module is manufactured by formerly by GE Fanuc, now under Emerson Automation. This module has Sixteen (16) output channels with each channel able to deliver an output voltage rated 120 VAC and output current rating of 0.5 A.
This module has Two (2) groups of output channel where each group having Eight (8) channels each. Additionally, One (1) common terminal is provided per group providing isolation.
The IC693MDL340 is typically used to energize electrical loads such as relay coils, pilot lamps and other electrical devices with low current rating. It is used to implement output commands as a result of the processing of the downloaded user logic to the CPU. It has maximum output current of 3 A per group and minimum load current of 50 mA.
Other output characteristics of this module includes a maximum inrush current of 20 A for one cycle and minimum load current of 50 mA. It has an output voltage drop of 1.5 VAV and maximum output leakage current of 2 mA at 120 VAC nominal voltage. Each output channel has maximum On transition delay of 1 ms and Off signal delay of ½ cycle. This module has power consumption of 315 mA with all output channels energized.
The IC693MDL340 is provided with individual status indicator for each output channel. It depicts the operational state of each channel of this output module. It also provided with Fuse indicator LED which energizes when the internal fuse is blown.
The GE Fanuc IC693MDL340 module is an output module manufactured as part of the GE Intelligent Platforms/GE Fanuc Series 90-30 product line. It has a 120 Volts AC voltage rating and 0.5 Amps of current rating and it provides 16 output points in 2 separate groups, and each group has 8 points with individual common per group. The IC693MDL340 module allows each group to be used with an independent phase of the AC power supply. Both commons can also be powered using the same supply. Each group has a 3-Amps fuse for protection, as well as an RC snubber for the outputs for protecting them against the power line transient electrical noise.
The GE Fanuc IC693MDL340 module features an 85 to 132 Volts AC output voltage range, 50 to 60 Hertz frequency, and 0.5 Amps of maximum output current per point. Each group allows for an all-out current for each group of 3 Amps. The IC693MDL340 module offers an inrush current of high degree, which makes the outputs suitable for controlling different loads, both incandescent and inductive. The operators of this module must provide an AC power supply to the module to help it operate loads connected to the outputs. The IC693MDL340 module can only run on an AC source of power. It comes with LED indicators on top of the device, which show the ON and OFF status for each of the output points. The LEDs are arranged in 2 rows of 8 green LEDs and with a red LED between the 2 lines.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
| Brand |
GE FANUC |
| Series |
Series 90-30 |
| Part Number |
IC693MDL340 |
| Product Description |
Discrete Output Module |
| Product Type |
Output Module |
| Number of Channels |
16 |
| Number of Groups |
2 |
| Channels per Group |
8 |
| Rated Voltage |
120 V AC |
| Output Voltage Range |
85 to 132 V AC |
| Nominal Output Voltage |
120 V AC |
| Frequency |
50 to 60 Hz |
| Output Current per Point |
0.5 A |
| Total Outputs |
16 |
| Minimum Load Current |
50 mA |
| Inrush Current |
20 A for one cycle |
| On Response Time |
1 ms |
| Off Response Time |
½ cycle |
| Max. Output Voltage Drop |
1.5 V |
| Max. Output Leakage Current |
2 mA at 120 V AC |
| Isolation (Field to Logic Side) |
1500 V |
| Isolation (Between Groups) |
500 V |
What our Experts Think
-
High-Quality Performance: Known for exceptional reliability and precise control in industrial applications.
-
Versatile Application: Ideal for automation, manufacturing, and control systems.
-
Easy Integration: Smooth compatibility with other FANUC products and industrial systems.
-
Durable Design: Built to withstand harsh conditions and long operational hours.
-
Cost-Effective Solution: Offers a solid balance between performance and price.
Q&A
Q: What is the function of the GE FANUC Series 90-30 IC693MDL340?
A: The IC693MDL340 is a discrete input module designed for the GE FANUC Series 90-30 programmable logic controller (PLC) system.
Q: What is the input voltage range for this module?
A: It operates with a 24V DC input voltage.
Q: How many channels does the IC693MDL340 have?
A: The module features 16 input channels, providing flexible connectivity for various devices.
Q: Is this module compatible with all GE FANUC Series 90-30 PLC systems?
A: Yes, it is designed to integrate seamlessly with all Series 90-30 PLC systems.
Q: What is the typical application for this module?
A: It is commonly used for industrial automation systems to monitor and control external devices like sensors and switches.
Q: Does this module come with installation instructions?
A: Yes, the IC693MDL340 includes clear documentation for installation and setup.
Maintenance Tips
-
Regular Cleaning: Dust and debris can accumulate inside the unit, potentially affecting performance. Periodically clean the module using compressed air or a soft brush to remove any buildup.
-
Check Output Connections: Ensure that all output connections are secure and free from corrosion. Loose or corroded connections can lead to erratic behavior or failure of connected devices.
-
Inspect for Overheating: Verify that the module operates within its specified temperature range. Overheating can cause component degradation and potential failure. Ensure adequate ventilation around the module.
-
Monitor Load Specifications: Always operate the module within its rated specifications: 120VAC, 0.5A per point, with a maximum of 8A per group. Exceeding these ratings can damage the module and connected loads.
-
Fuse Protection: Each group of outputs is protected by a 3A fuse. Regularly check these fuses to ensure they are intact. Replace any blown fuses promptly with the correct rating to maintain protection.
-
Use of Snubber Circuits: The module includes RC snubber circuits to suppress voltage spikes from inductive loads. Ensure that these snubbers are functioning correctly to protect the module from transient voltages
-
Avoid Electrical Noise: Inductive loads can generate electrical noise that may interfere with module operation. Where possible, use shielded cables and proper grounding techniques to minimize noise.
-
Periodic Testing: Regularly test the module's functionality through the PLC's diagnostic tools to identify any potential issues before they lead to failure.
-
Proper Installation: Ensure the module is installed correctly within the PLC rack, with all connections properly made. Refer to the installation manual for detailed instructions.
