Fanuc Corporation GE Fanuc Standard Power Supply Module - IC693PWR321

Fanuc Corporation  GE Fanuc Standard Power Supply Module - IC693PWR321

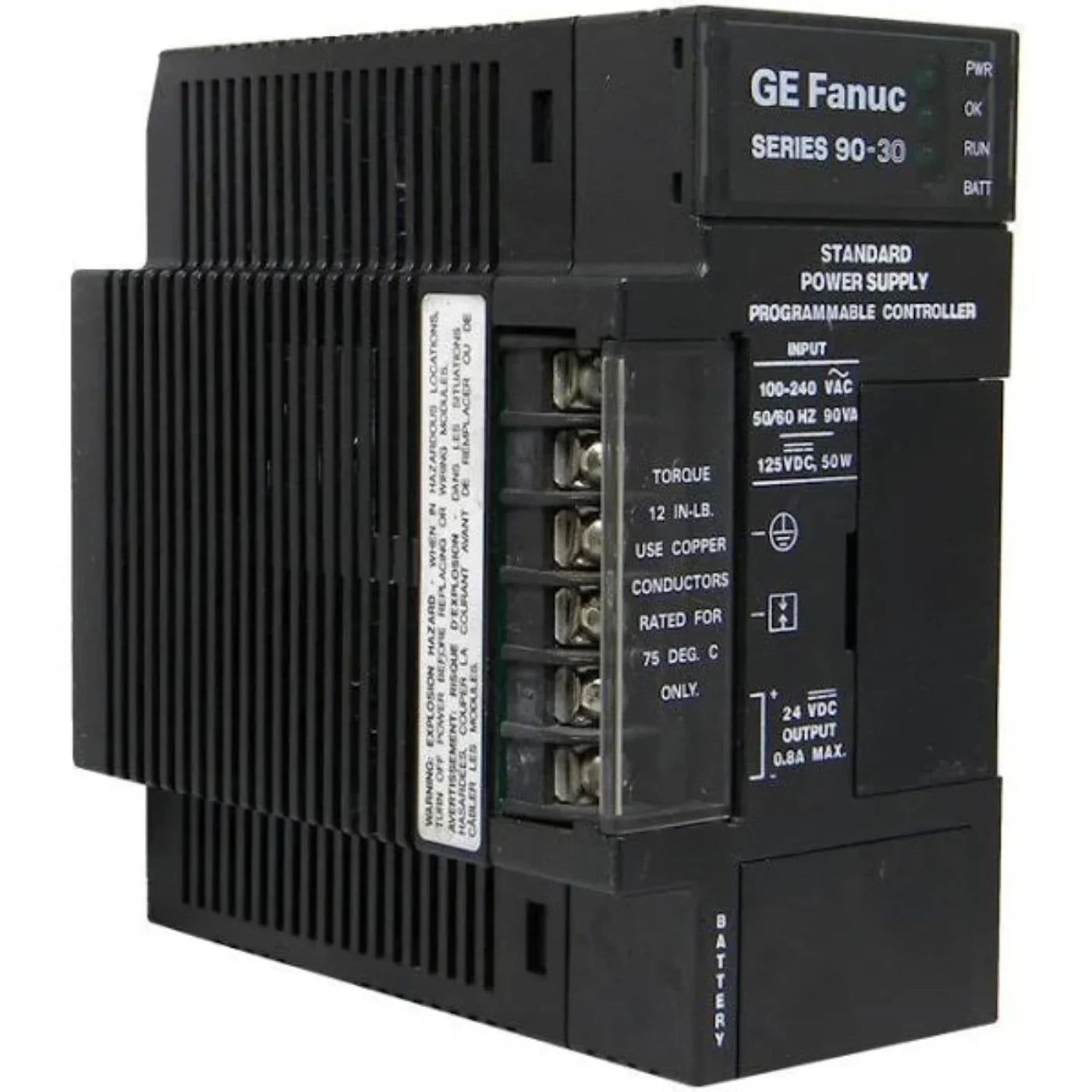

The GE Fanuc IC693PWR321 is a Standard Power Supply module that is part of the GE Fanuc Series 90-30 platform. This power supply has load capacity of 30 Watts with nominal input voltage of 100 to 240 VAC or 125 VDC. It has output capacities of 15 watts 5VDC, 20 Watts 24VDC and 15 Watts +24VDC Relay.

Information About IC693PWR321

The GE Fanuc IC693PWR321 module is a power supply module from the 90-30 Series. It powers the processing capabilities of the Fanuc Series 90-30 PLCs. It is located in the leftmost slot of the baseplate. It comes with a power rating of 30 Watts. It can work with both AC and DC power supplies. The input voltage source of the device must have voltage ranges between 85 and 264 Volts AC or 100 and 300 Volts DC. It provides different voltage outputs: 5 Volts DC, 24 Volts DC voltage that provides power to circuits, and an isolated 24 Volts DC voltage supply that is used by some modules to provide external power. it has an inrush current of 4 Amps peak, with 250 milliseconds maximum. This programmable controller power supply device has a robust build and it is equipped with a battery.

The IC693PWR321 module is fully compatible with any CPU model. The power supply module is certified by the cULus, and CE standards. It has been designed to work in a Class 1 Division 2 rated environment. The IC693PWR321 module comes with power supply limiting feature that protects the hardware immediately when there is a direct short. The power supply unit is equipped with 6 terminals for operator connections. It comes with an enhanced diagnostics feature that tracks all events and updates for the operators. A smart switch fusing is built inside the power supply device as a protection measure. For communication, the IC693PWR321 module is equipped with an RS-485 serial port. The serial port can be used to connect to different peripheral devices and a CPU/computer.

The IC693PWR321 is capable of being powered with AC or DC source. The AC input voltage range of this power supply is 85-264 VAC with nominal values of 120-240VAC. For DC supply voltage, acceptable voltage range is 100-300 VDC with nominal value of 125 VDC. It has input power requirement of 90 VA with AC input and 50W with a DC input. It can withstand an inrush current of 4 A, peak, with duration of 250 ms.

The IC693PWR321 output power capabilities include maximum of 15 Watts for 5 VDC and 24VDC relay operation; maximum of 15 Watts for 24VDC Relay and 20 Watts, maximum for 24VDC isolated. This power supply has output voltages of 5.0 VDC to 5.2 VDC with nominal value of 5.1 VDC; 24VDC to 28VDC for 24VDC relay; 21.5VDC to 28VDC for isolated 24VDC operation. It has overvoltage protection of 6.4VDC to 7VDC and overcurrent protection of 4A, maximum with holdup time of 20 ms.

Manufacturer information

GE Fanuc, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Specifications

What our Experts Think

• Essential Power Source: Provides reliable 30 watts of power for Series 90-30 PLC systems, supporting CPUs and I/O modules.

• Wide Input Range: Operates on both 120/240 VAC and 125 VDC, offering flexible installation across industrial environments.

• Built for Stability: Delivers consistent, regulated power output to maintain system uptime and protect connected components.

• Compact & Modular: Fits seamlessly into standard 90-30 racks without taking up excessive space.

• LED Indicators: Visual status display for power and faults simplifies maintenance and troubleshooting.

Q&A

Q: What is the GE Fanuc IC693PWR321?
The IC693PWR321 is a power supply module designed for the GE Fanuc Series 90-30 PLC system, providing essential power to the PLC and its modules.

Q: What are the input voltage specifications?
It accepts 120/240 VAC or 125 VDC input, with an input voltage range of 85 to 264 VAC or 100 to 300 VDC.

Q: What is the inrush current?
The inrush current is 4A peak, lasting up to 250 milliseconds.

Q: What is the holdup time?
The holdup time is a minimum of 20 milliseconds.

Q: Where is the IC693PWR321 installed?
It is installed in the leftmost slot of the Series 90-30 PLC baseplate.

Q: Is the IC693PWR321 still available?
The IC693PWR321 has been discontinued by the manufacturer. However, surplus and refurbished units may still be available through specialized suppliers.
