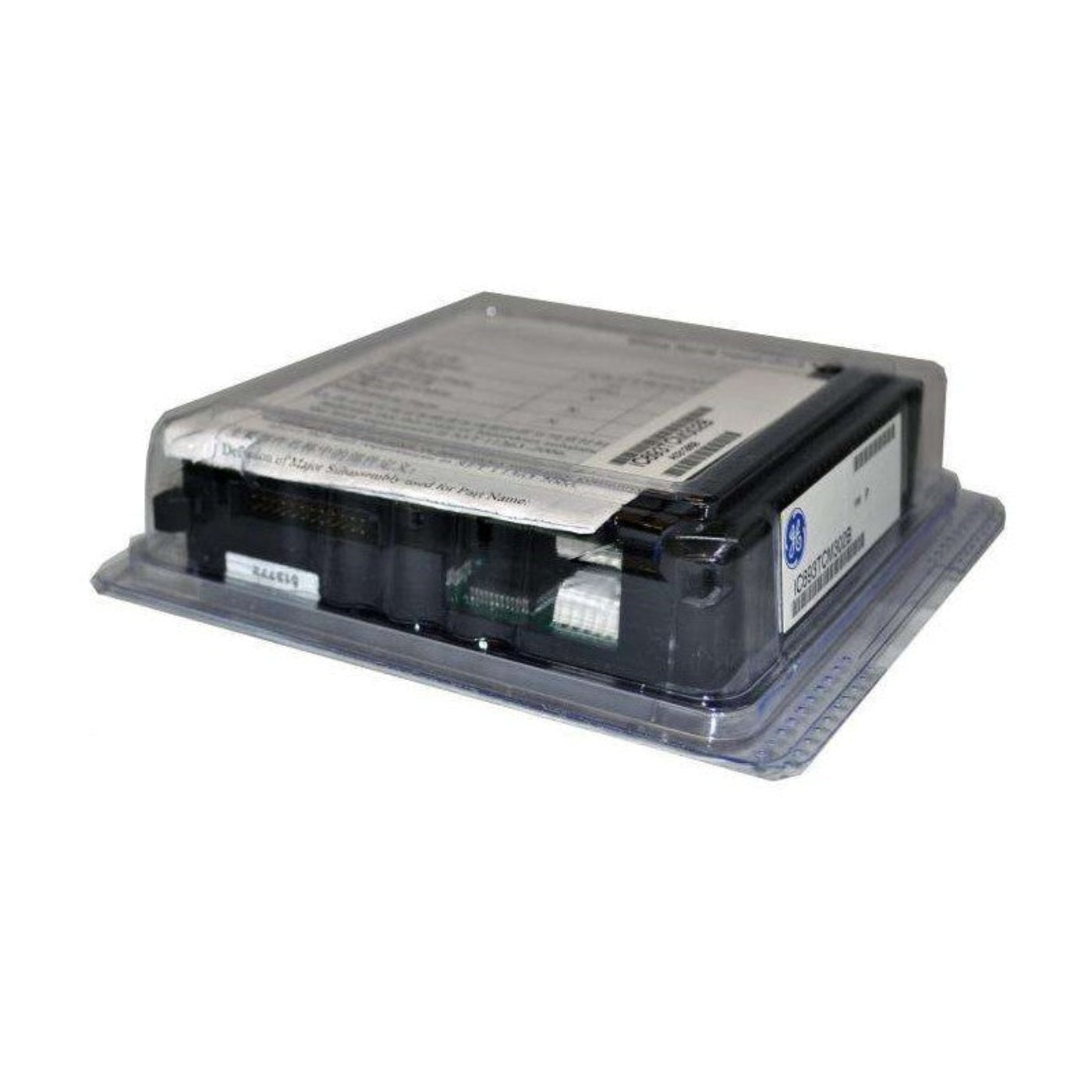

Fanuc Corporation | GE Fanuc Temperature Control Module - IC693TCM302
The GE Fanuc IC693TCM302 is an 8-channel temperature control module designed for Series 90-30 PLC systems. It functions as a thermocouple input module, supporting precise temperature monitoring and control. Operating at 24V DC input, it provides an output voltage range of 18 to 30V DC, making it suitable for industrial automation applications.
The IC693TCM302 temperature control module is engineered to provide accurate and reliable temperature measurement using thermocouple inputs. It has 8 input and 8 output channels, allowing for versatile temperature control in industrial and process automation systems. The unit requires an external power supply of 18 to 36V DC and features an internal power consumption of 150mA at 5V DC. With a load current of 100mA per output channel and a maximum off-state leakage of 0.1mA, it ensures efficient and stable performance. This model has been discontinued and replaced by the HKY E00003.
The GE Fanuc IC693TCM302 temperature control module is a dependable and accurate thermocouple input unit designed for precision temperature monitoring. Although discontinued, its replacement model HKY E00003 offers continued support for industrial applications.
Features
- 8 input and 8 output channels for temperature monitoring and control.
- Operates at 24V DC input for industrial applications.
- Output voltage range: 18 to 30V DC for flexibility in system integration.
- External power supply range: 18 to 36V DC (2.5A inrush current).
- Load current: 100mA per output for reliable performance.
- Maximum off-state leakage: 0.1mA to prevent unintended operation.
- Internal power consumption: 150mA at 5V DC for efficient energy usage.
- Discontinued and replaced by the HKY E00003.
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc |
| Category |
PLCs and Accessories |
| Part Number |
IC693TCM302
|
| Subcategory |
PLC Expansion Modules |
| Series |
Series 90-30 |
| Output voltage range |
18 to 30 Volts DC |
| External power supply |
18 to 36 Volts DC (2.5 Amps inrush) |
| Off-state leakage (maximum) |
0.1 milliAmps |
| Load current |
100 milliAmps |
| Internal power used |
150 milliAmps at 5 Volts DC |
| Number of channels |
8 input / 8 output |
| Overload threshold current |
700 milliAmps typical, 2 milliseconds minimum |
| Thermocouple impedance |
30 Ohms (maximum) |
| Operating temperature |
0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) |
| Weight |
0.11 kgs |
What Our Experts Think
-
Dual-Mode Operation: This module supports both open-loop and closed-loop (PID) temperature control, giving you flexibility for different types of temperature regulation needs.
-
High-Resolution Control: It provides 12-bit resolution, ensuring precise temperature adjustments with an impressive accuracy of 0.2°C.
-
Multiple Channels: Equipped with 8 thermocouple input channels and 8 control output channels, this module facilitates comprehensive temperature monitoring and control for various applications.
-
Wide Operating Temperature Range: The module operates effectively in environments from 0°C to 55°C, with storage capabilities ranging from -40°C to 85°C, ensuring reliable performance in diverse industrial conditions.
-
Low Power Consumption: Running on a 12V DC supply, it consumes minimal power, making it an energy-efficient choice for industrial applications.
-
Enhanced Protection Features: The module includes overload protection, with a threshold current of 700 mA, ensuring the safety of both the module and the connected systems.
-
Compact Design: Its space-saving form factor allows easy integration into existing control systems without requiring major adjustments.
Q&A
Q: What is the GE Fanuc IC693TCM302 Temperature Control Module?
A: The IC693TCM302 is an 8-channel temperature control module designed for GE Fanuc's Series 90-30 PLC system. It enables precise temperature measurement and control for industrial processes.
Q: What applications is the IC693TCM302 suitable for?
The IC693TCM302 is ideal for applications that require precise temperature control, such as process control, temperature monitoring in manufacturing environments, and temperature-sensitive operations.
Q: Is the IC693TCM302 compatible with other GE Fanuc modules?
Yes, the IC693TCM302 is fully compatible with other modules in the Series 90-30 PLC system, ensuring easy integration into existing automation systems.
Q: Where can I purchase the IC693TCM302 Temperature Control Module?
The IC693TCM302 is available through authorized distributors and industrial automation retailers.
Maintenance Tips
-
Sensor Check: Regularly test connected sensors for accuracy and stability.
-
Connection Integrity: Inspect wiring for wear, corrosion, or signal loss.
-
Environmental Stability: Keep the module in a clean, temperature-controlled area.
-
Calibration Routine: Periodically recalibrate temperature inputs for precision.
-
Noise Reduction: Use shielded cables to minimize electrical interference.
-
Firmware Updates: Apply updates via GE-approved software to ensure optimal performance.
