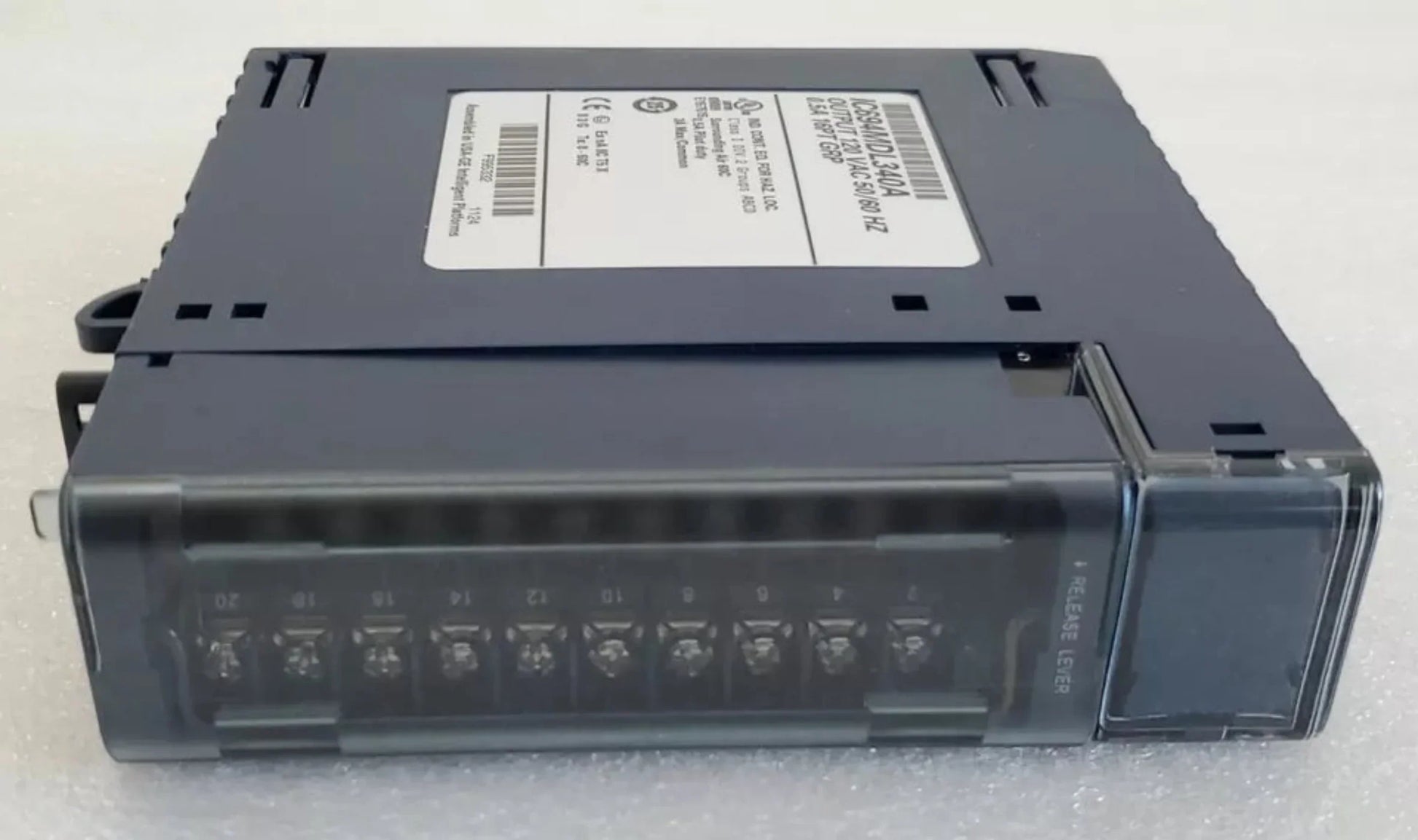

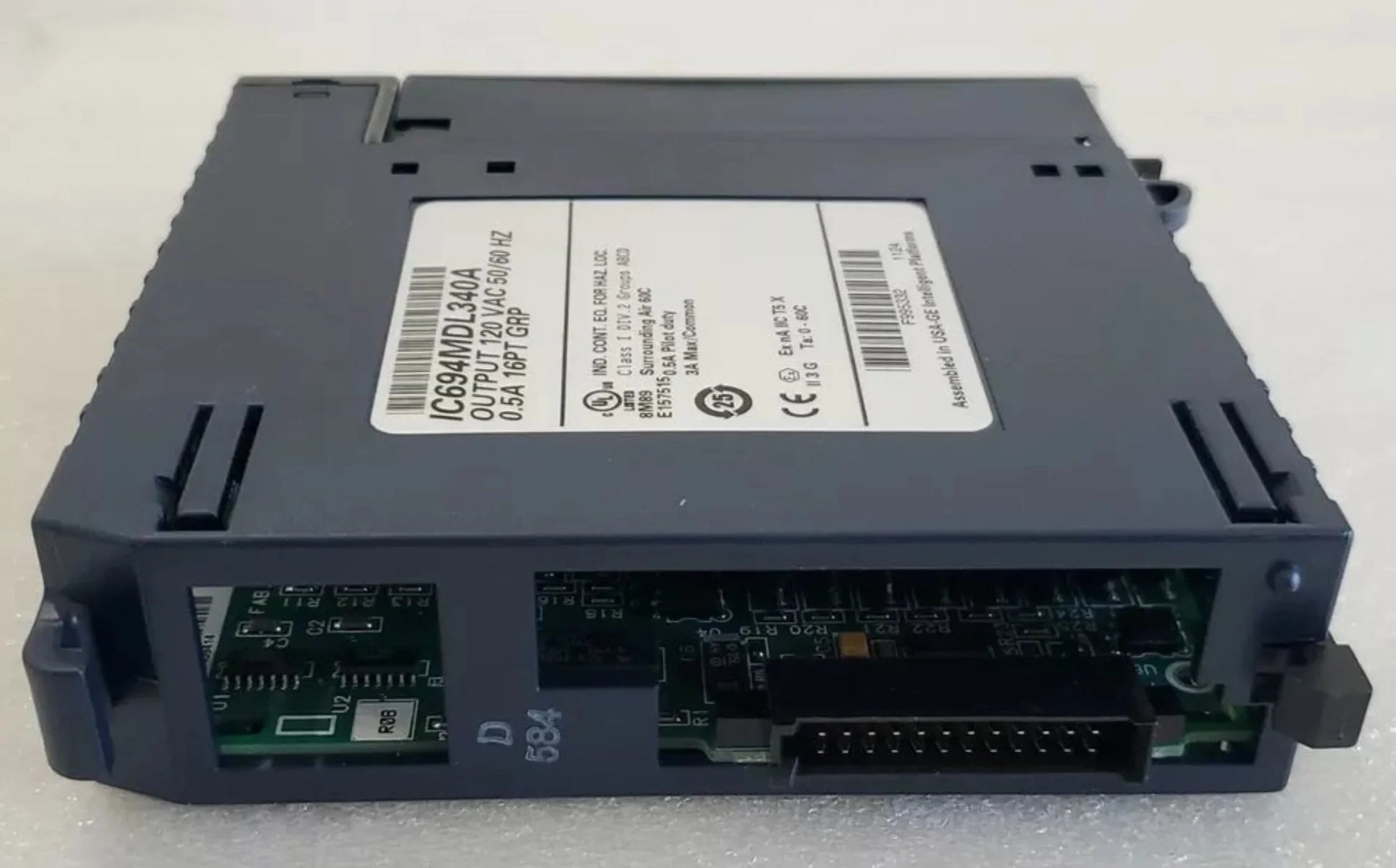

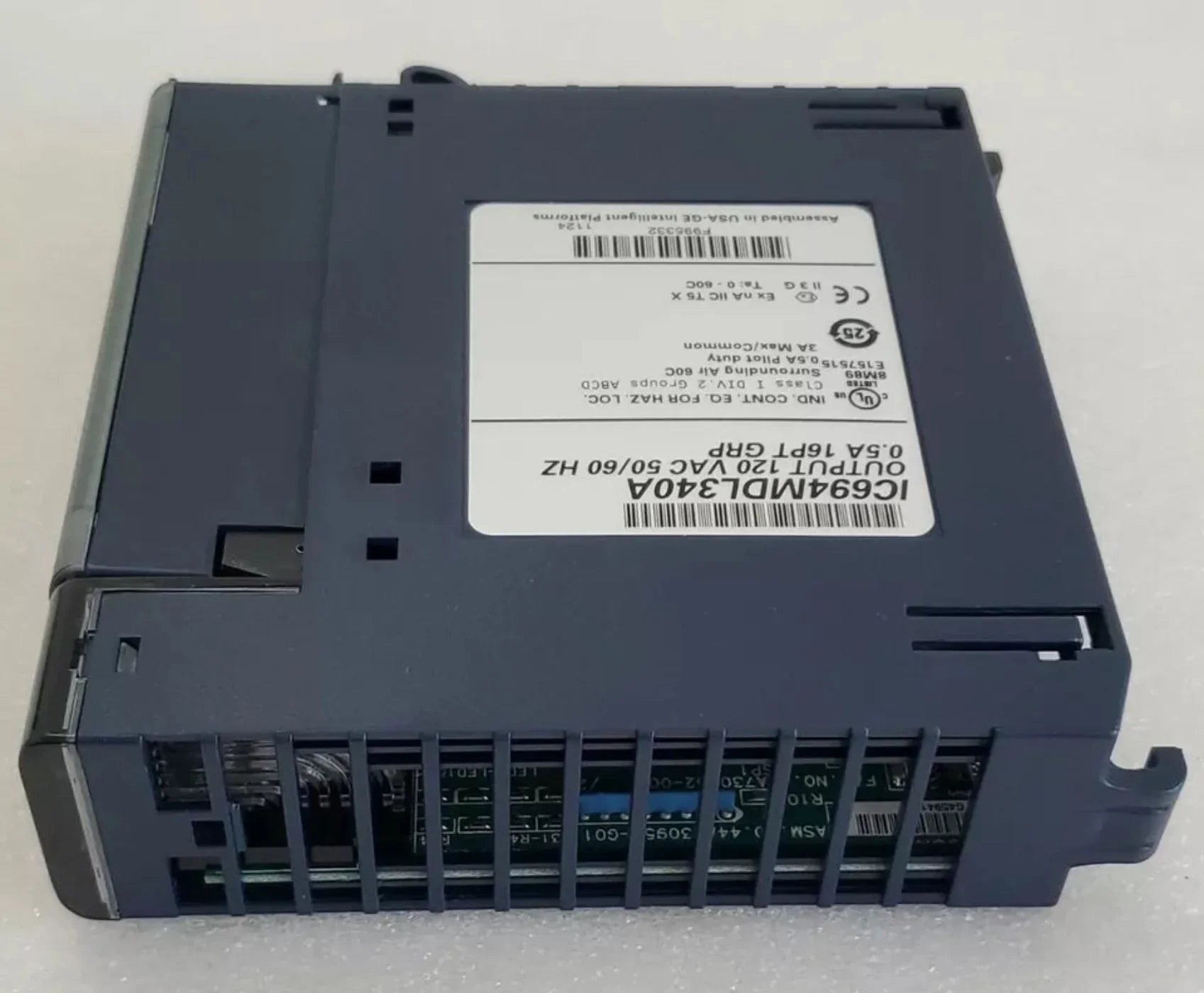

The IC694MDL340A is a discontinued output module from GE Fanuc, designed for industrial automation systems. It supports 120 VAC and provides 16 output points, with a maximum current rating of 0.5 amps per point, ideal for controlling devices in process automation applications.

The IC694MDL340A is a GE Fanuc output module that operates at 120 VAC, offering 16 discrete output points to control various industrial devices. Each output is capable of handling up to 0.5 amps, making it suitable for low-power applications. Although discontinued by the manufacturer, this module remains a reliable solution for automating tasks within control systems that require efficient switching of electrical loads. The module is designed to provide stable and effective output control, ensuring smooth system operation in a wide range of industrial environments.

Although discontinued, the IC694MDL340A continues to provide reliable output control for existing GE Fanuc automation systems. Its combination of 120 VAC operation and 16 output points makes it an effective solution for a variety of automation tasks.

Features

• Output Voltage: 120 VAC for standard industrial applications
• Current Rating: 0.5 amps per output point for efficient control
• Output Points: 16 discrete points for versatile output control
• Module Type: Output module for use in industrial automation systems
• Discontinued: This model has been discontinued by the manufacturer, but still offers reliable performance for existing systems
• Output Voltage: 120 VAC for standard industrial applications
• Current Rating: 0.5 amps per output point for efficient control
• Output Points: 16 discrete points for versatile output control
• Module Type: Output module for use in industrial automation systems
• Discontinued: This model has been discontinued by the manufacturer, but still offers reliable performance for existing systems

Specifications

What Our Experts Think

• Standard Voltage Operation: Supports 120 VAC at 50/60 Hz, ideal for common industrial power systems.

• Reliable Output Capacity: 16 discrete output points with 0.5 A per point, allowing for solid control of connected devices.

• Isolated Groups: Outputs are divided into two isolated groups of 8 points for enhanced electrical separation and flexibility.

• Wide Voltage Range: Handles from 85 to 132 VAC, accommodating fluctuations in supply.

• Compact Form Factor: Measures approximately 3.8 x 14.0 x 14.0 cm, saving panel space.

• Efficient Power Use: Draws only 315 mA from the 5V bus, ensuring energy efficiency.

Q&A

Q: What is the IC694MDL340A Output Module?
A: It’s a GE Fanuc output module designed to control 120VAC outputs in industrial automation systems, operating at 50/60Hz frequency.

Q: What systems is it compatible with?
A: This output module is compatible with GE Fanuc Series 90-30 PLC systems, enabling integration with various industrial automation applications.

Q: What does the output module do?
A: It manages the output of 120VAC signals to actuators, motors, and other devices in an automation system, facilitating precise control.

Q: Why choose the IC694MDL340A?
A: This module offers reliable and efficient control of high-voltage outputs, ensuring stable operation and reducing system downtime.

Q: Is this an OEM product?
A: Yes, it’s a genuine GE Fanuc part, ensuring full compatibility, high performance, and long-term durability.

Maintenance Tips

• Inspect for Physical Damage: Regularly check for any physical damage to the module, including burnt areas, cracks, or loose connections.

• Verify Output Signals: Test the 120VAC output signals to ensure they are functioning correctly and within specified voltage ranges.

• Check Wiring Connections: Ensure all input and output wiring is securely connected and free from corrosion or wear.

• Clean the Module: Use compressed air or an anti-static brush to remove dust and debris from the module's components and connectors.

• Monitor Temperature: Ensure the module operates within the recommended temperature range, using adequate ventilation to prevent overheating.

• Test for Short Circuits: Regularly check for any short circuits or faults in the output channels to prevent damage to the module or connected systems.

• Inspect Fuses: Check any internal fuses to ensure they are intact and replace them as needed to prevent power loss.
