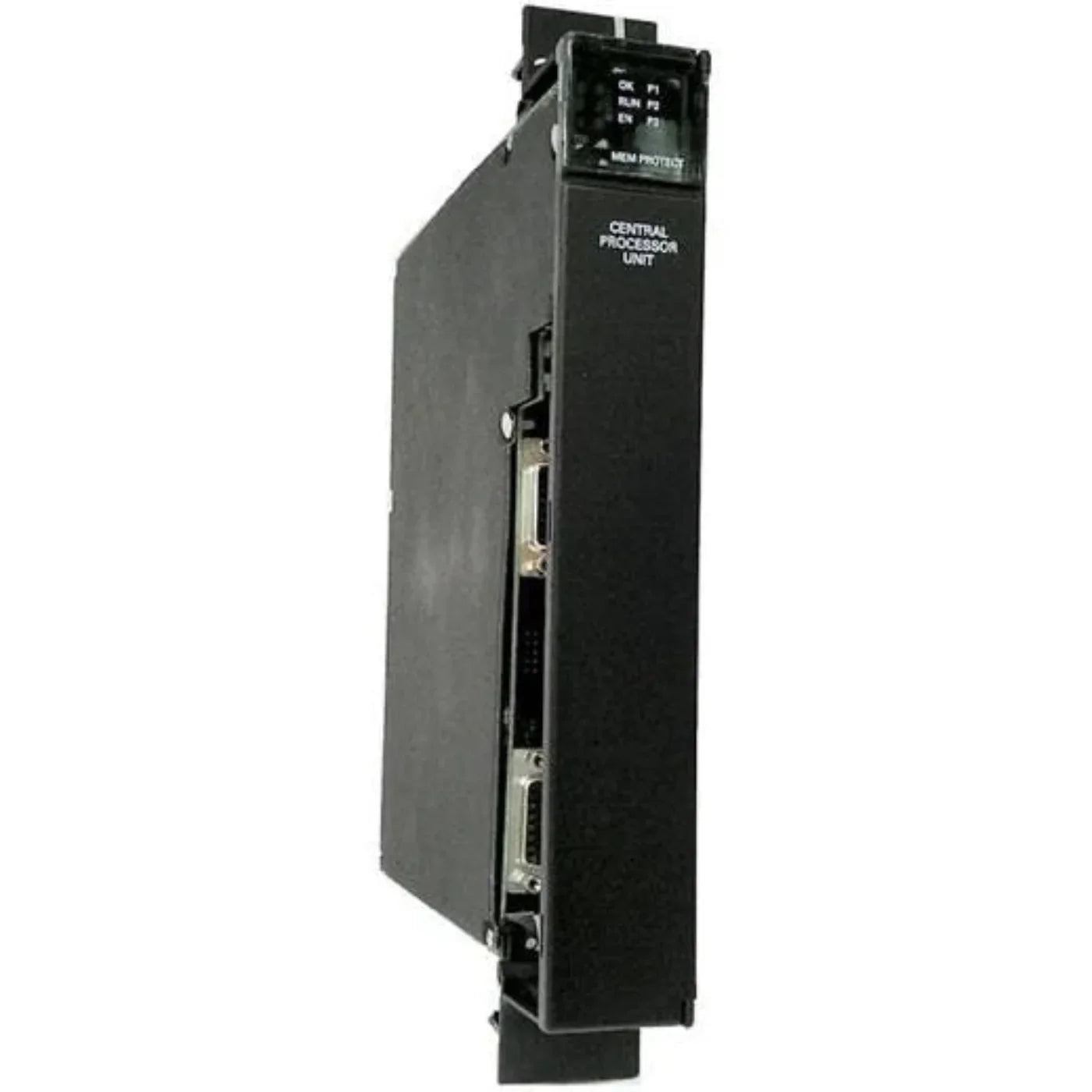

The IC697CPX935 is a Series 90-70 CPU from Emerson Automation, formerly by GE Fanuc. This processor is installed with 96 MHz, 80486DX4 microprocessor and Boolean processing speed of 0.4 microseconds. It supports configuration of up to 12K inputs and outputs of any combination and can accommodate up to 8K analog I/O. It has user memory of 512 KB Fast battery-backed RAM and 256K Flash Memory. It has One (1) RS232 RJ11 Serial port and Two (2) 9-pin D-shell RS485 communication interface. This module is a single-slot processor and configured using MS DOS and Windows Programming software package.

Information About IC697CPX935

The IC697CPX935 is a Series 90-30 Central Processing Unit (CPU). This controller is a single slot CPU module that comes with Three (3) serial ports for communication. Specifically, it has One (1) RS232 Serial port and Two (2) 9-pin D-shell RS485 interfaces. These ports support SNP Slave, Break-Free SNP Slave. SNP slave is supported by all ports while Break-Free SNP slave is available only to Port1 and Port 2.

The IC697CPX935 is also provided with a 96 MHz, 80486DX4 microprocessor with Boolean execution speed of 0.4 microseconds, It has an integrated 1MB battery-backed Random Access Memory (RAM) and 256 KB non-volatile flash memory. This controller accommodates 12K bits of Discrete input and output data. For analog Input and output, the controller has 8K Words memory allocation. This enables the controller to be used in large applications due to the I/O capacity it is capable of.

The IC697CPX935 must be installed in an environment not exceeding 50 Degree Celsius. This CPU requires use of a Forced air-cooling fan to maintain the temperature with limits. Cooling fan assemblies may be used with this CPU such as Rack Fan Assembly with voltage rating 120 VAC (IC697ACC721); Rack Fan Assembly with operating voltage of 240 VAC (IC697ACC724); Rack Fan Assembly at 24 VDC with catalog number IC697ACC744.

This CPU is downloaded with user programs that is develop using the MS-DOS or Windows based programming software. Aside from standard I/O and option modules, this CPU also supports communication with I/O and smart option modules over a rack mounted backplane that supports VME C.1.

The GE Fanuc IC697CPX935 CPU is a single-slot PLC CPU manufactured by GE Fanuc as part of the GE Intelligent Platforms/GE Fanuc PLC Series 90-70 product line. This module comes with 3 built-in serial ports and it can perform the real-time control of systems. The IC697CPX935 CPU communicates with various intelligent option modules through the rack mounted on the backplane by using VMEC.1 format. The CPU runs with a connection to a computer through software or by the use of a 3-position run and stop control switch. It also comes with a 96 MHz microprocessor, which enables the device to perform floating-point calculations after every 0.4 microseconds. The IC697CPX935 CPU supports any combination of 12,000 inputs and outputs and up to 8000 analog inputs and outputs.

The GE Fanuc IC697CPX935 CPU supports modules in the GE IC697 family, analog and discrete I/O modules, and alphanumeric and programmable display processors. It also supports communication modules, GE IC660 and IC661 bus controllers, and link or LAN interface modules. The IC697CPX935 single-slot PLC CPU has 1 MB of RAM that is backed up by using the IC697ACC701 battery. It also comes with flash memory with about 256 KB of storage capacity for user data. The flash memory of this unit is used to store the system firmware. The users of this device do not need to disassemble this device or have the EPROM replaced when updating the firmware. The GE Fanuc IC697CPX935 CPU is configured by using a connected computer that runs software applications or MS-DOS in the Windows NT or Windows 95 operating systems.

Manufacturer information

GE Fanuc, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

Specifications

What our Experts Think

• High-Speed Processing: Powered by a 96 MHz processor, enabling fast and reliable logic execution for complex automation tasks.

• Massive I/O Support: Handles up to 12,000 discrete inputs and outputs—ideal for large-scale industrial control systems.

• Advanced Memory: Includes expanded memory capacity for logic, data, and program storage, boosting system performance.

• Hot-Swap Capability: Supports module replacement without system shutdown, reducing operational downtime.

• Integrated Communications: Built-in support for Genius and Ethernet networking simplifies data exchange across systems.

• Future-Proof Design: Compatible with GE Series 90-70 PLCs, making it a strong upgrade path for legacy systems.

Q&A

Q: What is the GE Fanuc IC697CPX935?
The IC697CPX935 is a high-performance central processing unit (CPU) module from the GE Fanuc Series 90-70 PLC system, designed for real-time control in industrial automation applications

Q: What is the processor speed of the IC697CPX935?
It features a 96 MHz 80486DX4 microprocessor, enabling fast processing capabilities.

Q: How many I/O points can the IC697CPX935 handle?
The module supports up to 12,000 discrete I/O points and up to 8,000 analog I/O points, allowing for flexible configuration based on application needs.

Q: What type of memory does the IC697CPX935 have?
It is equipped with 1 MB of battery-backed RAM and 256 KB of flash memory for user data storage, ensuring reliable operation and data retention.

Q: What are the communication capabilities of the IC697CPX935?
The module includes one RS-232 and two RS-485 serial ports, supporting various communication protocols for integration with other devices and systems.

Q: What is the operating temperature range for the IC697CPX935?
The module operates within a temperature range of 0°C to 50°C (32°F to 122°F), suitable for most industrial environments.

Q: Does the IC697CPX935 require additional cooling?
Yes, to maintain optimal performance, especially in environments exceeding 50°C (122°F), a forced air cooling system is recommended.

Maintenance Tips

• Regularly Inspect for Physical Damage: Check for signs of wear, corrosion, or physical damage, especially around connectors and mounting points.

• Ensure Proper Ventilation: Maintain adequate airflow around the module to prevent overheating.

• Verify Secure Module Connections: Ensure that all modules are securely seated in their respective slots to prevent communication issues.

• Monitor Power Supply: Check that the power supply is stable and within the specified voltage range to prevent damage to the module and connected devices.

• Keep the Environment Clean: Regularly clean the module to remove dust and debris, which can affect performance and cause overheating.

• Check Expansion Connections: If using expansion modules, ensure that the connections are secure and that the total system does not exceed the maximum supported configuration.

• Update Firmware as Necessary: Keep the firmware updated to ensure compatibility with other modules and to benefit from performance improvements.
