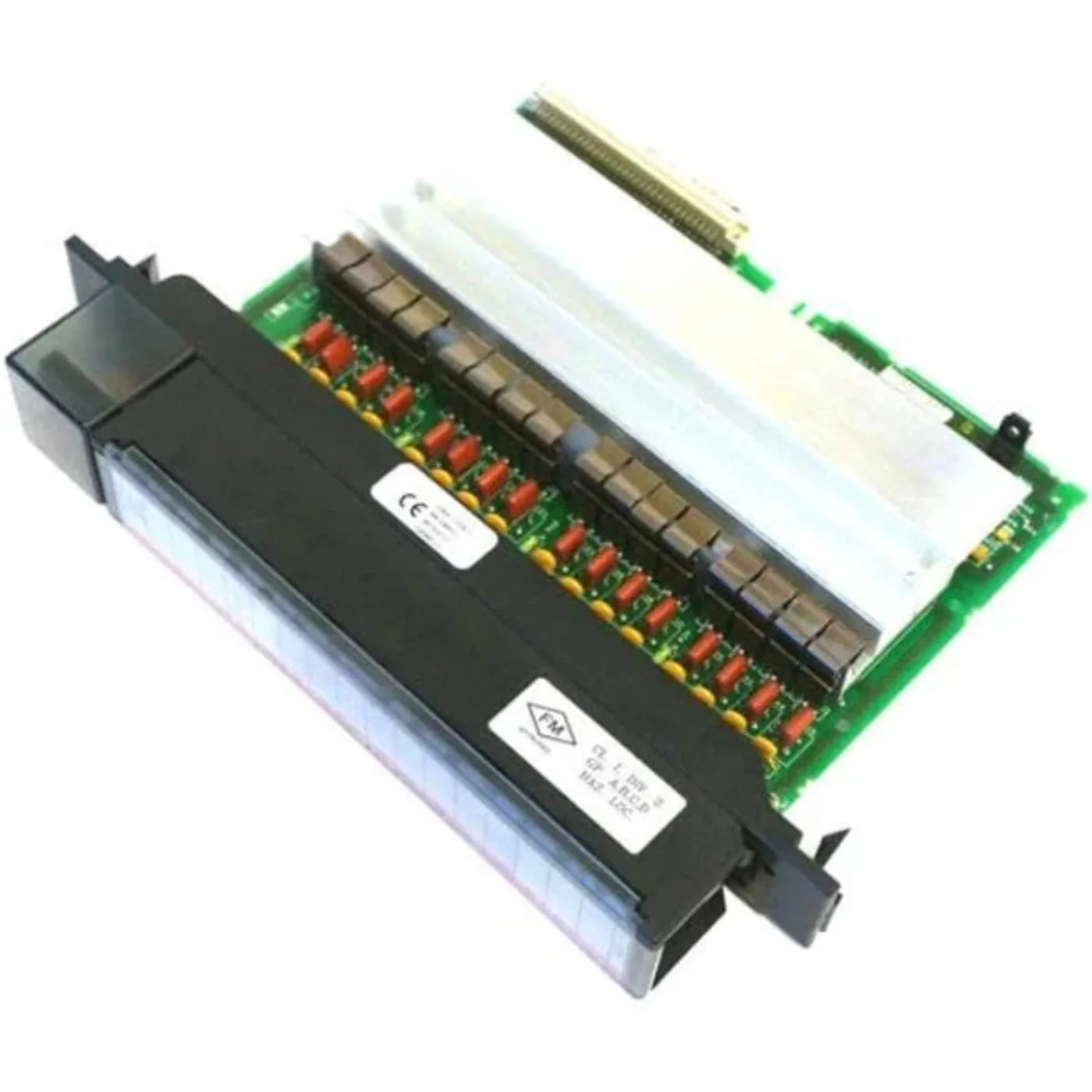

The IC697MDL340 is a 120 VAC 16-Point Output Module manufactured by GE for the Series 90-70. It features four isolated groups totaling 16 points, with a capacity of 2 amps per point and a 10x rated current high inrush capacity. This discrete output module allows the groups of points to be utilized on separate phases of the AC supply, with each of the four-output groups fused individually using a 10 amp fuse.
Designed to handle a high degree of inrush current, the IC697MDL340 module is suitable for various inductive and incandescent loads, including most size 4 contactors. LED indicators display the ON/OFF status of each point on the PLC side of the circuit, along with the status of the fuses grouped at the top of the module. The module is mechanically keyed for correct replacement with a similar type in the field, eliminating the need for DIP switches and jumpers for I/O references, which are user-configurable.
Information About IC697MDL340
The IC697MDL340 is a 120 VAC 16-Point Output Module manufactured by GE FANUC for the Series 90-70. It features four isolated groups, totaling 16 points, with a 2 amp capacity per point and a high inrush capacity rated at 10 times the nominal current. Designed for discrete output applications, it allows the groups of points to operate on separate phases of the AC supply. Each of the four output groups is individually fused with a 10 amp fuse.
This module delivers a high degree of inrush current, making it suitable for various inductive and incandescent loads, including most size 4 contactors. LED indicators display the ON/OFF status of each point on the PLC side, along with the status of the fuses, grouped at the module's top. Mechanically keyed, it ensures proper replacement with a similar type in the field. User-configurable I/O references eliminate the need for DIP switches and jumpers.
Compatible with solenoids, motor starters, and indicators, the module's 2-amp rating per point refers to the long-term capacity of each point. Heat dissipation within the module limits the maximum current capacity for each group of outputs to 4 amps. Each output is capable of transiently conducting a surge current greater than its long-term rating, dependent on the device's current rating and duty cycle. In certain conditions, the module can be programmer-configured, allowing output points to maintain their existing state or default to OFF.
