Description

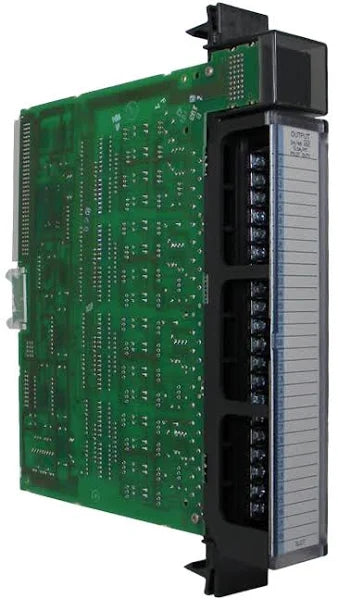

The IC697MDL350 is a 32-Point Discrete Output Module designed for use in the GE Fanuc Series 90-70 system. Operating at 120 VAC with a capacity of 0.5 Amps, this module features four isolated groups of 8 points each, totaling 32 points. It possesses a high inrush capacity of 20 times the rated current, making it suitable for various inductive and incandescent loads.
Each group of 8 points can be utilized on different phases of the AC supply, with individual outputs fused with a 5 Amp fuse. LED indicators display the ON-OFF status of each point and the status of the fuses, facilitating efficient monitoring. Mechanically keyed for proper replacement, the module allows users to configure I/O references without the need for jumpers or DIP switches.
Â
Technical Specifications
|
Part #
|
IC697MDL350
|
|
Manufacturer
|
FANUC
|
|
Brand
|
GE FANUC
|
|
Category
|
PLCs/Machine Control
|
|
Subcategory
|
PLC Module/Rack
|
|
Rated Voltage
|
120 volts AC
|
|
Outputs per Module
|
32 (four groups of 8 outputs each)
|
|
Isolation
|
1500 volts - any output to backplane
|
|
Output Voltage Range
|
85 to 132 volts, 47-63 Hz
|
|
Output Current
|
0.5 amps maximum per point
|
|
Inrush Current
|
10 amps maximum per point for one cycle (20 ms)
|
|
Output Voltage Drop
|
3 volts maximum
|
|
Response Time - On
|
1 ms maximum
|
|
Response Time - Off
|
1/2 cycle
|
|
Output Leakage
|
1.5 mA maximum
|
|
Current Required from 5V Bus
|
0.5 amp
|
|
VME
|
System designed to support the VME standard C.1
|
Â
Â
Information About IC697MDL350
The IC697MDL350 is a 120 VAC 0.5 Amp, 32-Point Discrete Output Module manufactured by GE Fanuc for the Series 90-70 system. It features four isolated groups of 8 points, totaling 32 points, each with a 0.5 amp capacity and a high inrush capacity of 20 times the rated current. This module allows each group of 8 points to operate on different phases of the AC supply, enhancing versatility in industrial applications.
Each group of outputs is fused with a 5 amp fuse and exhibits a high degree of inrush current, rendering the outputs suitable for a wide range of inductive and incandescent loads. LEDs indicate the ON-OFF status of each point on the PLC side of the circuits, with an additional LED confirming the status of the fuses located at the top of the module.
Mechanically keyed for proper replacement, the IC697MDL350 promotes correct installation with similar modules in the field. Users can configure I/O references without the need for jumpers or DIP switches. Configuration is accomplished through the MS-DOS or Windows programming software running on Windows 95 or Windows NT, accessible over Ethernet TCP/IP or through the SNP port.
The IC697MDL350 is compatible with various load devices, including solenoids, motor starters, and indicators. The 0.5 amp rating applies to the long-term current capacity of each point. However, due to heat dissipation within the module, the maximum current capacity for each group of outputs is limited at higher temperatures.
