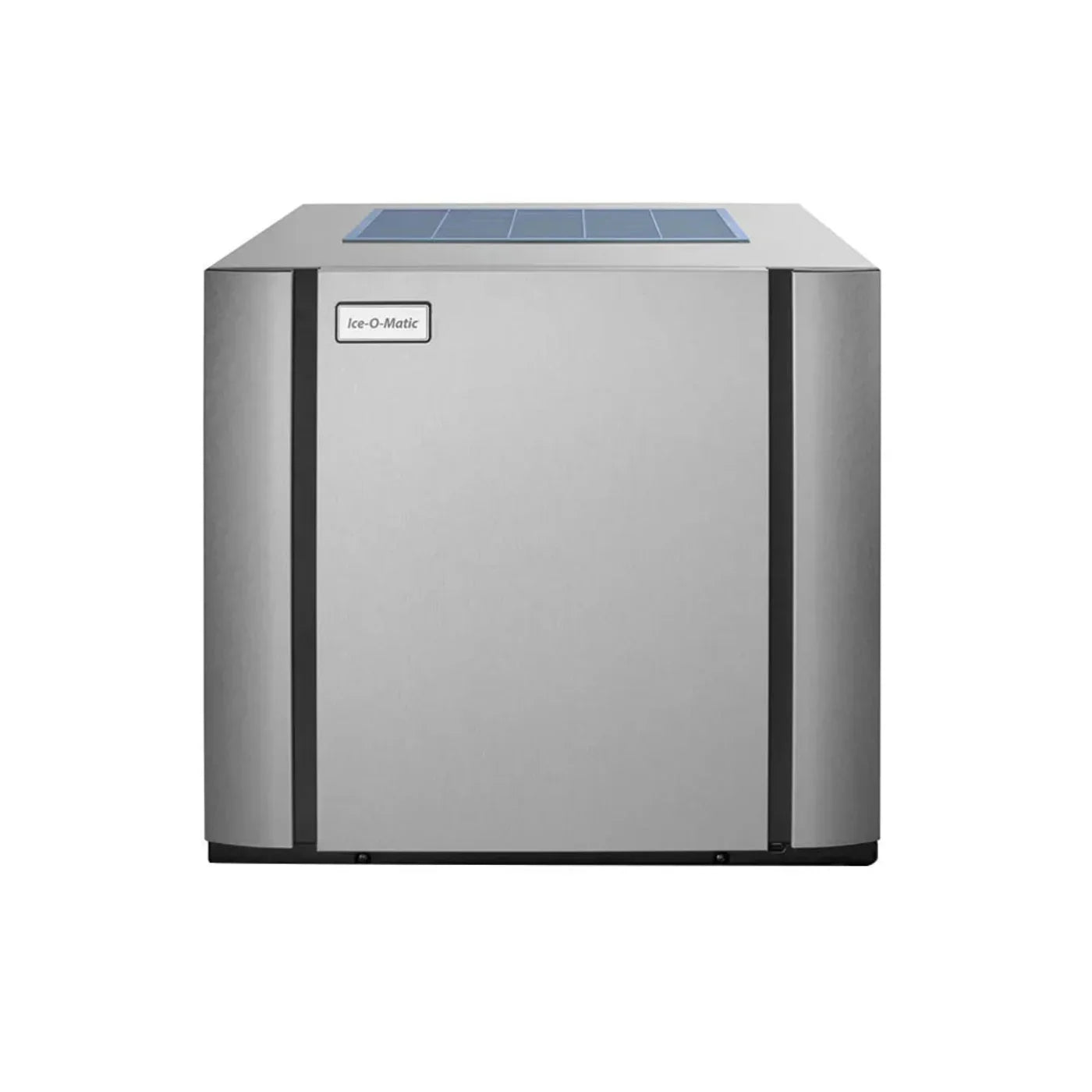

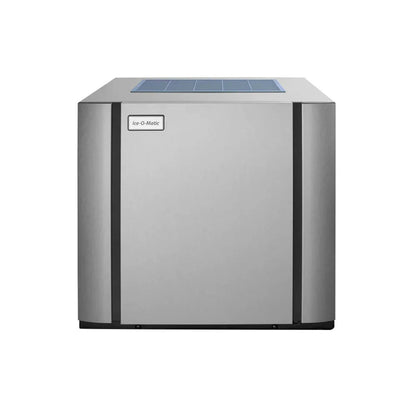

Ice-O-Matic 30.25" Elevation Series Remote Cooled Full Cube Ice Machine Head Without Storage Bin, 906 lb/24 hr, 208/230v/1ph - CIM0836FR

Ice-O-Matic 30.25" Elevation Series Remote Cooled Full Cube Ice Machine Head Without Storage Bin, 906 lb/24 hr, 208/230v/1ph - CIM0836FR

The Ice-O-Matic CIM0836FR is a robust and efficient ice machine head ideal for commercial environments requiring high daily ice production. Capable of producing up to 906 lbs. of full cube ice per day, it features a remote cooling system for quieter operation and greater energy efficiency. The machine includes dishwasher-safe components, 1-touch sanitizing, and Agion antimicrobial protection, making it easy to maintain and ensuring a high standard of cleanliness. This versatile model is designed for use with an external storage bin, offering flexibility and reliability in ice production.

Key Features

• Ice Production: Produces up to 906 lbs. of full cube ice per day.

• Storage Requirement: Designed for use with an external storage bin for flexible ice storage.

• Ice Type: Full size cubes, ideal for cooling beverages and high-quality presentation.

• Dimensions: Width: 30.25", Depth: 24.25", Height: 27" for efficient space utilization.

• Design: Dishwasher-safe water distribution tube and plastic foodzone parts for easy cleaning.

• Material and Features: Agion antimicrobial protection, providing hygiene benefits with every use.

• Condenser Type: Remote cooled, ensuring quiet operation and optimal performance.

• Electrical Data: 208-230V, 60 Hz, 1 Phase, hardwired for reliable functionality.

• Shipping Weight: 220 lbs per unit, designed for secure transport and installation.

What Our Experts Think

• High Daily Output: Produces up to 906 lbs of full-size cube ice per day (7/8" x 7/8" x 7/8"), ideal for medium to high-volume establishments.

• Remote Cooled System: Features a remote condenser with dual exhaust (top/side air discharge), reducing heat load in the environment and offering flexible installation options.

• Compact Design: Measures 30.25" W x 24.25" D x 26.9" H, fitting into spaces where larger units might not.

• User-Friendly Features: Equipped with one-touch sanitize and descaling controls, LED status display, and dishwasher-safe food zone components for easy maintenance.

• Antimicrobial Protection: Incorporates PURE ICE antimicrobial protection, inhibiting the growth of bacteria and mold.

• Energy Efficient: Designed to exceed energy regulations for ice machines, providing superior efficiency that helps reduce operational costs.

• Warranty Coverage: Offers a 3-year parts and labor warranty, with extended coverage on the evaporator and compressor when enrolled in the filter program.

Q&A

Q: What is the Ice-O-Matic CIM0836FR?
A: The CIM0836FR is a 30.25-inch Elevation Series remote-cooled full cube ice machine head designed for commercial use. It produces up to 906 pounds of full-size (7/8" x 7/8" x 7/8") ice per 24 hours at 70°F air and 50°F water conditions. At 90°F air and 70°F water, it produces approximately 793 pounds per day.

Q: What are the dimensions of the CIM0836FR?
A: The unit measures 30.25" W x 24.25" D x 26.9" H, making it suitable for various commercial settings.

Q: Is a storage bin included?
A: No, the CIM0836FR is an ice machine head only; a compatible storage bin must be purchased separately.

Q: What type of cooling system does it use?
A: The CIM0836FR utilizes a remote condenser system, which allows for flexible installation and optimal performance. It features a dual exhaust (top/side) for adaptable ventilation options.

Q: What type of ice does it produce?
A: It produces full-size cube ice, which is ideal for beverages and bagged ice applications due to its slow melt rate and large surface area.

Q: What are the electrical requirements?
A: The CIM0836FR operates on a 208-230 volt, 60 Hz, single-phase electrical connection, drawing approximately 12.3 amps.

Q: Is it energy-efficient and easy to maintain?
A: Yes, the unit is designed for energy efficiency and features PURE ICE antimicrobial protection, LED status display, one-touch sanitize/descaling controls, and dishwasher-safe food zone components for easy cleaning.

Maintenance Tips

• Descale and Sanitize Every 6 Months: Utilize the machine's one-touch cleaning and descaling controls to remove mineral buildup and microbial growth.

• Replace Water Filters Biannually: Ensures clean ice and protects internal components.

• Clean Remote Condenser Coils Quarterly: Use a soft brush or compressed air to maintain efficient airflow.

• Inspect Ice Production Regularly: Reduced output may indicate the need for maintenance or filter replacement.

• Clean External Surfaces Weekly: Wipe down with a mild detergent to prevent dust and debris accumulation.

• Schedule Annual Professional Maintenance: Have a certified technician perform comprehensive checks to ensure optimal performance.
