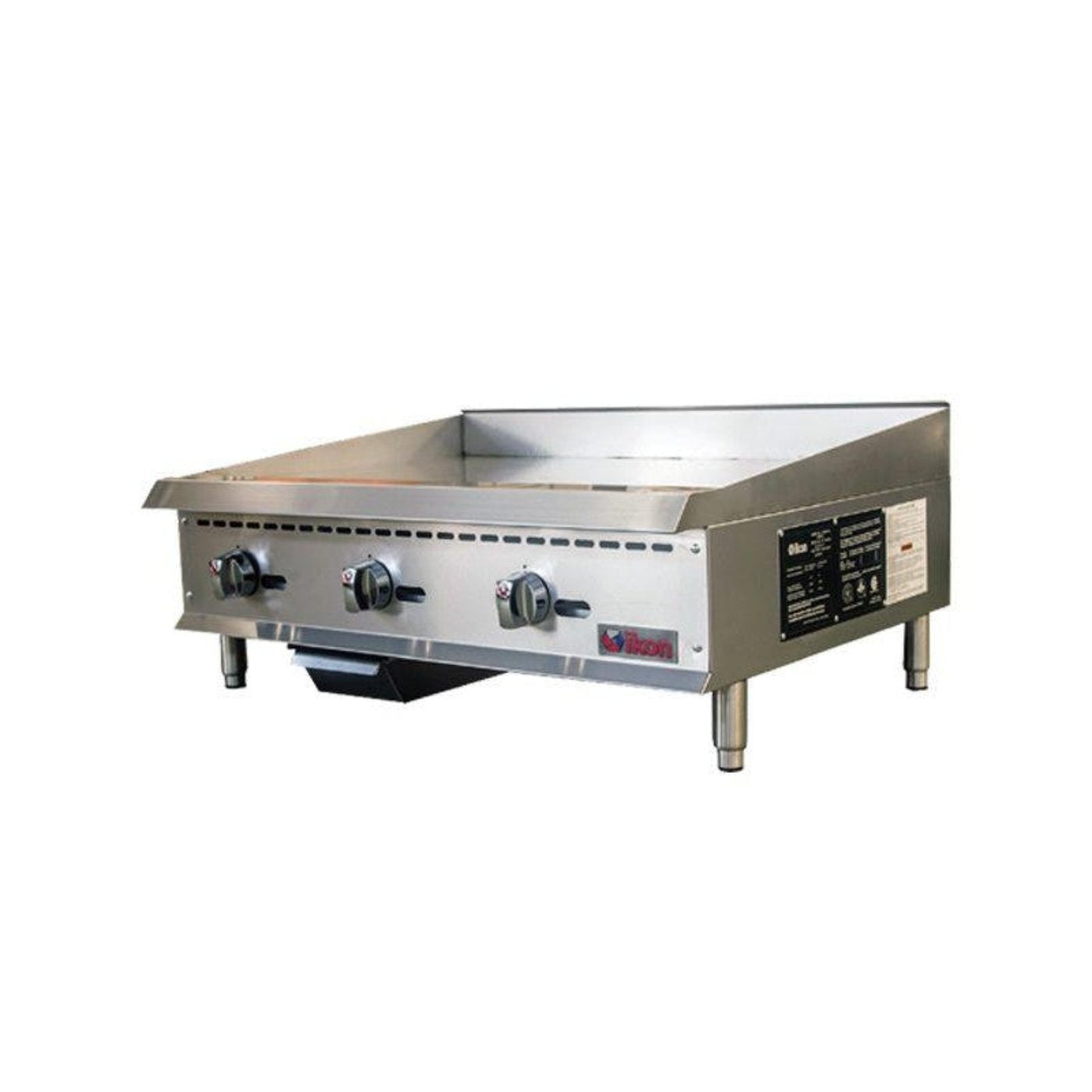

Ikon ITG-36 Thermostat Control Griddles
Ikon products can be found in every facet of the foodservice industry, hotels, restaurants, schools, government institutions, churches, pubs and golf courses. Our products are currently being used in Chicago like Subway restaurants worldwide, Burger King, as well as Marriott and Best Western Hotels to name a few. Ikon recognizes the necessity and urgency for after-sale service by establishing long-lasting and dedicated service agent partnerships throughout North America. Our authorized service partners are always within arm’s length ready to better serve our clients and their clients as well.
Features
-
The Ikon Thermostat Control Griddles are available in 24”, 36”, 48” & 60” widths, the continous 30,000 BTU output per burner provides
-
even heat to the 1” thick polished steel griddle plate
-
Adjustable manual gas controls provide easy and safe operations
-
“U” shape burners provide even heat distribution every 12”
-
1” griddle plate
-
30,000 BTU/ burner
-
Gas control knob every 12”
-
All stainless steel cabinet
-
Double wall insulated sides
-
Widths: 24”, 36”, 48”, & 60”
-
“Cool-to-the-touch” front s/s edge
-
Back and side splash guards fully welded to griddle plate
-
Flue located on back of unit for ample ventilation
-
Adjustable stainless steel legs, non-skid feet
-
Easy to remove 3-1/4” grease drawer with “weep hole” and baffle
-
Grease trough is standard 4” spatula width
-
Griddle is fully serviceable from the front
-
Available in Natural gas(NG) or Liquid propane(LP).
-
A conversion kit is supplied with each unit
Specifications
| Model: |
ITG-36 |
| Overall Dimensions: |
36.0”W x 34.4”D x 15.5”H (91.4cm x 87.3cm x 39.4cm) |
| Dimensions: |
40.6”W x 36.2”D x 19.3”H (103cm x 92cm x 49cm) |
| Footprint: |
35.5”W x 21.0”D (90.2cm x 53.4cm) |
| Weight: |
198 lbs (90kg) |
Product Manuals
