Fanuc Corporation | GE FANUC Rev D Input/Output Turbine Control System - IS220PTURH1A
The IS220PTURH1A Rev D Input/Output Turbine Control System, manufactured by GE for the Mark VI system, serves as a Primary Turbine Specific Primary Trip pack. It acts as an electrical interface between a turbine control terminal board and up to two Ethernet networks, facilitating outputs through a DC-62 pin connector linked to an associated terminal board.

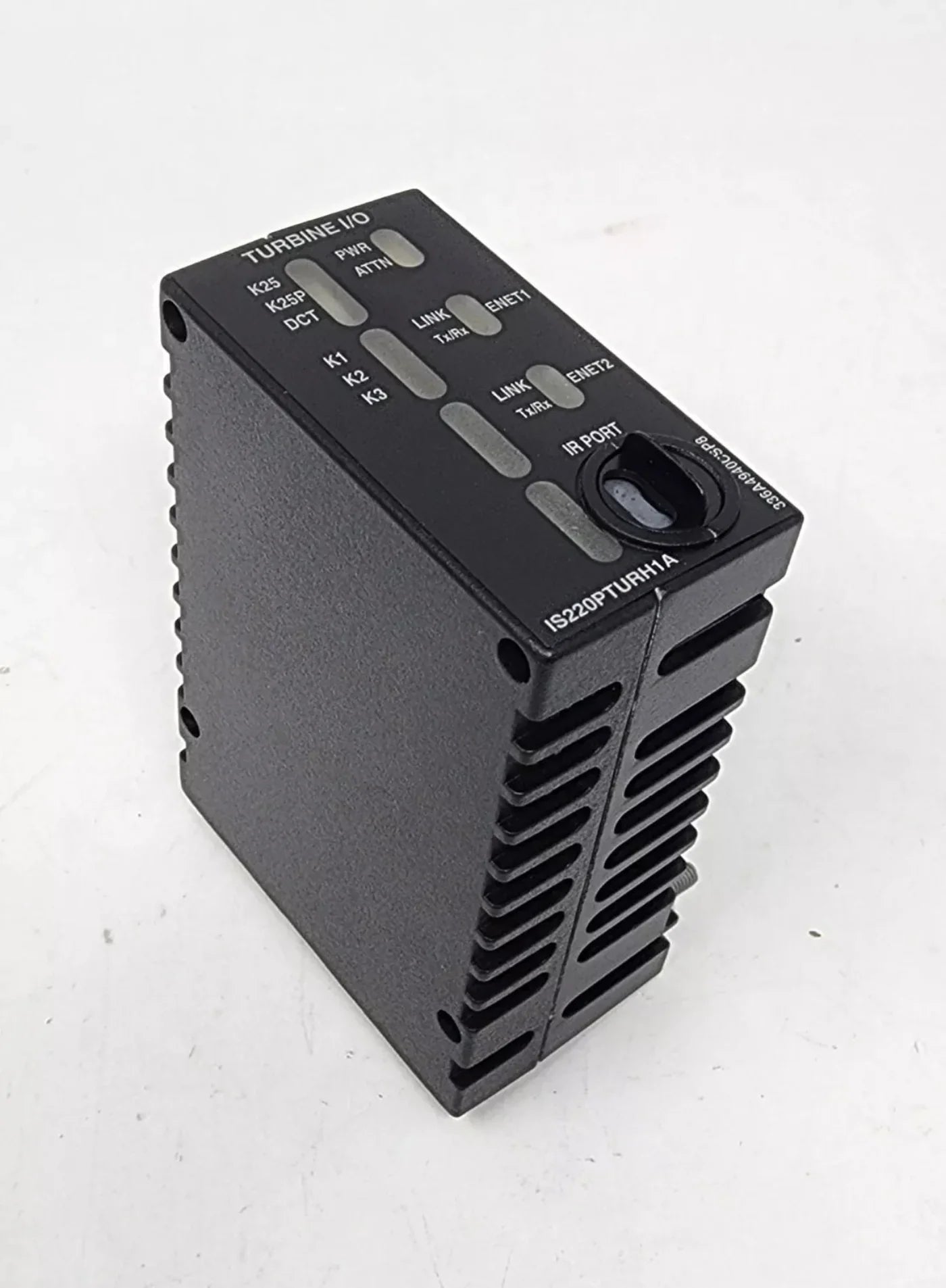

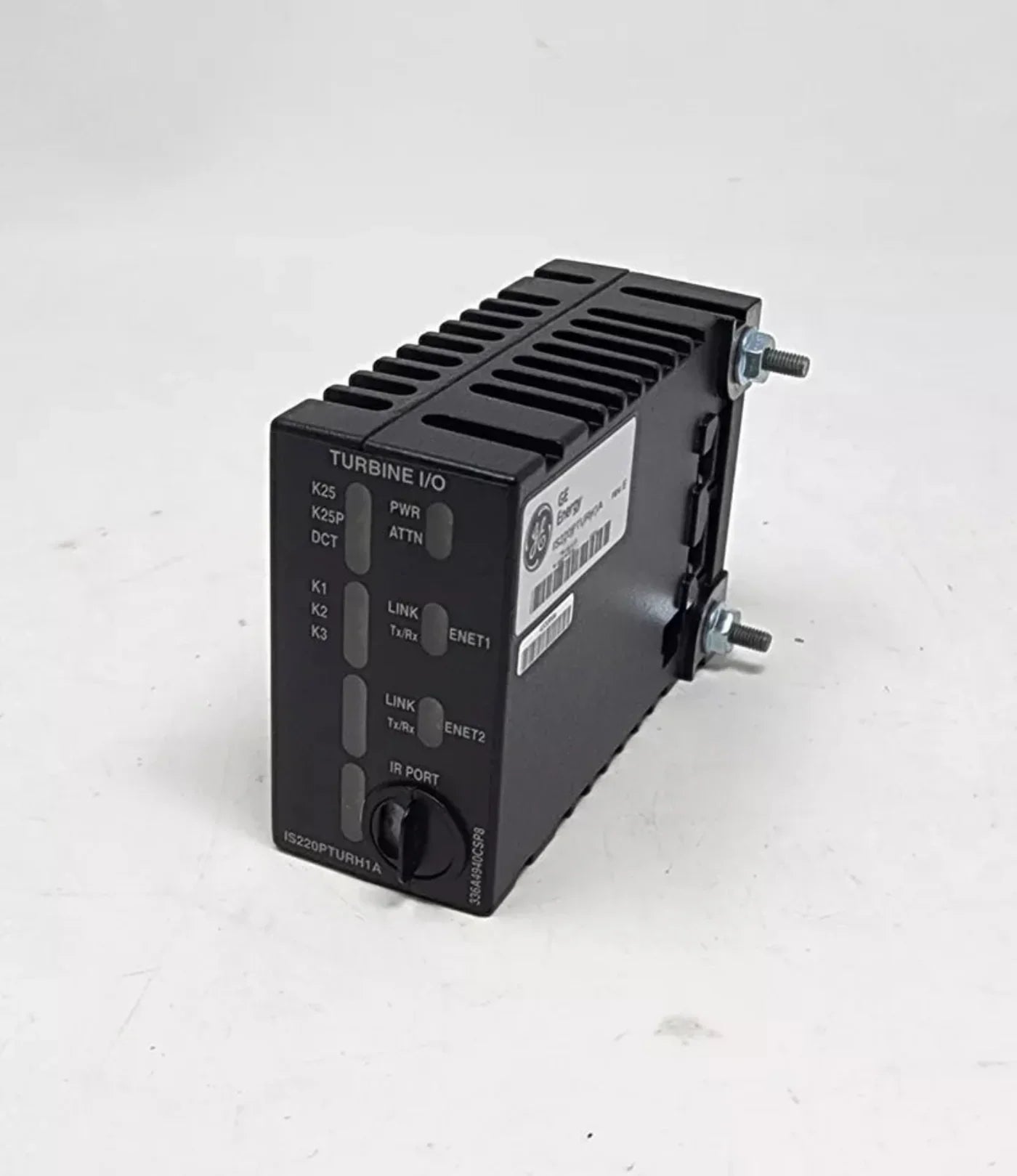

Encased in a ventilated black housing, the IS220PTURH1A features multiple LED indicators and an IR port, though the latter remains unused. Internally, it comprises a processor board, a dedicated turbine control board, and an analog acquisition auxiliary board. Installation involves mounting onto the TTURH1C terminal board.
The IS220PTURH1A - Rev D Input/Output Turbine Control System, manufactured by General Electric for the Mark VI gas/steam turbine management system, serves as a crucial component in turbine control operations. Designed as a Primary Turbine Specific Primary Trip pack, it facilitates electrical connectivity between a turbine control terminal board and up to two Ethernet networks. Output connections are managed through a DC-62 pin connector, linking to a designated terminal board for seamless integration within the system architecture.
Enclosed in a robust black casing featuring ventilation openings, the IS220PTURH1A includes front-facing LED indicators for operational status monitoring. An infrared (IR) port is present on the front panel, although it remains inactive in this specific model. Internally, the device houses a processor board alongside a dedicated turbine control board and an analog acquisition auxiliary board. Installation involves mounting onto the TTURH1C terminal board, ensuring secure and efficient placement.
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Specifications
Part Number |
IS220PTURH1A |
Manufacturer |
General Electric |
Series |
Mark VI |
Product Type |
Input/Output Turbine Control System |
Function |
Primary Turbine Specific Primary Trip Pack |
Interface |
Connects turbine control terminal board to one or two Ethernet networks |
Connector Type |
DC-62 pin connector |
Mounting |
TTURH1C terminal board |
Housing |
Black casing with air circulation openings |
Indicators |
Multiple LED indicators |
