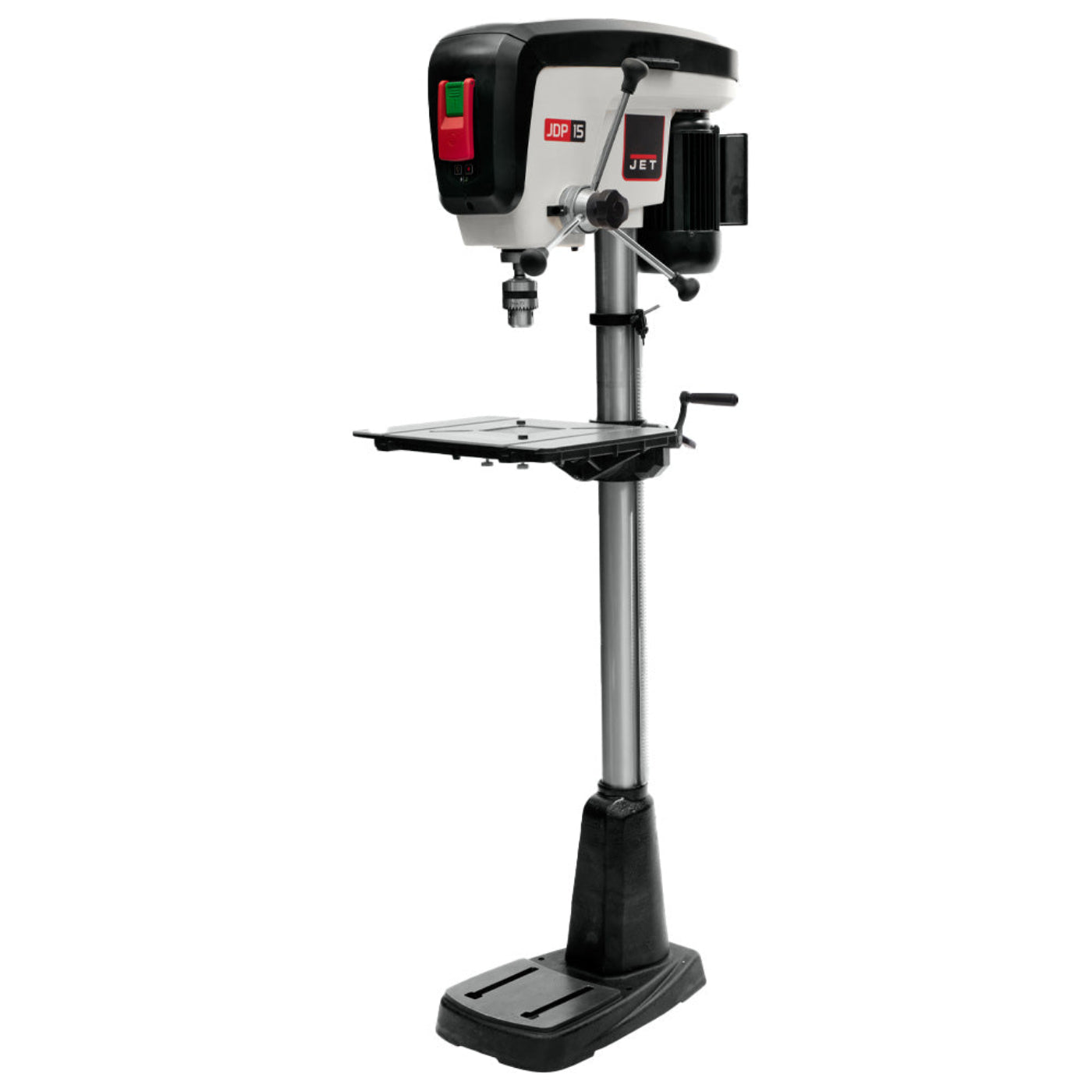

JET 15" Floorstanding Drill Press - JT9-716250

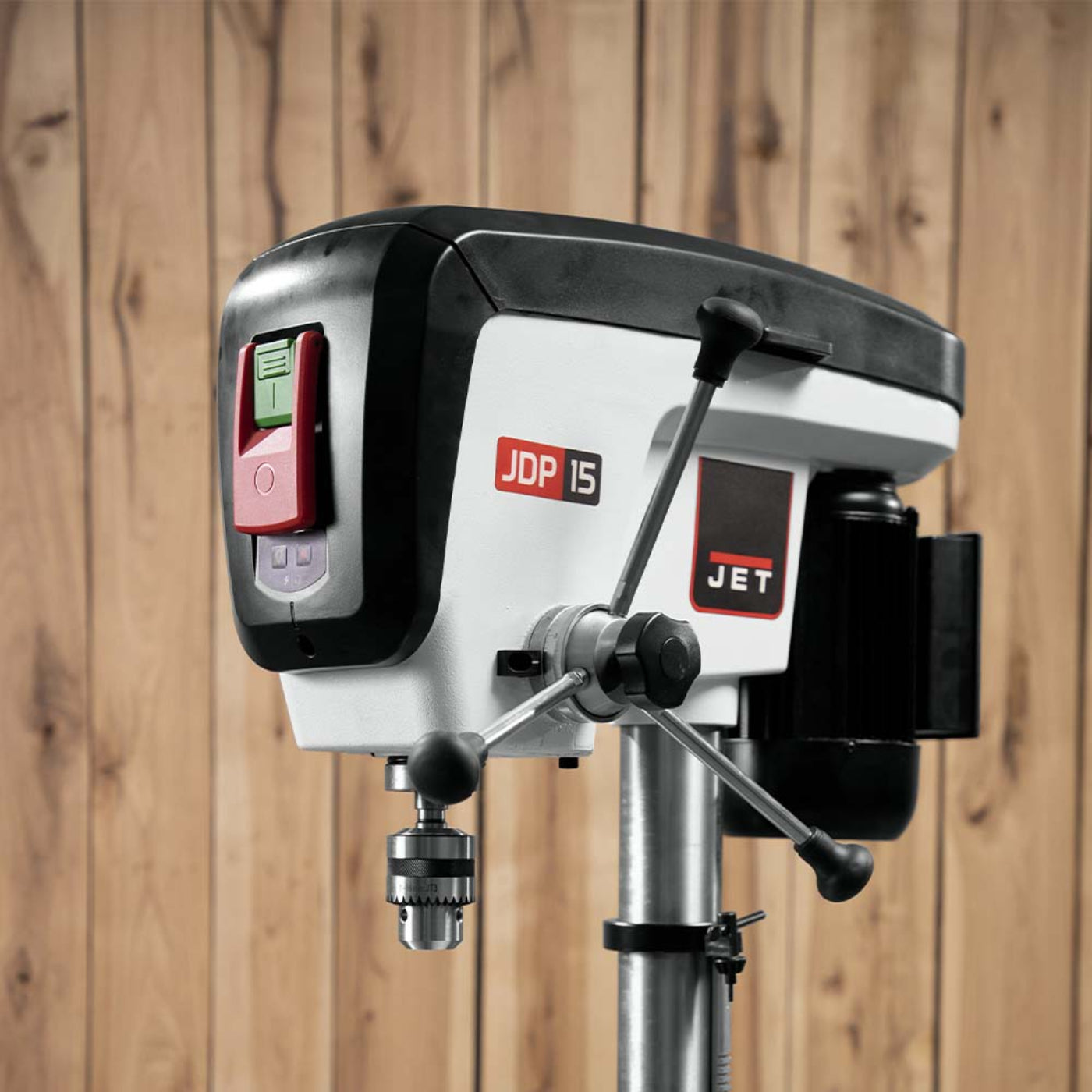

Introducing the JET JDP-15F 15" Floor Standing Drill Press. From a full 3-1/8" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. Another feature includes the one-handed belt-tensioning system and a large 12-1/2" x 17" work table which are all CSA Certified.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features

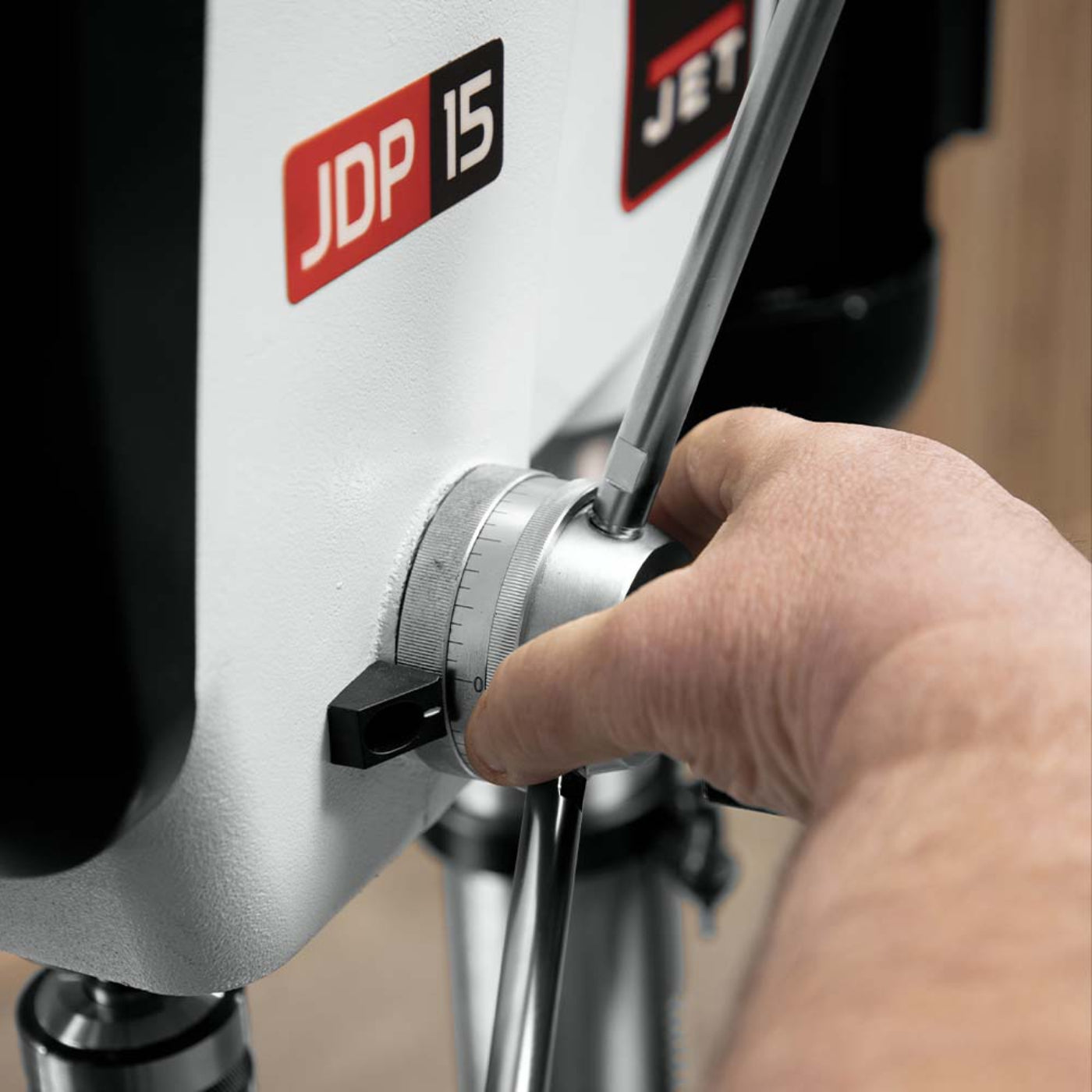

- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
- Replaceable MDF table insert
- Table edge lip designed to make clamping easy
- Xacta-X laser system easily identifies the drill center
Specifications
| Assembled Machine Dimensions (L × W × H) |
27" × 17" × 63-1/4" |
| Chuck Size |
5/8" |
| Column Diameter |
2-3/4" |
| Motor Power |
3/4 HP |
| Motor Voltage |
115 V |
| Number of Spindle Speeds |
16 |
| Spindle Distance to Base |
46-1/2" |
| Spindle Distance to Table (Max.) |
30-1/2" |
| Spindle Travel |
3-1/8" |
| Style (Type) |
Floor Standing Model |
| Swing |
15" |
| Table Size (L × W) |
12-1/2" × 17" |
| Weight |
172 lbs |
What our Experts Think
-
Versatile Speed Range: Offers 16 speeds from 210 to 3,500 RPM, accommodating a variety of materials and drilling applications.
-
Precision Drilling: Equipped with an Xacta-X laser system for accurate drill center alignment.
-
Enhanced Visibility: Built-in LED work light reduces shadows and improves cutting accuracy.
-
Sturdy Construction: Cast iron head and base provide stability and durability during operation.
-
User-Friendly Design: One-handed belt tensioning system allows easy speed changes, with a large paddle-style off button for safety.
-

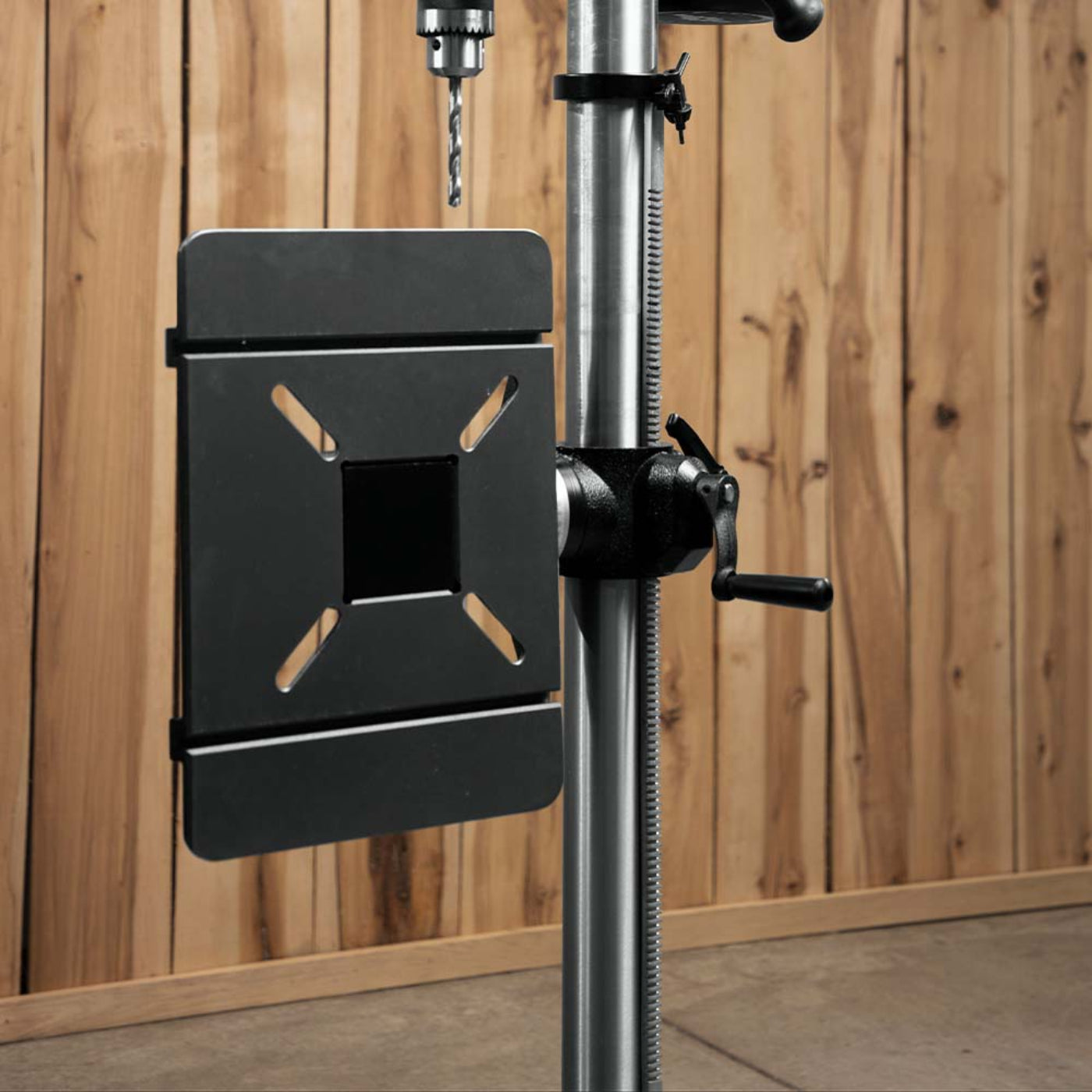

Ample Work Area: Precision ground 12-1/2" x 17" work table offers space for various projects.
-
Consistent Depth Control: Integrated depth stop allows for quick, repetitive drilling.
-
Powerful Motor: 3/4 HP, 1-phase TEFC motor delivers reliable performance.
-
Compact Footprint: Dimensions of 27" x 17" x 63-1/4" make it suitable for various workshop sizes.
-
Expert Verdict: A robust, precise, and versatile floorstanding drill press ideal for professional and hobbyist woodworkers.
Q&A
Q1: What type of machine is this?
A: The JET 15" Floorstanding Drill Press is a heavy-duty drill press designed for precise drilling in wood, metal, and other materials.
Q2: What is the motor specification?
A: Equipped with a robust motor (specifications vary by model) for reliable performance in demanding workshop environments.
Q3: What are the key features?
A: Features include adjustable spindle speeds, a tilting table, depth stop, and a large floorstanding base for stability.
Q4: What is the maximum drilling capacity?
A: Can handle large diameter drills up to 15 inches, depending on material type and drill bit size.
Q5: Is it suitable for professional use?
A: Yes, built for professional workshops, metalworking, and woodworking requiring accuracy and power.
Q6: Does it include safety features?
A: Yes, includes safety guards, emergency stop functionality, and a stable base to ensure operator safety.
Q7: What are the overall dimensions?
A: Designed as a floorstanding unit for heavy-duty applications; exact dimensions are provided in the product manual.
Maintenance Tips
-
Clean After Use: Remove dust, metal shavings, and debris from the table, chuck, and base.
-
Lubricate Moving Parts: Apply light machine oil to the spindle, quill, and feed handles to prevent wear and ensure smooth operation.
-
Check Belt and Pulleys: Inspect belts for wear and proper tension; adjust or replace as needed for consistent speed.
-
Inspect Chuck and Spindle: Ensure the chuck grips securely and the spindle runs true; tighten or service as necessary.
-
Electrical Safety: Confirm the 230V power supply is stable and cords are undamaged before use.
-
Store Properly: Keep the drill press in a dry, clean environment to prevent rust and prolong machine life
