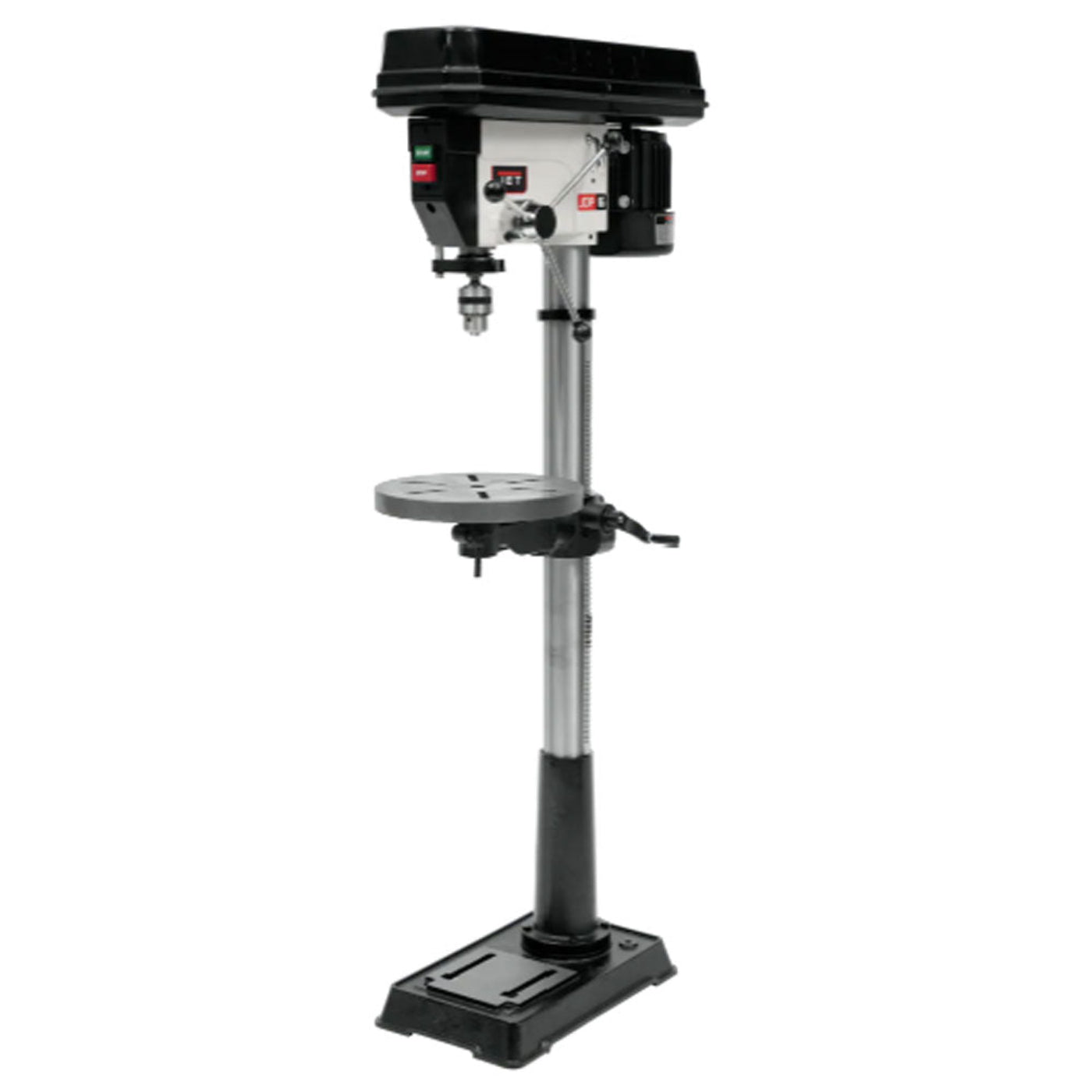

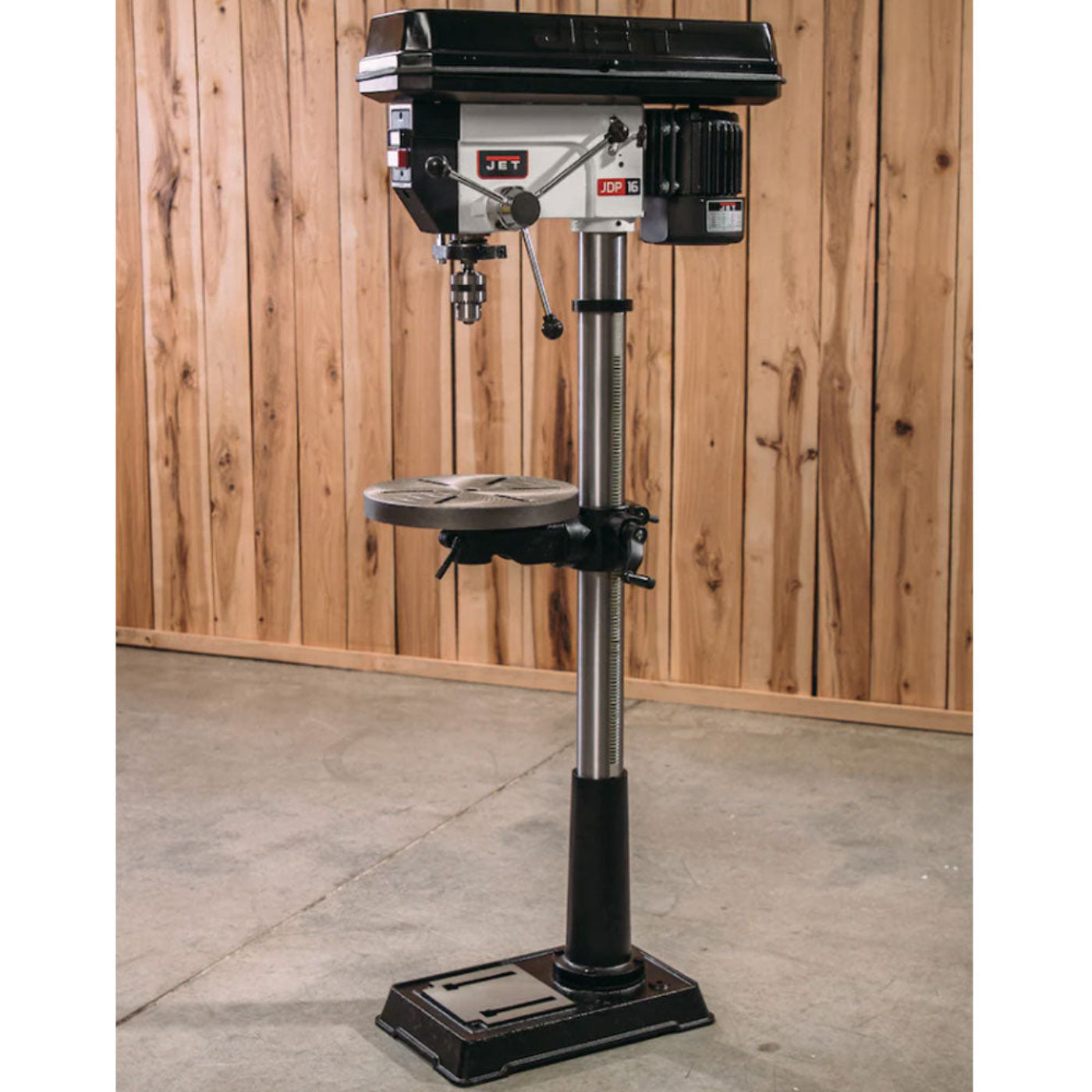

JET 16-1/2" Floor Standing Drill Press - JT9-354169
The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, work light, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features

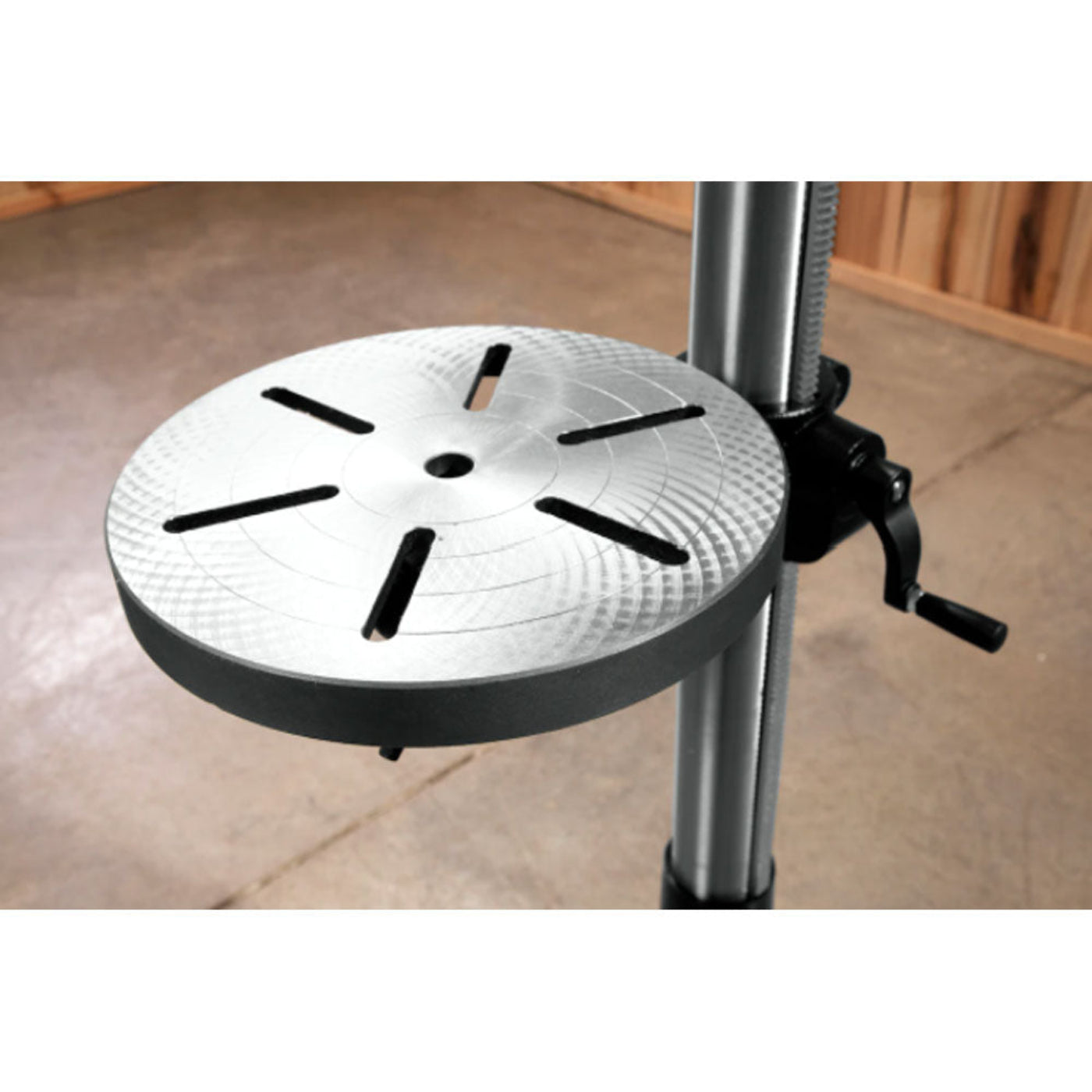

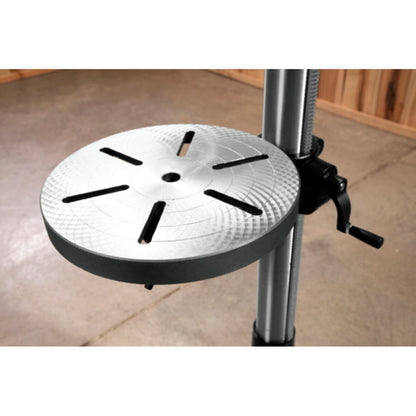

- X pattern mounting grooves in table allow mounting a fence when table is in reverse position
- 16 Speeds lets you choose the best speed for the job
- Adjustable tension spindle return spring
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
- Built-in work light (bulb not included) provides additional visibility of your work

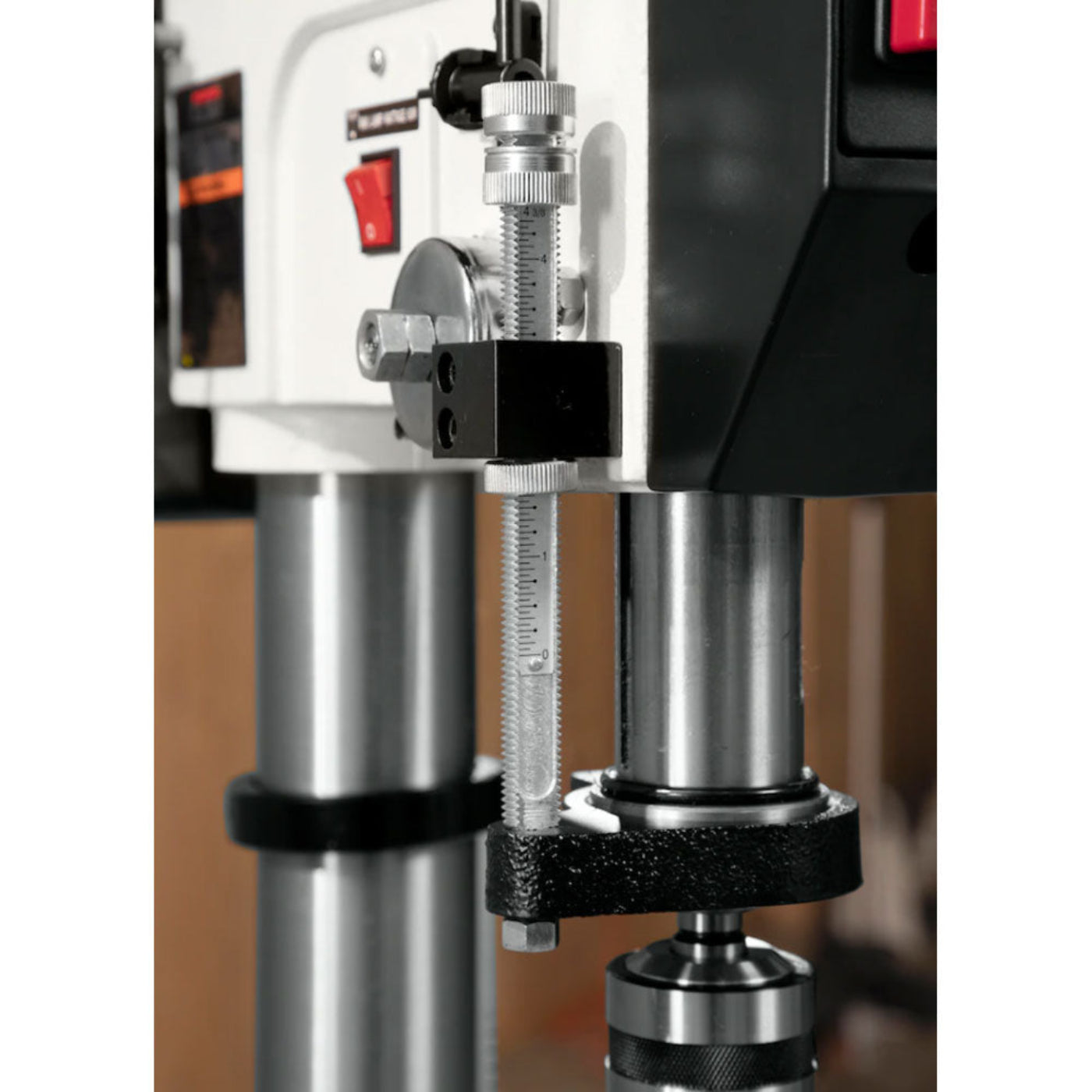

- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Hinged metal belt and pulley cover

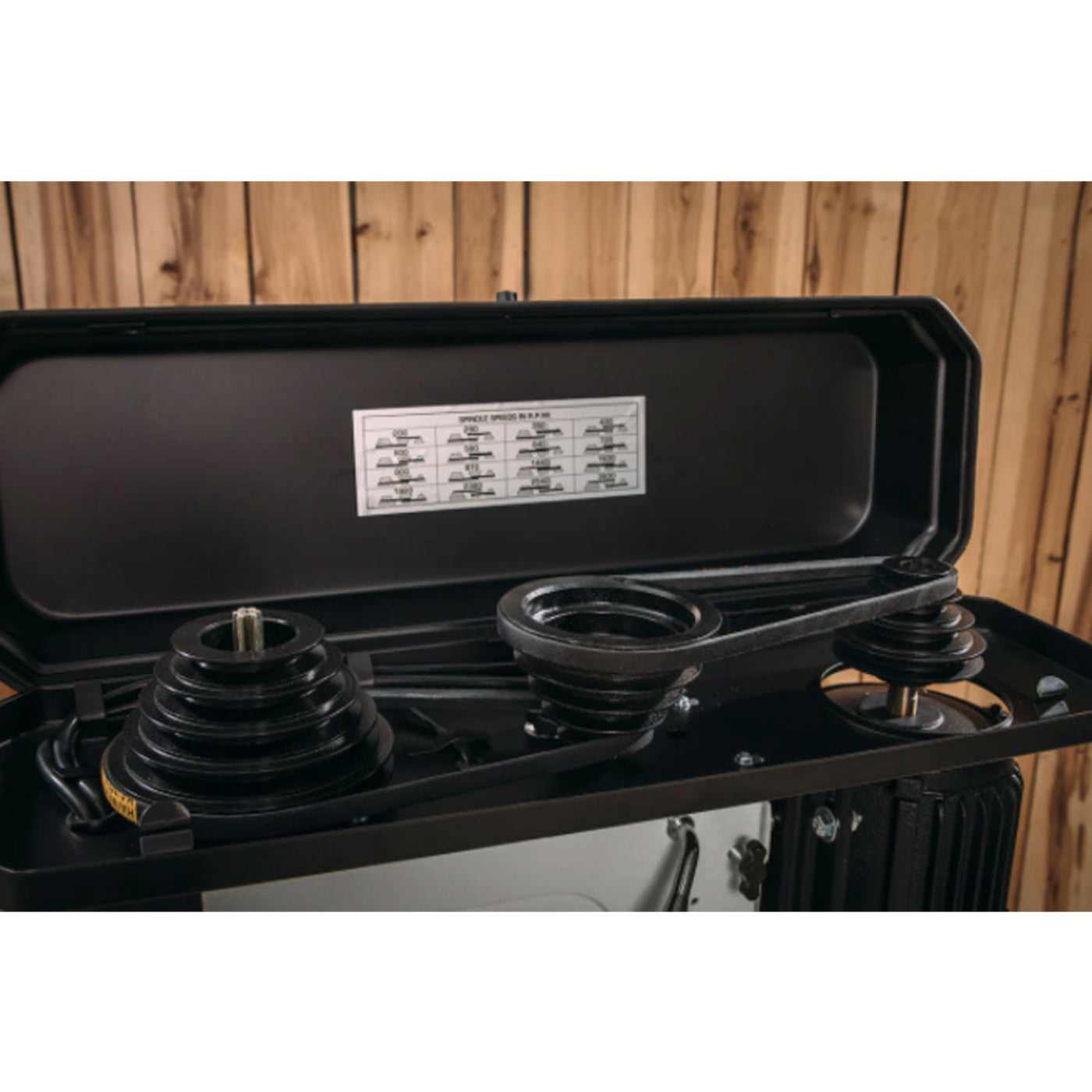

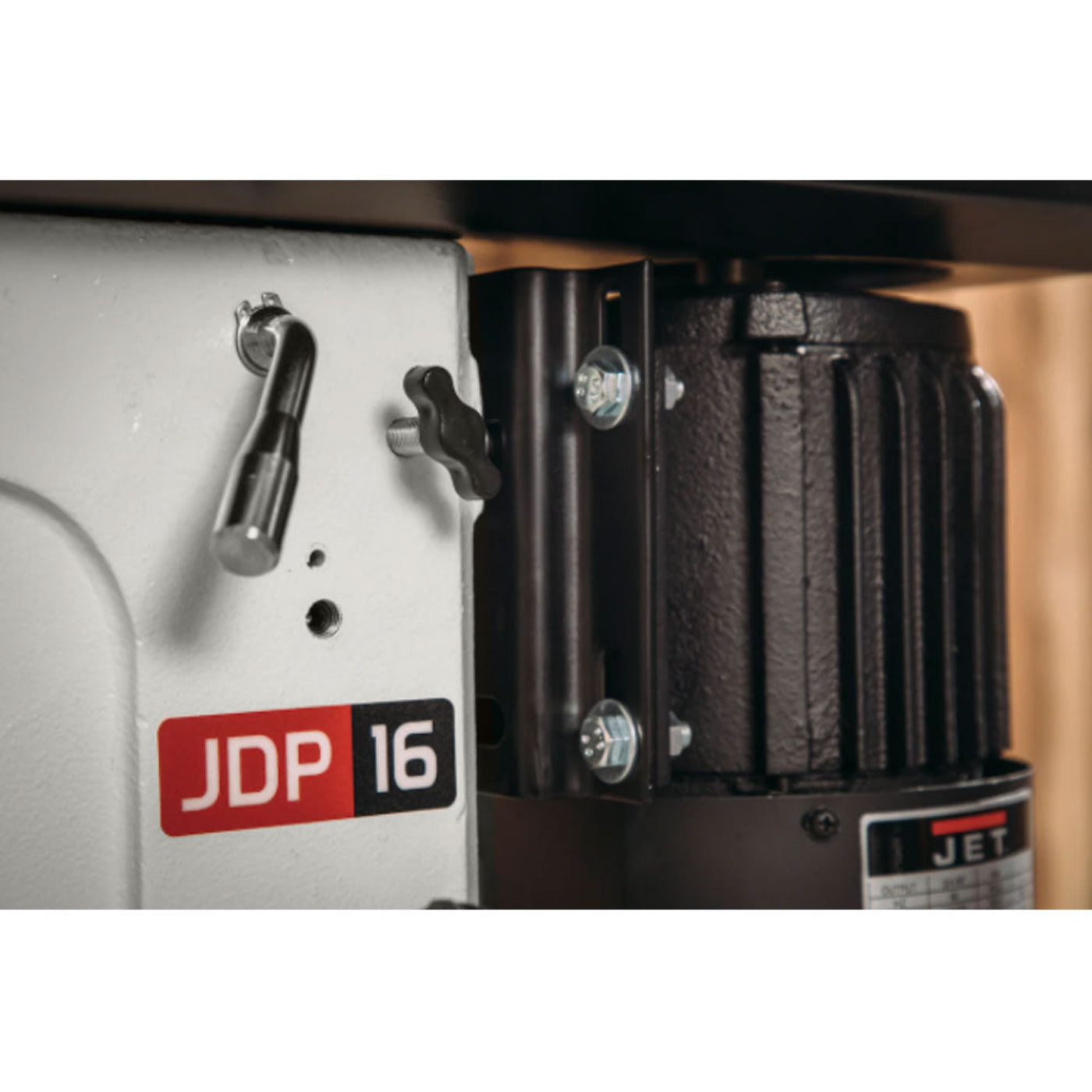

- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Spindle has high-quality ball bearing construction for long life
Specifications
| Swing |
16-1/2" |
| Spindle Travel |
4-3/8" |
| Style (Type) |
Floor Standing Model |
| Number of Spindle Speeds |
16 |
| Table Size (L × W) |
13-3/4" × — |
| Spindle Distance to Table (Max.) |
29-1/8" |
| Chuck Size |
5/8" |
| Motor Power |
3/4 HP |
| Column Diameter |
3-1/8" |
| Motor Amps |
9 / 4.5 |
| Net Weight |
189 lbs |
| Overall Height |
66" |
What our Experts Think
-
Robust Power: Heavy-duty motor delivers consistent drilling through metal, wood, and plastics.
-
Large Capacity: 16-1/2" swing and spacious worktable handle bigger projects with ease.
-
Precision Control: Adjustable speeds and depth stop ensure accurate, repeatable drilling.
-
Stable Design: Floor-standing base reduces vibration for cleaner, more precise holes.
-
User Convenience: Tilting table and easy-to-use controls improve versatility and workflow.
-
Built to Last: Rugged steel construction designed for heavy shop use.
-
Great Value: Combines industrial strength with affordability for serious hobbyists and pros.
Q&A
Q: What is the JET 16-1/2" Floor Standing Drill Press designed for?
A: Precision drilling in wood, metal, and plastic, suited for heavy-duty shop use.
Q: What are the key specs of this drill press?
A: Features a 16-1/2" swing and a powerful 3/4 HP motor.
Q: What speed ranges does it offer?
A: Multiple speeds adjustable from 250 to 3050 RPM for versatile drilling.
Q: Does it have a robust build?
A: Yes, it includes a heavy-duty cast iron base and column for stability.
Q: Is it suitable for professional workshops?
A: Absolutely, designed for serious hobbyists and professional use.
Maintenance Tips
-
Clean metal shavings and dust from the table, spindle, and base after each use.
-
Lubricate the quill, spindle, and feed mechanisms regularly for smooth drilling action.
-
Inspect and adjust belt tension monthly to ensure consistent speed and prevent slipping.
-
Check and tighten all bolts and fasteners periodically to maintain stability and safety.
-
Align the table and spindle to ensure accurate drilling angles and precision.
-
Inspect drive belts for wear or damage; replace if cracked or frayed.
-

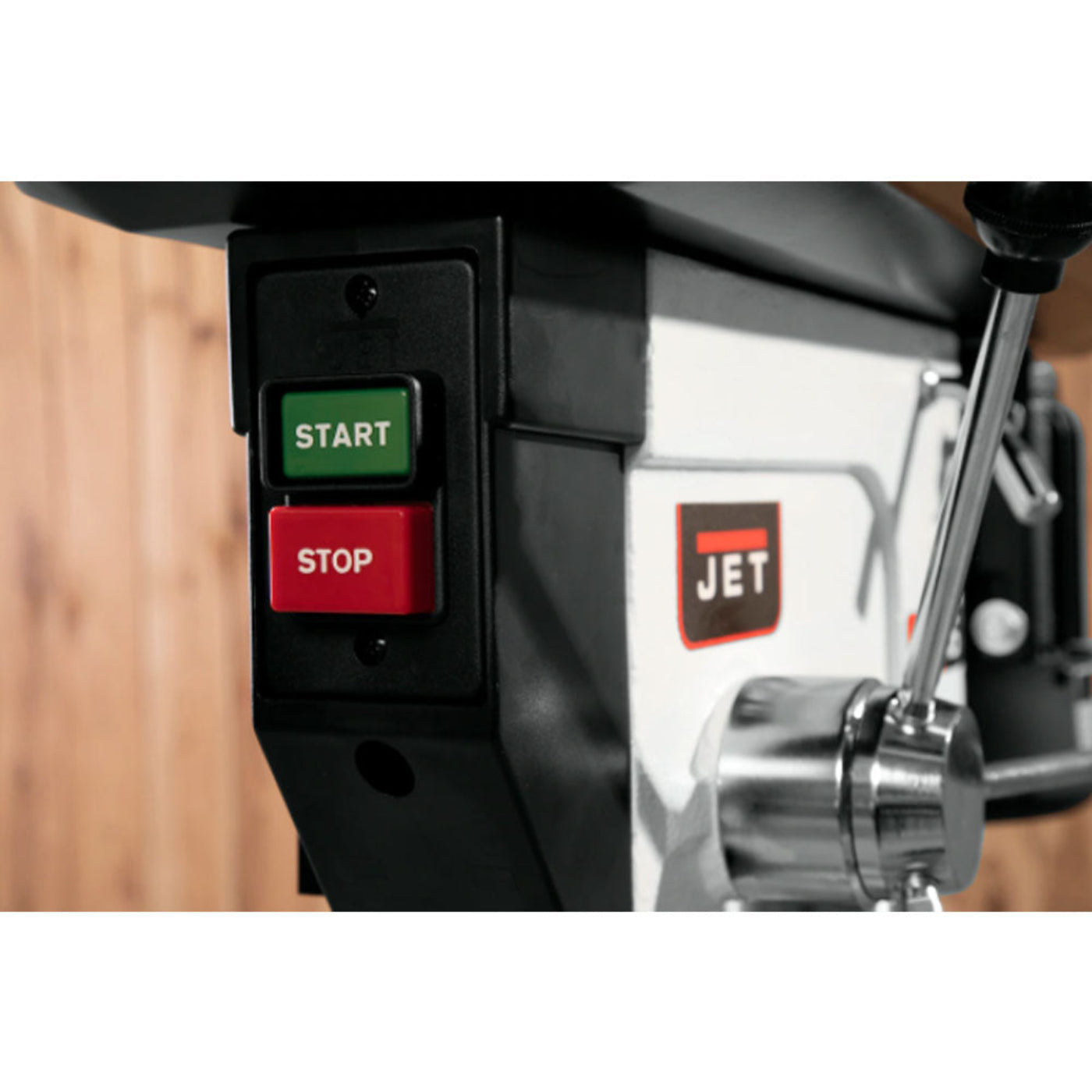

Verify electrical wiring and switch functionality before operation.
-
Use sharp, high-quality drill bits to reduce motor strain and improve cut quality.
-
Keep the motor vents clean and unobstructed to avoid overheating.
-
Store the drill press in a dry, clean area to prevent rust and corrosion.
