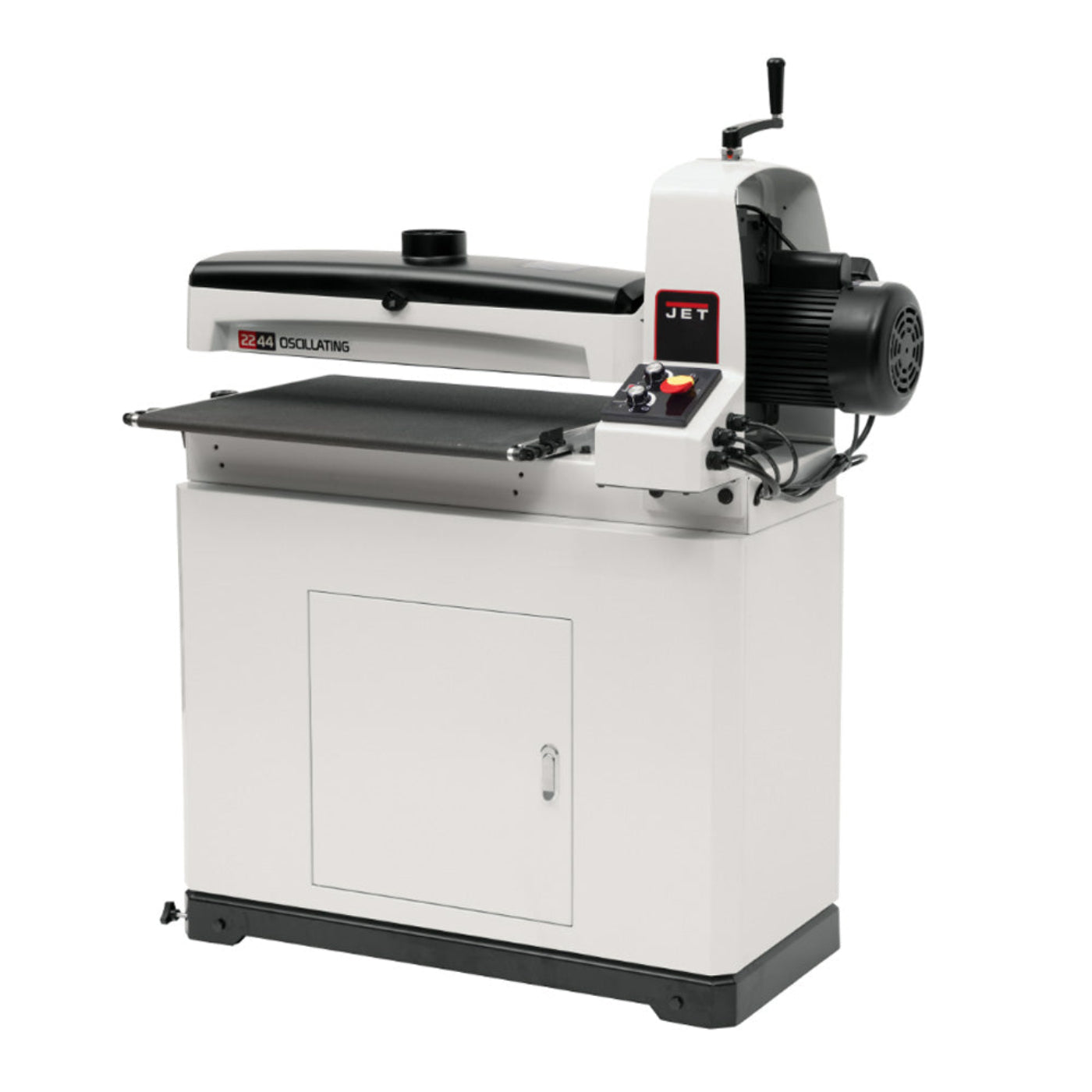

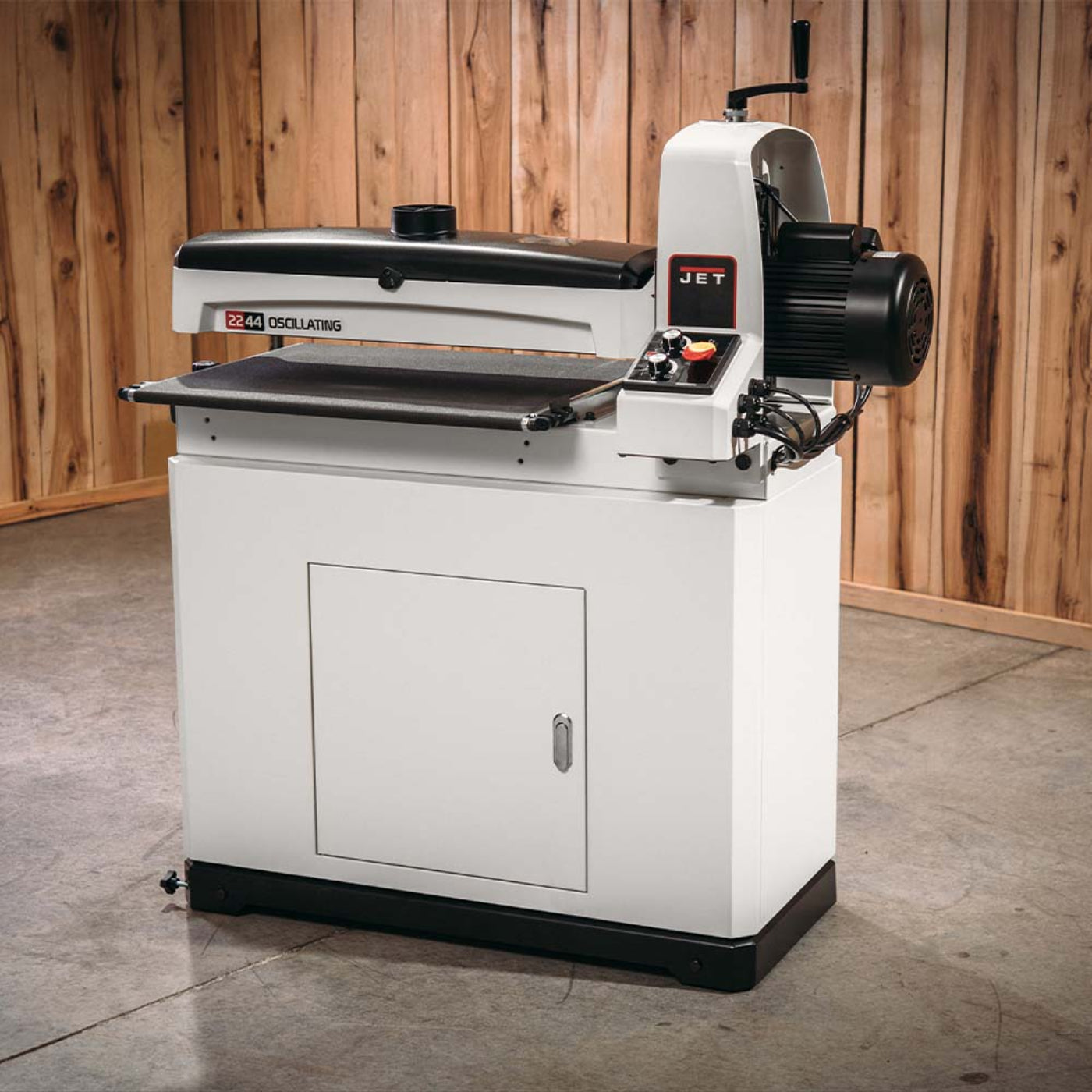

The re-designed 2244 Oscillating Drum Sander from JET has an exclusive oscillating feature that helps create the best sanding finish with the least amount of dust. When in the oscillating mode, the sanding drum head oscillates from left to right which lowers heat build-up on the sanding belt, reducing loading and burning.
The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The Sandsmart conveyer system continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JET 2244 Oscillating Drum Sander delivers everything you need for an effortless finish.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features
Exclusive variable speed oscillating drum moves from left to right, minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper

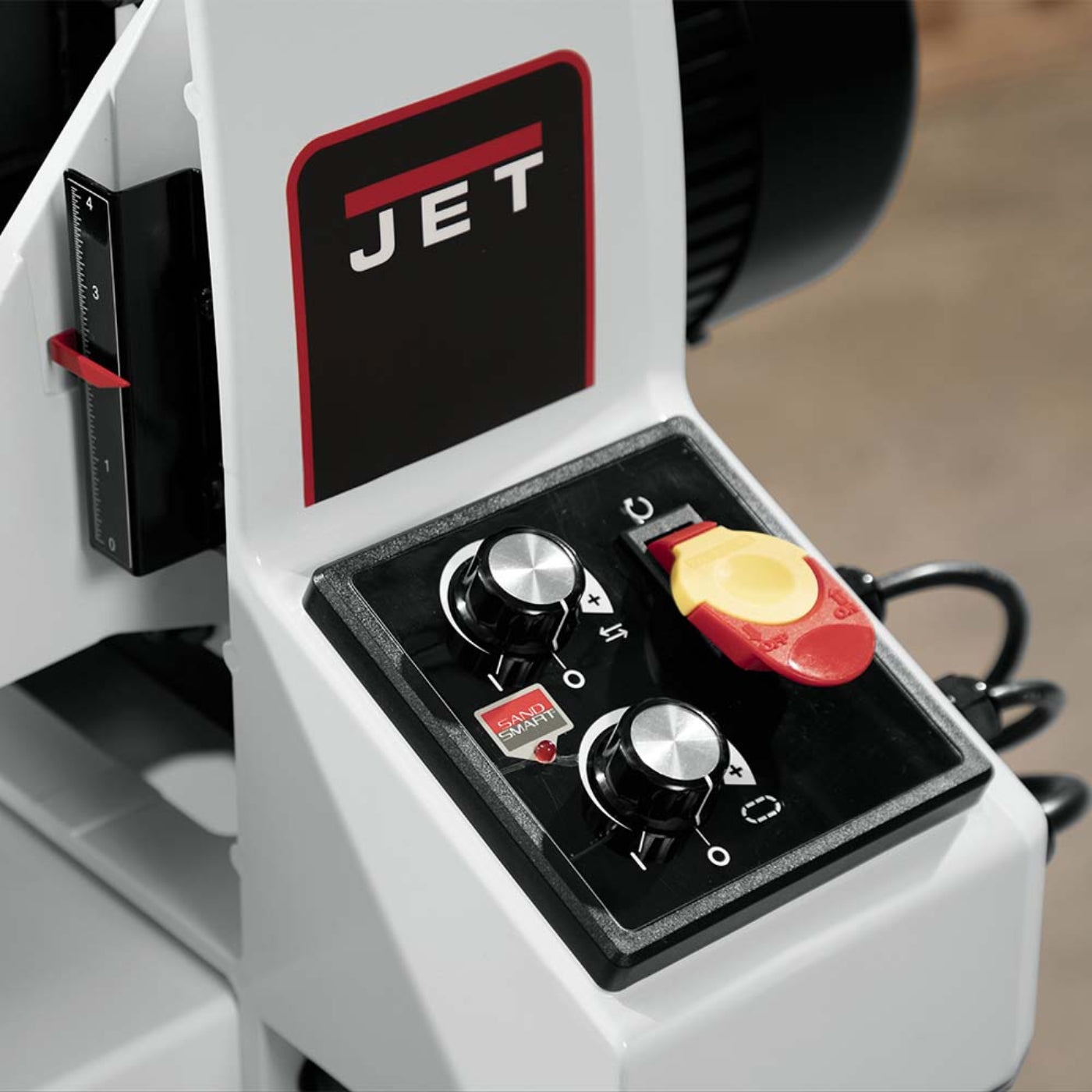

Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload

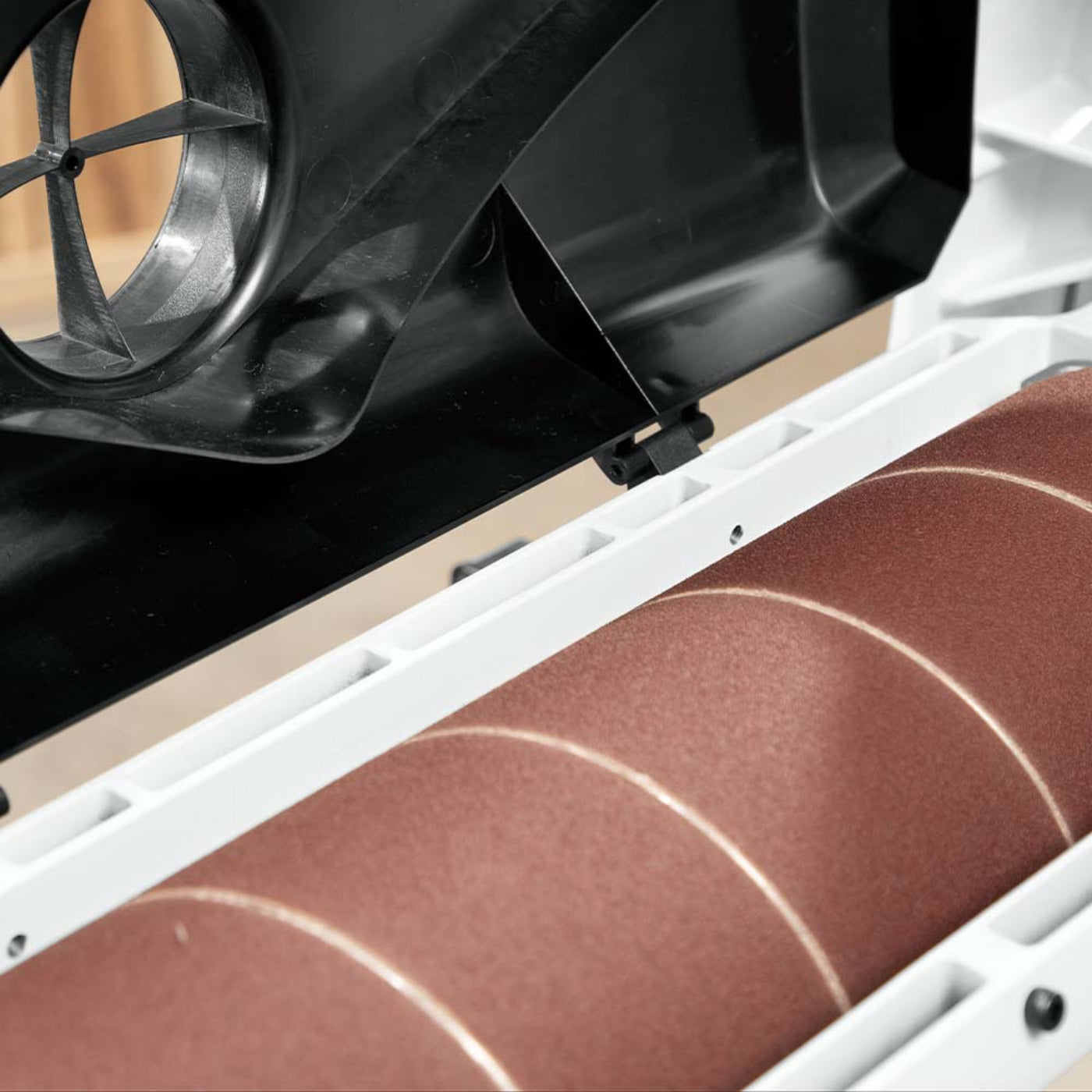

Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4" collection port
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
Redesigned conveyor system pulls the workpiece through the sander instead of pushing

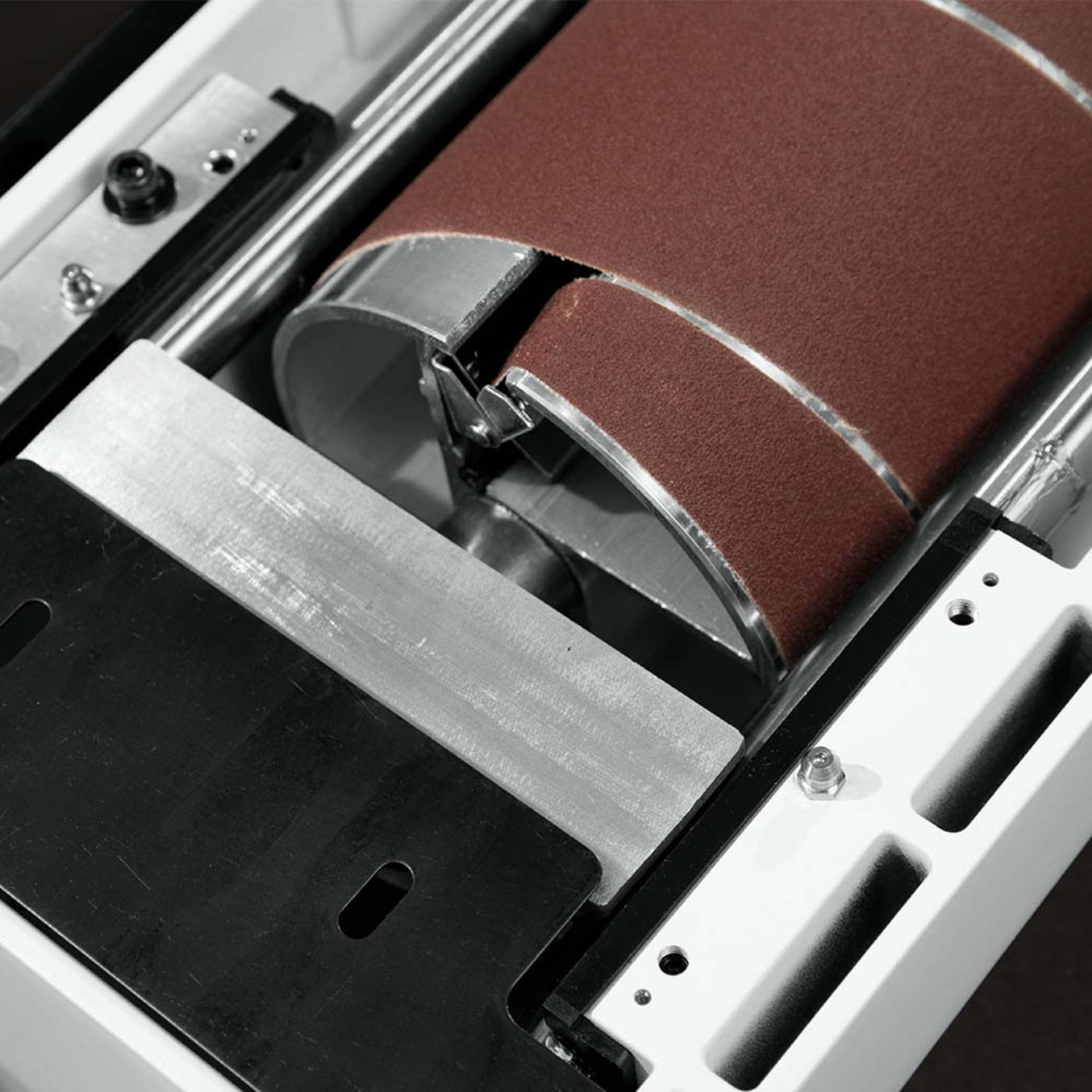

The precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4" of oscillating stroke
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Tool-less abrasive take-up clips make changing abrasives quick and easy
Mobile cabinet features a heavy-duty 45" x 24" footprint to increase stability and has a door to keep items stored securely
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
One rotation of the top-position handwheel adjusts the drum height by 1/16"
Specifications
Drum Diameter
5"
Dust Port Outside Diameter
4"
Maximum Board Thickness
4"
Minimum Board Thickness
1/32"
Minimum Board Length
2-3/8"
Motor Power
1-3/4 HP
Motor Amps
15 A
Recommended Circuit Size
20 A
Weight
216 lbs
Video
What our Experts Think
Oscillating Action: Reduces heat buildup and sanding marks for smoother, more consistent finishes.
Large Capacity: 22" wide drum and 44" table support big panels and wide boards.
Powerful Motor: Heavy-duty motor delivers steady sanding performance for demanding jobs.
Durable Construction: Sturdy steel frame minimizes vibration for better accuracy.
Dust Collection Ready: Built-in port helps maintain a clean, safe workspace.
JET Quality: Trusted for reliability and long-term shop use.
Q&A
Q: What is the JET JWDS-2244OSC Oscillating Drum Sander used for? A: It’s designed for precision sanding of large wood panels, doors, and other flat surfaces.
Q: What are its sanding dimensions? A: Supports sanding up to 22" wide and 44" long workpieces.
Q: What motor powers the sander? A: Features a 3 HP motor for powerful and consistent sanding.
Q: What does the oscillating feature do? A: Moves the drum back and forth to prevent sanding marks and extend abrasive life.
Q: Is it suitable for professional woodworking shops? A: Yes, ideal for high-volume sanding and finishing tasks.
Maintenance Tips
Clean dust and debris from the drum, conveyor belt, and dust ports after every use.
Inspect sanding sleeves regularly; replace when worn or damaged to maintain smooth sanding.
Lubricate conveyor rollers and bearings monthly for consistent operation.
Check and adjust conveyor belt tension and tracking to prevent slippage or misalignment.
Clear dust collection system and hoses to ensure optimal airflow and suction.
Tighten all fasteners and bolts regularly to reduce vibration and maintain machine stability.
Keep motor vents clean and unobstructed to prevent overheating.
Store in a dry, dust-free environment to avoid corrosion and extend machine life.
Use manufacturer-recommended sanding sleeves for best results and longevity.
Perform routine inspections on electrical components for safety and reliability.
