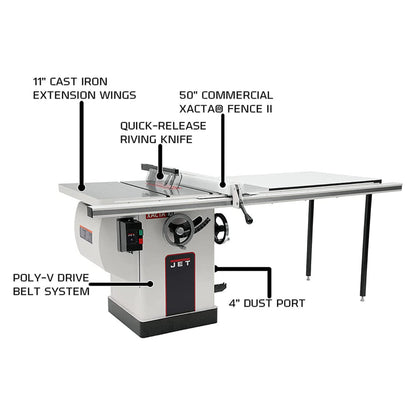

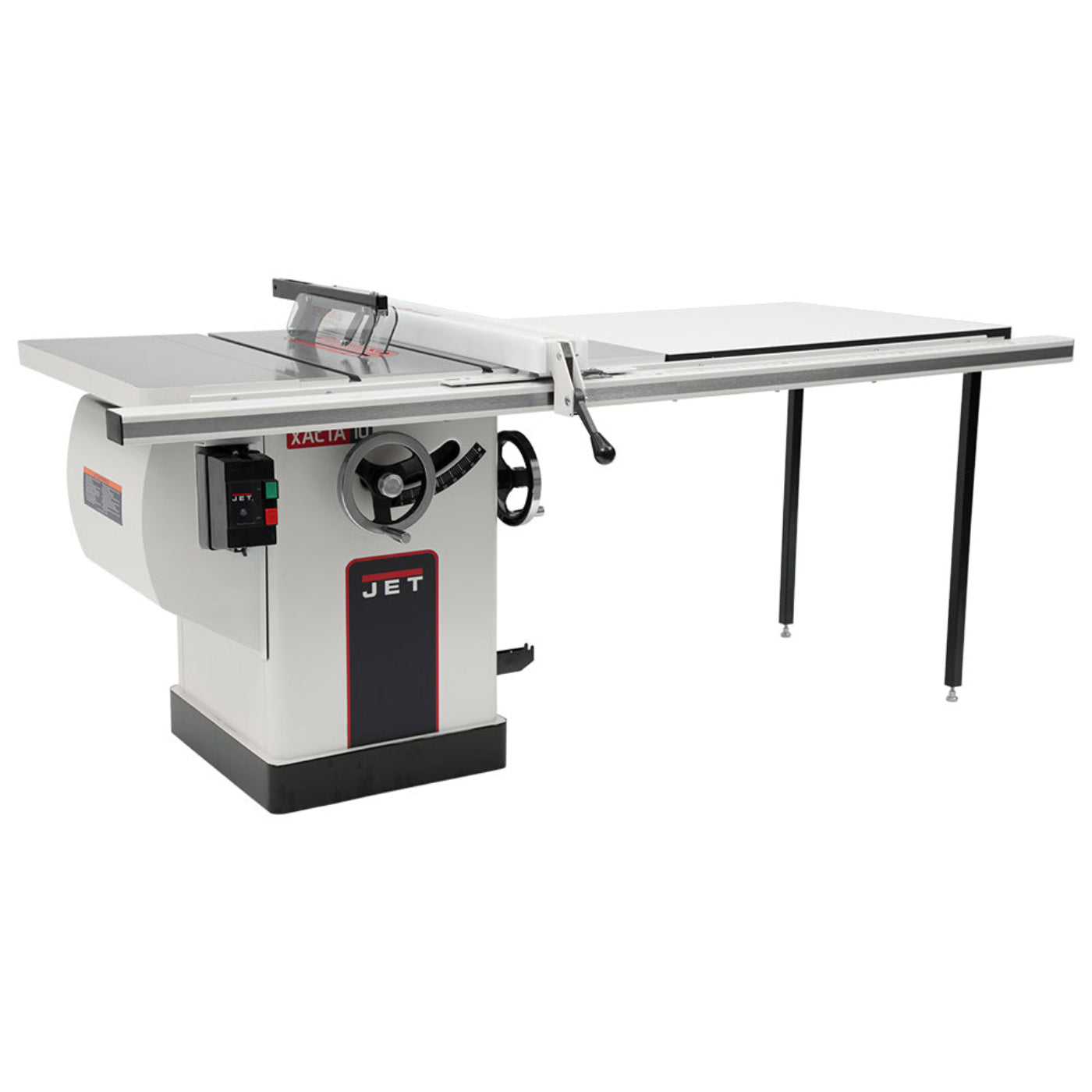

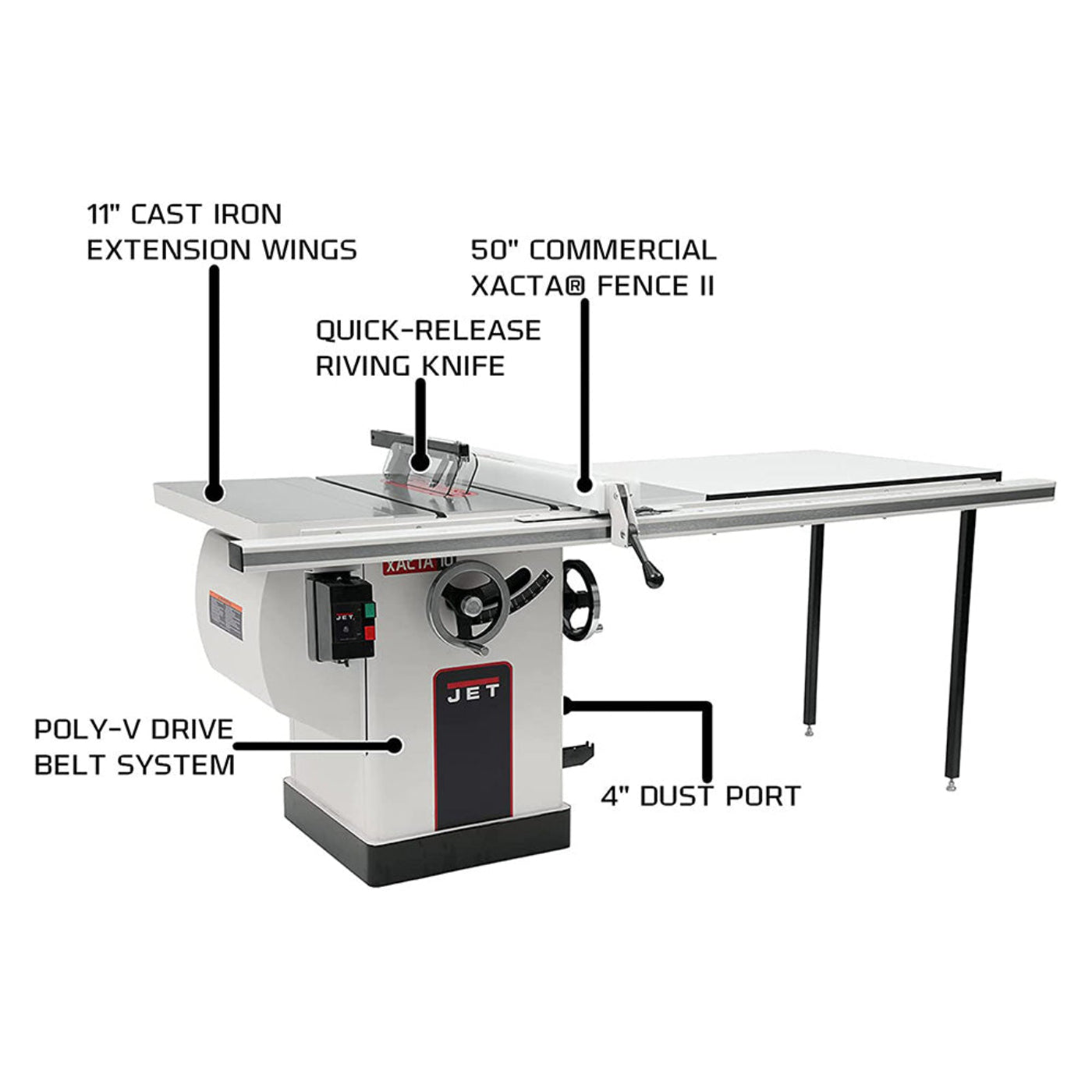

JET Deluxe XACTA Table Saw 50" Rip 3hp, 1-PH, 230V - JT9-708675PK

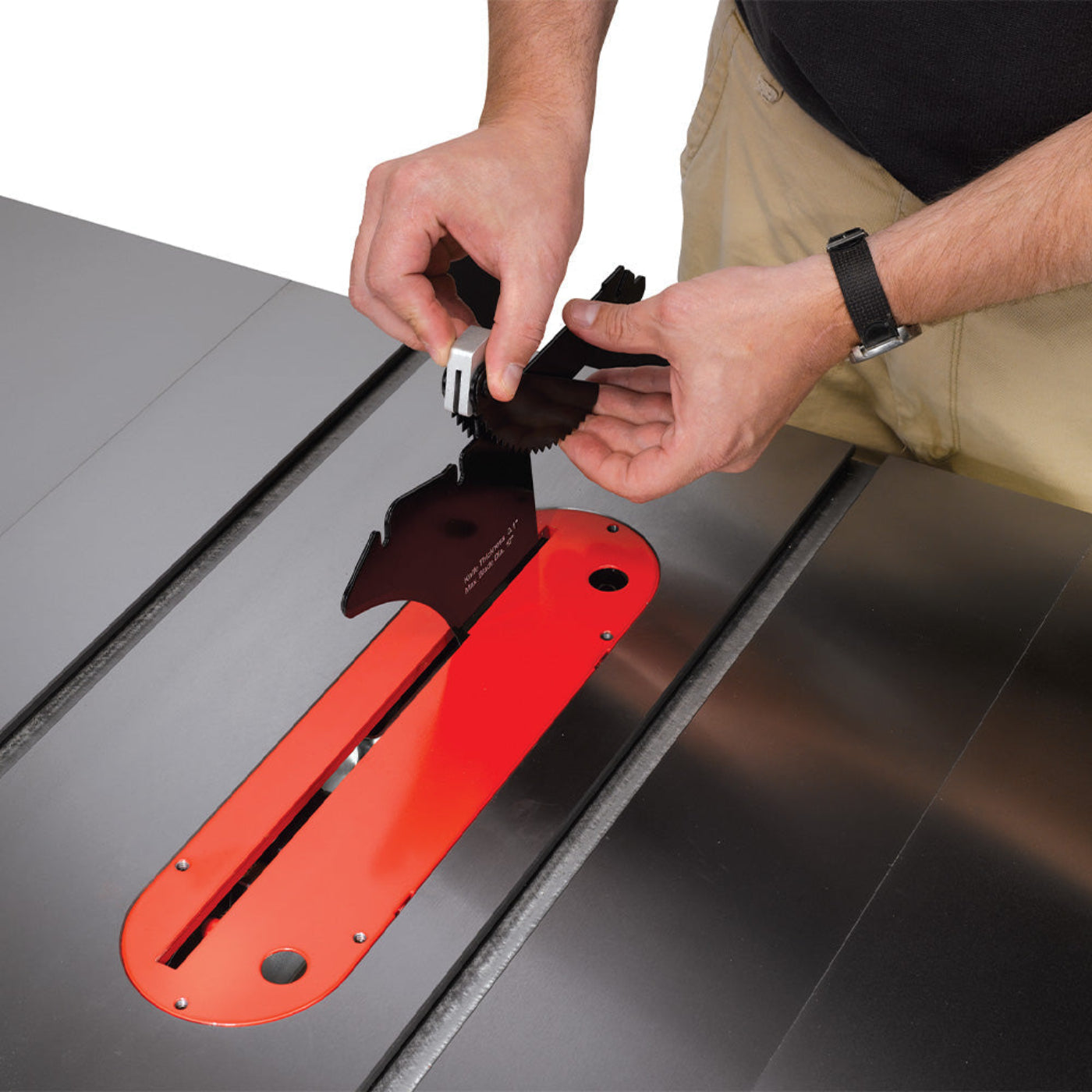

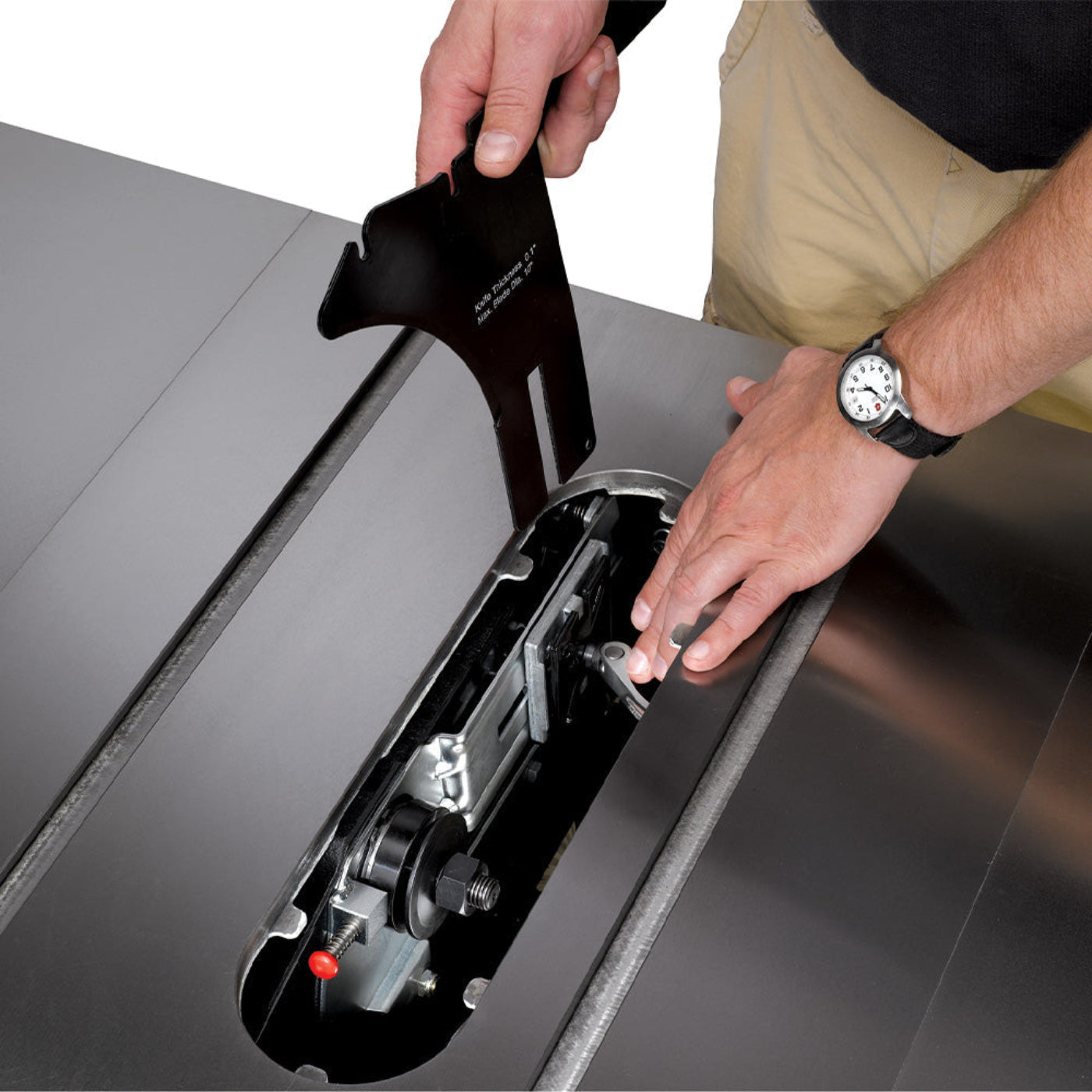

The JET Deluxe XACTA Saw features a quick-release riving knife and an integrated push button arbor lock that keeps the operator safe. Heavy-duty, chrome-plated handwheels provide smooth trunnion/arbor movement. The independent leaf safety guard protects the operator from the blade while cutting, even at a 45° tilt.
The Deluxe XACTA Saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer. A rail-mounted magnetic switch provides overload protection. The 26" x 30" wings and deeper table gives you even more cast iron to work on.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Hinged motor cover on cabinet gives quick access to the motor and belts

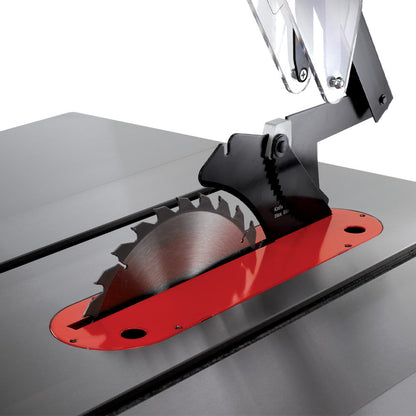

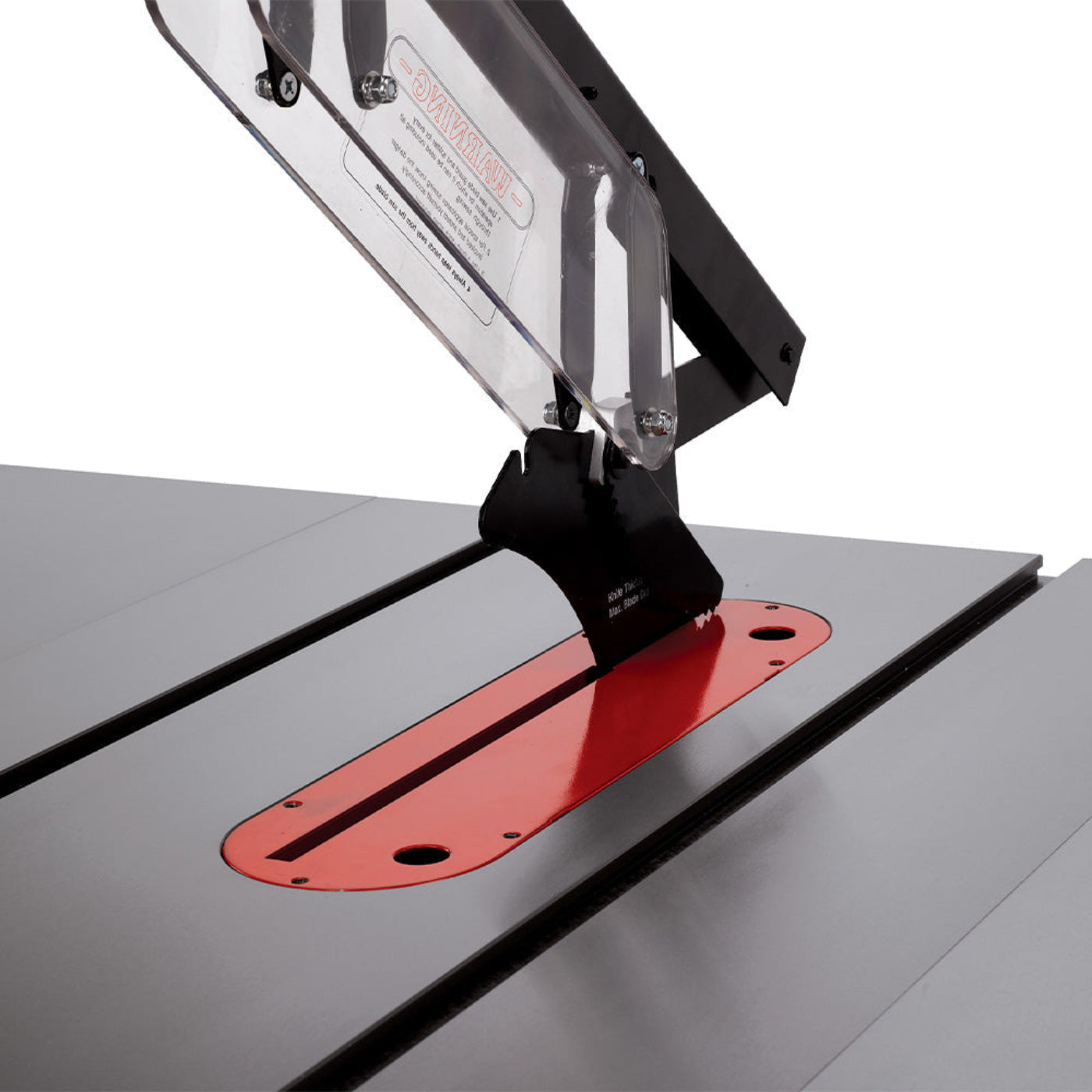

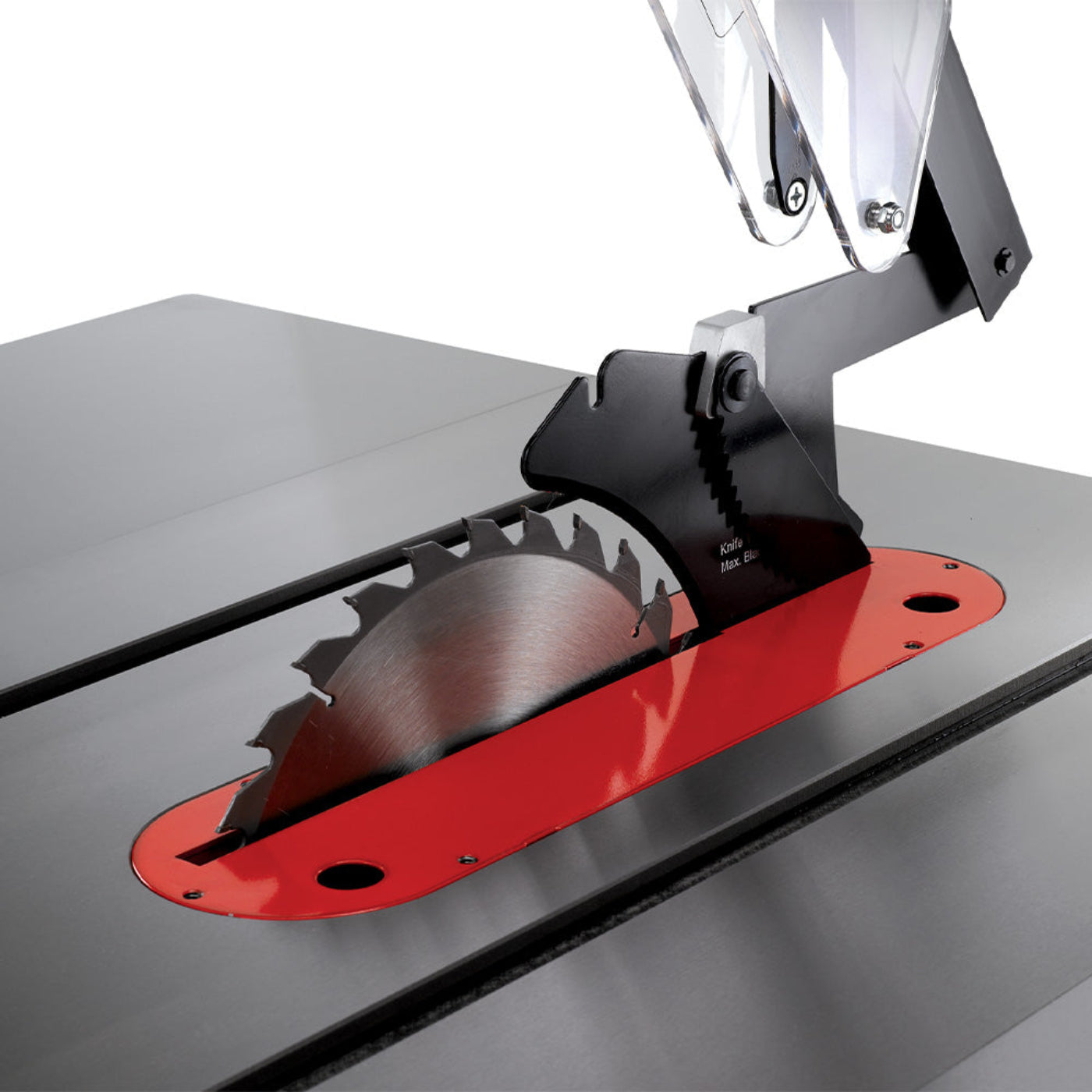

- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
- Left and right cast iron extension wings
- Powder coated paint for a long-lasting, chip-resistant finish
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Wide stance heavy-duty trunnion for stability and smooth blade positioning
Specifications
| Blade Diameter |
10" |
| Arbor Diameter |
5/8" |
| Max. Depth of Cut |
3" |
| Max. Thickness (45° Cut) |
2-1/8" |
| Max. Rip Right of Blade |
50" |
| Max. Width of Dado |
13/16" |
| Max. Diameter of Dado |
8" |
| Dust Port Diameter |
4" |
| Min. Dust Collection Required |
350 CFM |
| Table Height |
34" |
| Table Size with Extension (D x W) |
29" x 42" |
| Table Size without Extension (D x W) |
29" x 20" |
| Motor |
3 hp, 1-phase, 230V |
| Net Weight |
510 lbs. |
What our Experts Think
-
Powerful Motor: 3HP, 230V motor delivers precise, smooth cuts on large hardwoods and sheet goods.
-
Extra-Large Rip Capacity: 50" rip fence handles oversized materials with ease, perfect for cabinetry and furniture.
-
Precision Engineering: Deluxe cast-iron trunnion system and flat tabletop reduce vibration for accurate cuts.
-
Safety Features: Includes riving knife, quick-release blade guard, and poly V-belt drive for safer operation.
-
User-Friendly: Arbor lock and push-button access speed up blade changes and maintenance.
Q&A
Q: What motor powers the JET Deluxe XACTA Table Saw?
A: It features a 3HP, single-phase motor running on 230V for powerful and smooth operation.
Q: What is the maximum rip capacity?
A: Offers a large 50-inch rip capacity, ideal for wide sheet goods and large cutting tasks.
Q: Does it have dust collection features?
A: Yes, includes a 4" dust port and fully shrouded blade for effective dust control.
Q: What safety features are included?
A: Comes with a riving knife, blade guard, and arbor lock for enhanced operator safety.
Q: Is this table saw suitable for professionals?
A: Yes, built with a precision-ground cast iron table, heavy-duty fence, and trunnion system for professional-grade performance.
Q: What accessories are included?
A: Includes deluxe XACTA fence, miter gauge, push stick, riving knife, and enclosed cabinet stand.
Maintenance Tips
-
Clean Table Surface and Fence Regularly – Remove sawdust, resin, and debris to maintain smooth material feed and accuracy.
-
Check and Align Blade and Arbor – Ensure the blade is parallel to the miter slot and arbor runs true to avoid uneven cuts.
-
Lubricate Elevation and Tilt Mechanisms – Apply appropriate lubricant to keep adjustments smooth and precise.
-
Inspect and Replace Saw Blade – Use sharp blades and replace dull or damaged ones promptly to ensure clean cuts and reduce motor strain.
-
Clean Dust Collection Ports and Motor Vents – Prevent dust buildup to improve airflow and avoid overheating.
-
Check Belt Condition and Tension – Inspect belts for wear or cracks; maintain proper tension for efficient power transmission.
-
Tighten Bolts and Fasteners – Regularly secure all hardware to minimize vibration and maintain safety.
-
Verify Electrical Connections – Inspect wiring and switches for damage and ensure safe operation.
-
Maintain Blade Guard and Safety Features – Keep guards clean and functioning properly to ensure operator safety.
-
Store in a Dry, Clean Environment – Protect the saw from moisture and dust to prevent rust and electrical issues.
-
Follow Manufacturer’s Maintenance Schedule – Adhere to JET’s recommended service and inspection intervals.
