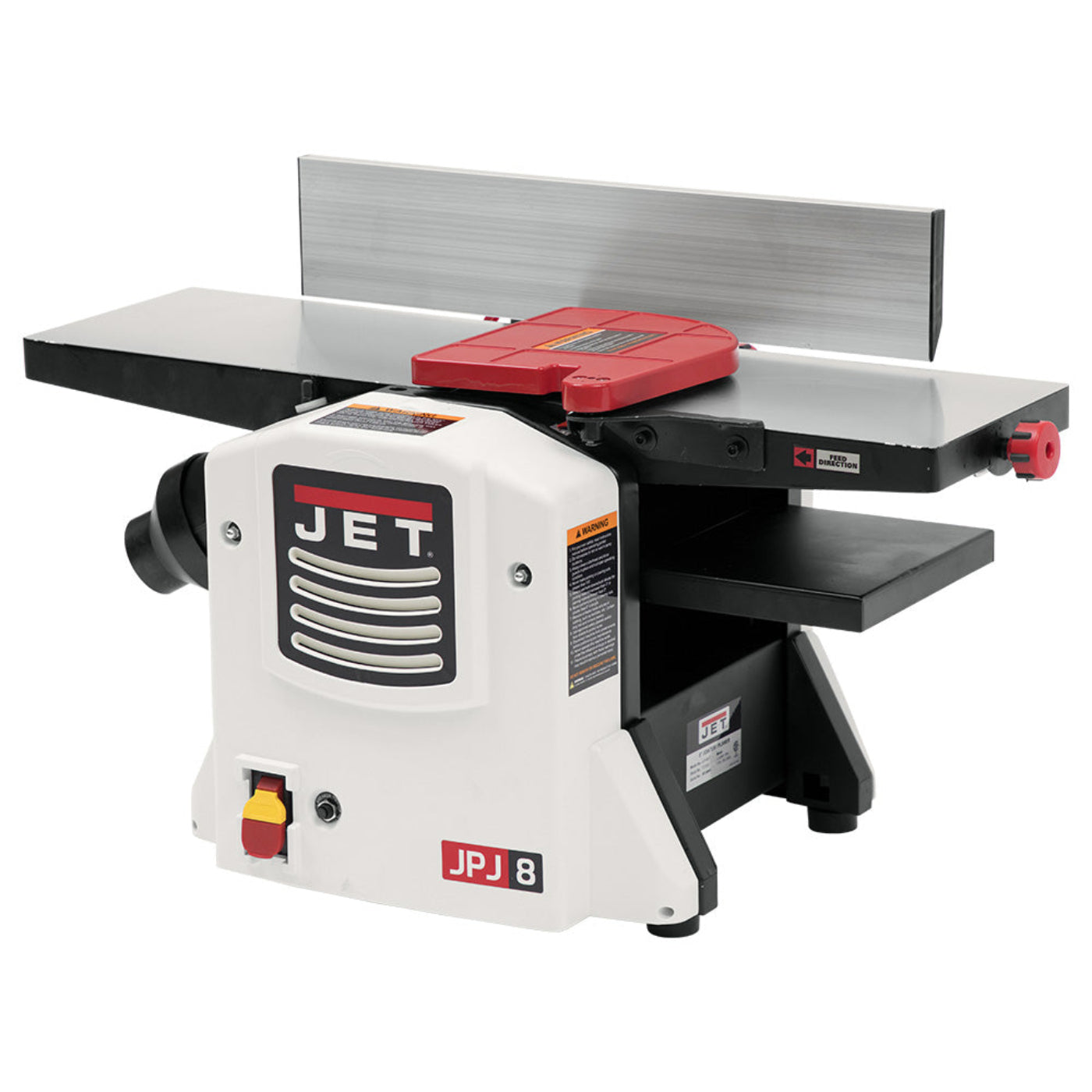

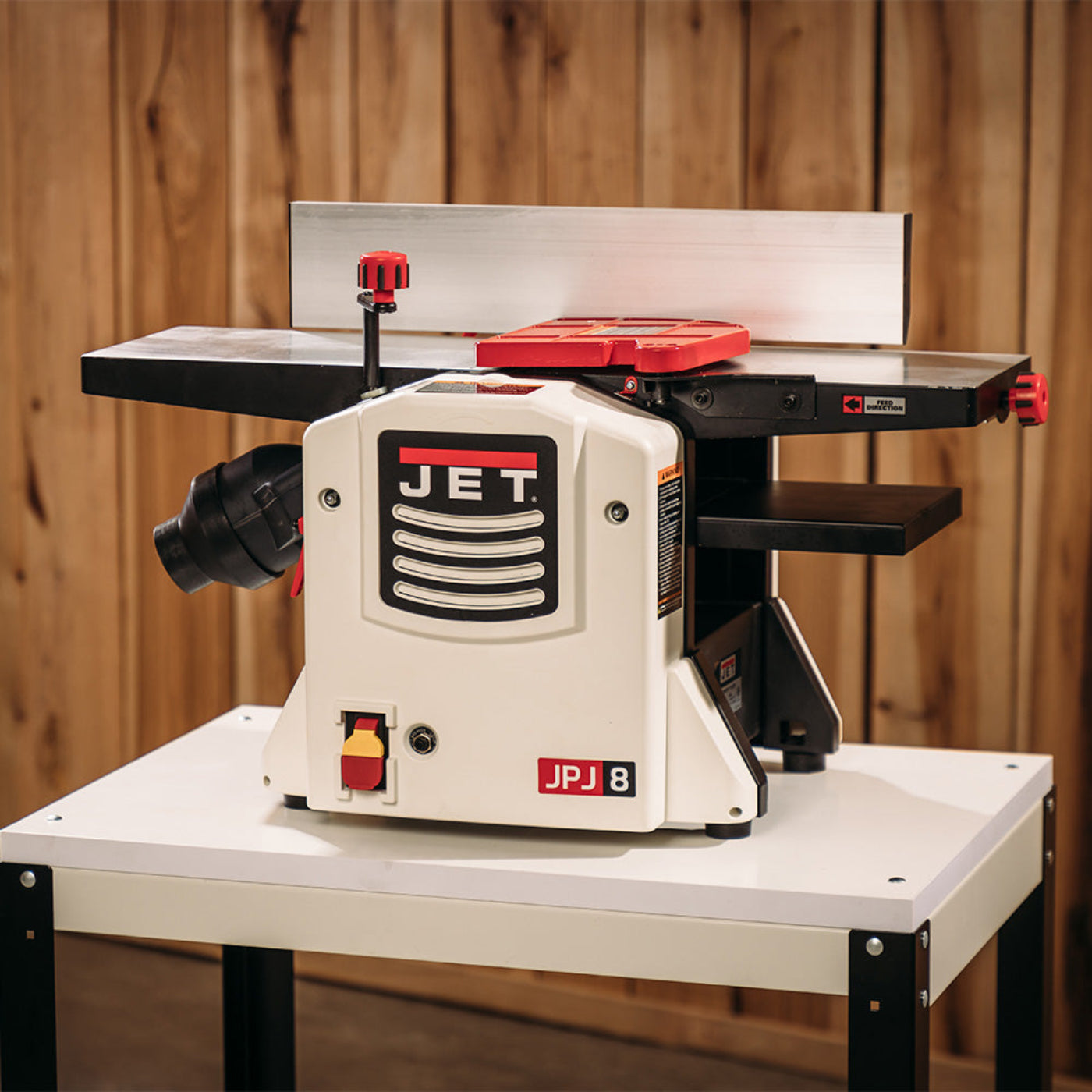

JET JJP-8BT 8" Jointer/Planer Combo - JT9-707400
Designed with the space limitations faced by many of today's woodworkers, the JET 8" Jointer/Planer packs the capabilities of the jointer and planer into a single, space-saving footprint. Combining the jointer and planer, two of the most-used core woodworking machines also saves money.

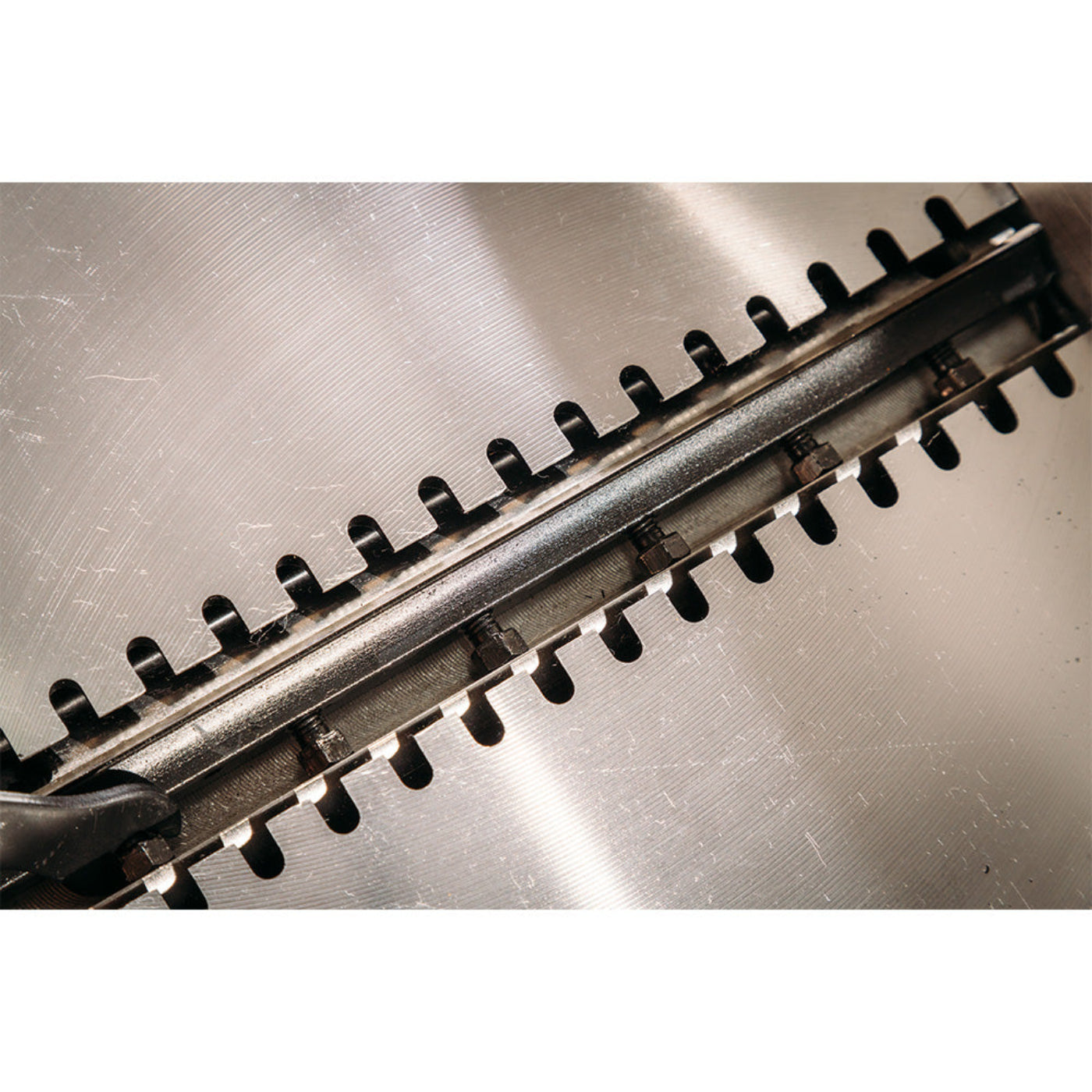

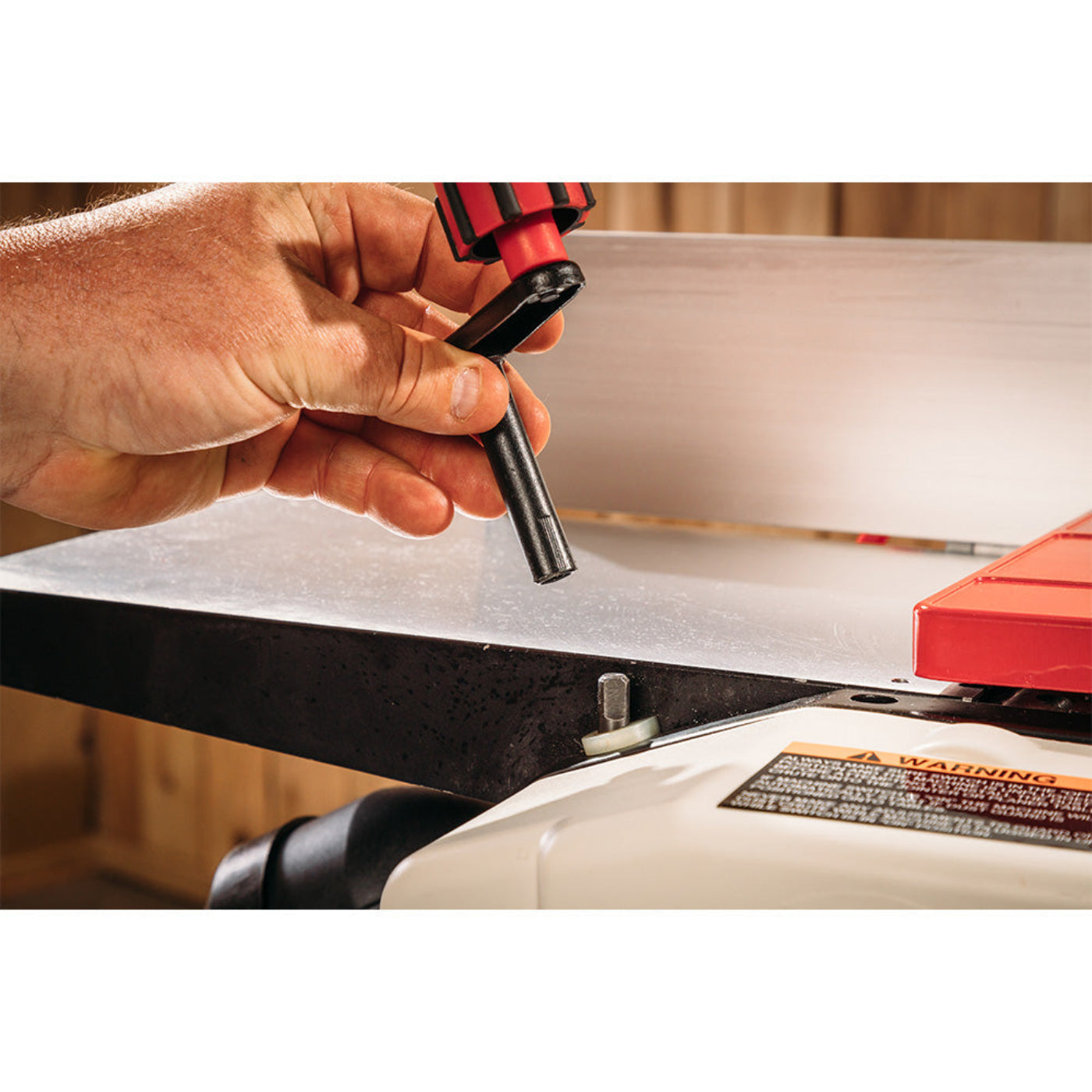

The precision machined, all-steel cutterhead is equipped with two high-quality knives. The knives are made from premium steel so they take and hold a sharp edge. The knives are retained with tried and true wedge blocks and gib screws. A jackscrew is located at each end of the knives to make setting critical heights easier and more accurate. A knife setting gauge is also provided to make setting the knives fast and easy.

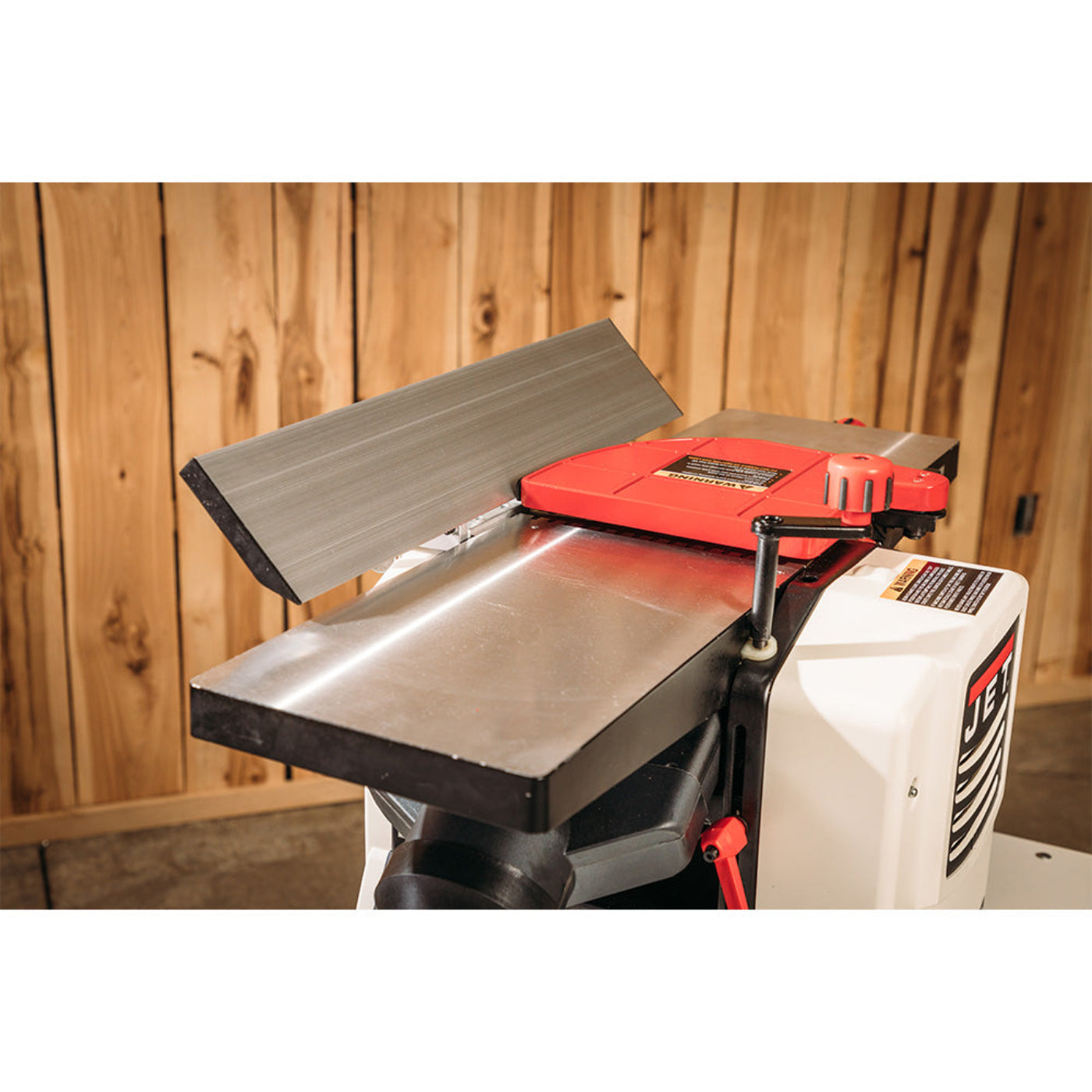

A 29" x 8-1/4" cast aluminum jointing table is precisely machined to be flat and smooth. The JET 8" Jointer/Planer is capable of a maximum cut depth of 1/8" with the cut adjusted using a single knob at the end of the infeed table. A handy cut depth gauge is provided at the front edge of the infeed table. The infeed table is locked in position with a pair of finger-operated knobs.

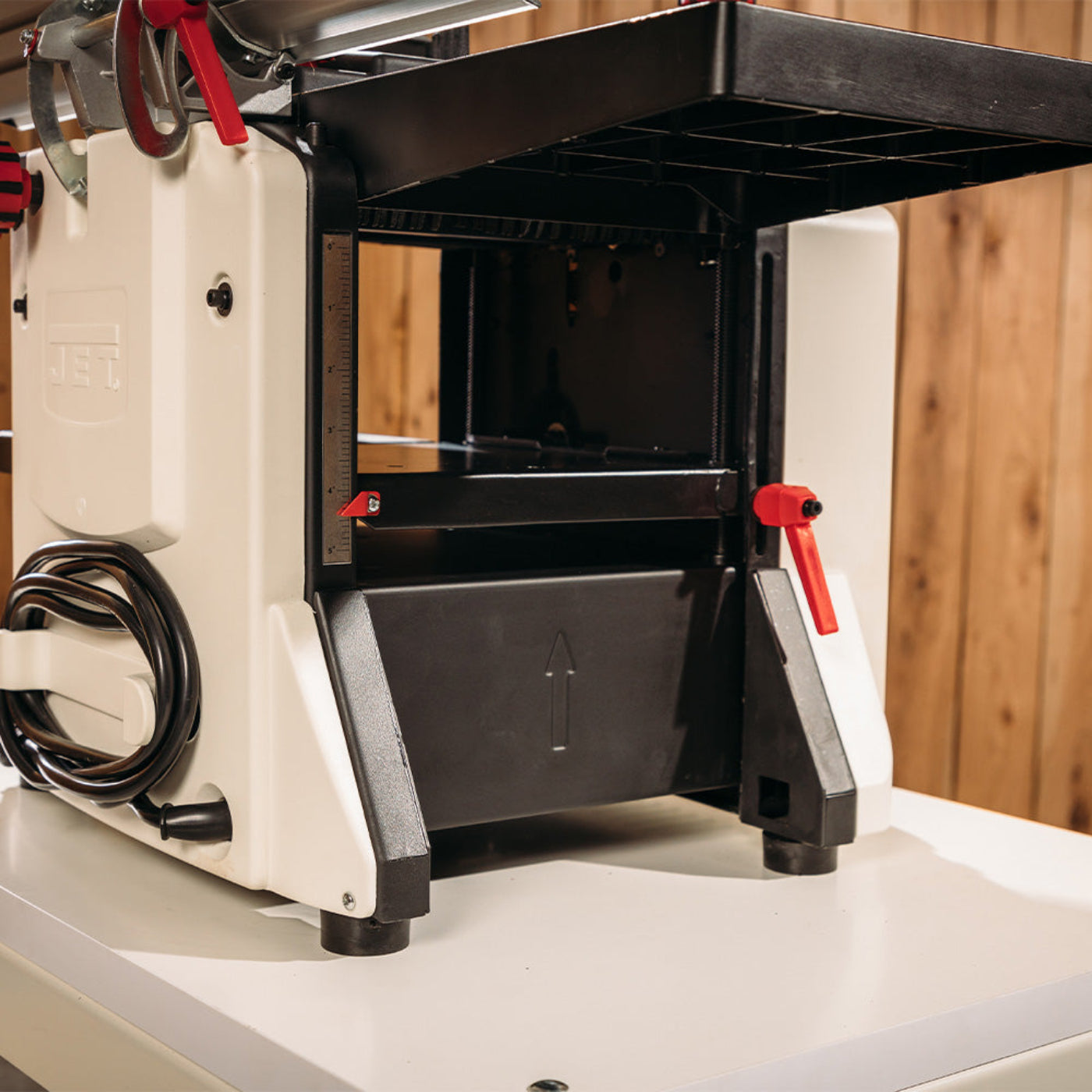

The planer table surface is 17-1/2" long (with the included extension table) by 8-1/2" wide. The table is raised and lowered with a hand crank that plugs into the top of the JET 8" Jointer/Planer. A handy scale next to the planer infeed opening shows the current table to knife distance and makes setup fast and easy. The planer table moves up and down on four lead screws, one in each corner of the main cabinet for maximum stability. The table is secured for making cuts with a single locking handle.

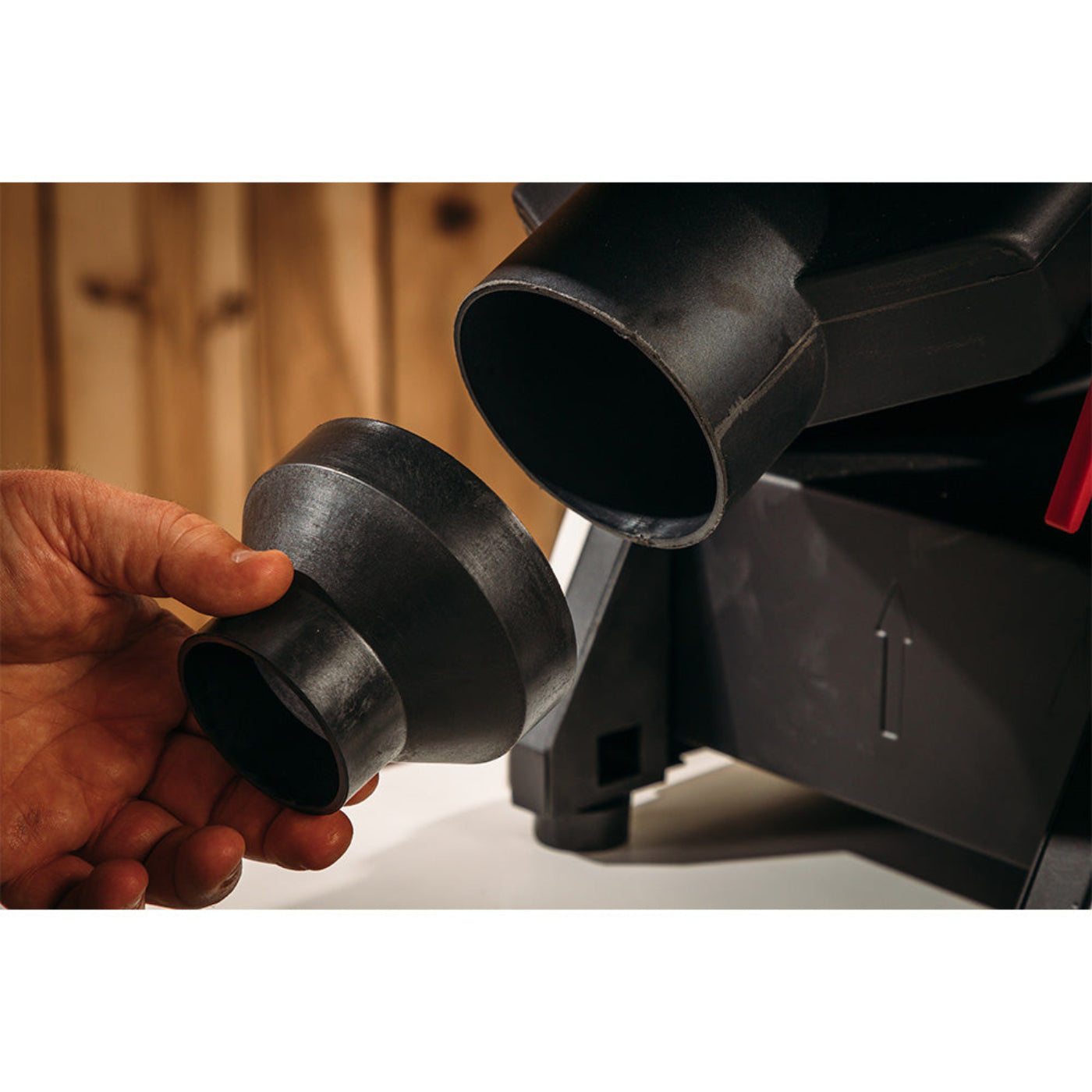

The JET 8" Jointer/Planer comes with a single dust shroud assembly that can be installed for either jointing or planer functions. This chute is attached using finger-operated knobs that make installation fast and tool free. The dust shroud is also designed as a safety interlock for the jointer-planer. This means the machine will not operate unless the dust shroud is installed in either the jointing or planning mode.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Get the optiona stands to optimize your 8" Jointer/Planer
Features
- Combination bench top jointer and planer provides a 2-in-1 machine to maximize workspace
- Compact bench top design fits conveniently in small shop environments
- Heavy Duty 13 Amp motor for various cutting applications
- Integrated cord wrap makes transporting easy and ensures workshop safety
- Large aluminum extruded fence
- Oversized, ergonomic knobs provide ease of use and maximum control
- Planing and joining tables lock
- Precision machined table top ensures a smooth, straight cut
- Sheet metal out feed table with height adjustment supports long work pieces and helps reduce snipe
- Two high speed steel knives for smooth cuts
Specifications
| Cutterhead Speed |
9,000 RPM |
| Number of Knives |
2 |
| Cutter Knife Length |
8-1/4" |
| Cutter Knife Thickness |
0.060" |
| Dust Port Diameter |
2-1/2" or 4" |
| Jointer Table (L × W) |
29" × 8-1/4" |
| Max. Stock Removal |
1/8" |
| Max. Cutting Width |
8" |
| Fence (L × H) |
4-1/8" × 21" |
| Fence Tilt |
90° – 45° R |
| Planer Table (L × W) |
10-5/8" × 8-1/2" |
| Max. Cutting Thickness |
4-1/2" |
| Max. Depth of Cut |
5/64" |
| Min. Length of Workpiece |
6" |
| Feed Rate |
19.5 FPM |
| Motor Voltage |
120 V, 60 Hz, 13 A |
| Overall Dimensions (L × W × H) |
31" × 16-1/2" × 18-1/2" |
| Net Weight |
58 lbs |
What our Experts Think
Q&A
Q1: What type of machine is this?
A: The JET JJP-8BT is an 8-inch jointer/planer combo, designed for jointing edges and planing boards to precise thicknesses in one versatile unit.
Q2: What are the motor specifications?
A: Equipped with a powerful motor (details in the manual) suitable for both light and heavy-duty woodworking tasks.
Q3: What are the key features?
A: Features include precision infeed/outfeed tables, adjustable fence, dual-purpose jointer/planer setup, and heavy-duty cast iron construction for stability.
Q4: What materials can it handle?
A: Ideal for hardwoods, softwoods, and engineered wood panels, providing smooth, accurate cuts.
Q5: Is it suitable for professional use?
A: Yes, built for professional woodworking shops and serious enthusiasts who need a compact, multi-functional machine.
Q6: Does it include safety features?
A: Yes, includes cutterhead guards, push blocks, and stable base for safe operation.
Q7: What are the cutting capacities?
A: Supports 8-inch width jointing and planing up to specified thickness limits (see manual for exact measurements).
Maintenance Tips
-
Clean Regularly: Remove wood chips, dust, and debris from the tables, cutter heads, and planer/jointer areas after each use.
-
Inspect Blades: Check the jointer and planer blades for sharpness; sharpen or replace as needed for smooth, precise cuts.
-
Lubricate Moving Parts: Apply light machine oil to adjustment screws, infeed/outfeed mechanisms, and fence pivots to prevent wear.
-
Check Alignment: Periodically verify the jointer tables, fence, and planer rollers for proper alignment.
-
Electrical Safety: Ensure the 115V/230V power supply is stable and cords are free from damage.
-
Store Safely: Keep the combo unit in a clean, dry area to protect the motor and mechanical components.
