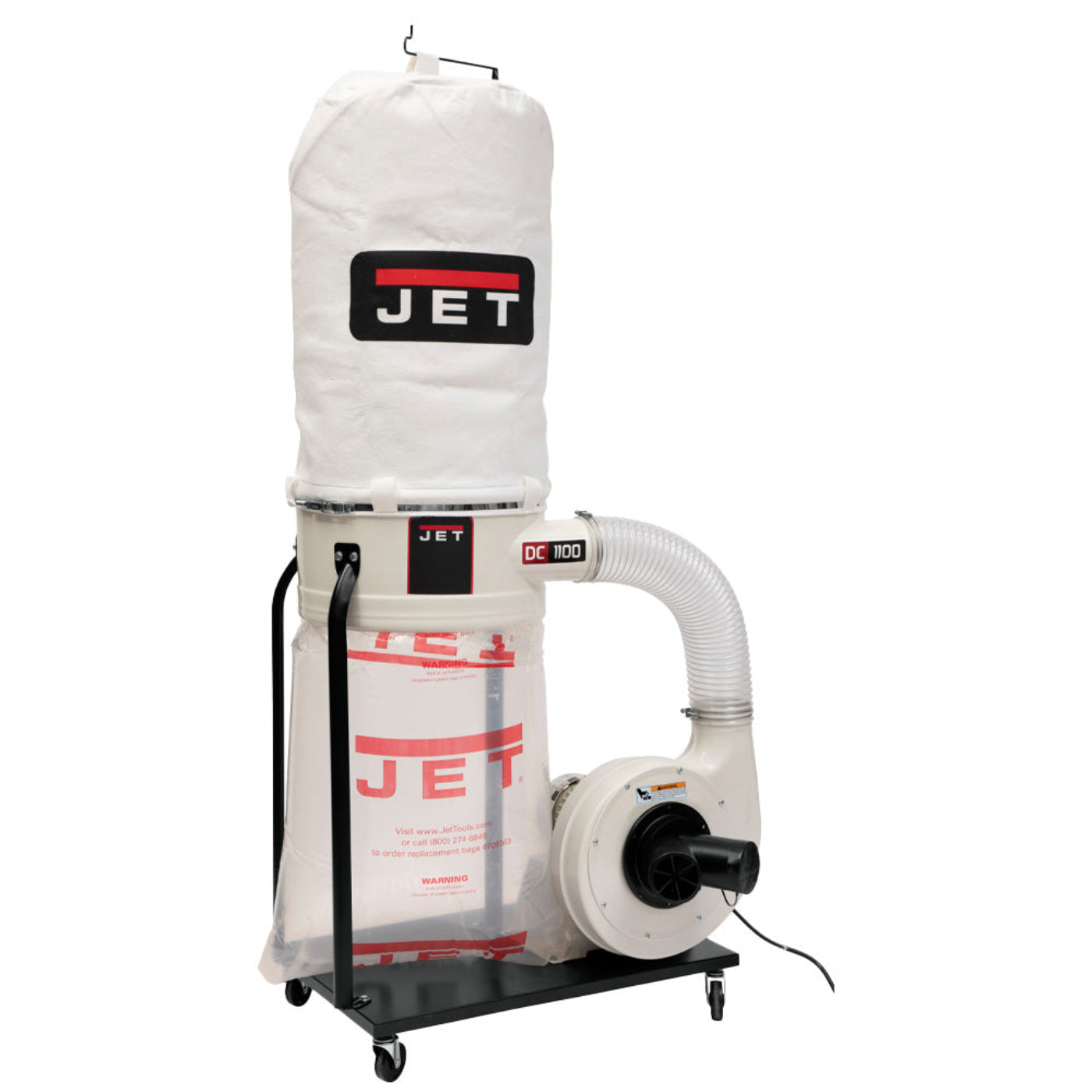

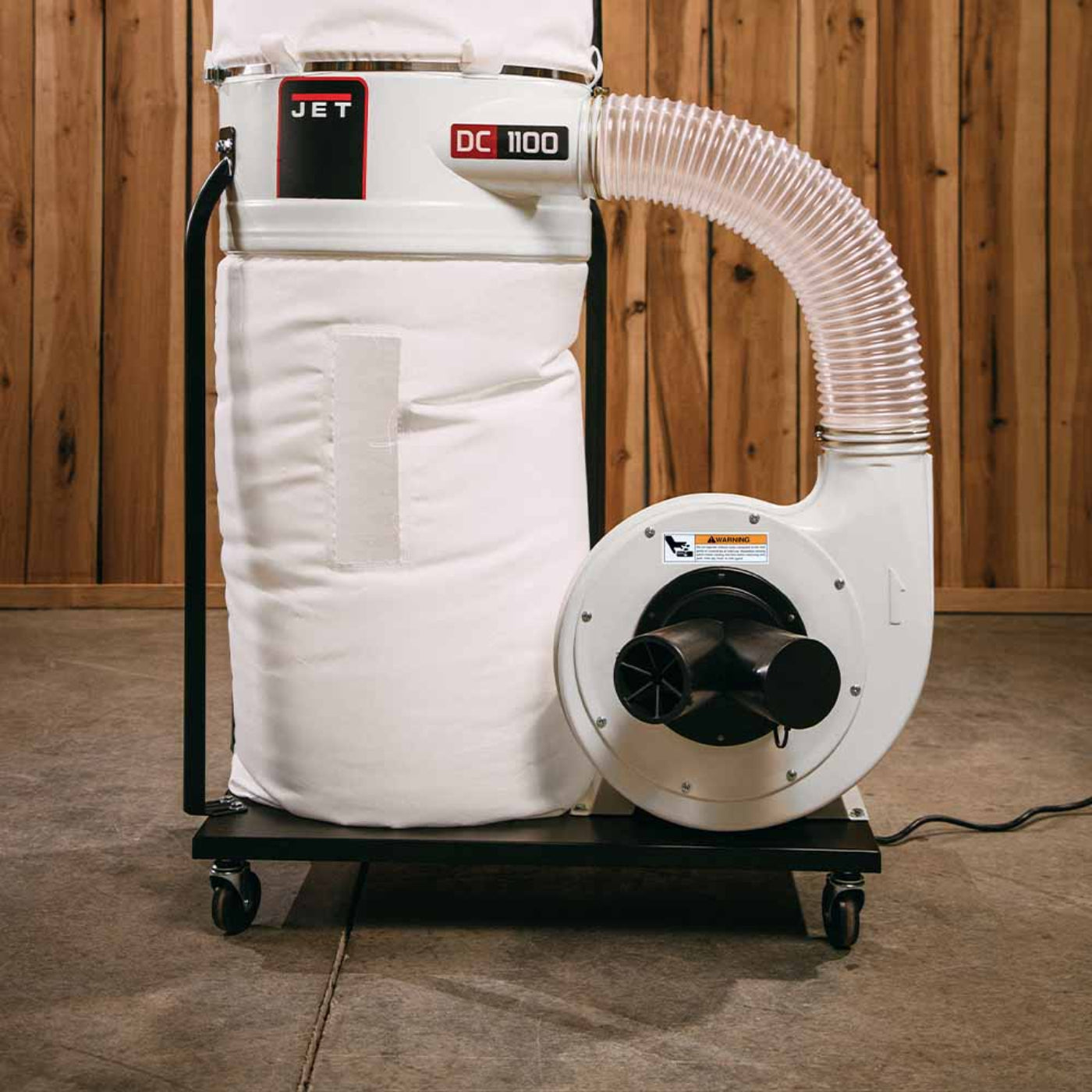

JET 5-Micron Bag Filter Kit DC-1100VX-5M Dust Collector 1.5hp, 1PH, 115/230V - JT9-708658K
The JET DC-1100VX-5M features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Features
- Eliminates premature filter clogging for sustained performance
- High air velocity (CFM) design stands up to any competitive specifications
- Includes four casters for maneuverability and total portability
- Industrial controls designed for years of trouble-free use
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- Single-stage design for economical and quiet operation

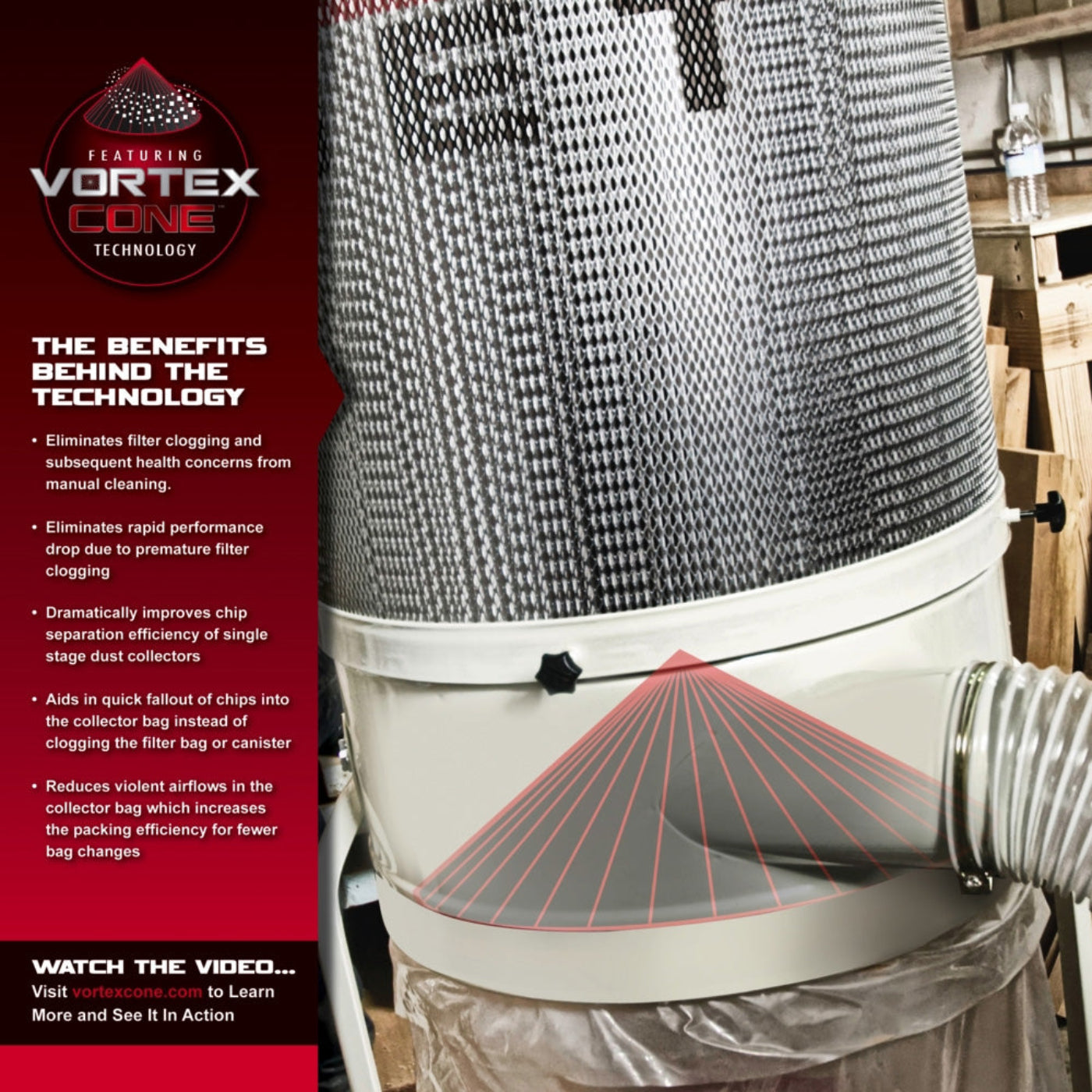

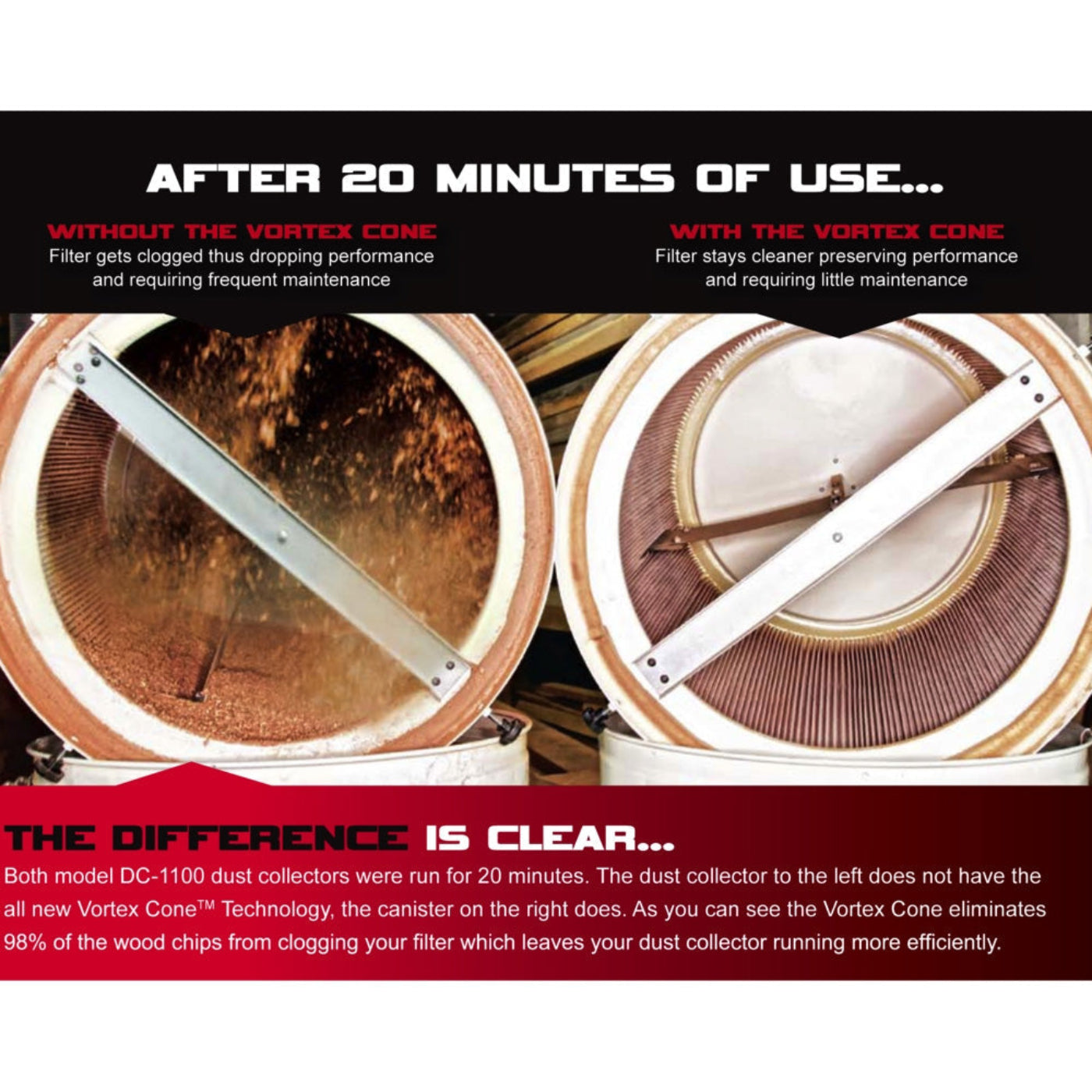

- Vortex Cone improves chip separation and collector bag packing efficiency
Specifications
| 1-Hose Connection Diameter |
6" |
| 2-Hoses Connection Diameter |
4" |
| Air Flow @ 4" |
1,100 CFM |
| Velocity @ 4" |
12,571 FPM |
| Bag Diameter |
20" |
| Collection Bag Capacity |
5-3/10 Cu. Ft. |
| Collection Bag Length |
30" |
| Efficiency |
5 Micron |
| Impeller Material |
Steel |
| Sound Rating |
70 – 80 dB |
| Static Pressure |
10-1/2 Wc |
| Motor Power |
1-1/2 HP |
| Motor Amps |
11 / 5.5 A |
| Motor Phase |
1-PH |
| Motor Voltage / Prewired Voltage |
115 V / 230 V (prewired 115 V) |
| Overall Dimensions (L × W × H) |
37" × 28" × 79" |
| Net Weight |
103 lbs |
What our Experts Think
-
High-Efficiency Filtration: 5-micron bag captures fine dust particles, improving air quality and protecting respiratory health.
-
Powerful Suction: 1.5 HP motor provides strong airflow to efficiently collect dust from multiple tools.
-
Large Capacity: Spacious collection bag reduces the need for frequent emptying, allowing longer work sessions.
-
Durable Construction: Heavy-duty steel housing ensures reliable performance and long-lasting durability.
-
Easy Maintenance: Quick-release filter bag allows simple replacement and cleaning.
-
Compact & Workshop-Friendly: Designed to fit efficiently in most shop setups without occupying excessive space.
-
Expert Verdict: A dependable and efficient dust collector offering superior filtration, robust power, and ease of use — essential for maintaining a clean, safe woodworking environment.
Q&A
Q1: What is this product?
A: A 5-micron bag filter kit designed for the JET DC-1100VX Dust Collector, enhancing fine dust filtration for cleaner workshop air.
Q2: What motor specification does it support?
A: Compatible with the DC-1100VX dust collector, which features a 1.5 HP, single-phase (1PH), 115/230V motor.
Q3: What does the 5-micron filter do?
A: Captures ultra-fine dust particles down to 5 microns, reducing airborne dust and improving workshop air quality.
Q4: Is it suitable for professional use?
A: Yes, ideal for woodworking shops, metalworking, and professional environments requiring advanced dust control.
Q5: Does it include all necessary components?
A: Yes, the kit includes the bag filter, sealing components, and hardware needed for installation.
Q6: Does it fit existing DC-1100VX units?
A: Yes, specifically designed for JET DC-1100VX dust collectors for seamless compatibility.
Q7: What are the benefits of using this kit?
A: Enhances fine dust capture, prolongs dust collector life, reduces airborne dust, and keeps the workshop cleaner.
Maintenance Tips
-
Empty the Collection Bag: Regularly remove and empty dust to maintain optimal airflow and performance.
-
Clean the 5-Micron Filter: Shake, vacuum, or wash the bag filter as recommended to prevent clogging and ensure efficient dust capture.
-
Inspect Hoses and Connections: Check for leaks, cracks, or loose fittings; repair or replace as needed.
-
Check Motor and Fan: Ensure the 1.5hp motor runs smoothly and the fan is unobstructed.
-
Electrical Safety: Verify the 115/230V power supply is stable and cords are in good condition before operation.
-
Store Properly: Keep the dust collector in a clean, dry environment to prolong filter and motor life
